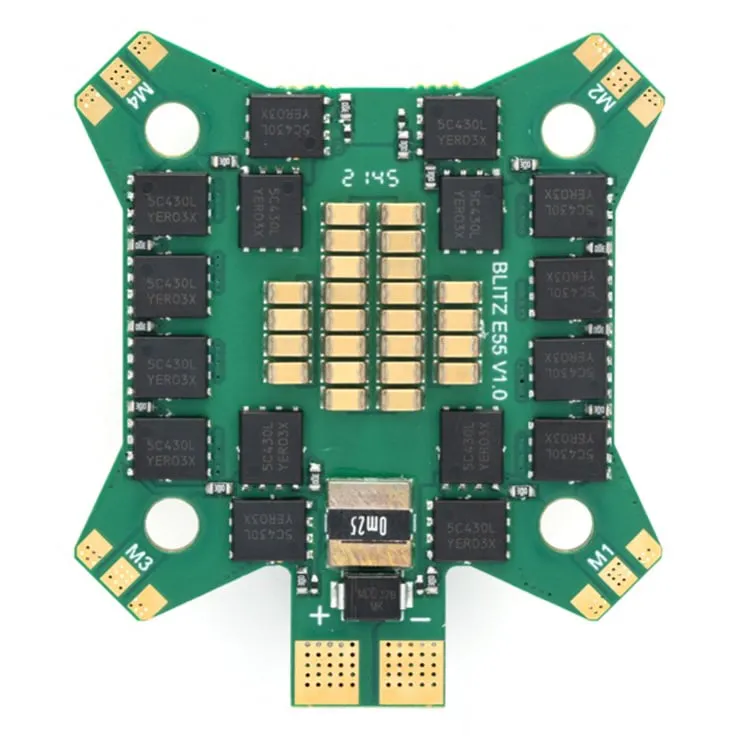

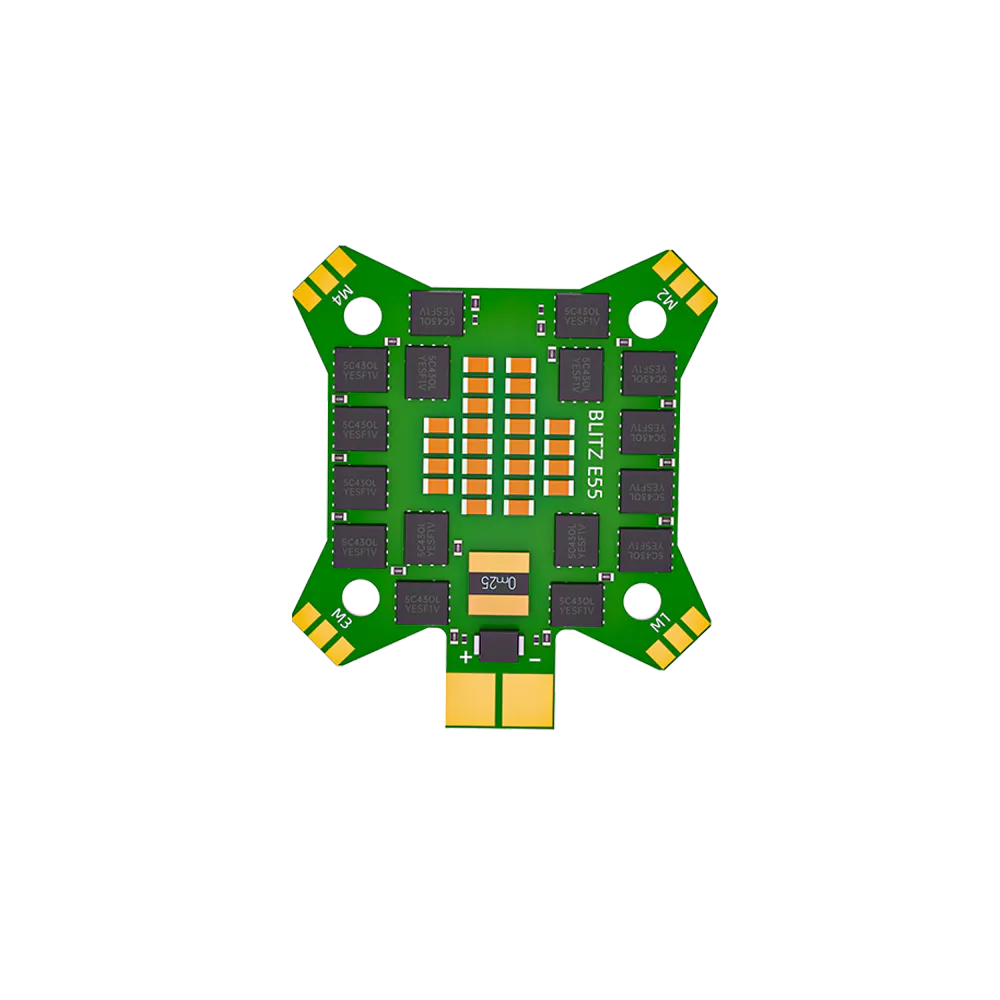

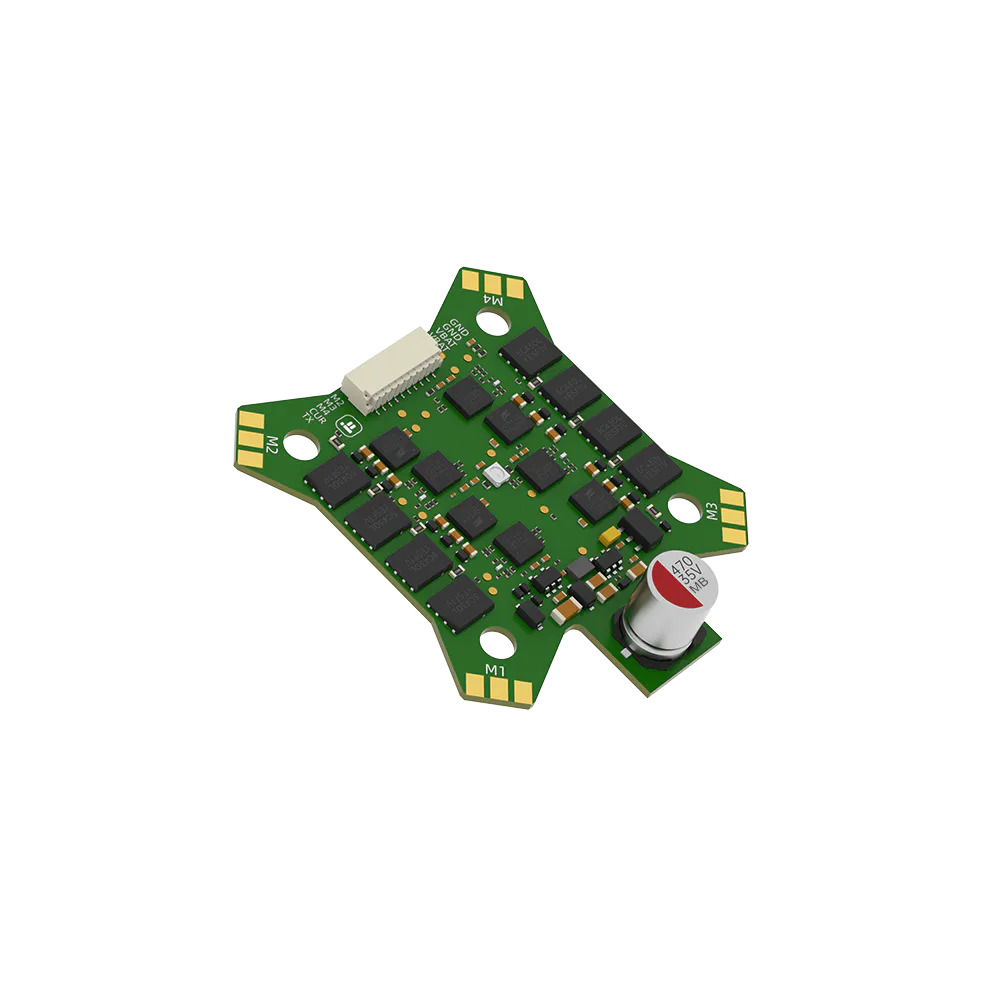

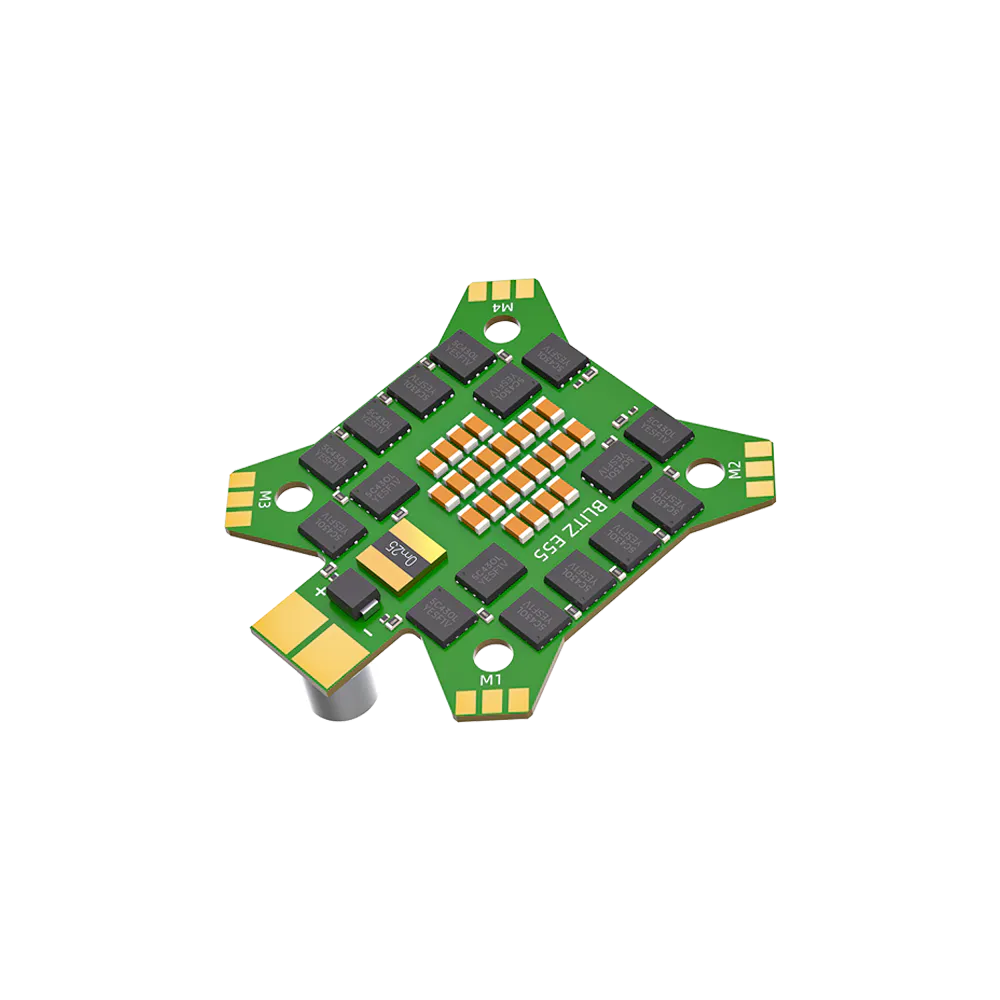

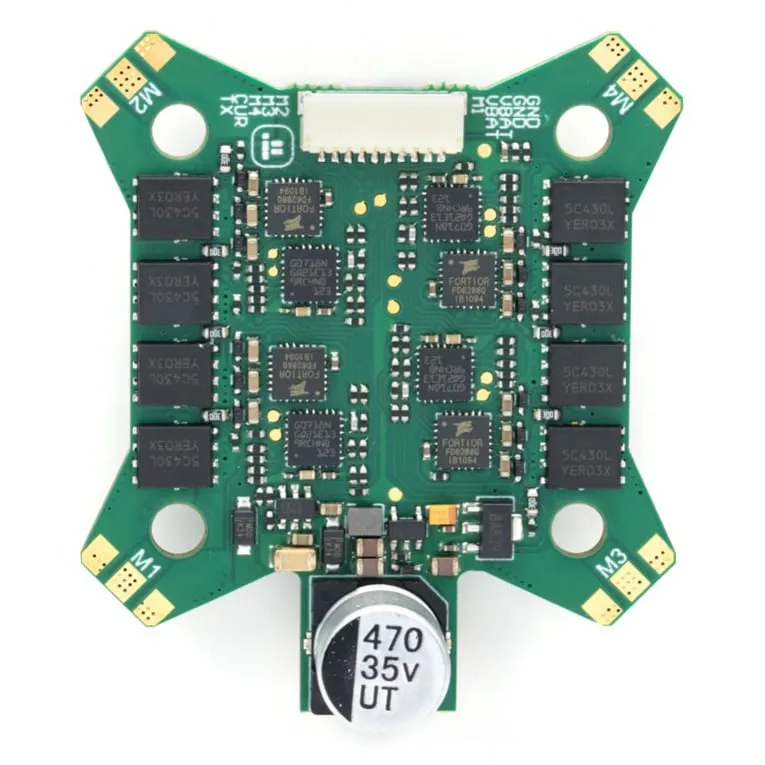

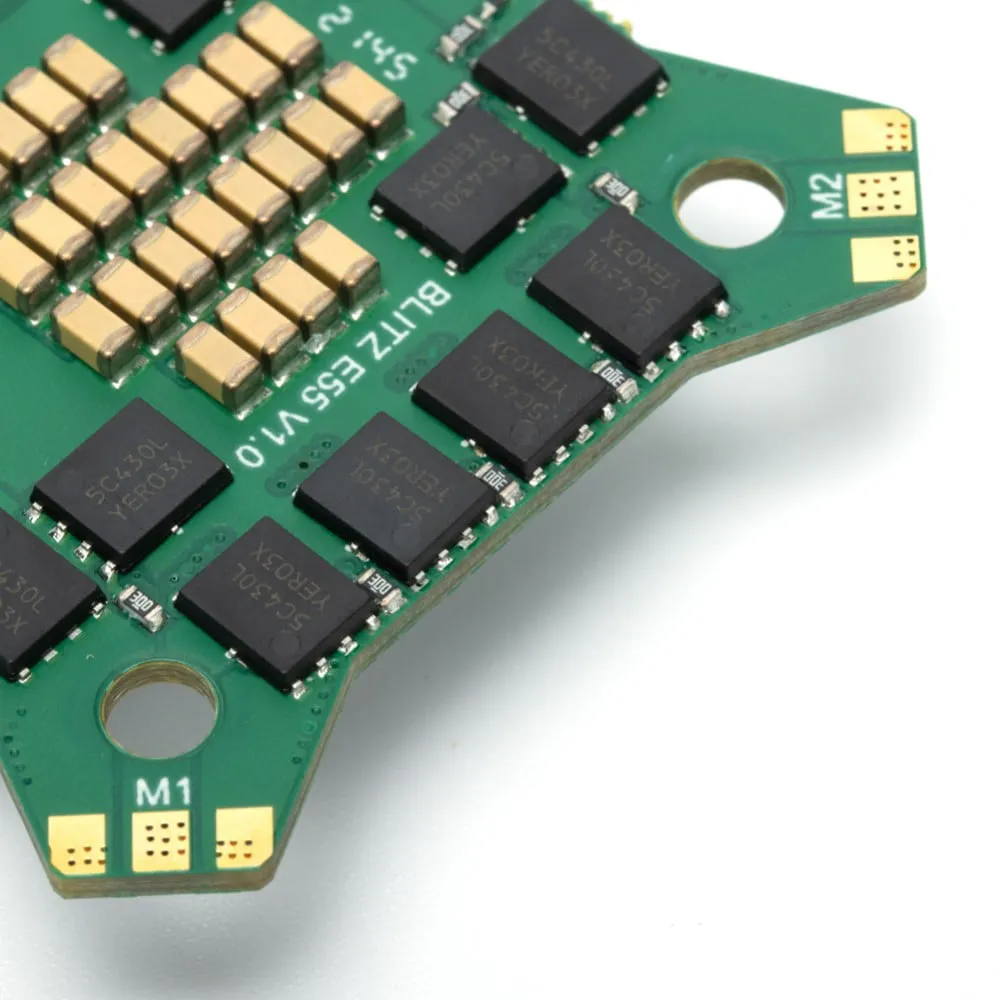

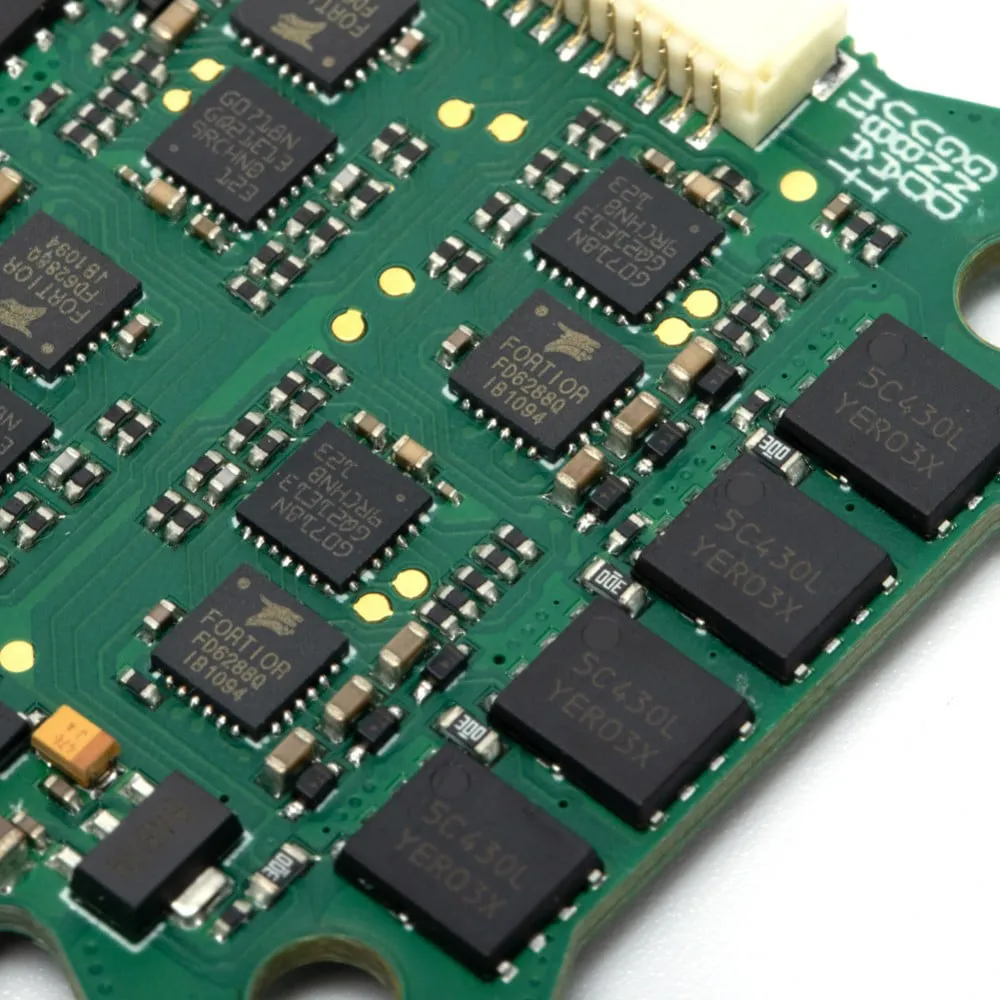

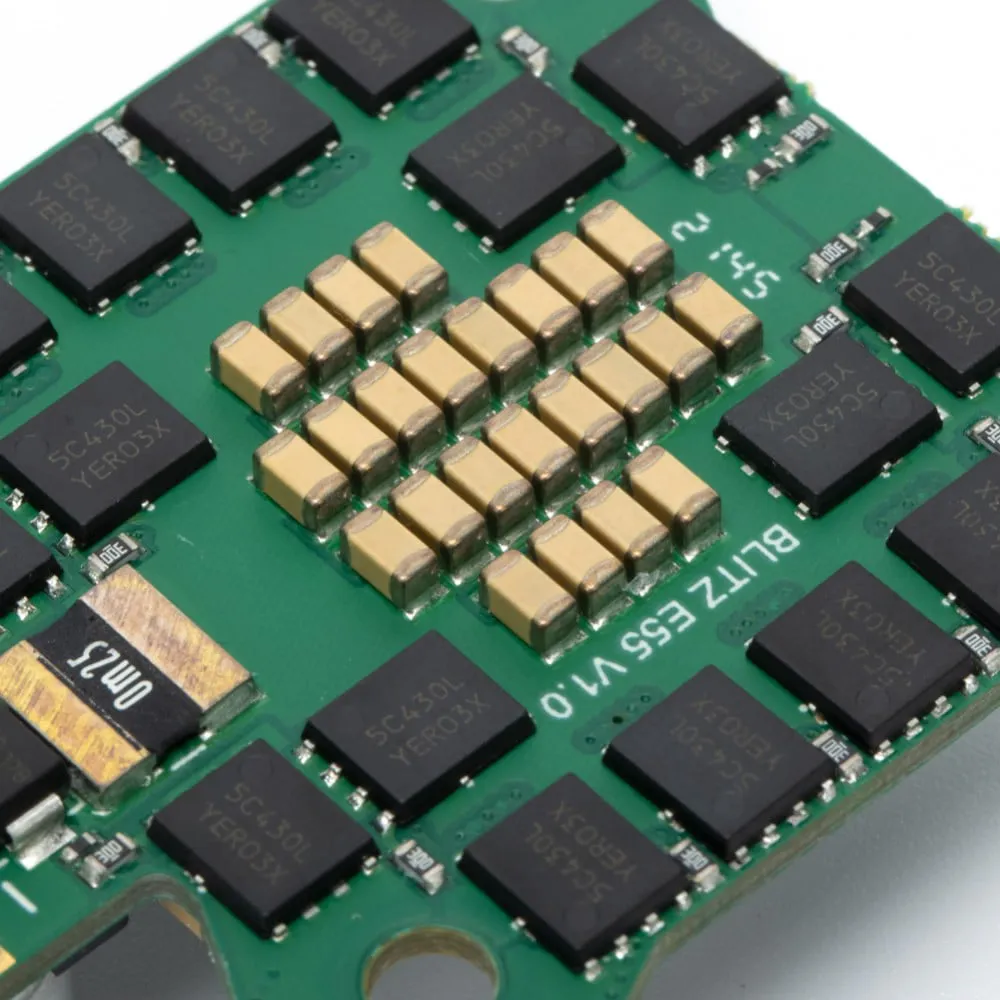

iFlight Blitz E55 4-in-1 2–6S ESC

The iFlight BLITZ E55 is a full-sized 4-in-1 ESC engineered for 5-inch freestyle, racing, and 7-inch long-range setups. Rated at 55A continuous and 65A burst per channel, this board handles the sustained amp draw of modern high-kV motors and heavier payloads. Running AM32 firmware, it natively supports active freewheeling and bidirectional DShot for accurate RPM filtering.

Key features

• 55A continuous and 65A burst current handling across all four channels
• Runs 32-bit AM32 firmware for advanced variable PWM frequencies
• Integrated current sensor for accurate battery consumption tracking
• Plug-and-play 8-pin connector allows clean, solderless integration with BLITZ flight controllers

Specifications

• Input voltage: 2-6S LiPo
• Continuous current: 55A
• Burst current: 65A
• Firmware: AM32
• Current sensor: Yes (Scale 200)
• Mounting: 30.5x30.5mm (4mm hole diameter)
• Weight: 15.3g

This ESC uses an industry-standard 30.5x30.5mm mounting layout, ensuring drop-in compatibility with the majority of full-size 5-inch to 8-inch frames. It pairs directly with iFlight BLITZ F7 and F722 flight controllers using the included wiring harness.
