T-Motor F411 AIO 1S 13A Whoop Flight Controller
SKU TMOTOR-F411-AIO-1S-13A
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

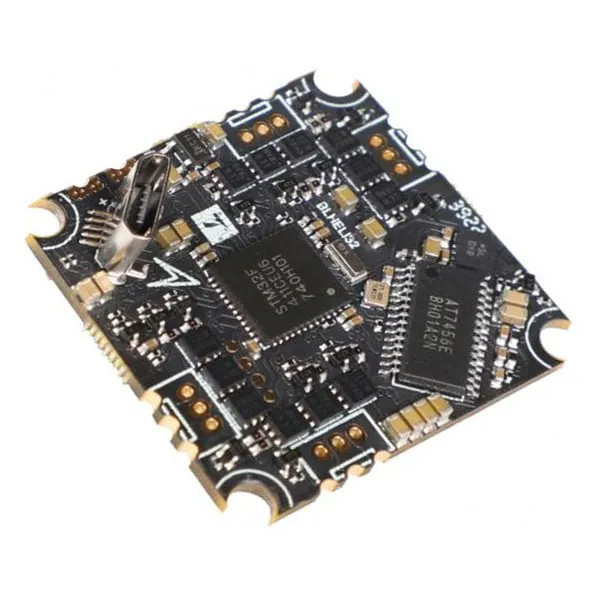

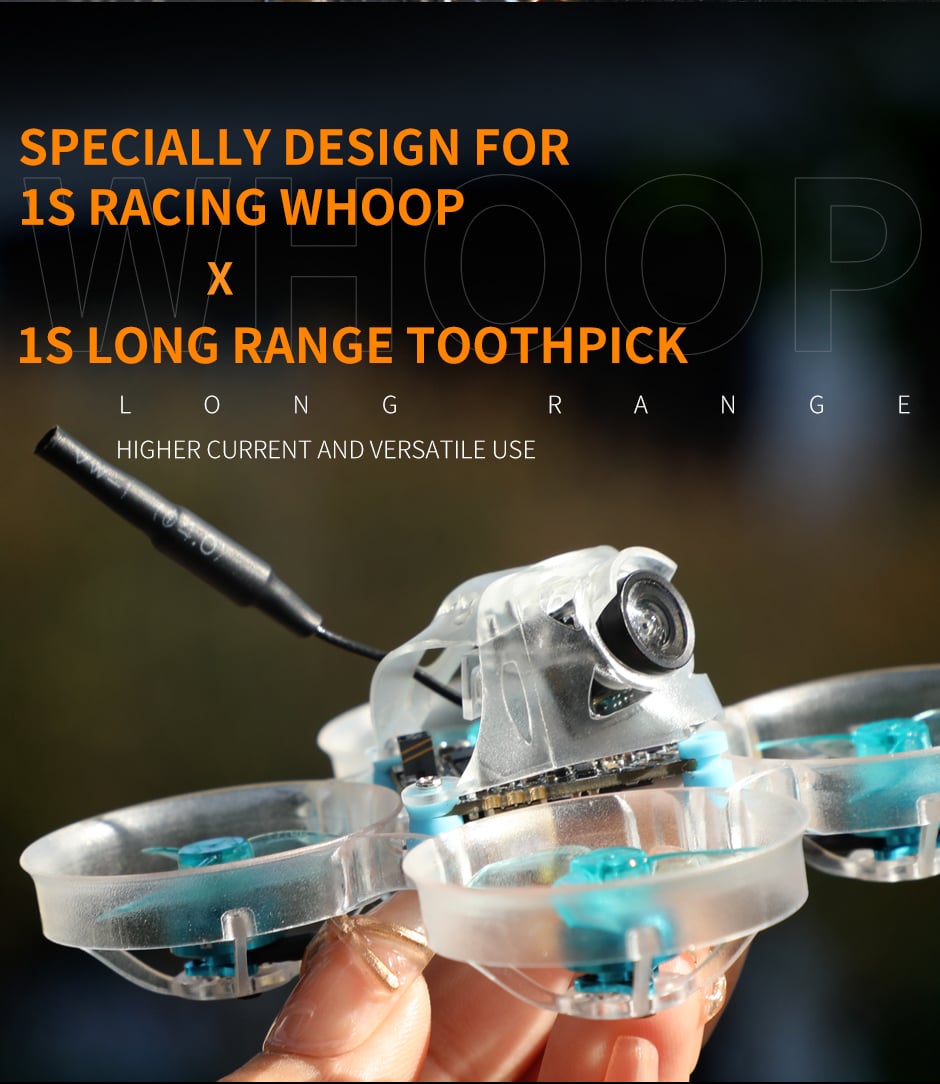

The T-Motor F411 AIO combines an F411 flight controller and a 13A 4-in-1 ESC on one board for 1S racing whoops and long-range toothpicks. One board instead of a stack saves weight and wiring where every gram counts.
Key features

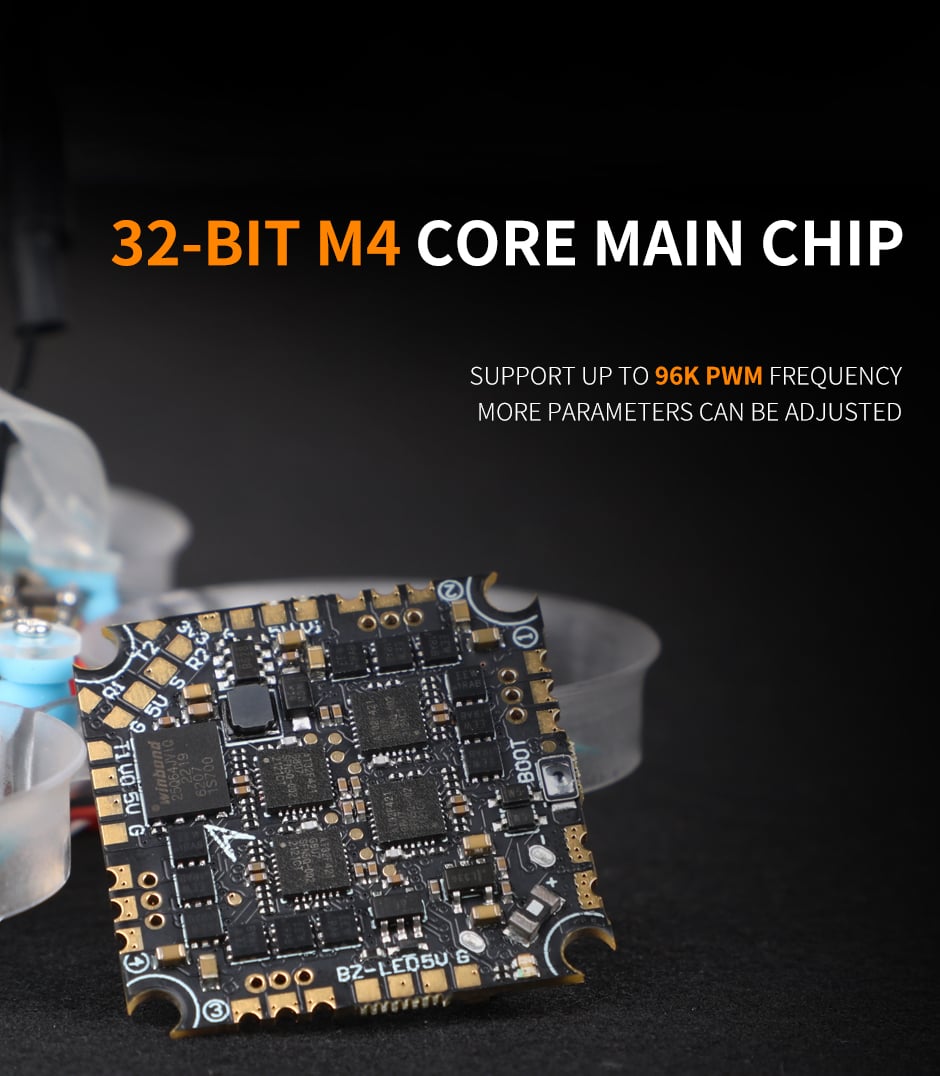

STM32F411 32-bit Cortex-M4 processor with a BMI270 gyro

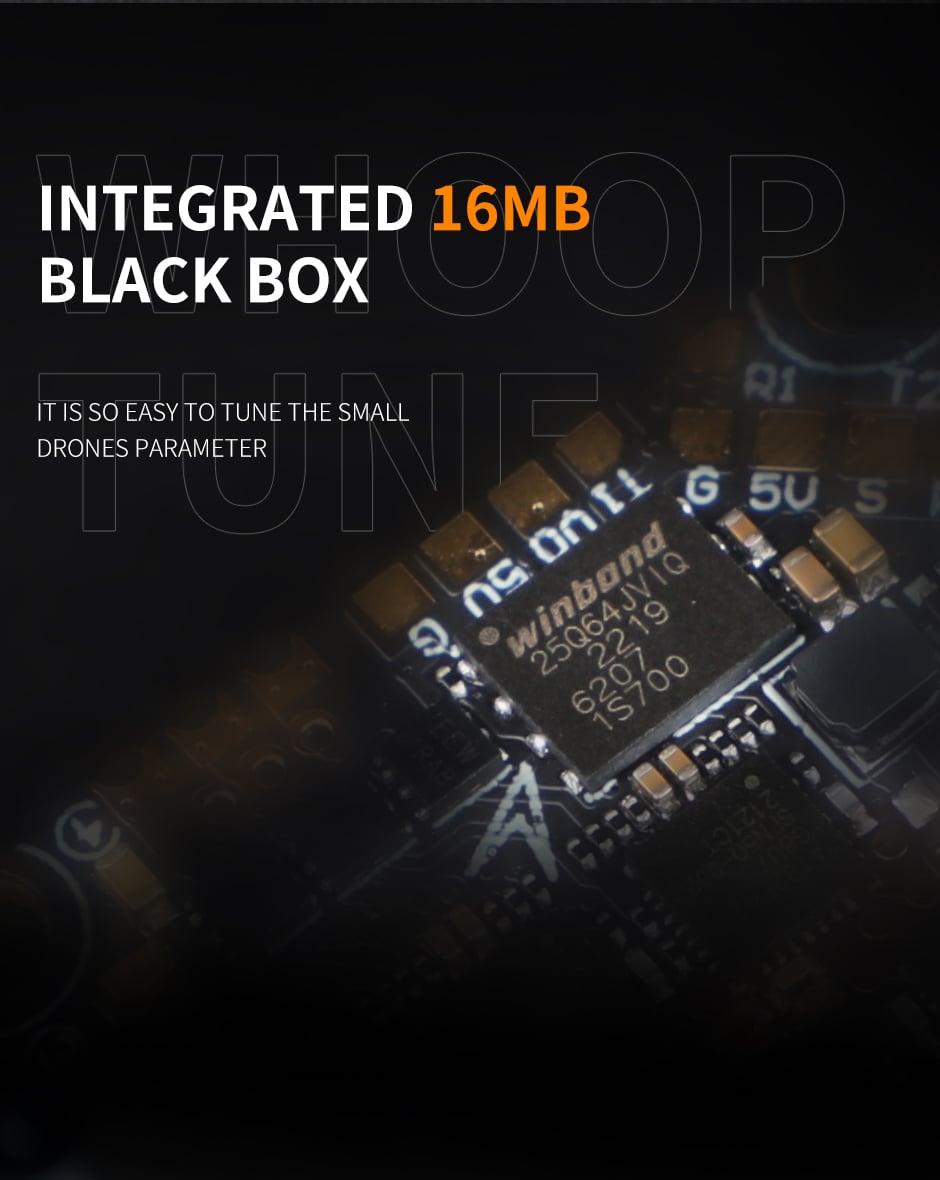

16MB blackbox flash for detailed logging and tune analysis
BLHeli_32 ESC with bidirectional DShot for RPM filtering and PWM frequency up to 96kHz for smoother flight and longer flight times

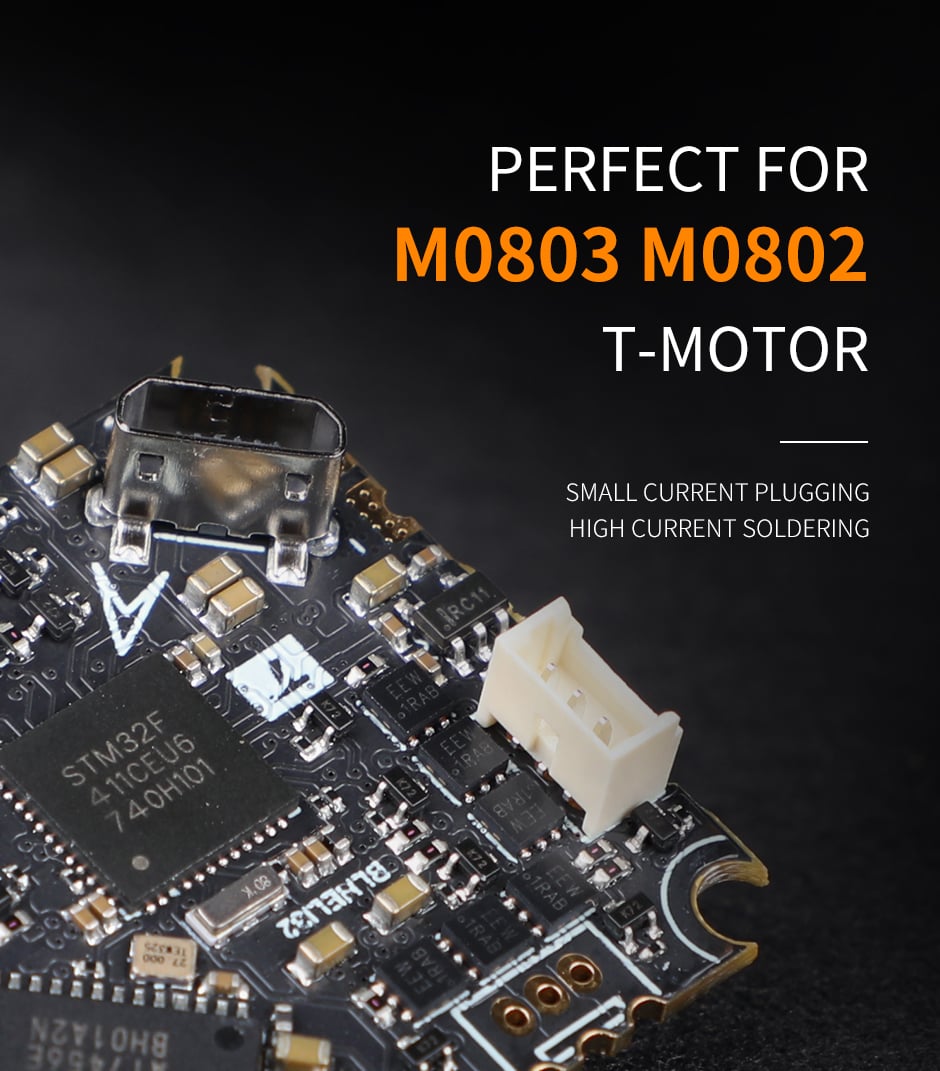

Plug-in sockets for 0802 and 0803 motors, plus solder pads for higher-current motors

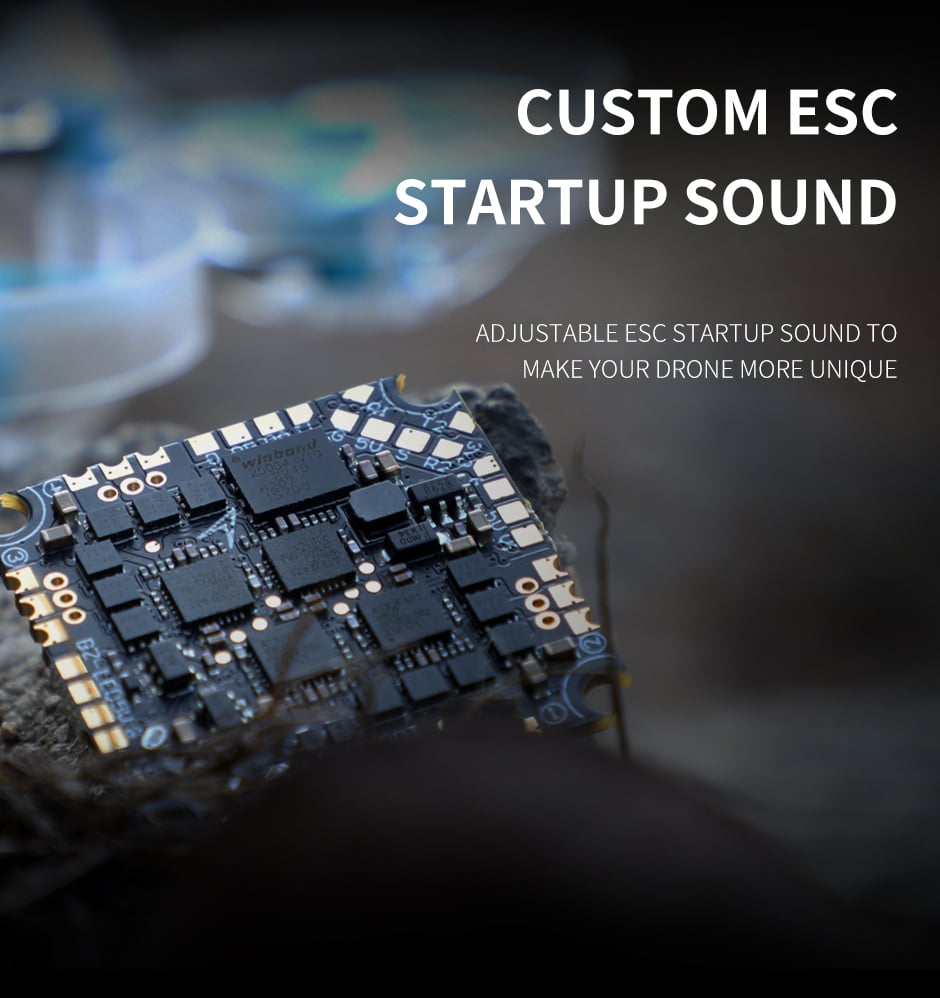

ESC parameters adjustable without a battery connected, with a customisable startup tone

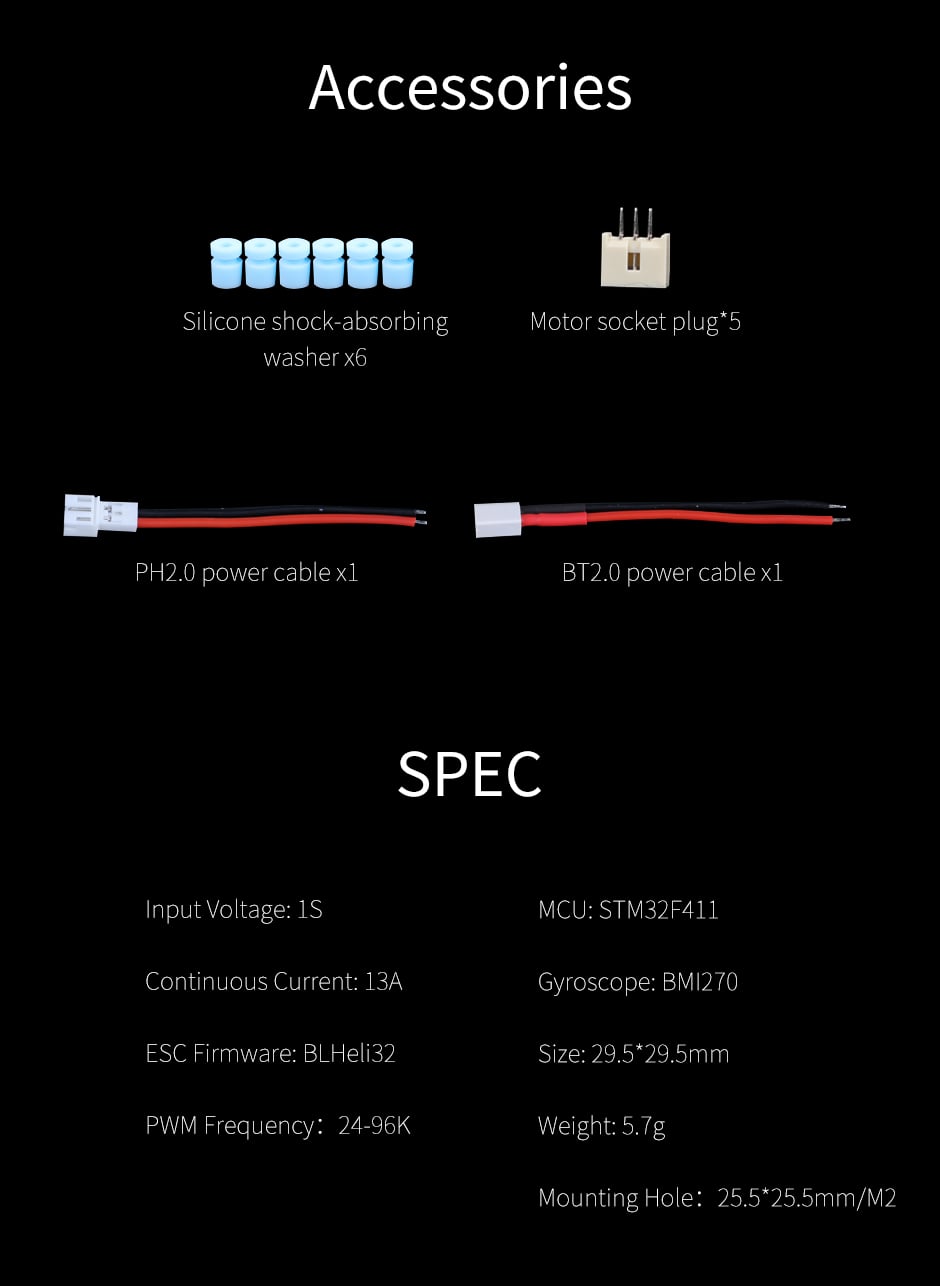

Specifications
MCU: STM32F411
Gyro: BMI270
Blackbox: 16MB flash
ESC: 13A 4-in-1, BLHeli_32
ESC PWM: up to 96kHz
Input: 1S
This board is for single-cell builds only: pair it with 1S packs and 0802 or 0803 motors, and never connect a 2S battery.
| ESC Current | 13 A |
|---|---|
| Input Voltage | 1S |
| Made in India | No |
| Brand | T-Motor |
| FC Processor | F411 |
| Gyro | BMI270 |
| ESC Firmware | BLHeli_32 |
| Supported Firmware | Betaflight |
