iFlight BLITZ Whoop F7 AIO V1.1 2-6S 55A ESC

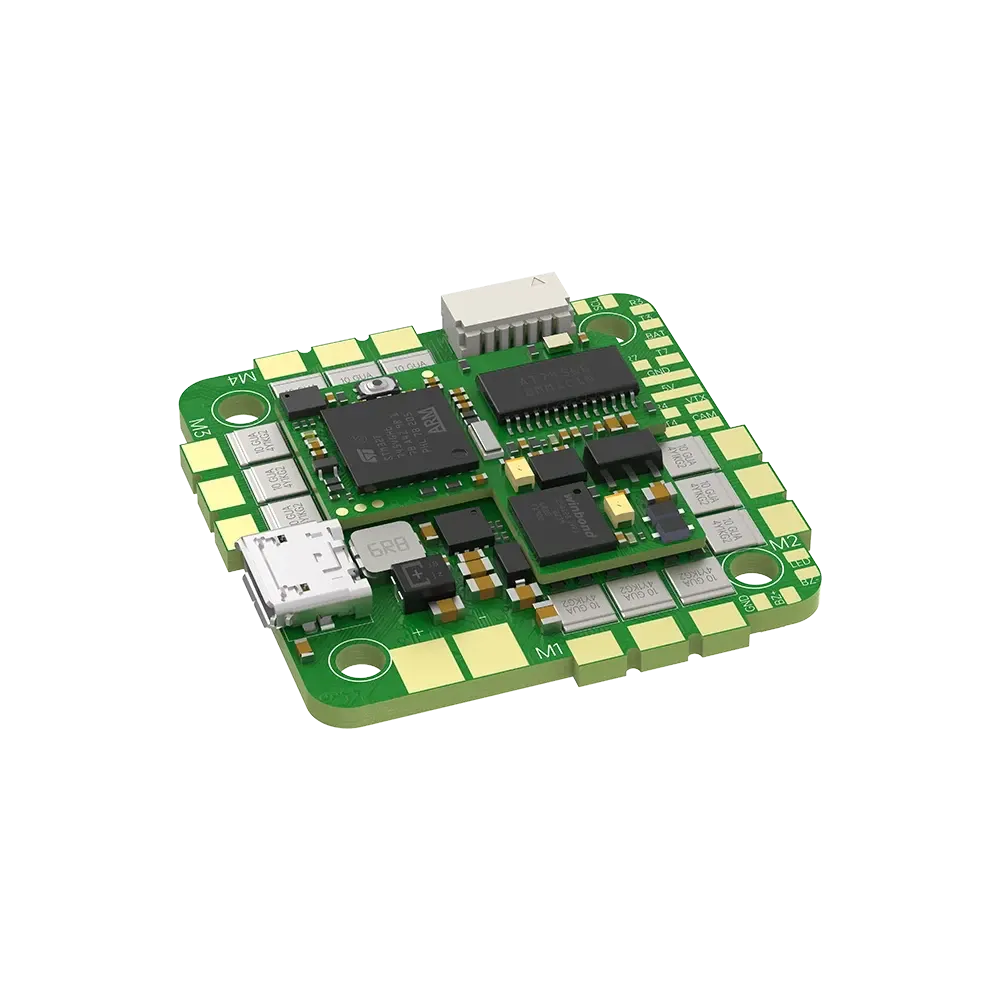

The iFlight BLITZ Whoop F7 AIO V1.1 combines an F7 flight controller and a 4-in-1 ESC on one board, built for 2-6S whoop and micro builds that need real ESC current headroom.

Key features

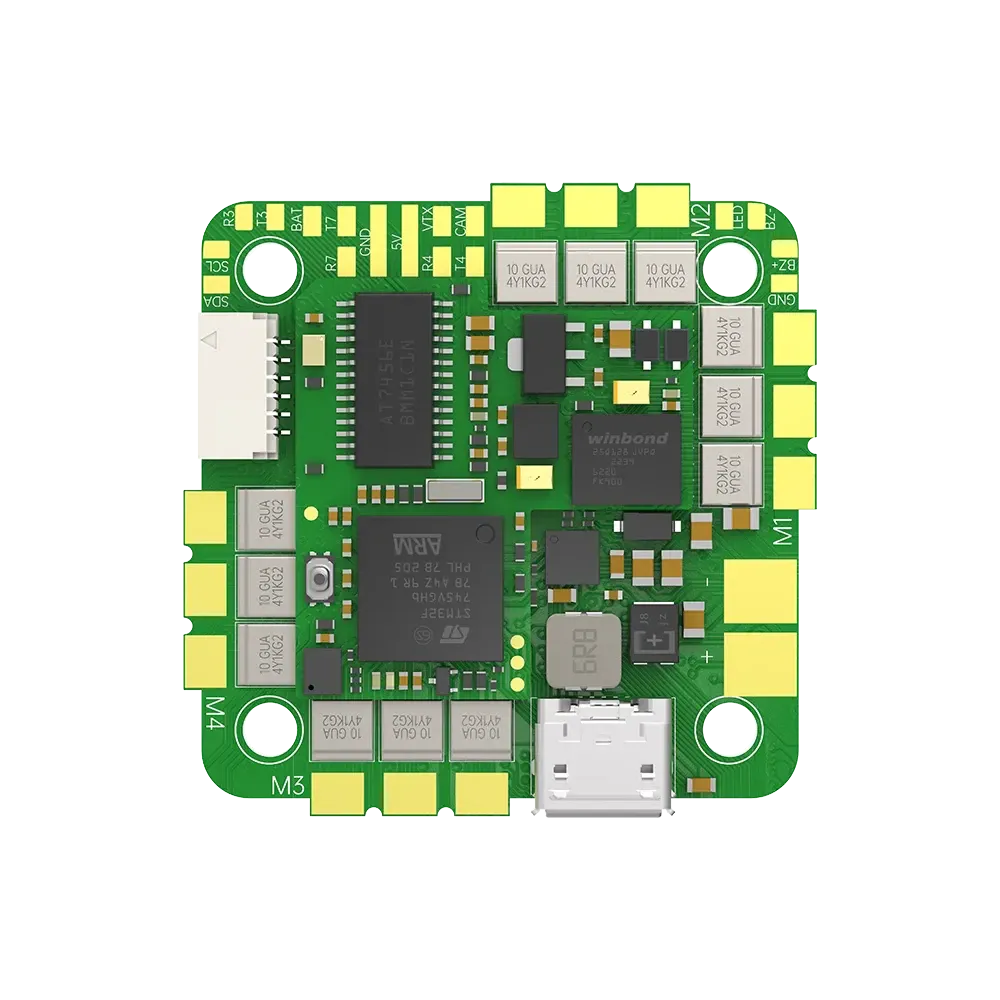

• BGA-STM32F745 MCU with an ICM42688 gyro and DPS310 barometer for accurate flight control.
• 4-in-1 ESC rated at 55A continuous with a 65A peak (10 seconds) per motor output.
• Separate FC and ESC boards cut electrical gyro noise and let either board be repaired on its own.
• HD pass-through wiring supports DJI O3 and Caddx Vista/Polar digital systems.
• AT7456E OSD and 16MB blackbox flash log flight data and overlay telemetry on the video feed.
• Bidirectional DShot is supported on Bluejay ESC firmware for RPM filtering.

Specifications

• FC processor: F7 (BGA-STM32F745)
• Gyro: ICM42688
• ESC current: 55 A continuous, 65 A peak
• Input voltage: 2-6S LiPo/LiHV
• Mounting: 25.5x25.5 mm
• Weight: 10.5 g
• Board size: 35 x 35 mm
• BEC: 5V 2.5A
• USB: Micro-USB
• Firmware target: IFLIGHT_BLITZ_F7_AIO
• In the box: AIO board, 470uF capacitor, XT30 power lead (18AWG, 70 mm), two SH1.0 7-pin cables, 4 x M2 silicone grommets, 8 x M2 x 12 mm screws, 8 x M2 nylon nuts

Flash Bluejay ESC firmware to use bidirectional DShot, and confirm your battery cell count and frame mounting pattern before fitting the board.
