iFlight BLITZ Whoop F7 AIO Flight Controller
₹14,699Incl. GST
SKU IFLT-BLITZ-WHOOP-F7-AIO
Integrated VTX: NoMounting Size: 25.5x25.5Integrated Receiver: NoESC Current: 55 A
Dispatched within 3–4 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

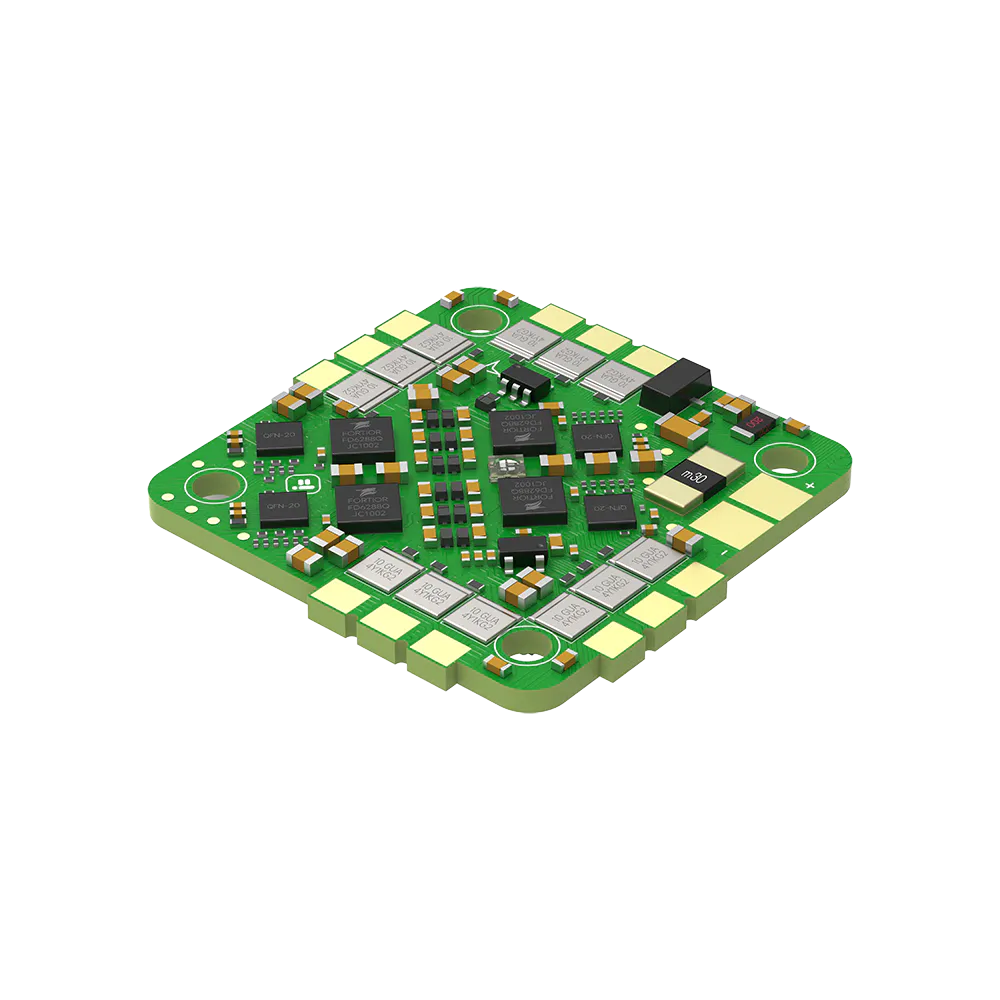

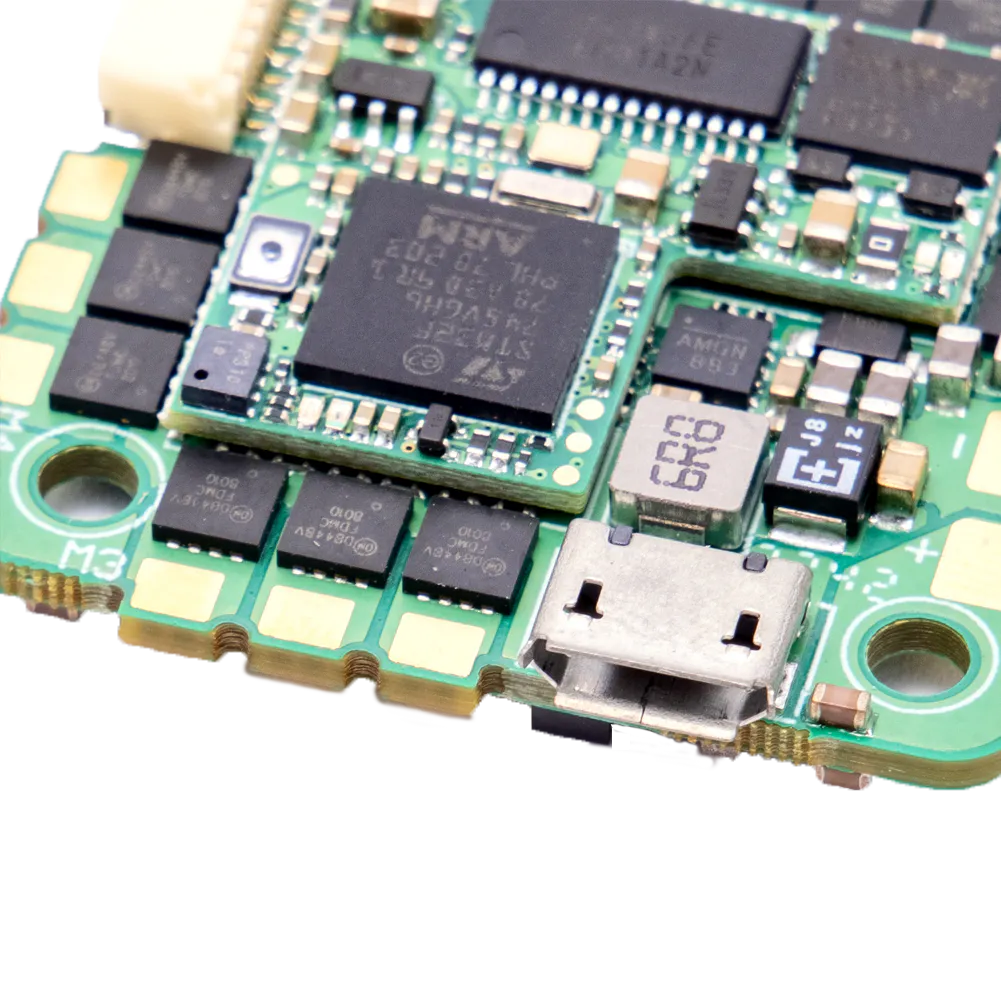

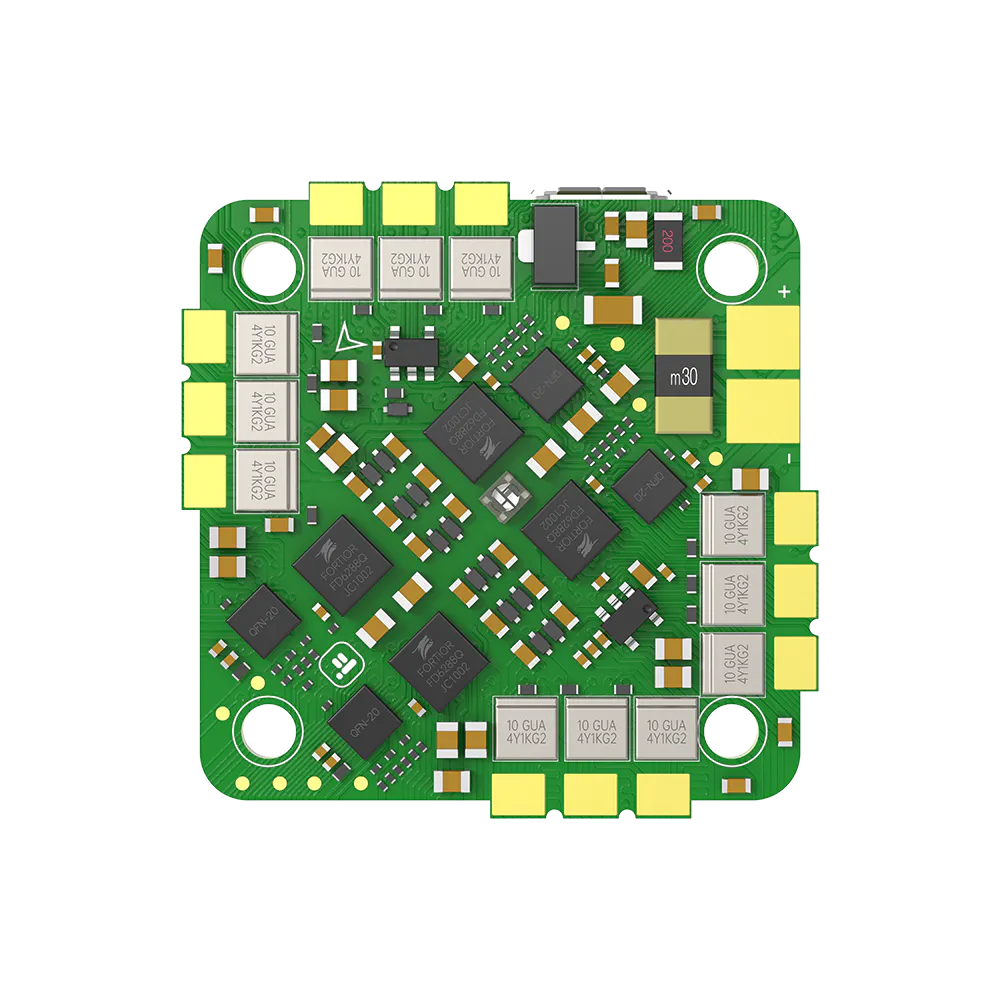

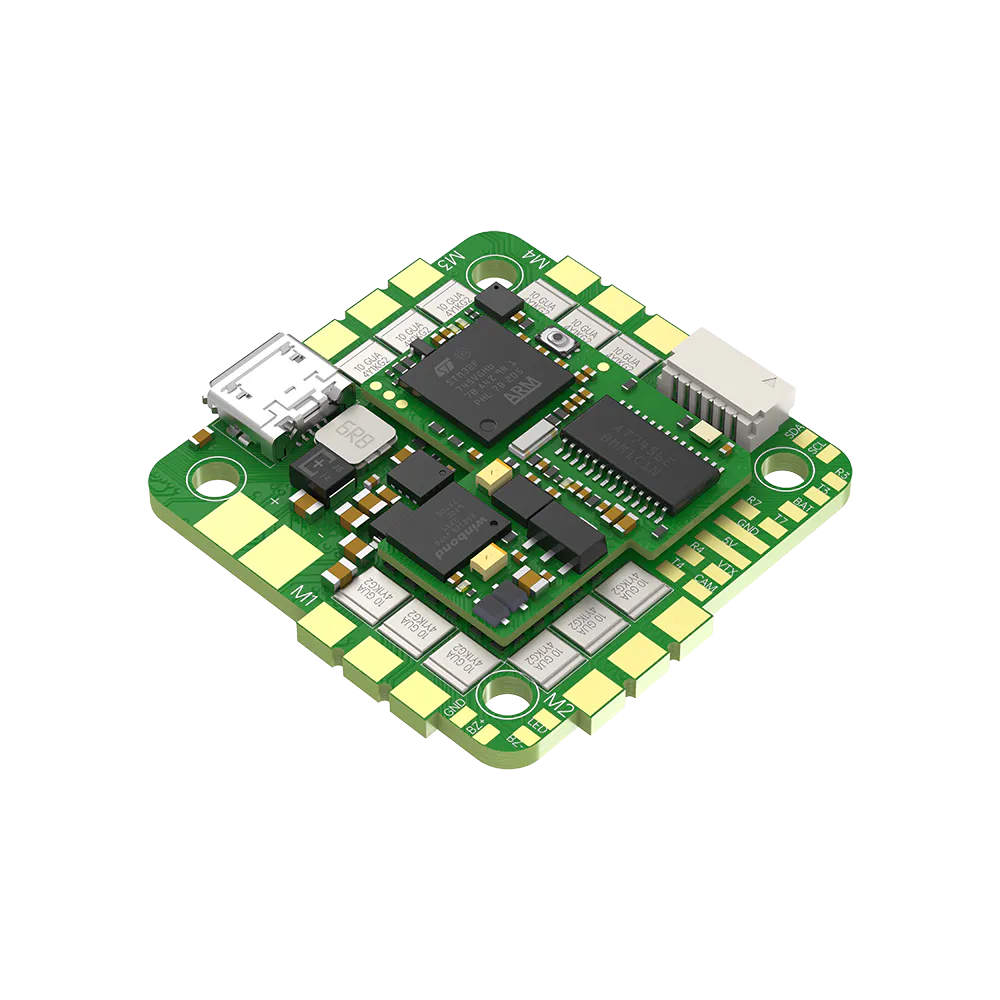

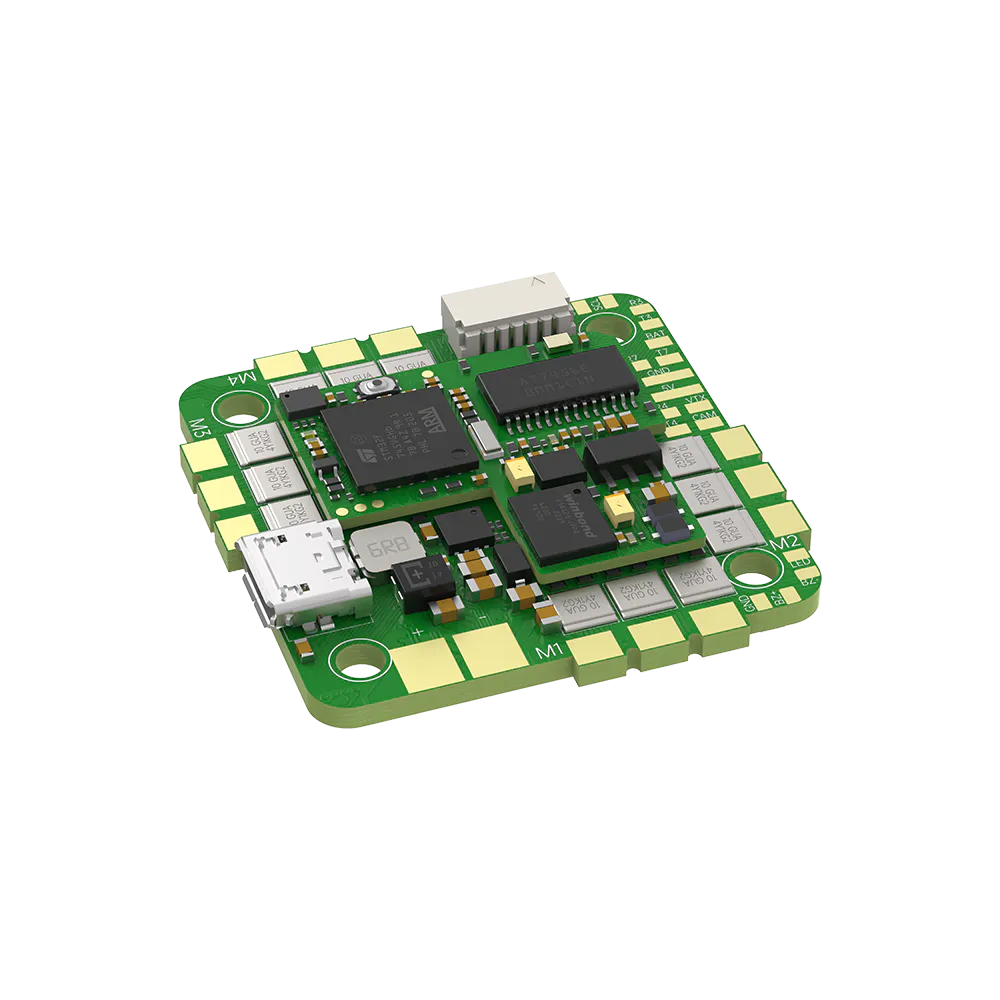

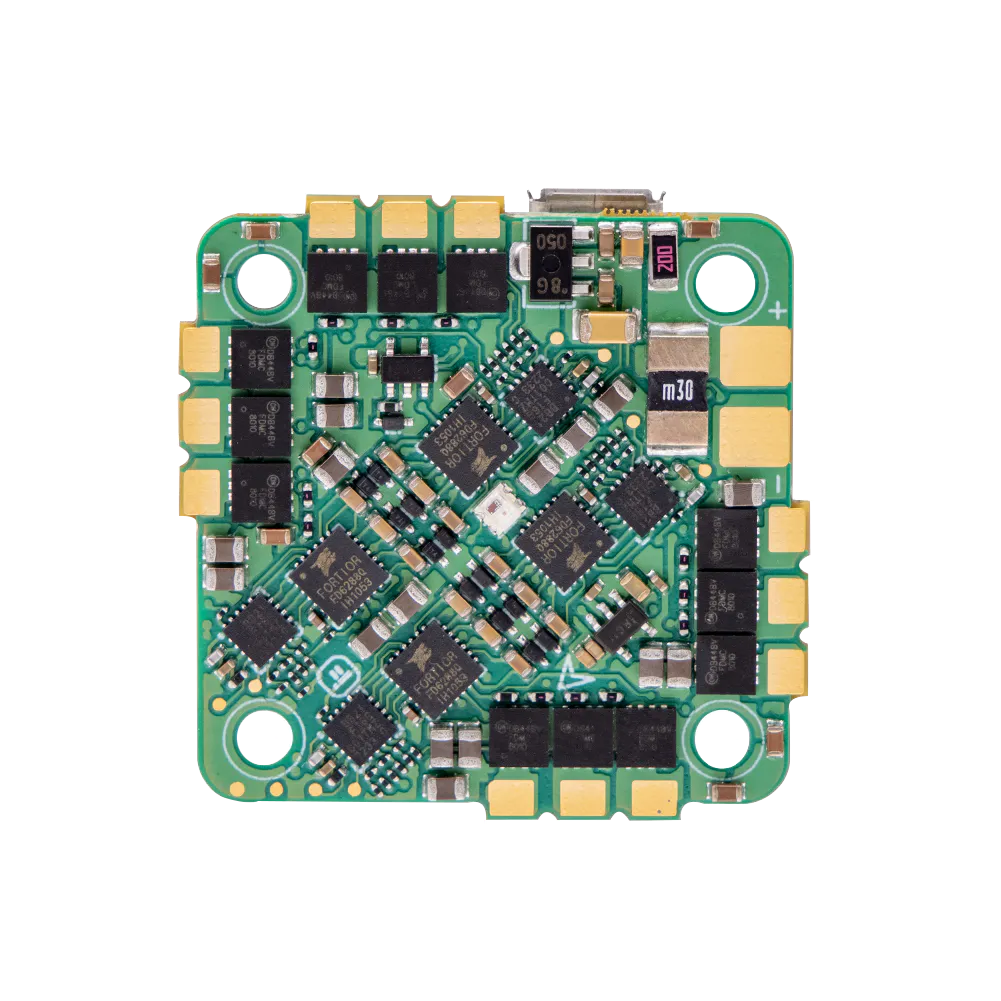

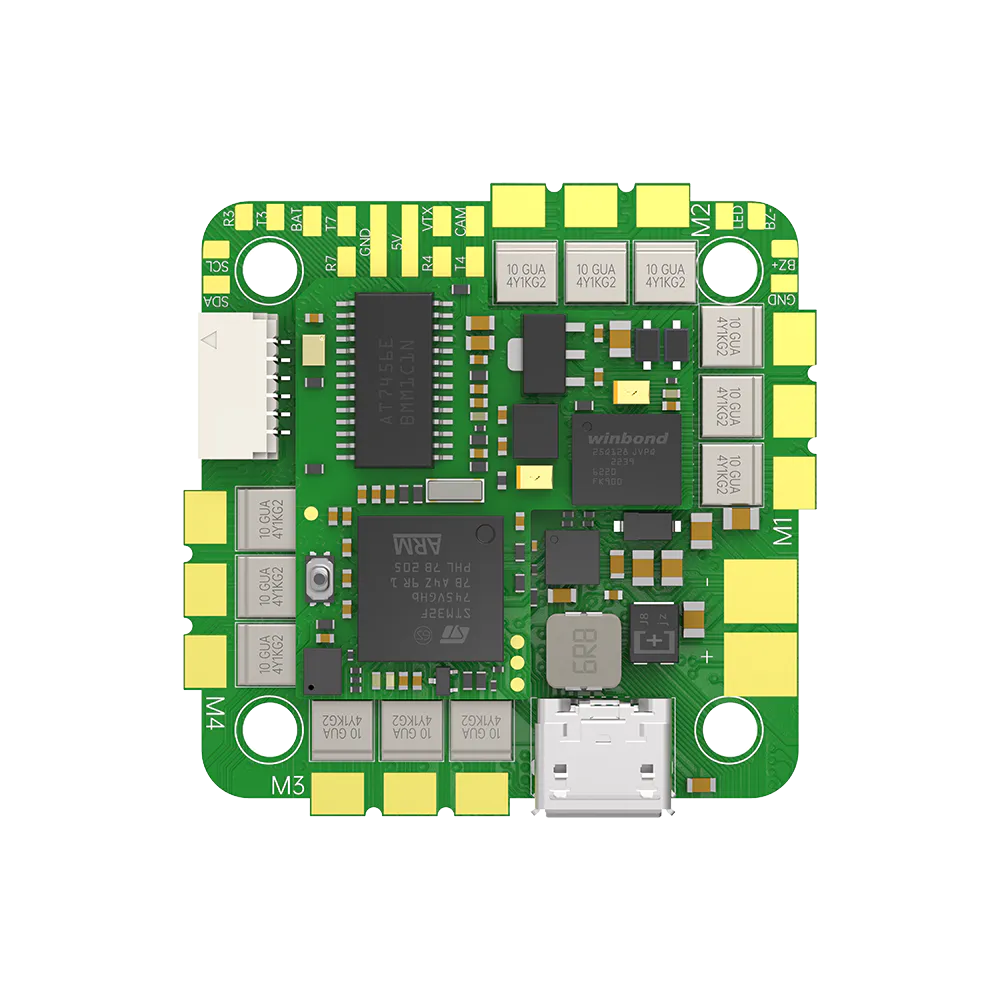

The iFlight BLITZ Whoop F7 AIO combines a flight controller and a 55A ESC on one 25.5x25.5mm board, built for micro whoops, cinewhoops and lightweight freestyle frames that need full Betaflight features without separate stack wiring.
Key features
- BGA-STM32F745 MCU with an ICM42688 gyro and an onboard DPS310 barometer for altitude-aware tuning on more demanding tunes.
- Dedicated digital HD connector for plug-and-play DJI O3 or Caddx Vista/Polar air units, cutting soldering out of a digital build.
- FC and ESC boards can be separated for repair, easing field fixes after a crash instead of replacing the whole AIO.
- 16MB onboard blackbox flash for PID tuning and noise diagnostics without an SD card.
- Full set of UART ports supports ELRS, GPS and telemetry peripherals alongside the digital VTX link.
Specifications
- MCU: BGA-STM32F745
- Gyro: ICM42688
- Barometer: DPS310
- Input voltage: 2–6S LiPo (LiHV supported)
- ESC current: 55A continuous, 65A peak (10s)
- ESC firmware: Bluejay 0.16 (Q-H-40, 24 kHz); bidirectional DShot supported
- ESC telemetry: none
- Current sensor: yes (scale 200)
- BEC: 5V 2.5A
- OSD: AT7456E
- USB: Micro-USB
- Mounting pattern: 25.5x25.5mm
- Dimensions: 35 x 35 mm
- Weight: 10.5 g
- In the box: AIO board, two 470uF 35V capacitors, XT30 power lead, two 1.0 mm 7-pin cables, four M2 grommets, M2 screws and nuts
Suits 2.5-inch to 3.5-inch cinewhoops where space is tight but 6S power and advanced flight-controller features are still needed.
| Integrated VTX | No |
|---|---|
| Mounting Size | 25.5x25.5 |
| Integrated Receiver | No |
| ESC Current | 55 A |
| Input Voltage | 2–6S |
| Made in India | No |
| Brand | iFlight |
| FC Processor | F745 |
| Gyro | ICM42688P |
| ESC Firmware | BLHeli_S, Bluejay |
| Barometer | Yes |
| UARTs | 4 |
| Supported Firmware | Betaflight |
| Weight | 10.5 g |
