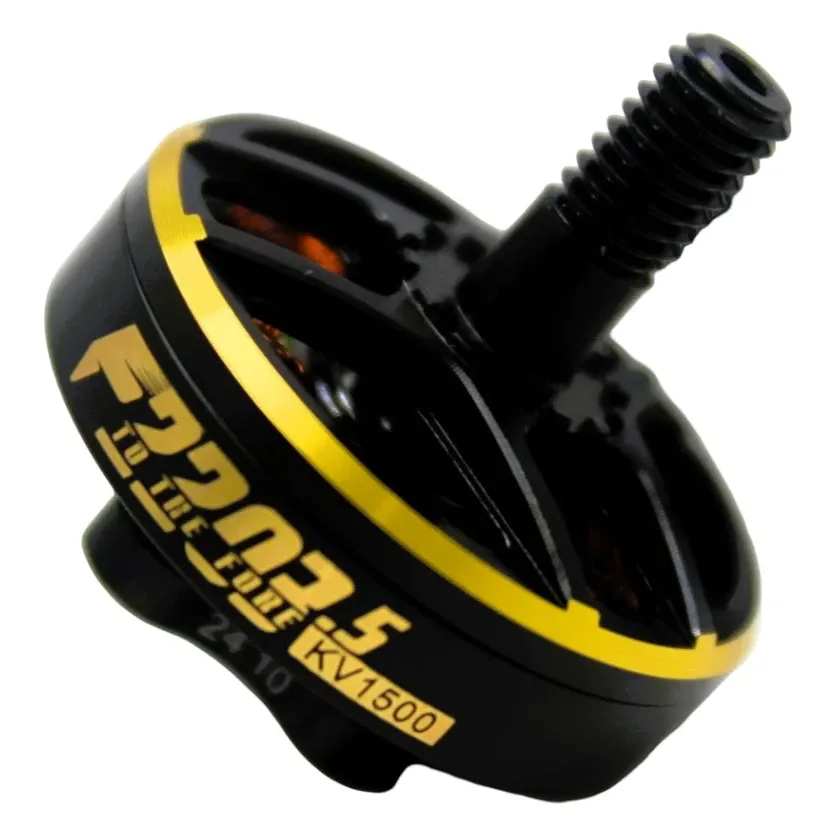

T-Motor F2203.5 Brushless FPV Motor
₹1,999Incl. GST
SKU TMOTOR-F22035-1500KV
Choose variant
Stator Size: 2203.5KV: 1500 KV, 3550 KVShaft: 3mmMotor Mount: 12x12mm
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
The T-Motor F2203.5 is a compact 22-series brushless motor for 3-inch cinewhoops, toothpicks and 4–5 inch ultralight long-range quads. Two windings are listed here: the 1500KV for efficient 6S long-range cruisers, and the 3550KV for punchy 3–4S cinewhoops and toothpicks.
Key features
- 22mm stator, 3.5mm tall, 12N14P — a strong torque-to-weight ratio for sub-250g and ultralight builds.
- 3mm prop shaft for M3-hub 3–5 inch propellers.
- 12x12mm (M2) mounting pattern fits micro and toothpick frame arms.
- Around 19.5–19.7g including leads.
- Pick the KV by battery: 1500KV on 6S for long flight times, 3550KV on 3–4S for high thrust in 3-inch ducts.
Specifications
- Stator: 2203.5 (22 × 3.5mm), 12N14P
- Motor size: Φ26.8 × 26.45mm
- Shaft: 3mm
- Mount: 12x12mm
- Leads: 24AWG, 130mm
- 1500KV: 6S LiPo · max power (60s) 462W · peak current 19.5A · internal resistance 235mΩ · 19.7g
- 3550KV: 3–4S LiPo · max power 412W · 19.5g
Sold as a single motor with mounting screws — order four for a quad, and match the ESC current rating to the chosen KV and prop.
