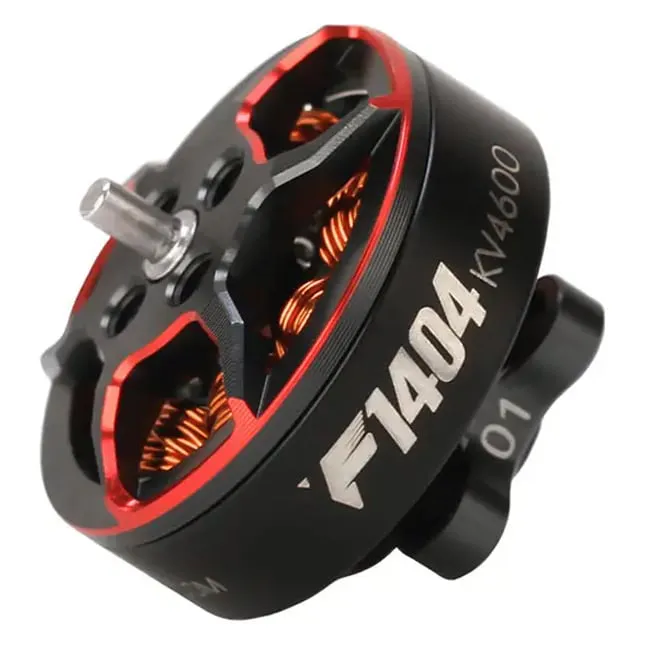

T-Motor F1404 Micro Long Range FPV Motor 2900/3800/4600KV

The T-Motor F1404 is a lightweight brushless motor for 2.5–4 inch micro long-range and freestyle quads, sold as a single motor. It comes in three windings: 2900KV rated up to 6S for efficient long-range builds, and 3800KV or 4600KV rated 3–4S for punchier freestyle and racing.

Key features

• 9N12P configuration on a 1.5 mm shaft

• 9.34 g including leads, keeping all-up weight low on micro long-range builds

• Compact body: 17.9 mm diameter × 16.6 mm height

• Peak power from 262 W (2900KV) to 316 W (4600KV) over a 60-second run

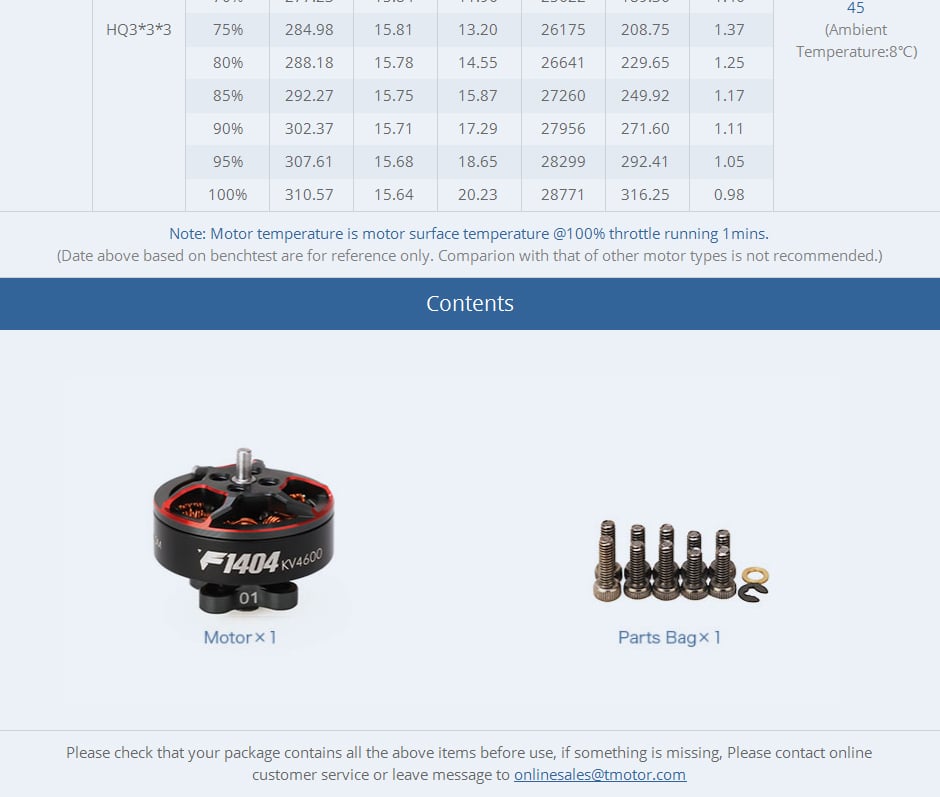

• 150 mm 24AWG leads, with a screw set included

Specifications

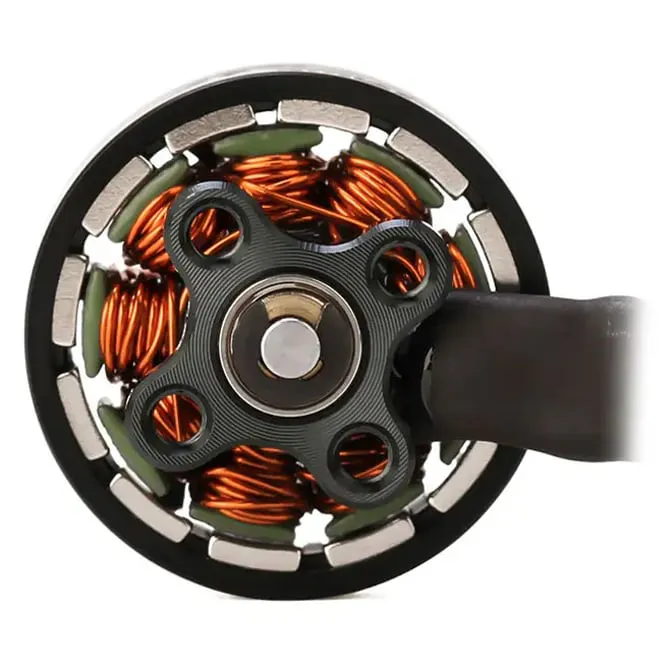

• Stator: 1404 (14 × 4 mm), 9N12P

• Shaft: 1.5 mm

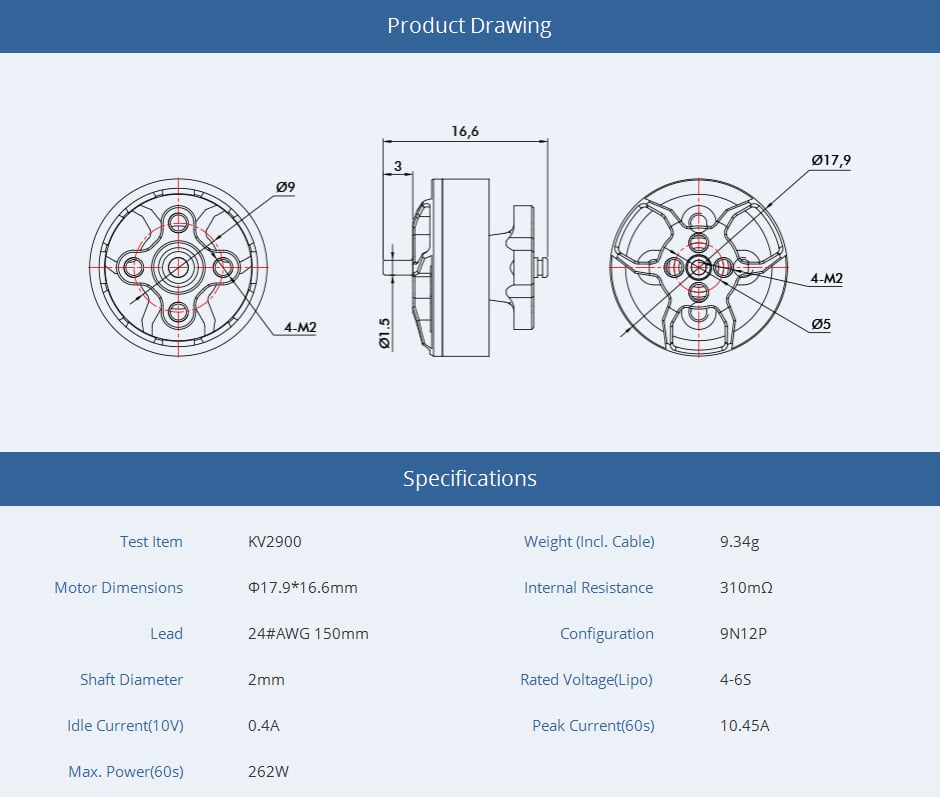

• Dimensions: 17.9 × 16.6 mm

• Weight: 9.34 g with leads

• Leads: 24AWG, 150 mm

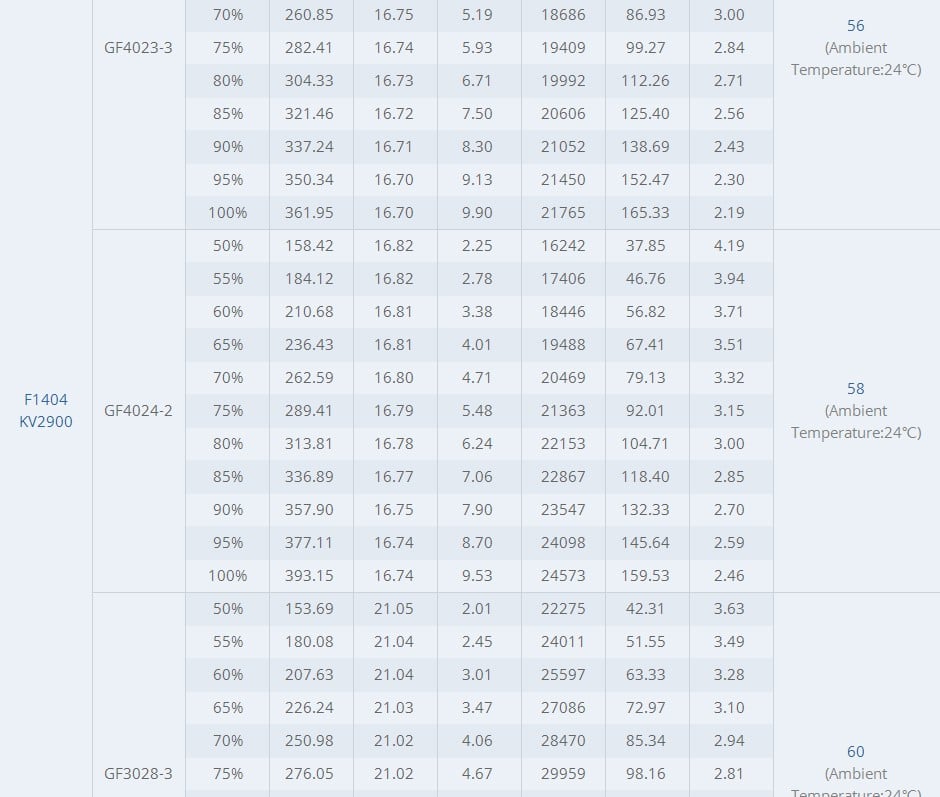

• 2900KV: up to 6S, 10.45 A peak (60 s), 262 W, 310 mΩ, 0.4 A idle at 10 V

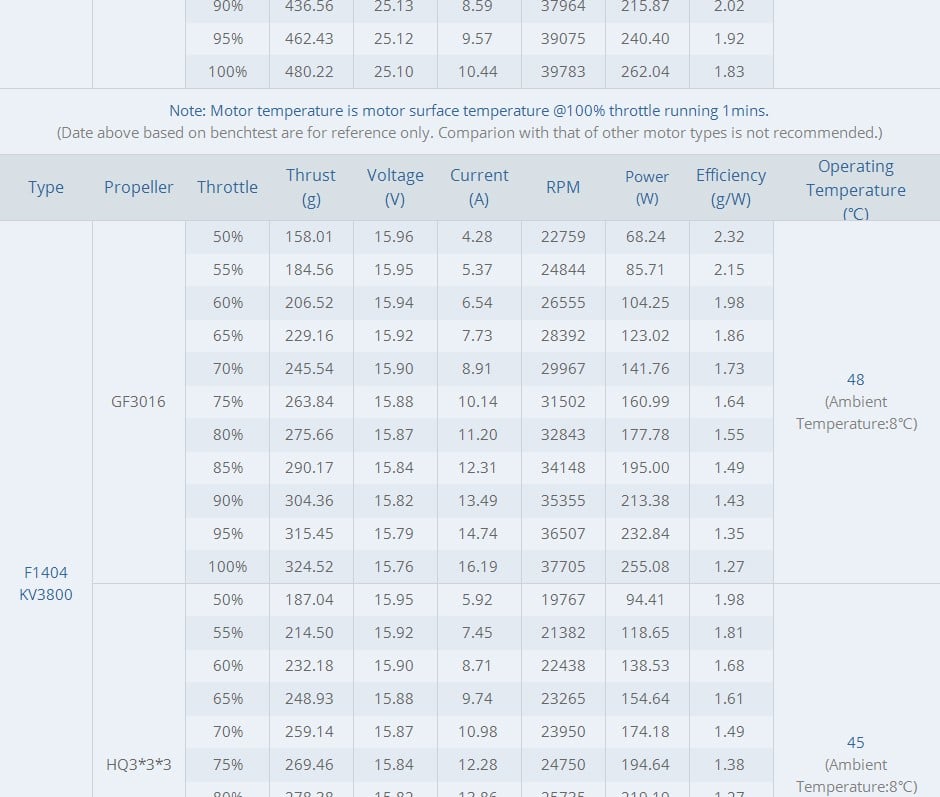

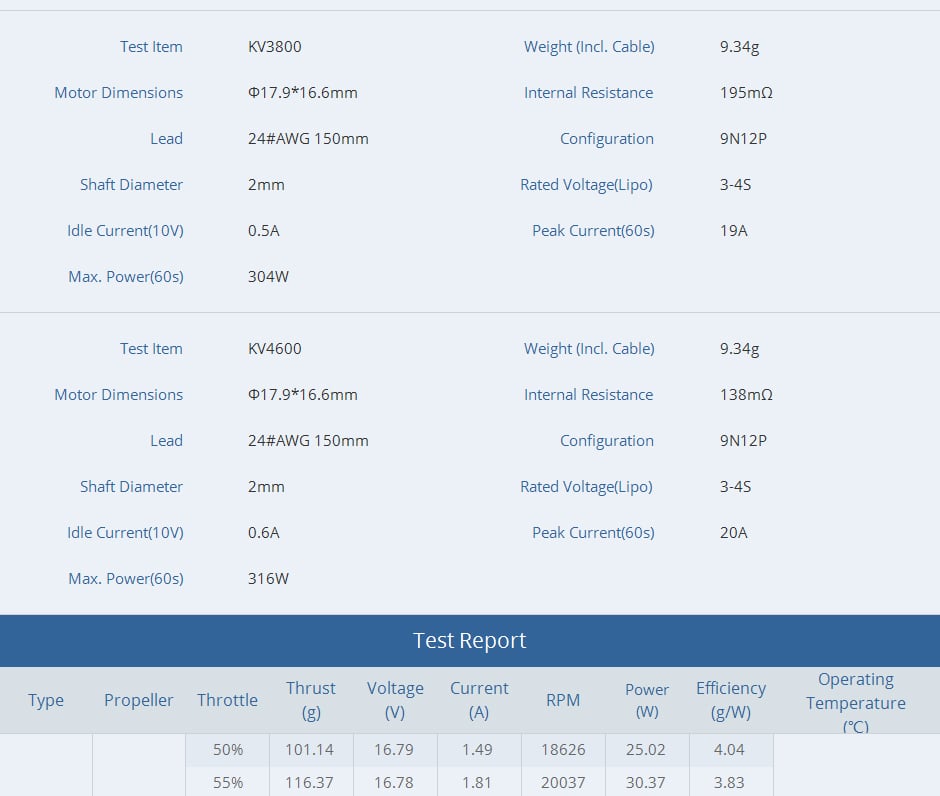

• 3800KV: 3–4S, 19 A peak (60 s), 304 W, 195 mΩ, 0.5 A idle at 10 V

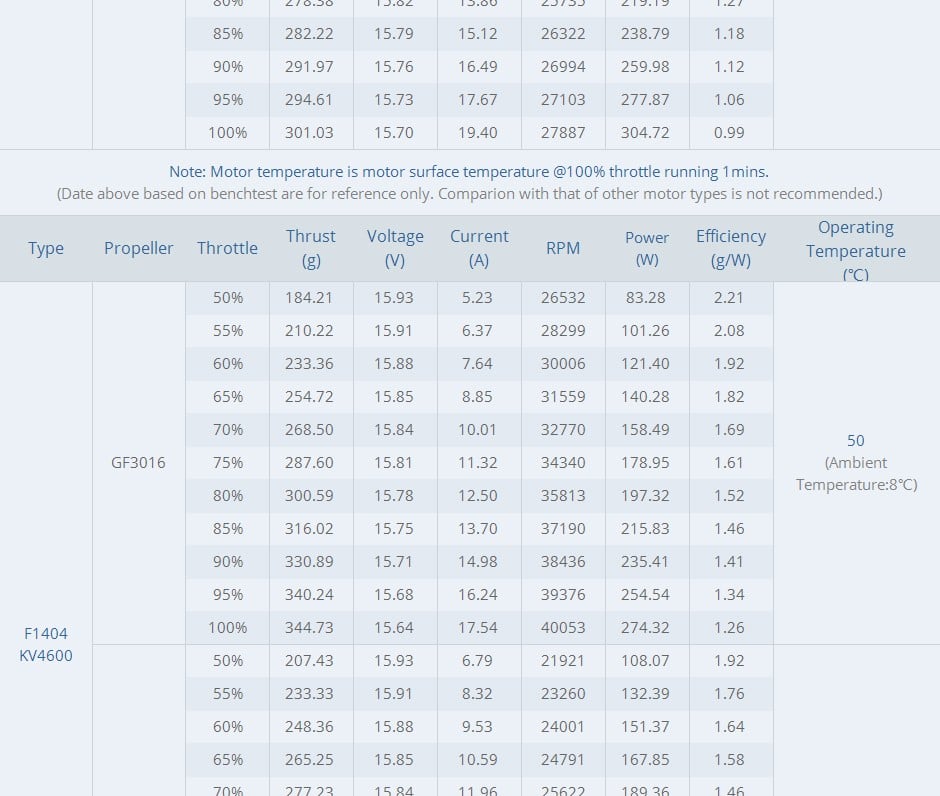

• 4600KV: 3–4S, 20 A peak (60 s), 316 W, 138 mΩ, 0.6 A idle at 10 V

For a 3-inch quad on 4S, choose 3800KV or 4600KV; the 2900KV suits 6S micro long-range builds that favour lower current draw. Each motor is sold singly, so order four for a quad.
