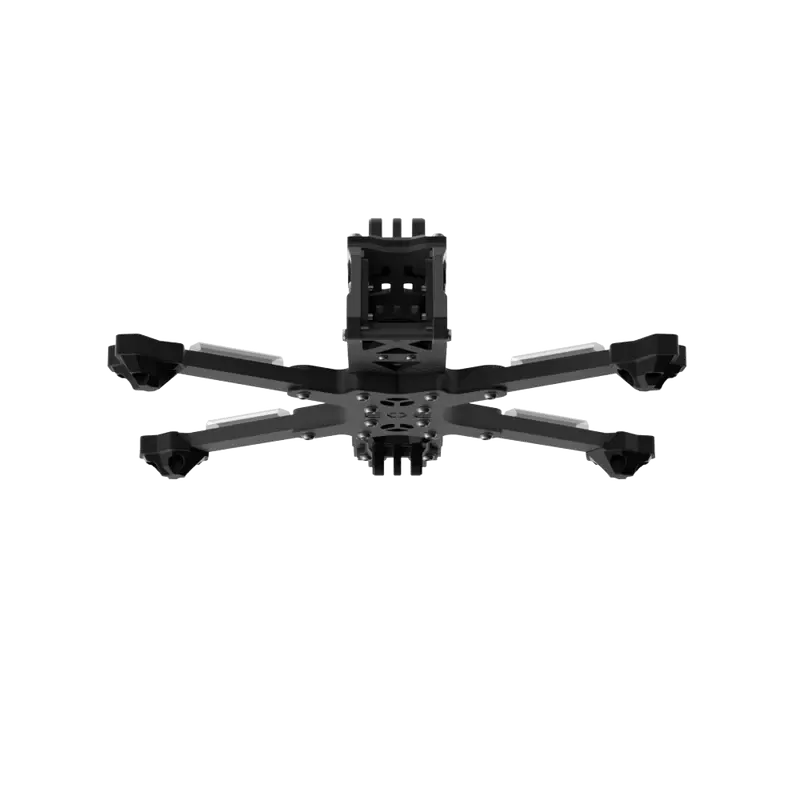

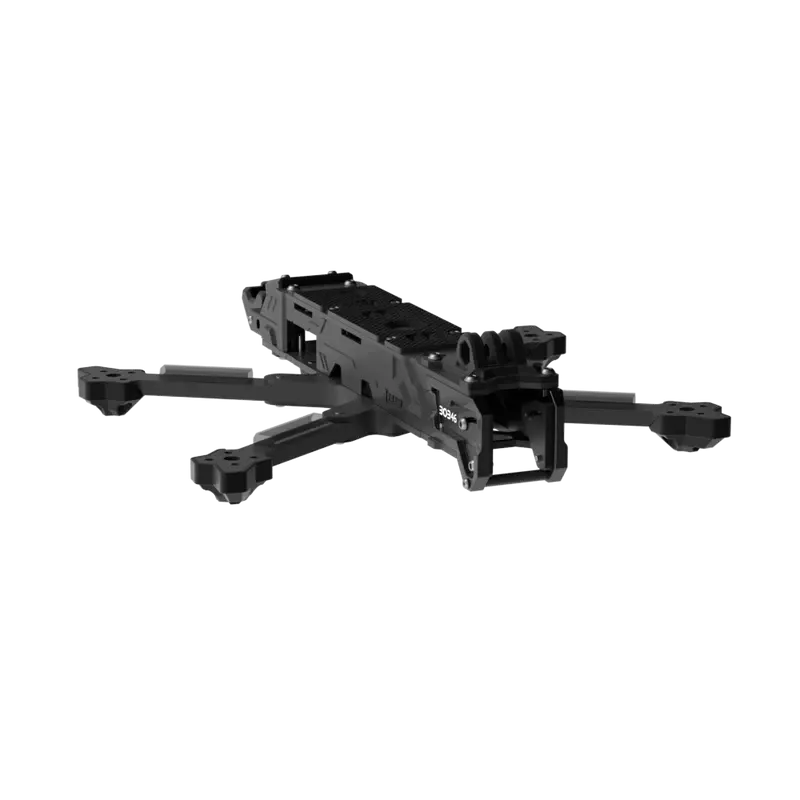

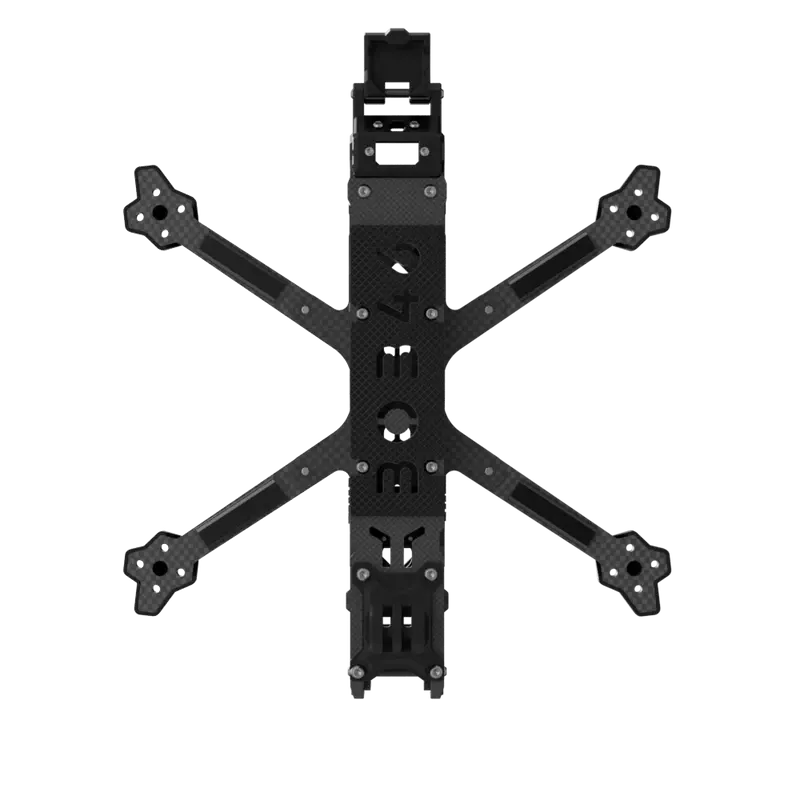

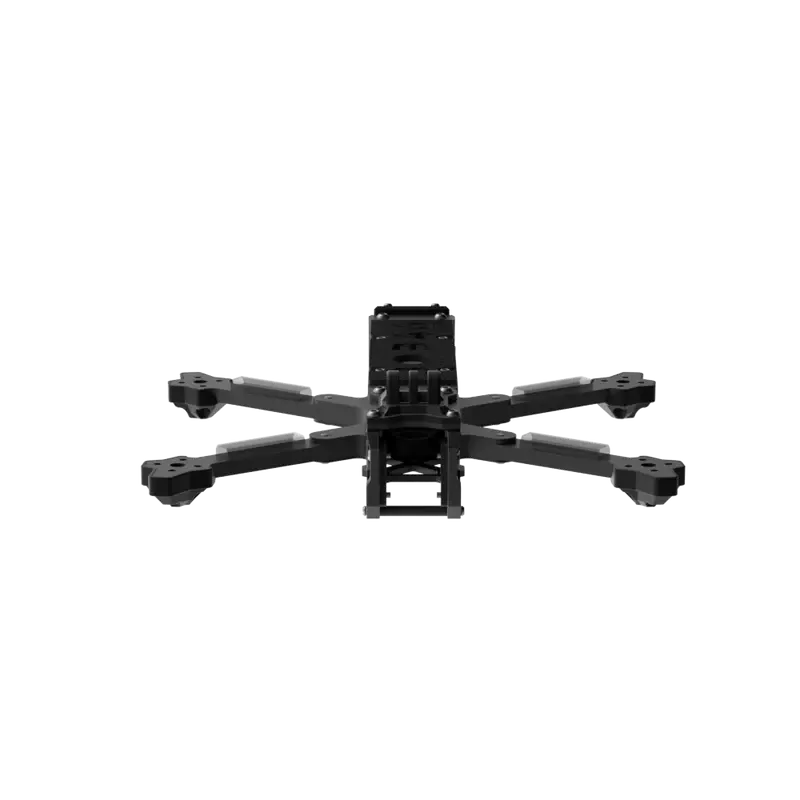

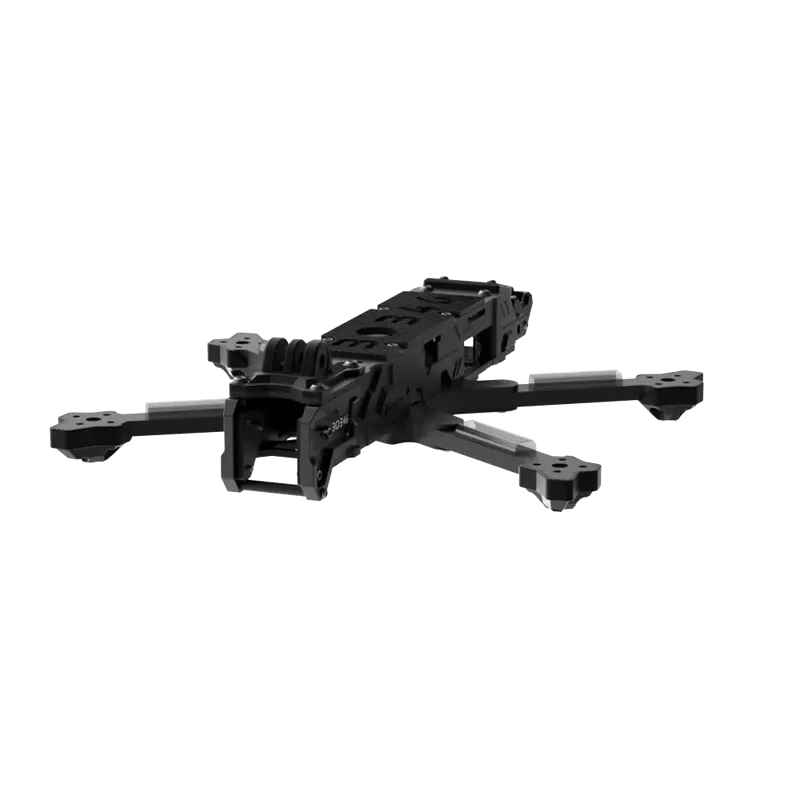

iFlight BOB46 O4 Pro Frame Kit
₹16,899Incl. GST
SKU IFL-BOB46-O4PRO-FRAME
Prop Size: 4.6"Wheelbase: 226 mmCamera Size: 20mmMade in India: No
Dispatched within 5–7 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The iFlight BOB46 is a 5-inch class ducted cinewhoop frame kit from the 2RAW collaboration, built around the DJI O4 Air Unit Pro for content creators who want more flight time and payload than a standard whoop without losing portability.
Key features
- Encased body shields the flight stack and wiring from dirt and debris while filming.
- Front-facing and reversible action camera mounting for FPV or chase-cam angles.
- Longer body accommodates larger batteries for extended flight time.
- 6mm-thick arms with 1.5mm bottom, 2mm top and 2.5mm upper plates for a rigid, jello-free chassis.
- 16x16mm motor mounting and a 20x20mm flight-stack bay up to 22mm tall.
Specifications
- Wheelbase: 226 mm
- Frame dimensions: 181 x 135 x 44 mm
- Weight: 220 g ± 5 g
- VTX mounting: 25.5x25.5mm or 20x20mm
- Motor mounting: 16x16mm
- VTX compatibility: DJI O4 Air Unit Pro
The kit includes TPU parts, four motor wire shield tubes, a battery anti-slip pad, two battery straps and a screw bag — everything besides the electronics needed to complete the build.
| Prop Size | 4.6" |
|---|---|
| Wheelbase | 226 mm |
| Camera Size | 20mm |
| Made in India | No |
| Brand | iFlight |
| Weight | 220 g |
| Mounting Size | 20x20 |
| Motor Mount | 16x16mm |
