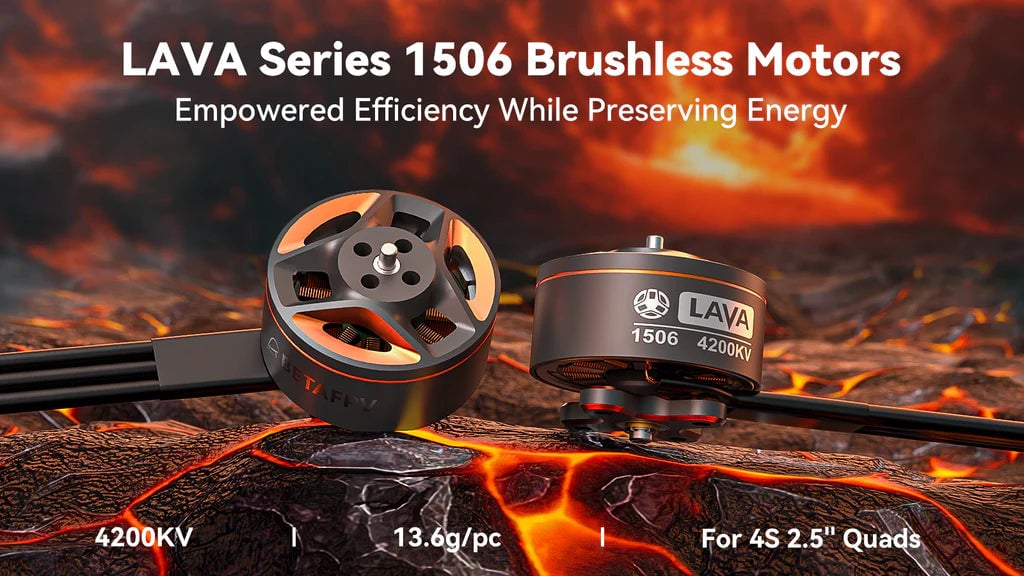

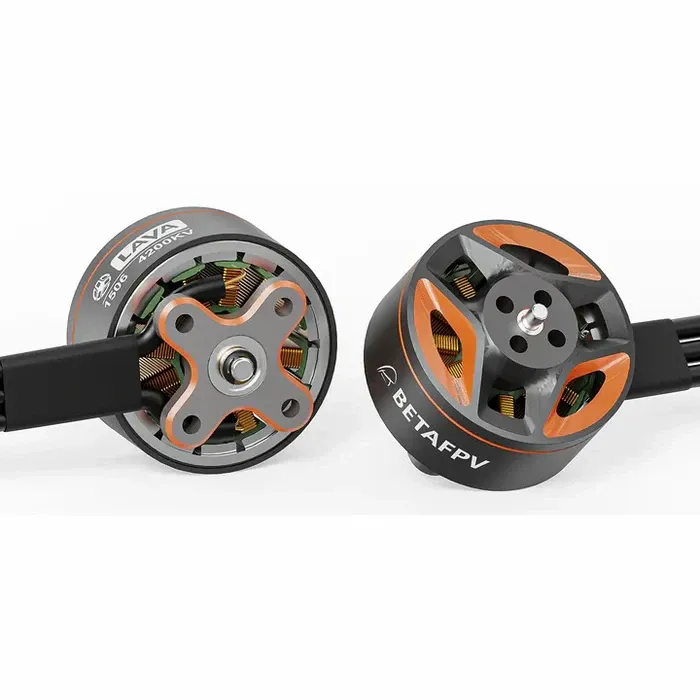

BetaFPV LAVA 1506 4200KV Brushless Motor

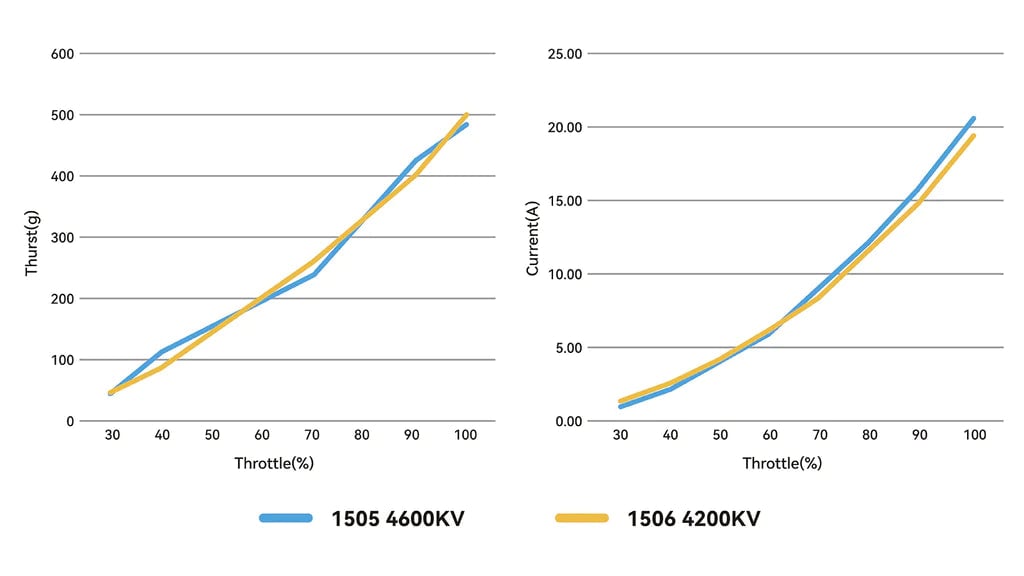

The BetaFPV LAVA Series 1506 4200KV motor is designed for 4S 2.5-inch quads such as the Pavo25 V2, with smoother torque output for freestyle and cinematic flying. Against BetaFPV's 1505 4600KV motor it adds about 15 g of maximum thrust while running more efficiently.

Key features

• Up to 313.44 W and 19.59 A per motor

• 1.5 mm shaft; best matched with Gemfan D63 3-blade props

• Pairs with the BetaFPV F722 35A AIO V2 for a complete 4S power system

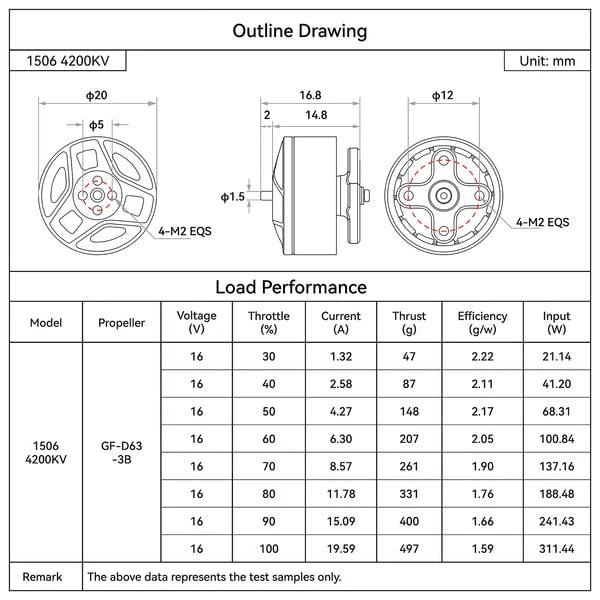

• Four-hole M2 mount on a 12 mm circle

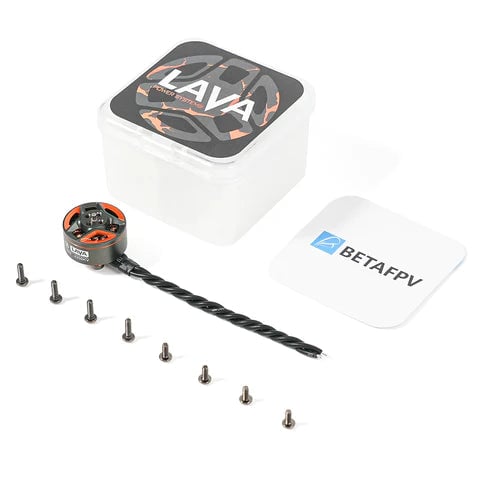

• Supplied with M2 x 5 and M2 x 7 hex flat-head screws for different arm thicknesses

Specifications

• KV: 4200KV

• Recommended battery: 4S LiPo

• Max power: 313.44 W

• Max current: 19.59 A

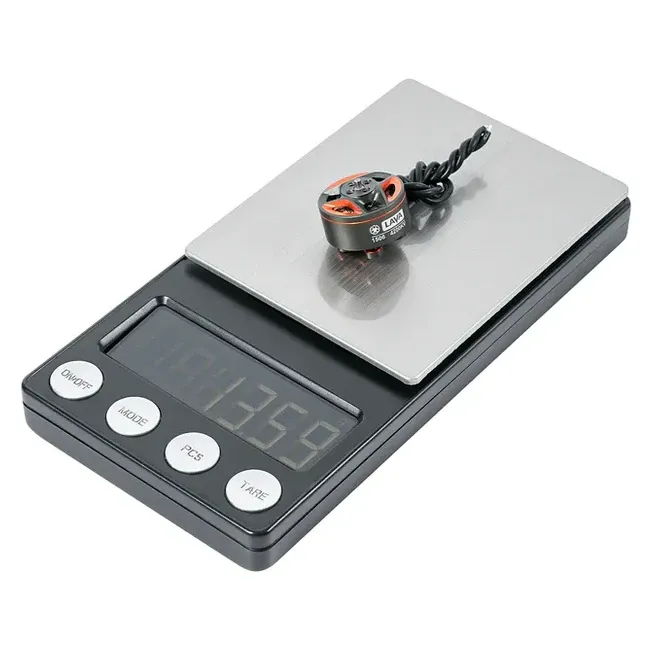

• Weight: 13.6 g

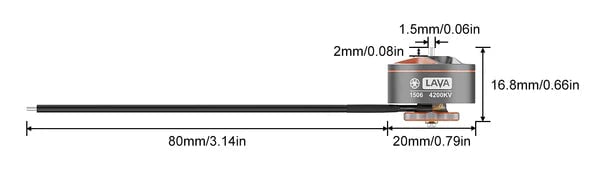

• Shaft: 1.5 mm diameter, 4 mm length

• Wire: 24 AWG

• Motor mounting: 4 x M2 on 12 mm circle
