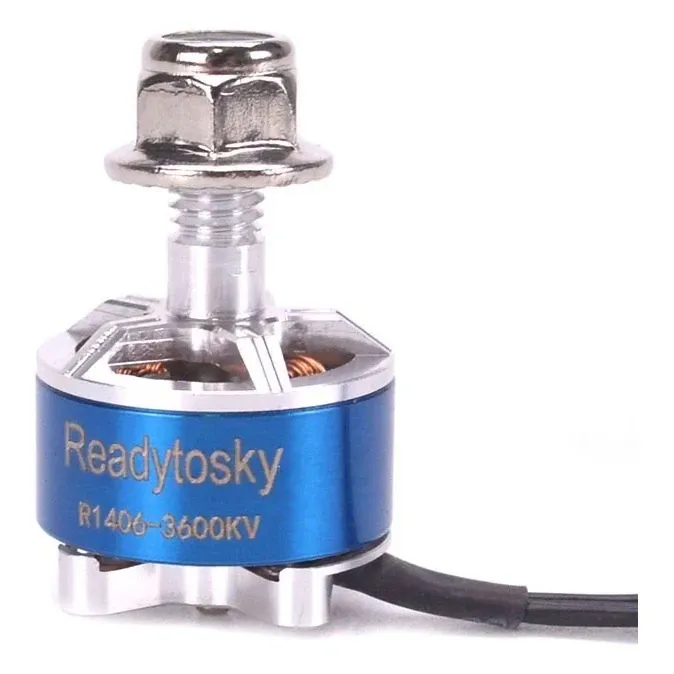

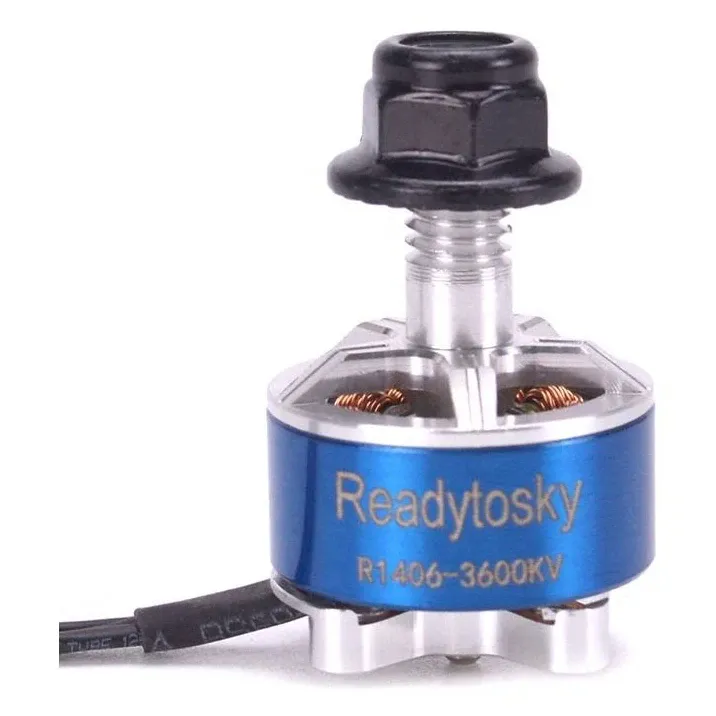

ReadyToSky 1406 3600KV 2-4S Brushless Motor

A compact 1406 3600KV brushless motor for 3- to 4.5-inch micro quads running 2-4S. The 3600KV winding pairs with 3-inch props on 4S or larger props on 2-3S, and the motor comes in CW and CCW rotation versions, so a full quad set is easy to put together.

Key features

• CW and CCW versions: order two of each for a standard quad
• M5 prop shaft for 3-4.5 inch props with 5 mm hubs
• 13.2 g including leads and prop nut
• M2 mounting holes on a 12 mm pattern
• Slim body, 18 mm wide and 28.55 mm tall

Specifications

• Stator: 14 x 6 mm (1406)
• KV: 3600KV
• Input: 2-4S LiPo
• Shaft: M5
• Mounting holes: M2, 12 mm pattern
• Size: 18 x 28.55 mm (width x height)
• Weight: 13.2 g with leads and nut
• Props: 3-4.5 inch

Check that your frame's motor mounts take M2 screws on a 12 mm pattern before ordering. On 4S, keep to 3-inch props to hold current draw and motor temperature down.
