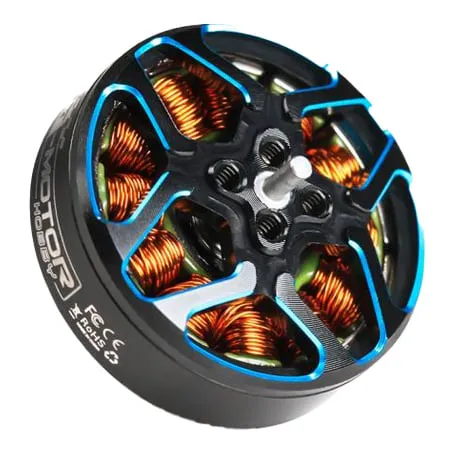

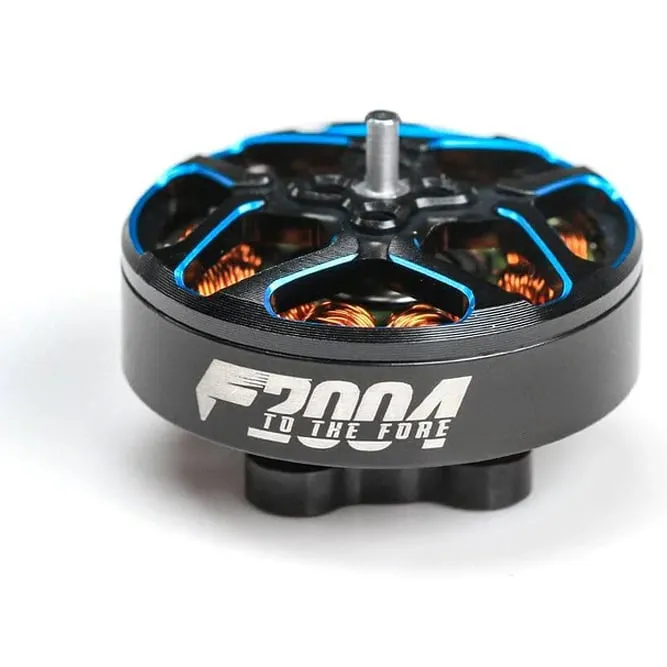

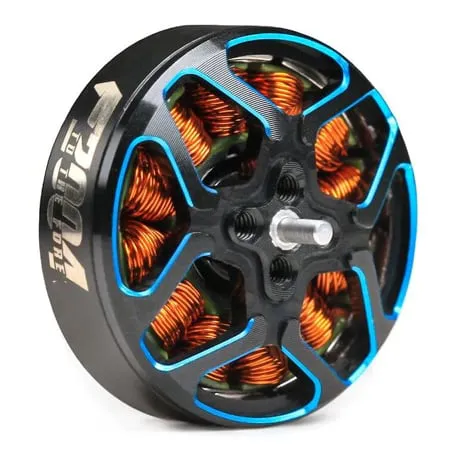

T-Motor F2004 FPV Motor 3-6S

The T-Motor F2004 is a lightweight 2004-size brushless motor for 3-inch cinewhoops and light 4-inch freestyle or toothpick builds. It comes in two windings: 1700KV, rated for 6S LiPo, and 3000KV, rated for 4–5S LiPo.

Key features

• 16.4 g without leads, keeping all-up weight low on small frames

• 3 mm shaft with T-mount prop fitting for T-mount propellers

• 12N14P configuration on a 20 × 4 mm stator

• CNC-machined aluminium bell

• 130 mm 24AWG leads

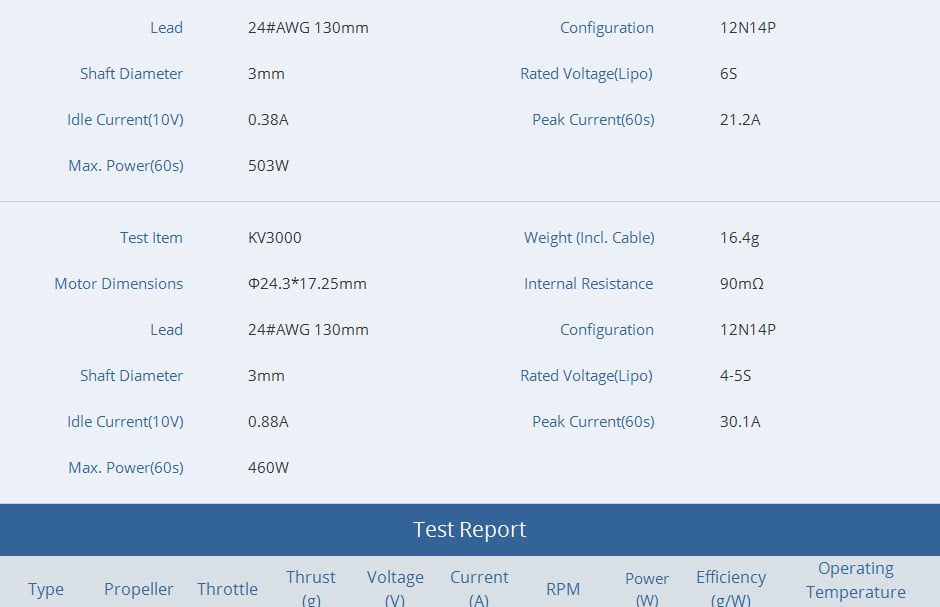

Specifications

• Stator: 2004 (20 mm × 4 mm)

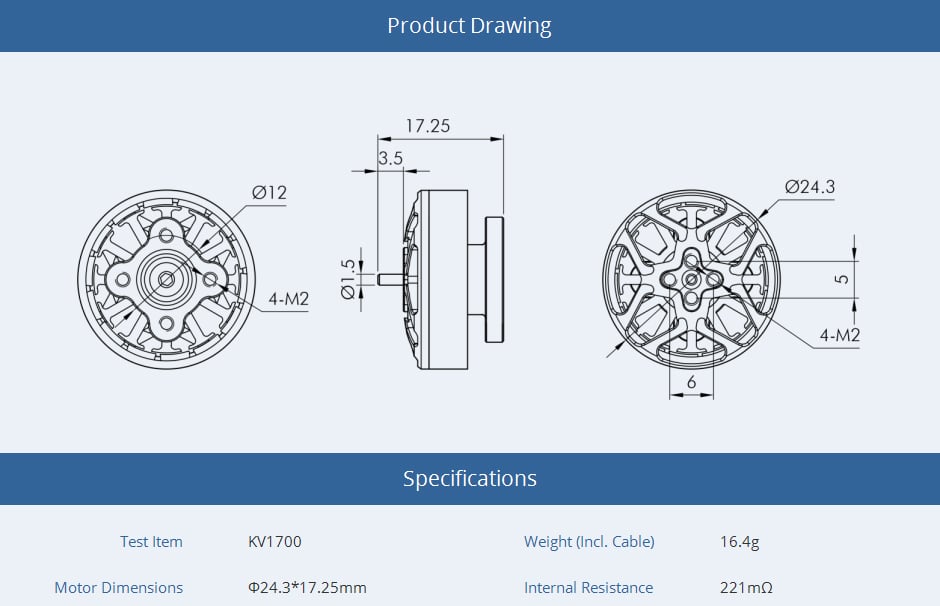

• Motor size: Ø24.3 × 17.25 mm

• Rated input: 6S (1700KV), 4–5S (3000KV)

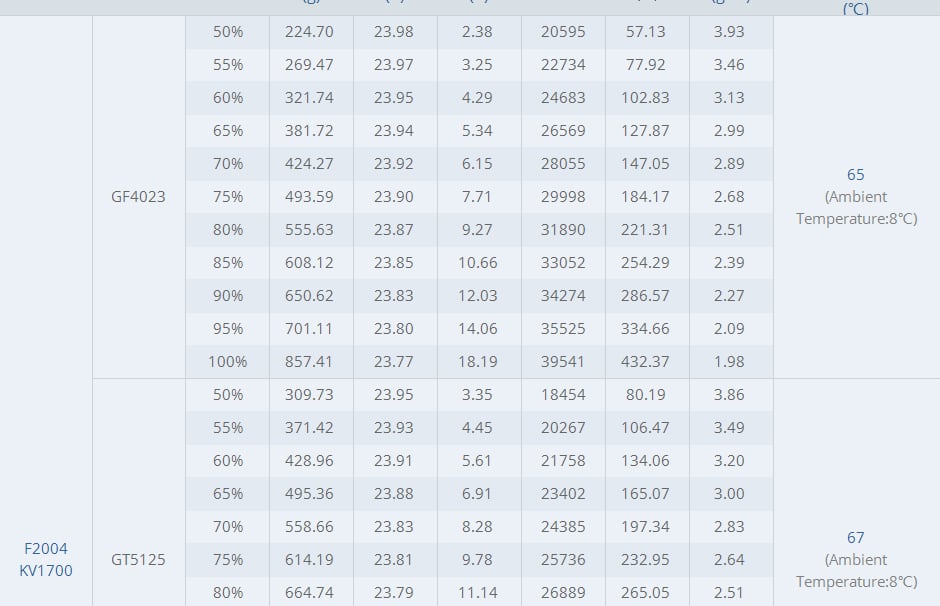

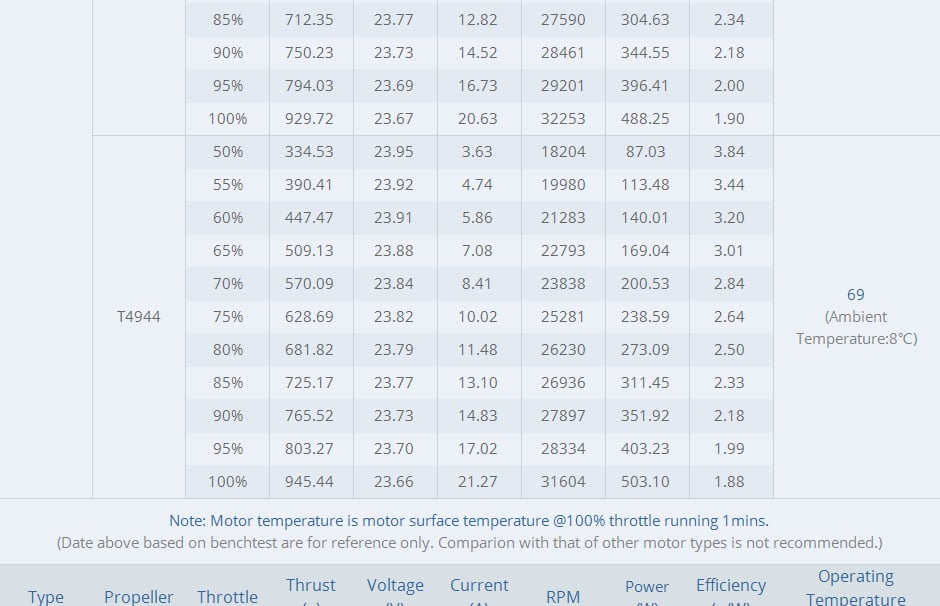

• Max power (60 s): 503 W (1700KV) / 460 W (3000KV)

• Peak current (60 s): 21.2 A (1700KV) / 30.1 A (3000KV)

• Internal resistance: 221 mΩ (1700KV) / 90 mΩ (3000KV)

• Idle current (10 V): 0.38 A (1700KV) / 0.88 A (3000KV)

• Configuration: 12N14P

• Shaft: 3 mm

• Prop mount: T-mount

• Leads: 130 mm, 24AWG

• Weight: 16.4 g excluding cable

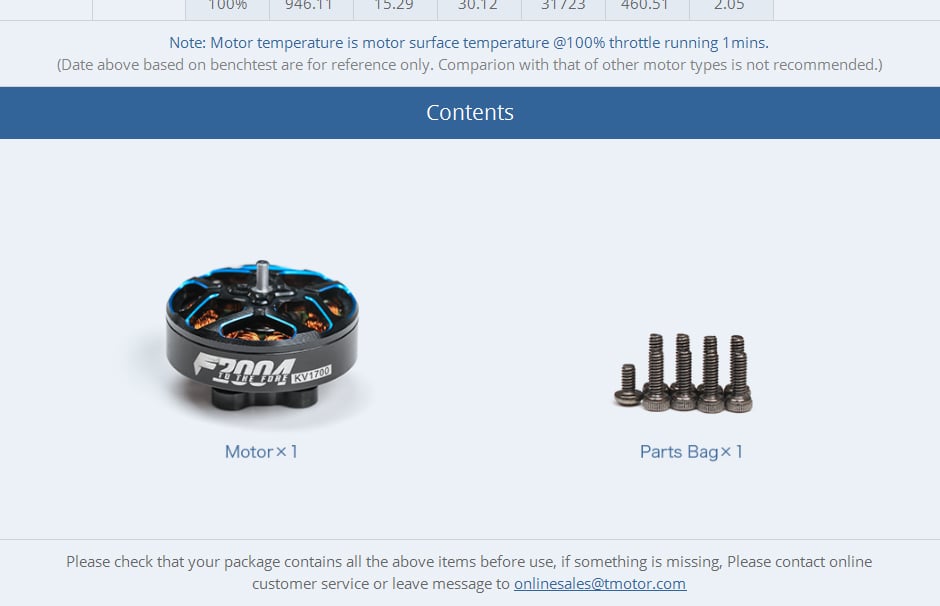

Choose the winding to match your battery: 1700KV for 6S packs, 3000KV for 4S or 5S. Use an ESC rated above the version's peak current, which is 30.1 A for the 3000KV. Each listing is one motor, so order four for a quad.
