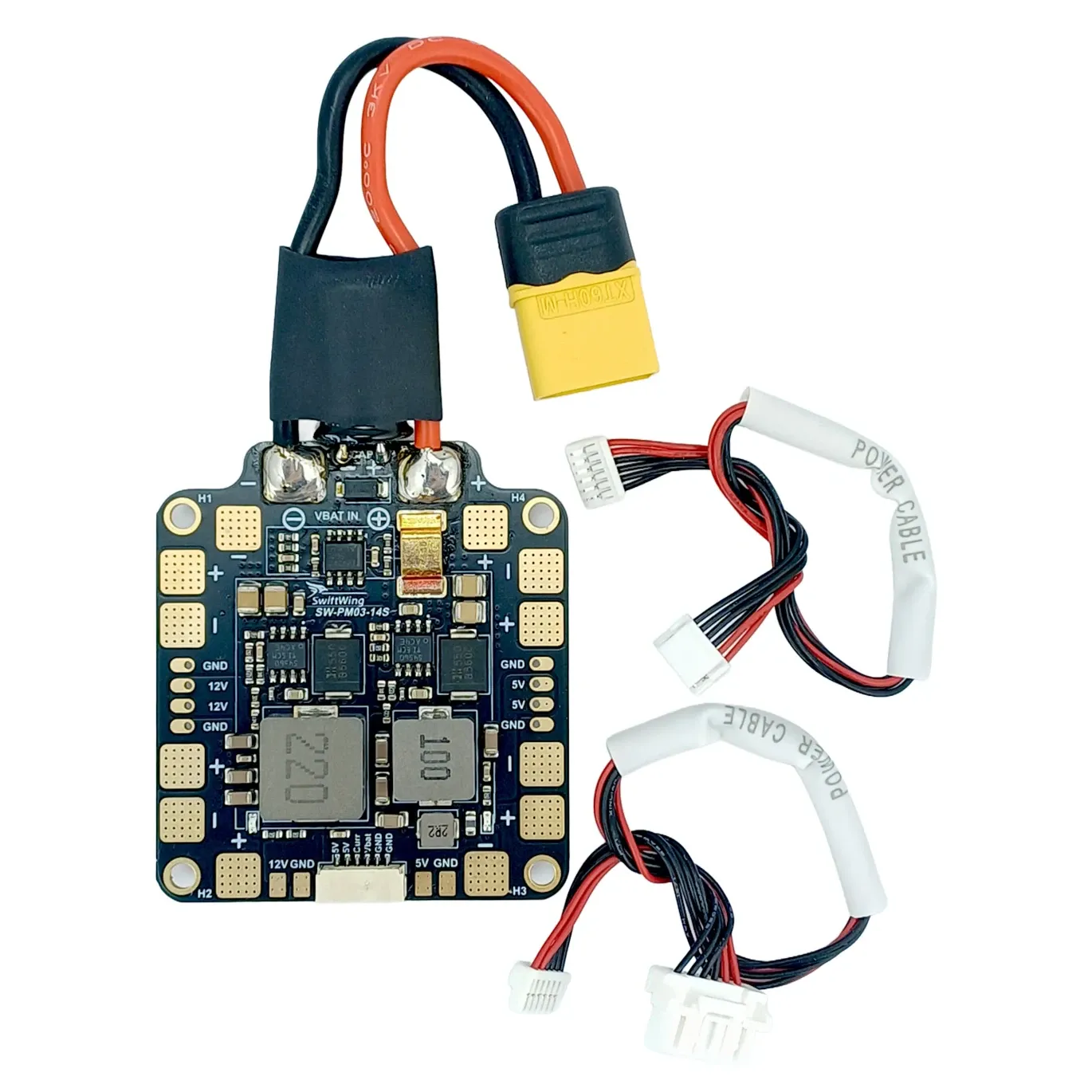

SwiftWing PM03-14S 3S-14S 120A Power Module PDB

The SwiftWing PM03-14S combines an analog power module and a power distribution board for ArduPilot and PX4 multirotors, VTOL aircraft and robotics platforms running 3S to 14S LiPo packs.

Key features

• Accepts 3S-14S LiPo input (9-60V) and distributes power to up to six ESCs.

• Provides regulated 5V and 12V outputs alongside shunt-based current sensing and voltage monitoring for the flight controller.

• Rated for 120A continuous current (150A burst) on a 4-layer, 2oz-copper PCB.

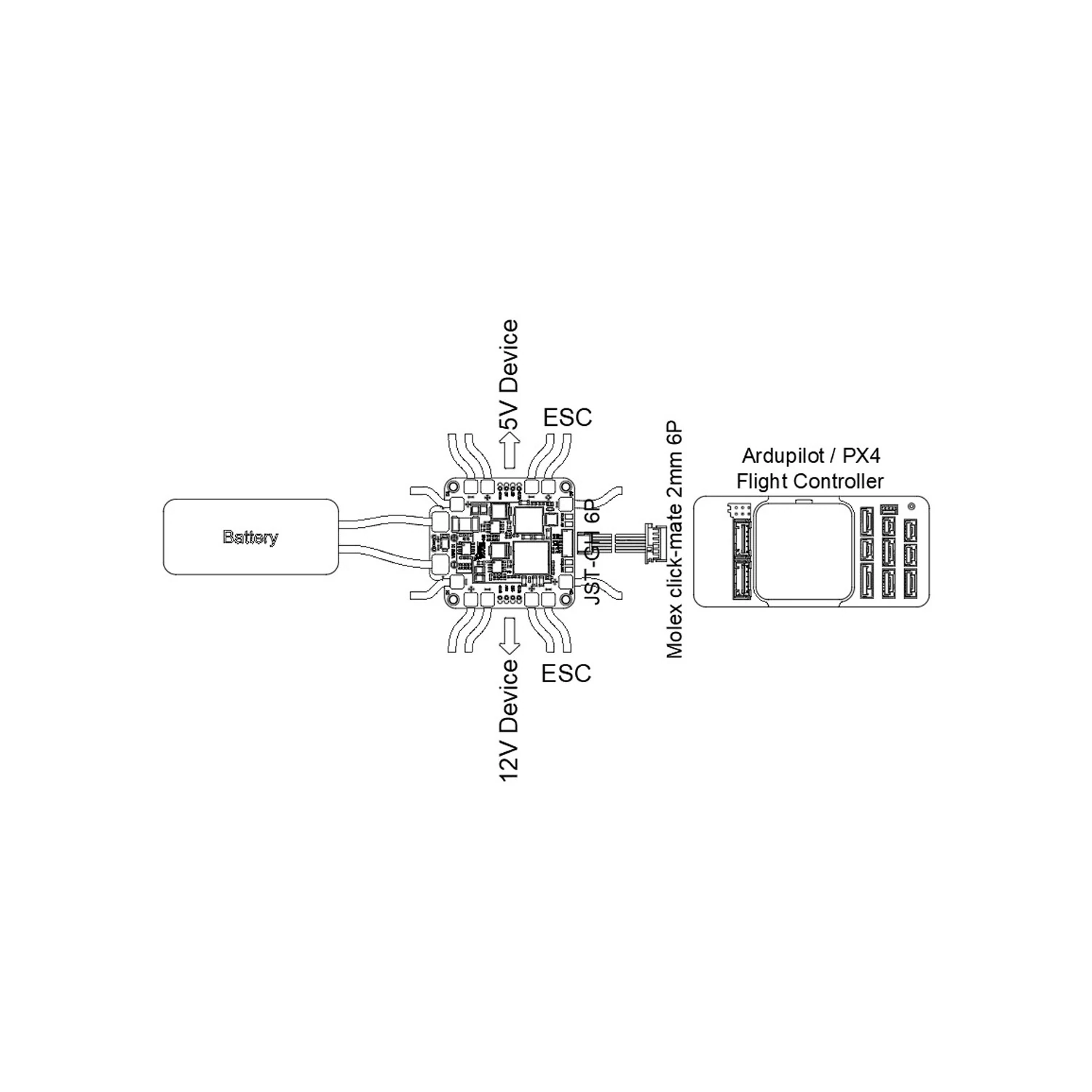

• Pixhawk-compatible JST-GH 6-pin interface with TVS transient protection and a low-ESR capacitor for clean power.

• Operates from -10 degC to +60 degC, suiting industrial and agricultural drone use.

Specifications

• Input: 3S-14S LiPo (9-60V)

• Continuous current: 120A (150A burst)

• ESC outputs: 6

• Outputs: 5V and 12V regulated

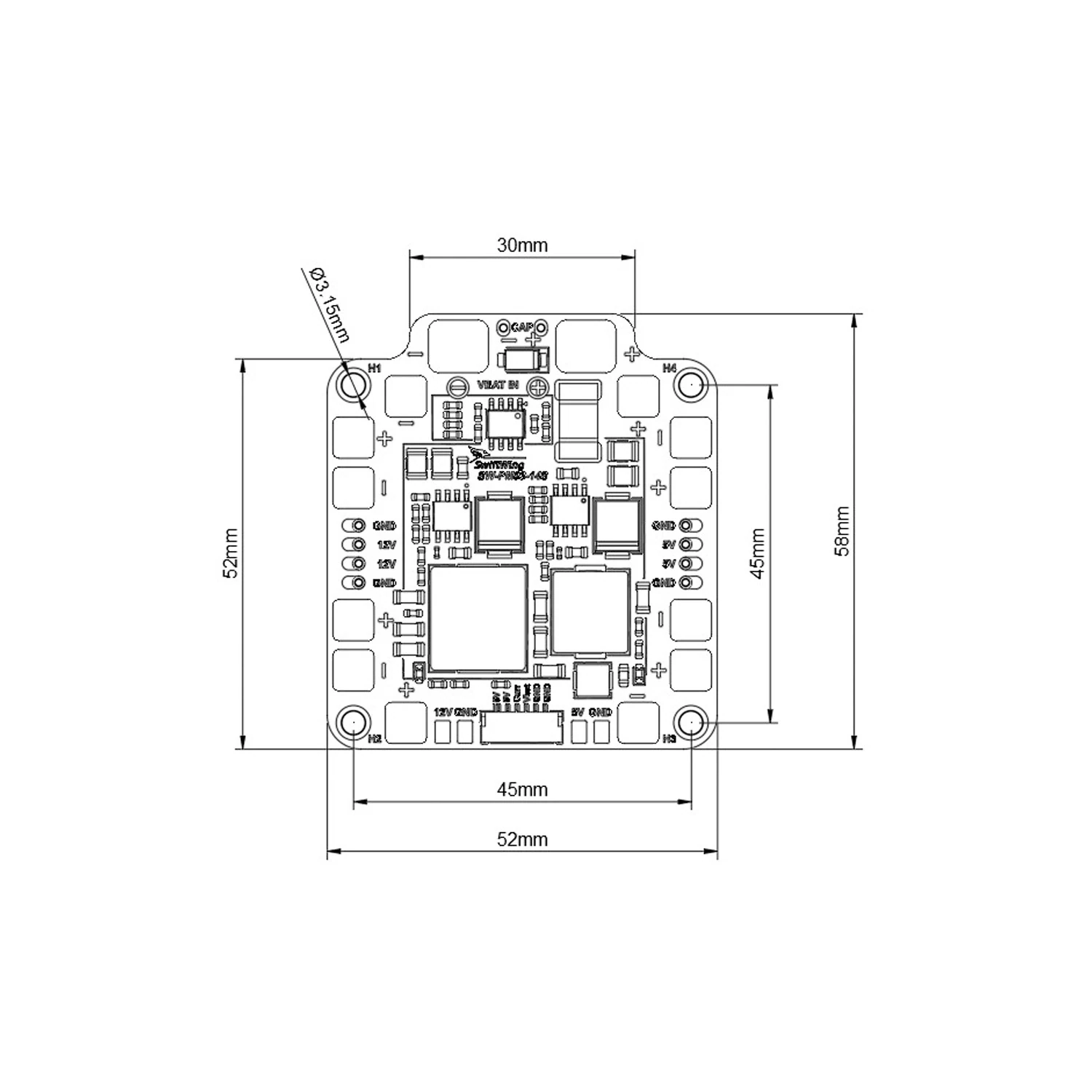

• Dimensions: 58 x 52 x 5mm

• Weight: 36g

• Mounting: 4 x M3

Keep high-current wiring short and insulated, and confirm total ESC and peripheral current draw stays within the 120A continuous rating.
