PDBs & Power ModulesSwiftWing PDB-6S 12V/
SwiftWing PDB-6S 12V/
₹2,199Incl. GST
SKU SWIFTWING-PDB-6S
Input Voltage: 3–6SMade in India: YesBrand: SwiftWingMounting Size: 30.5x30.5, 40x40
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

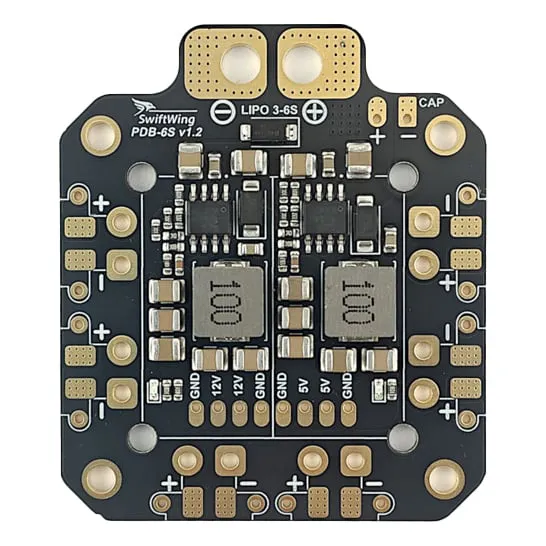

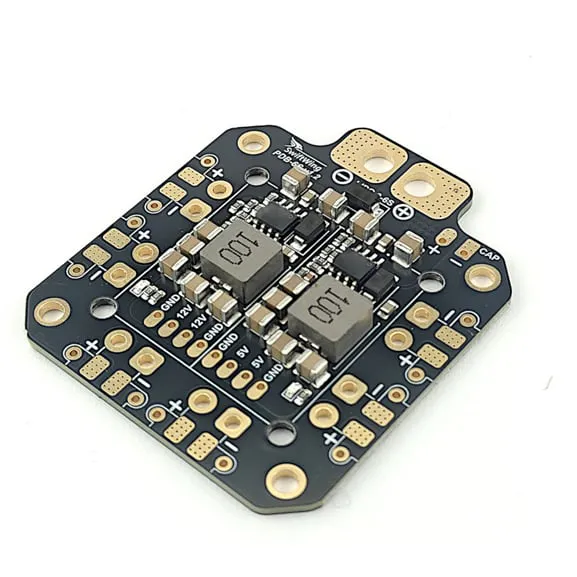

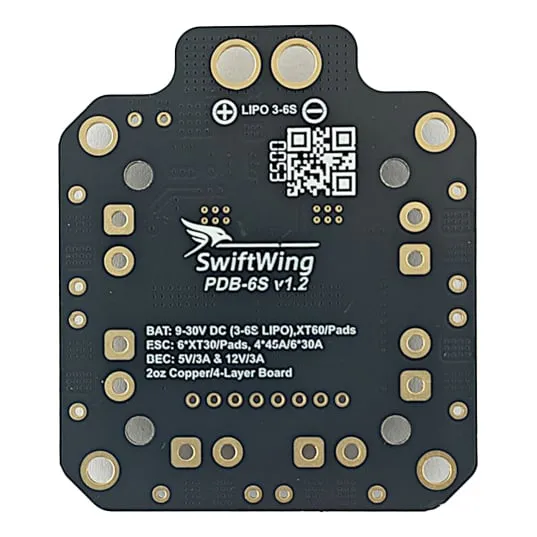

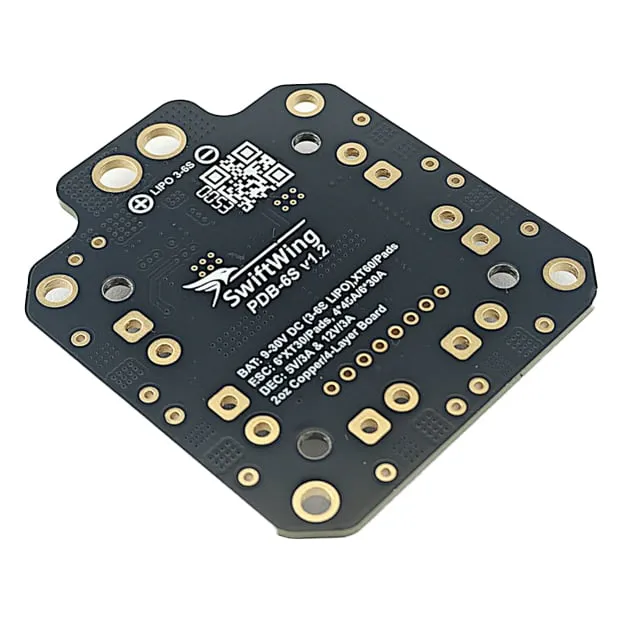

The SwiftWing PDB-6S is a power distribution board for 3S–6S LiPo multirotor builds, combining battery distribution with regulated 5V and 12V buck outputs on one board for cameras, VTXs and flight electronics.
Key features
- Accepts 3S to 6S LiPo input and distributes power to the ESCs and flight stack.
- Onboard 5V/3A buck regulator for flight controllers, receivers and other 5V accessories.
- Onboard 12V/3A buck regulator for cameras, video transmitters and other 12V equipment.
- Rated for up to 120A total current across a 4-layer PCB with 2oz copper, for low voltage drop and good thermal performance.
- XT30 and XT60 solder pads plus two mounting hole patterns (30.5mm and 40mm) suit a range of frames.
- Made in India.
Confirm the battery cell count, wiring polarity and current demand of every connected device before soldering.
| Input Voltage | 3–6S |
|---|---|
| Made in India | Yes |
| Brand | SwiftWing |
| Mounting Size | 30.5x30.5, 40x40 |
| Continuous Current | 120 A |
