SwiftWing PDB02 3S-6S Power Distribution Board
₹439Incl. GST
SKU SWIFTWING-PDB02
Connector: Direct (No Connectors)
Input Voltage: 3–6SMade in India: YesBrand: SwiftWingContinuous Current: 200 A
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The SwiftWing PDB02 is a power distribution board for 3S-6S LiPo drone systems. It is offered as a bare board with XT30/XT60 solder footprints, with a factory-fitted XT60 battery input, or with an XT60 input plus six XT30 ESC outputs.
Key features
- Accepts 3S-6S LiPo battery input.

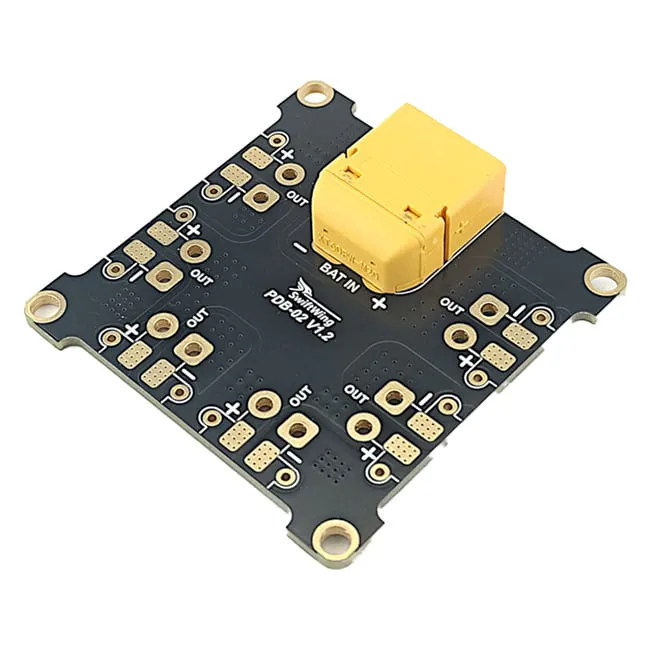

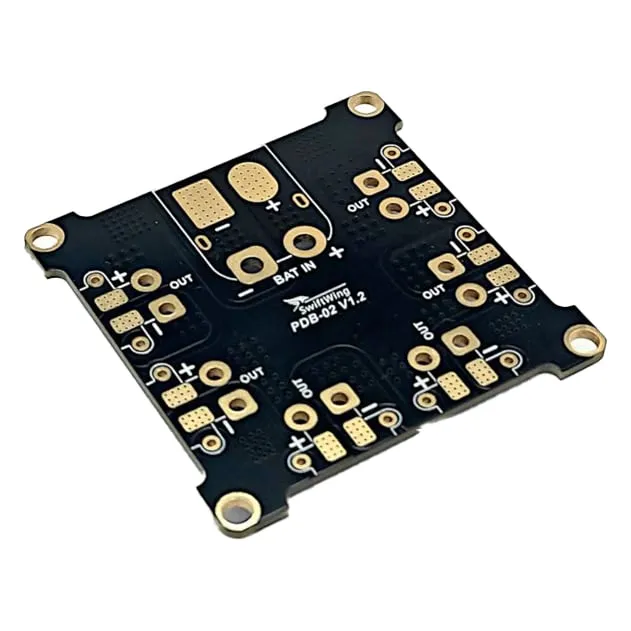

- XT60 input connector comes factory-fitted on the XT60 and XT60 + 6x XT30 versions; the direct version has solder pads.
- Provides a central power distribution point for drone electronics.
- Suitable for custom multirotor and FPV power systems.
Specifications
- Input voltage: 3S-6S LiPo (11.1-25.2 V)
- PCB: 4-layer, 2 oz copper, ENIG finish

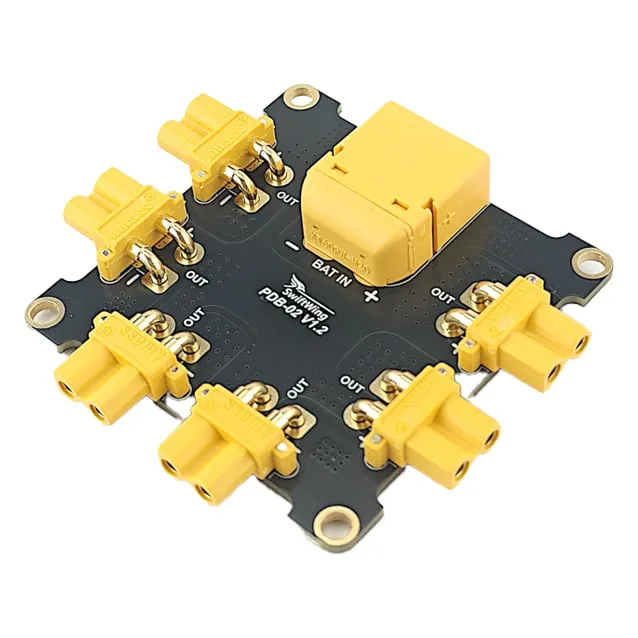

- ESC outputs: solder pads, or six factory-fitted XT30 connectors on the XT60 + 6x XT30 version
- Regulation: none (direct battery bus)
- Size: 50 x 50 mm
Use the board when planning a build around an XT60 battery connection. Match the power layout to the ESCs and accessories, and check polarity before connecting the LiPo battery.
| Input Voltage | 3–6S |
|---|---|
| Made in India | Yes |
| Brand | SwiftWing |
| Continuous Current | 200 A |
