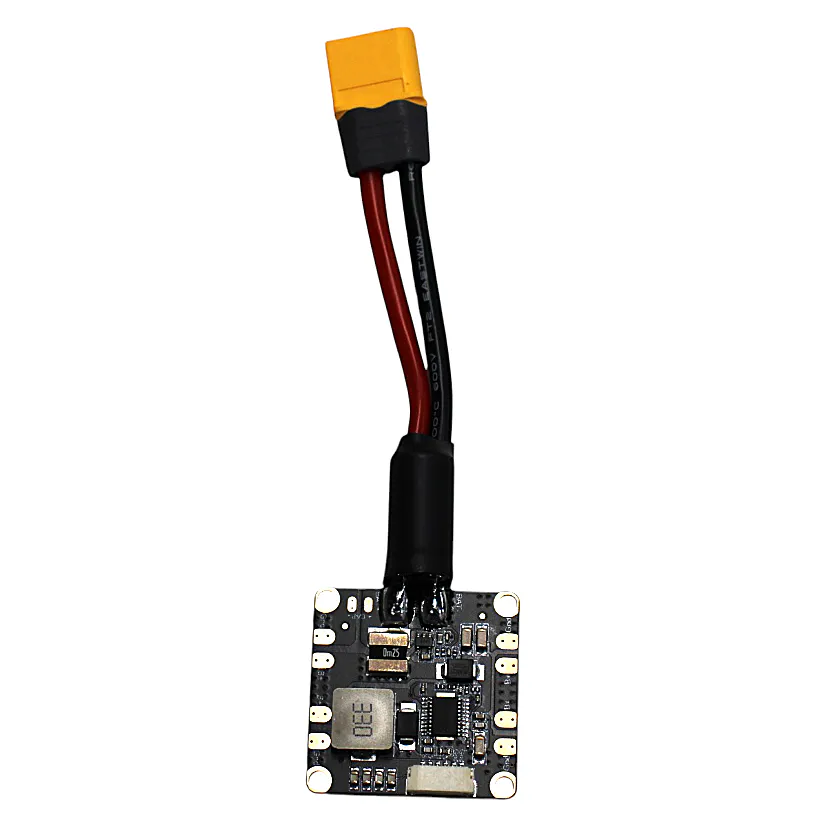

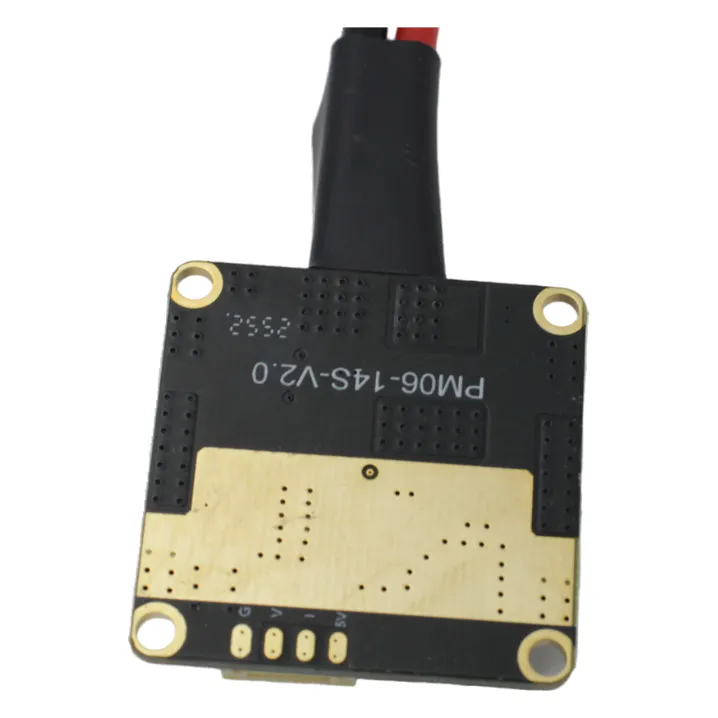

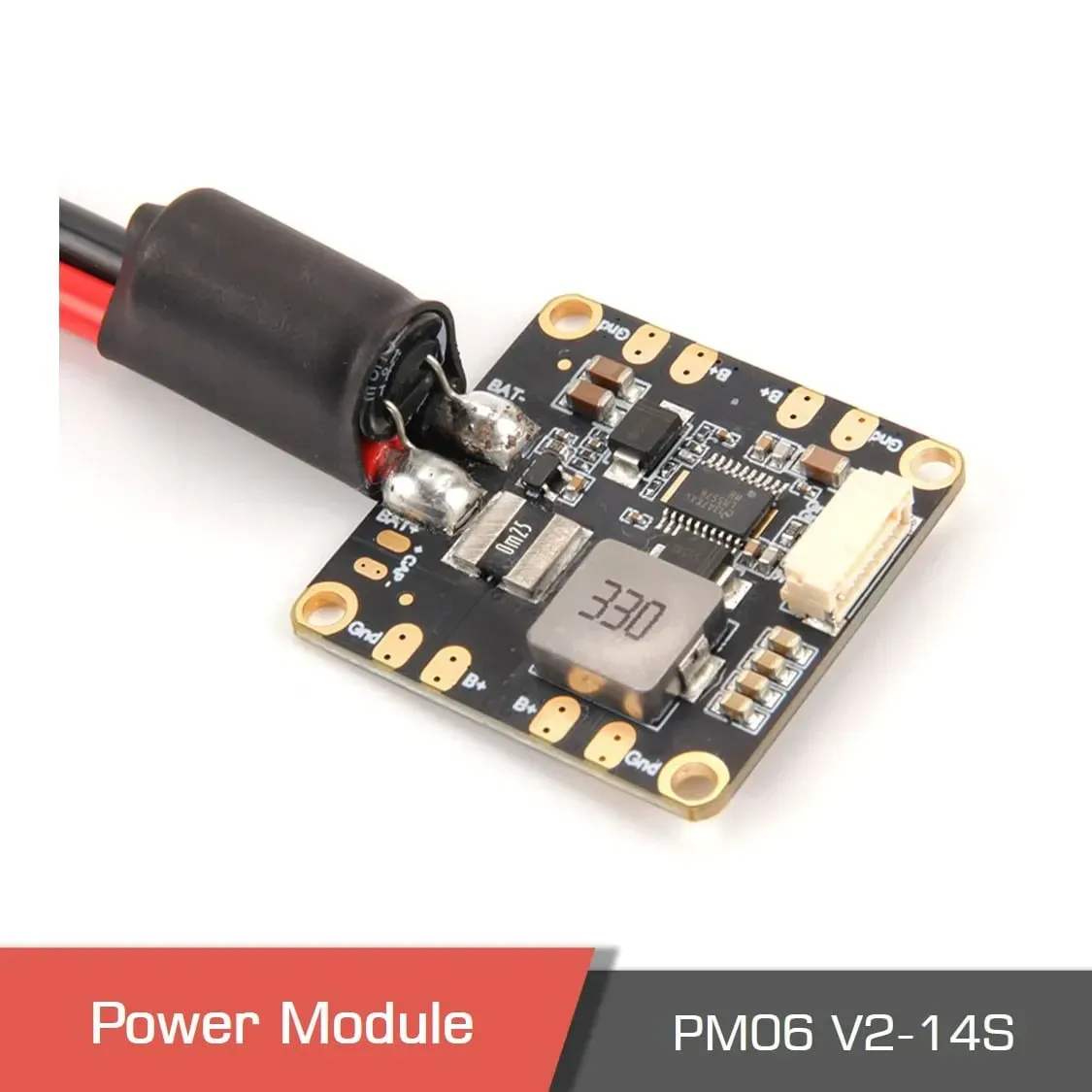

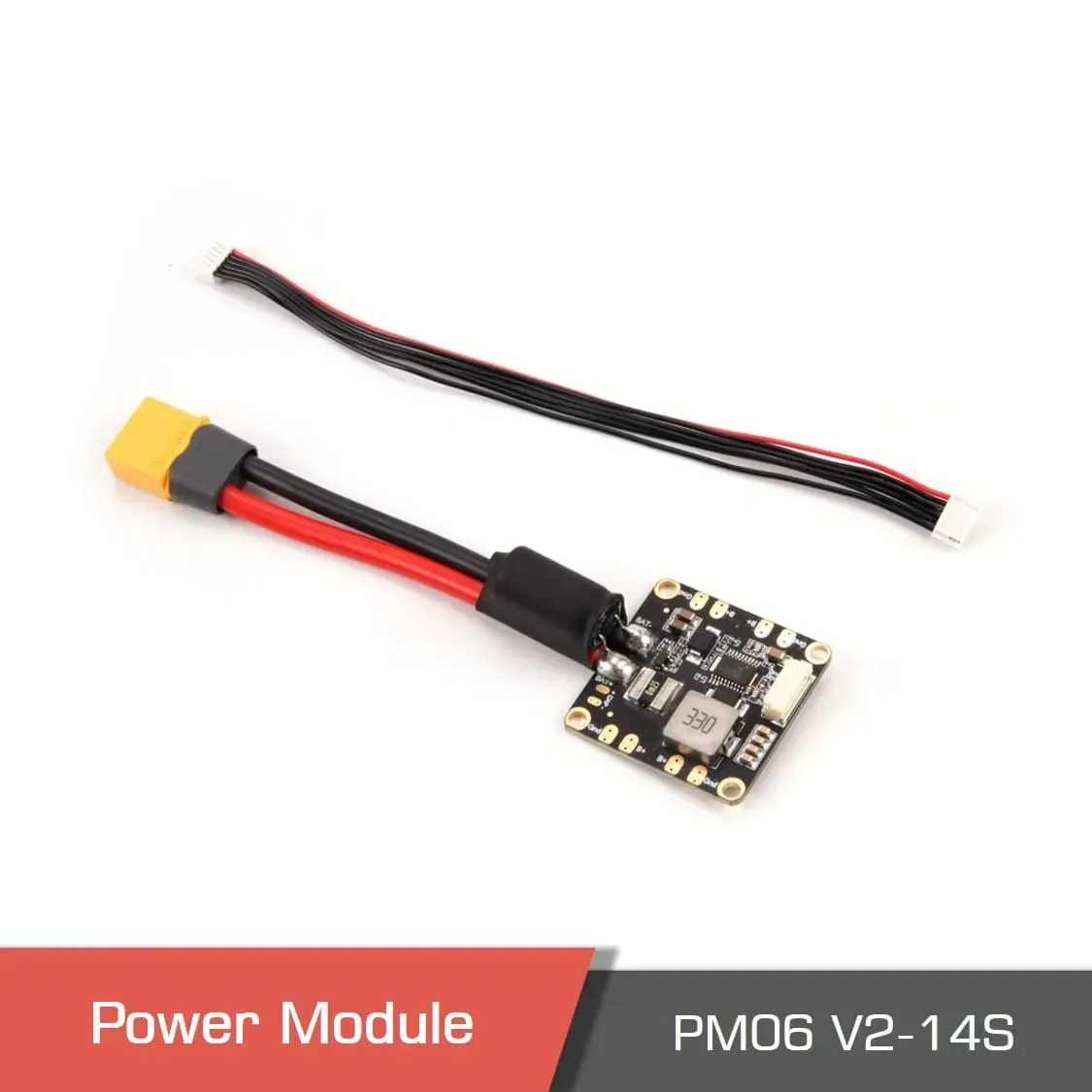

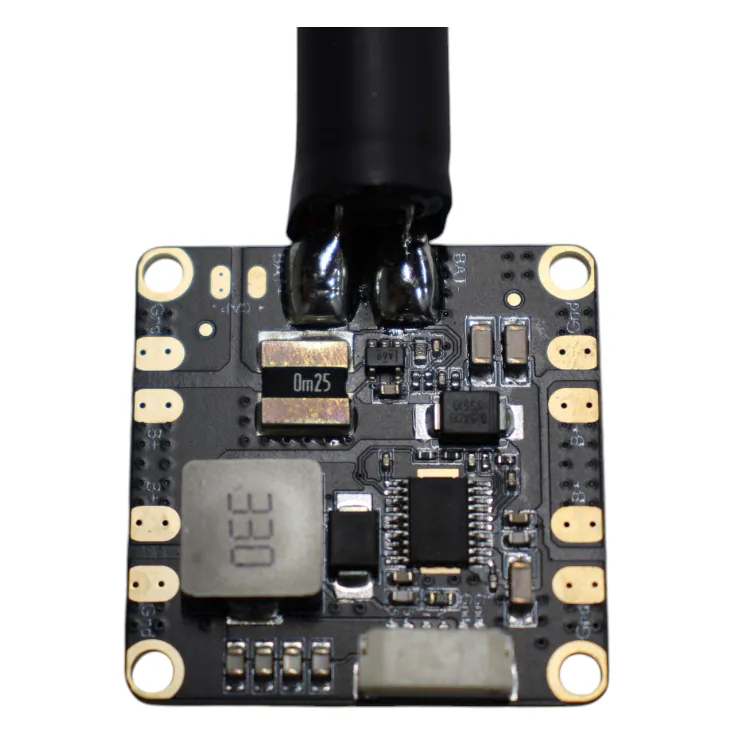

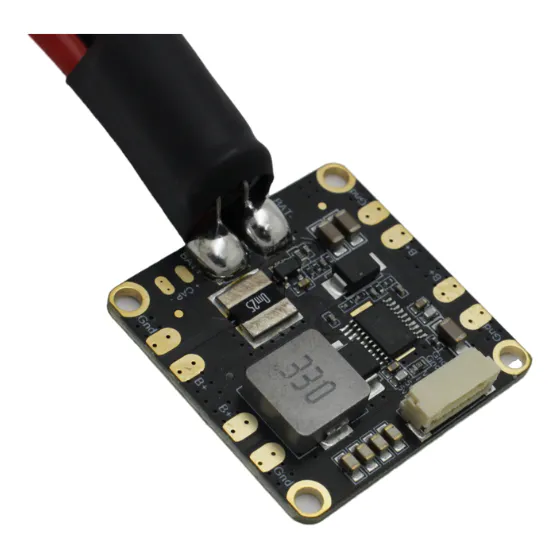

Holybro PM06 V2 14S Analog Power Module

The Holybro PM06 V2 combines an analog power module and a four-ESC power distribution board on one 30.5 × 30.5 mm board. It feeds a regulated 5.2 V supply to a Pixhawk-style flight controller from packs up to 14S and reports battery voltage and current draw over a 6-pin JST-GH lead, so ArduPilot or PX4 can track consumption and trigger low-battery failsafes.

Key features

• Accepts 2S to 14S LiPo, from small test quads up to 12S and 14S heavy-lift frames
• Four ESC pads on the board, so battery, ESCs and flight controller all wire to one point
• PCB rated 70 A continuous and 120 A burst (under 60 seconds), with current sensing up to 120 A
• Supplied with the XT60 plug, 12 AWG leads and capacitor already soldered
• Analog output only: not compatible with Pixhawk 5X or 6X, which need a digital module such as the PM06D

Specifications

• Input voltage: 2S–14S LiPo
• Flight controller supply: 5.2 V, 3 A max
• PCB current rating: 70 A continuous / 120 A burst
• Max current sensing: 120 A

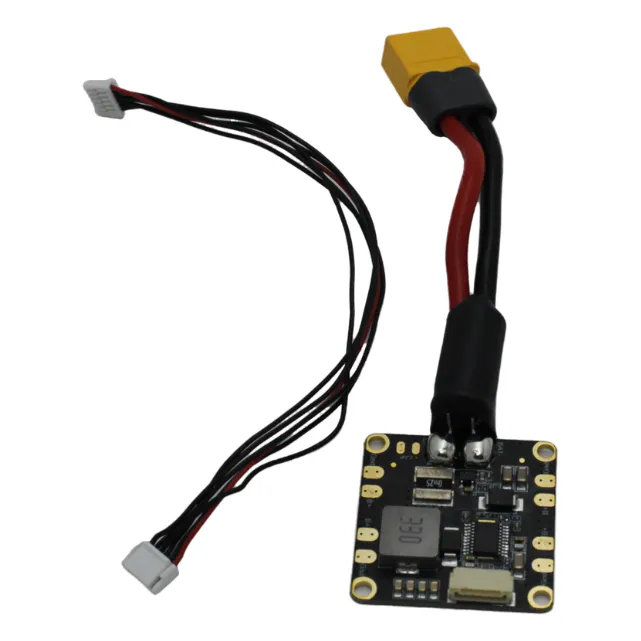

• Monitoring port: 6-pin JST-GH (1.25 mm), analog voltage and current

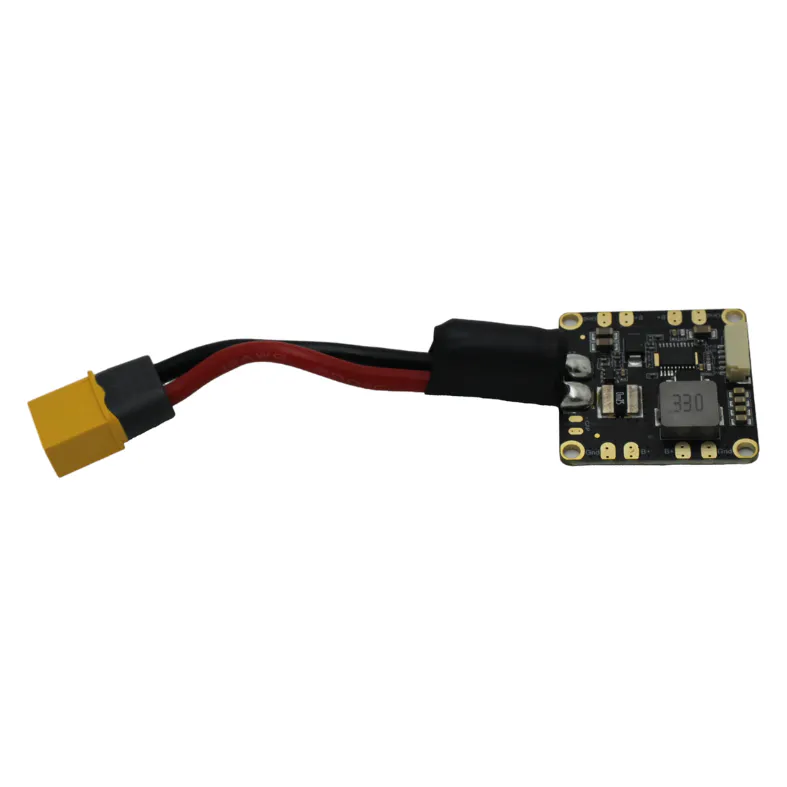

• Battery lead: XT60 on 12 AWG wire, rated 30 A continuous / 60 A burst
• Board size: 35 × 35 mm
• Mounting: 30.5 × 30.5 mm
• Weight: 24 g

The pre-fitted XT60 lead, not the board, sets the practical limit: if your build draws more than 30 A continuously, replace the plug and wire with a higher-rated pair before flying.
