PDBs & Power ModulesSwiftWing PDB-14S 12V/
SwiftWing PDB-14S 12V/
₹3,499Incl. GST
SKU SWIFTWING-PDB-14S
Input Voltage: 8–14SMade in India: YesBrand: SwiftWingWeight: 20 g
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

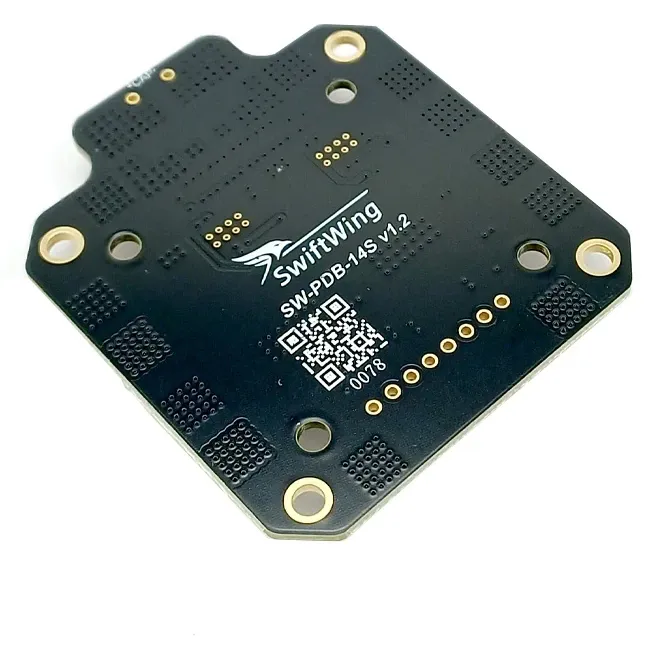

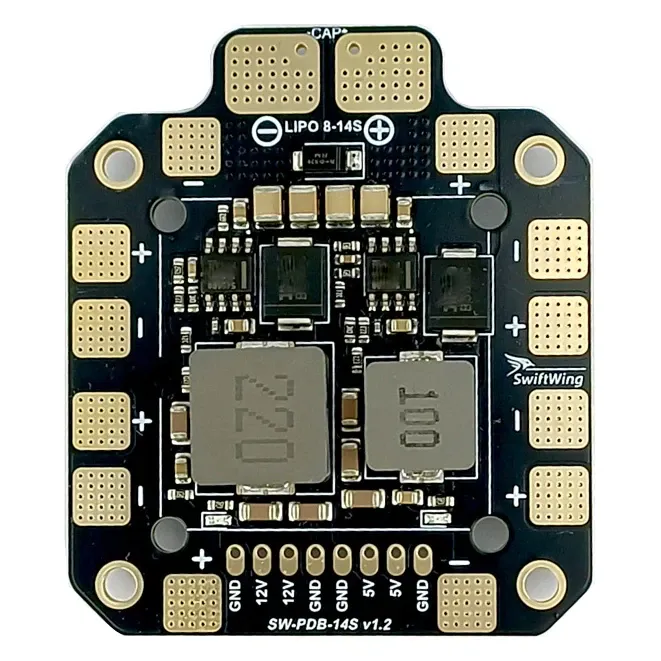

SwiftWing PDB-14S is a power distribution board for drone builds that need regulated 12V and 5V rails from a high-voltage battery system. It suits larger drone installations where separate electronics require different supply voltages.
Key features
- Provides a 12V buck output for compatible cameras, video transmitters or other 12V equipment.
- Provides a 5V buck output for flight controllers, receivers or accessories that require 5V.
- Combines power distribution with two buck-converter outputs on one board.
Specifications
- Supported battery: 8S-14S LiPo
- Max input voltage: 65 V DC
- Continuous current: 120 A (150 A burst)
- Outputs: 12 V and 5 V, synchronous buck regulated
- Protection: TVS transient protection
- PCB: 4-layer, 2 oz copper, 1.6 mm thick
- Mounting patterns: 30.5 mm and 40 mm
- Dimensions: 58 x 50 x 7 mm
- Weight: 20 g
- Operating temperature: -10 to +60 degC
Confirm the battery range, polarity, grounding and current demand of every connected device before soldering.
| Input Voltage | 8–14S |
|---|---|
| Made in India | Yes |
| Brand | SwiftWing |
| Weight | 20 g |
| Mounting Size | 30.5x30.5, 40x40 |
| Continuous Current | 120 A |
