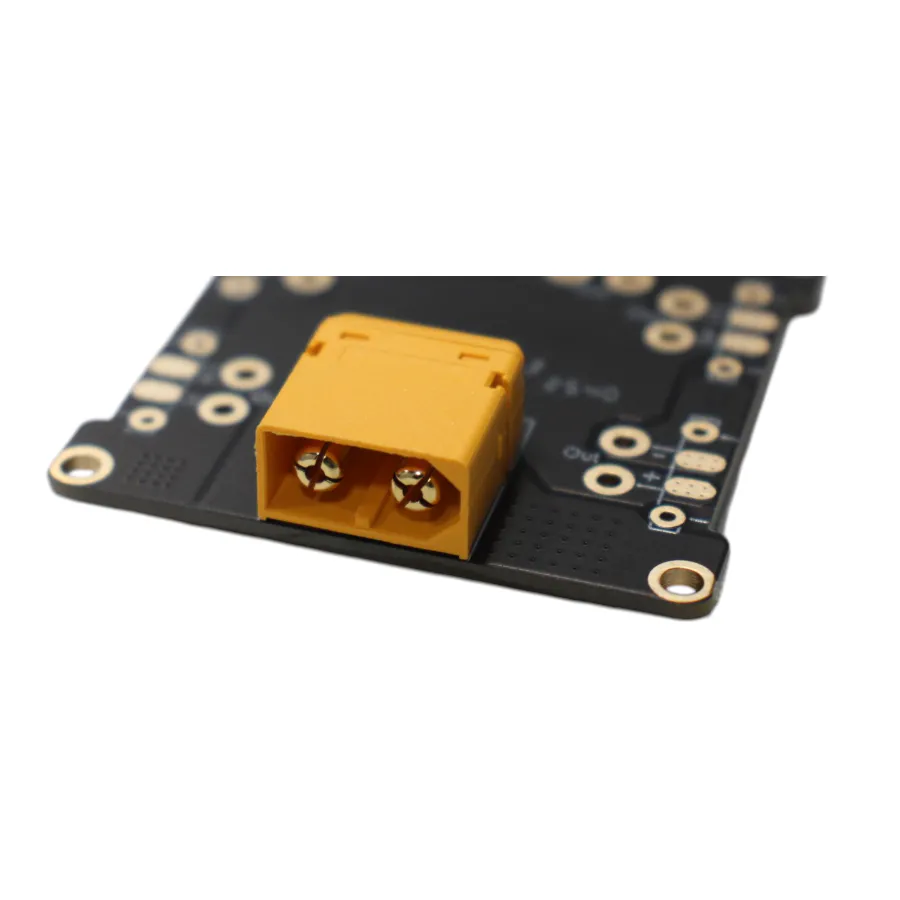

Holybro Power Distribution Board 60A (XT60)
₹599Incl. GST
SKU HOLYBRO-PDB-NO-XT30
Version: Without XT30
Made in India: NoBrand: HolybroBattery Connector: XT-60Mounting Size: 45x45
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

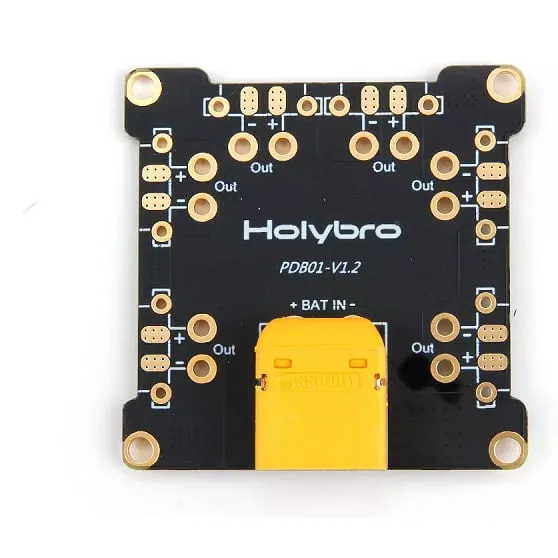

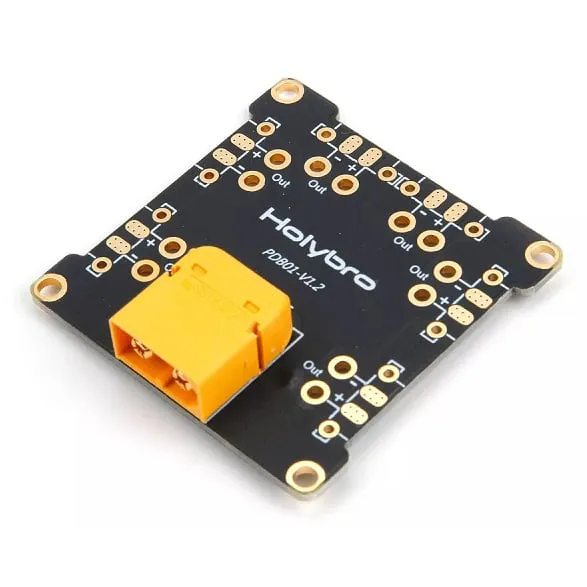

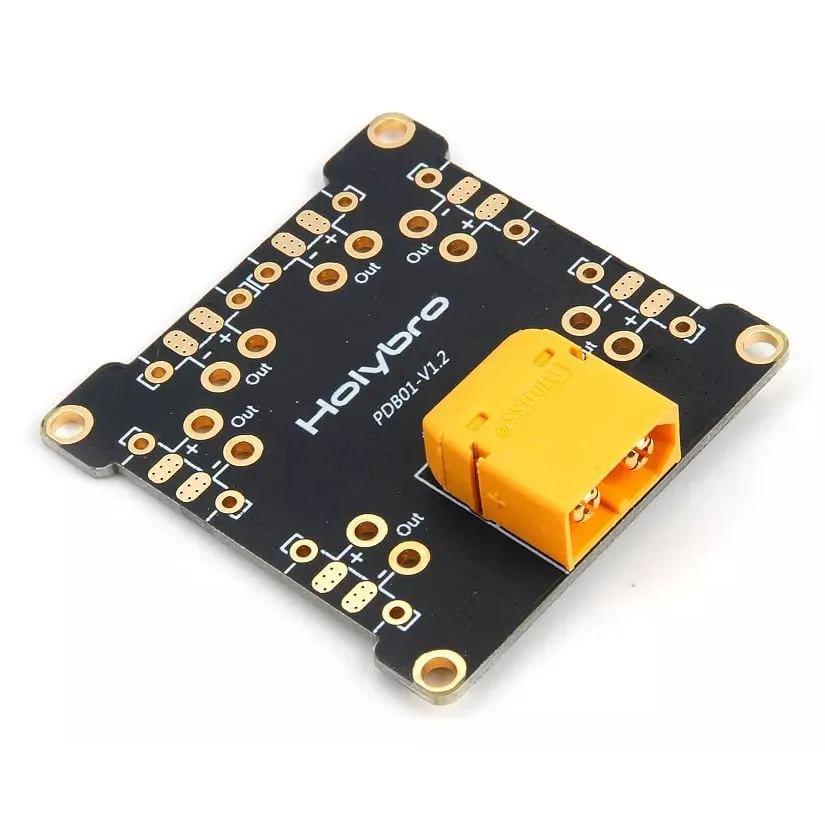

A compact Holybro power distribution board for multirotors built around a power module with no distribution of its own, such as the PM02 or PM02D. The battery and the power module connect through pre-soldered XT60s, and the board splits that supply out to the ESCs. Power modules with built-in distribution, namely the PM03, PM06 and PM07, do not need it.
Key features
- Rated 60 A continuous, 120 A maximum for under 60 seconds

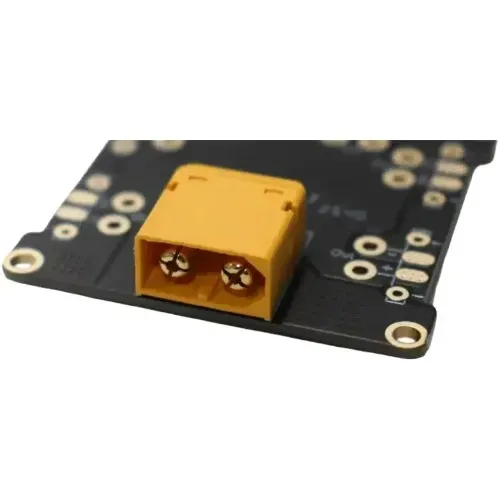

- Pre-soldered XT60 connectors for the battery and the power module
- 45 × 45 mm mounting pattern with 4 mm holes

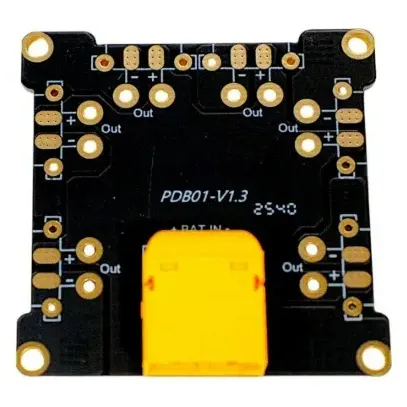

- Supplied without pre-soldered XT30 ESC connectors, leaving the ESC outputs free for your own leads
Specifications
- Rated current: 60 A
- Maximum current: 120 A (under 60 s)
- Connectors: XT60 for battery and power module, pre-soldered
- Mounting holes: 45 × 45 mm, 4 mm diameter
- Version: without XT30 ESC connectors
Pair it with an analog PM02 on a Pixhawk 6C, or with a digital PM02D on a Pixhawk 5X or 6X.
| Made in India | No |
|---|---|
| Brand | Holybro |
| Battery Connector | XT-60 |
| Mounting Size | 45x45 |
| Continuous Current | 60 A |
