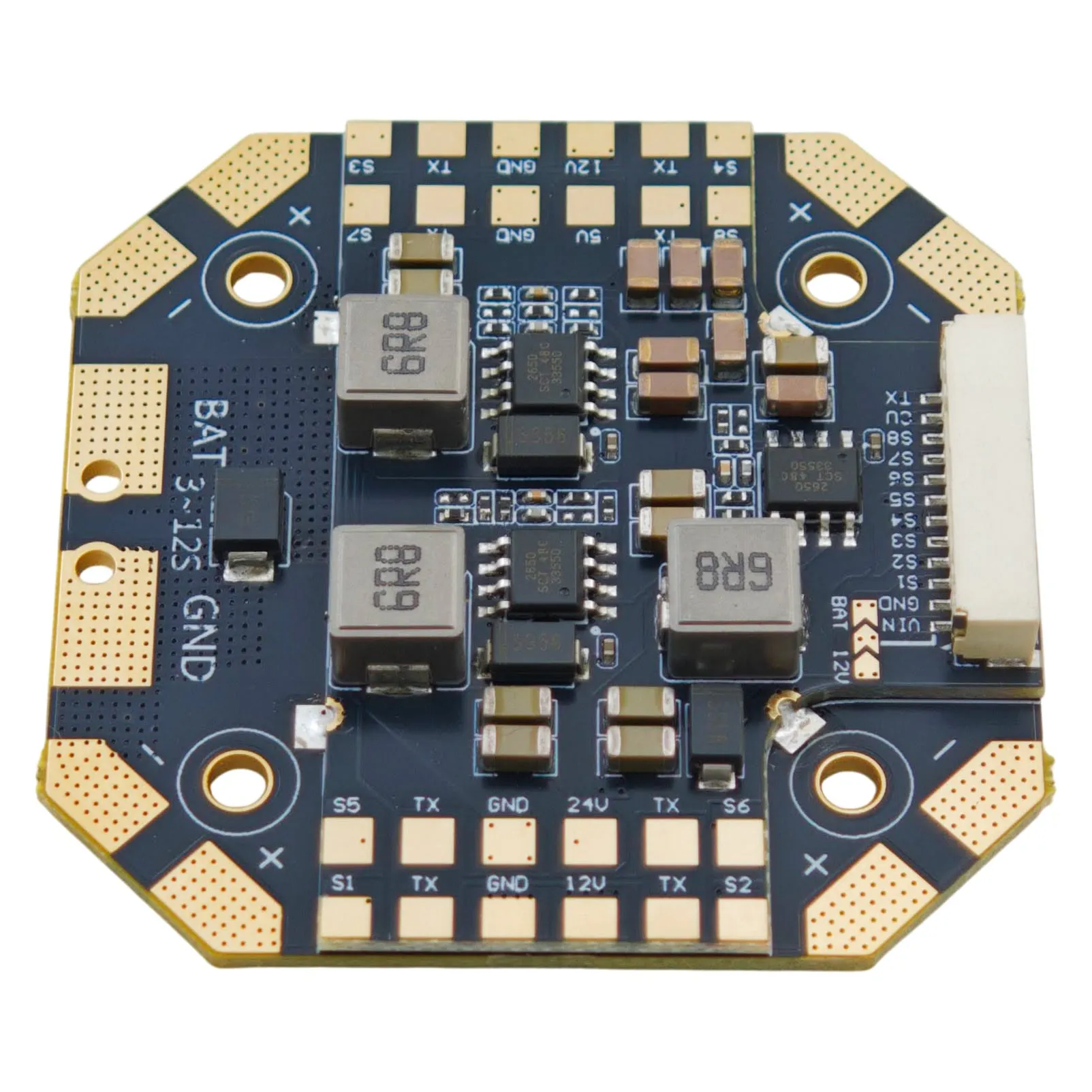

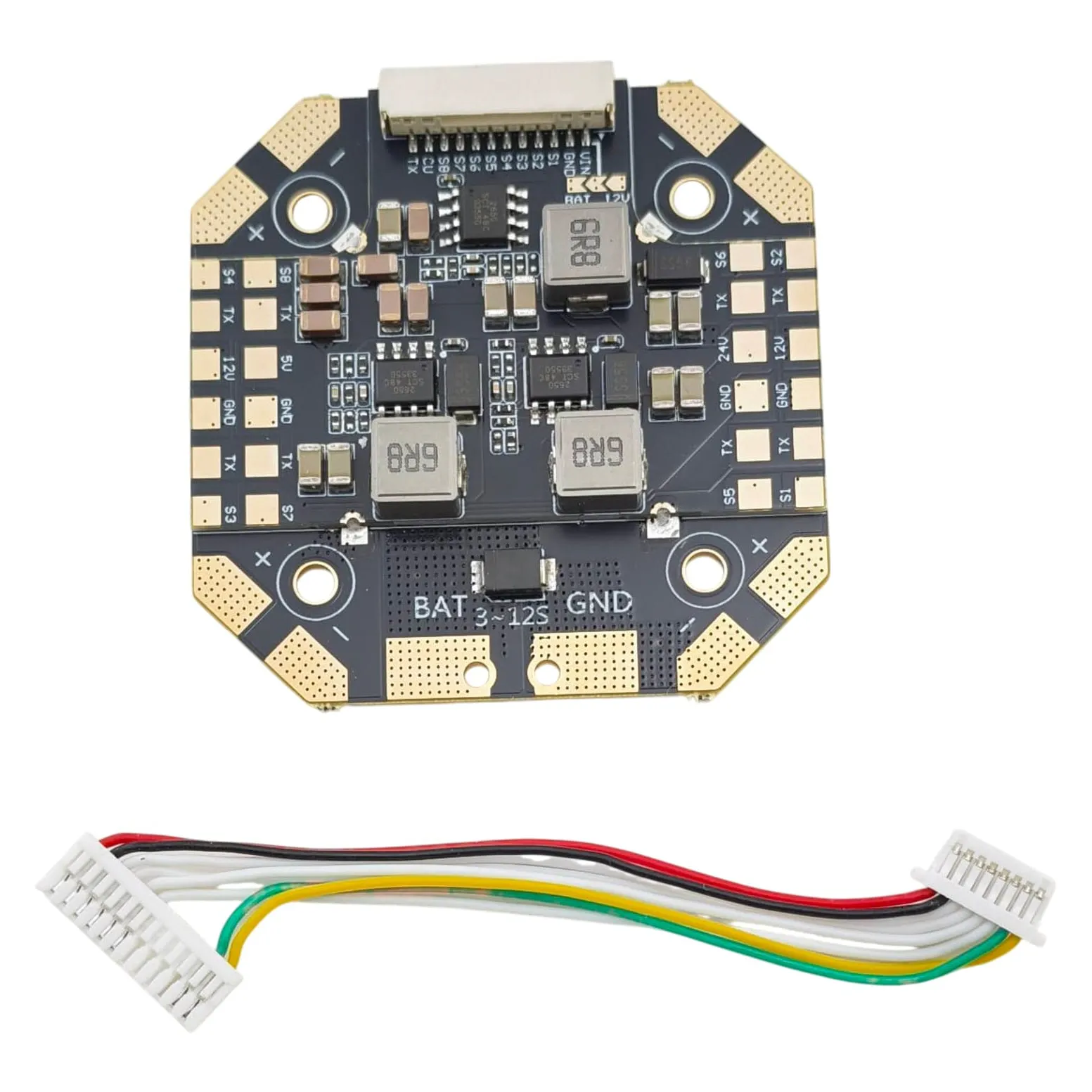

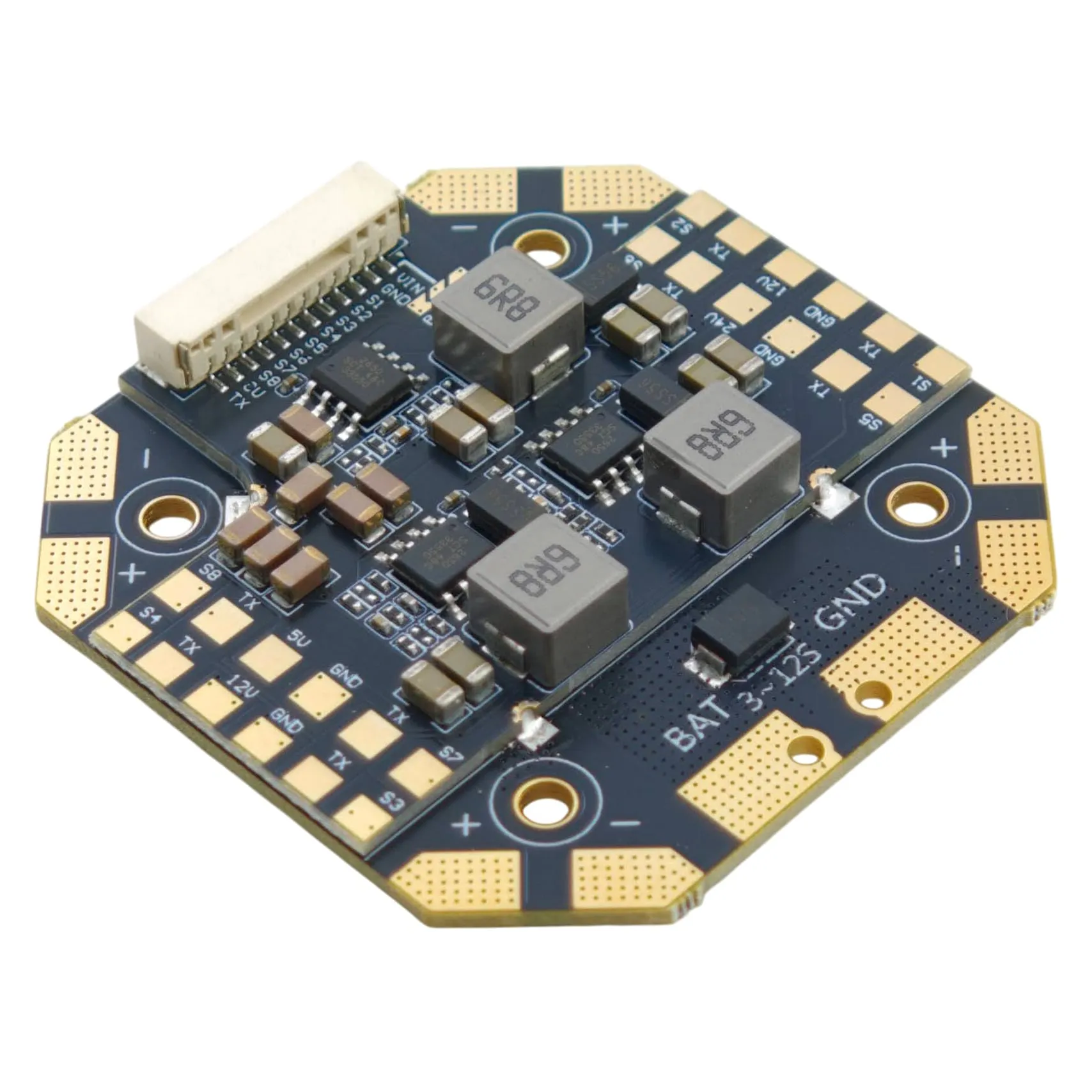

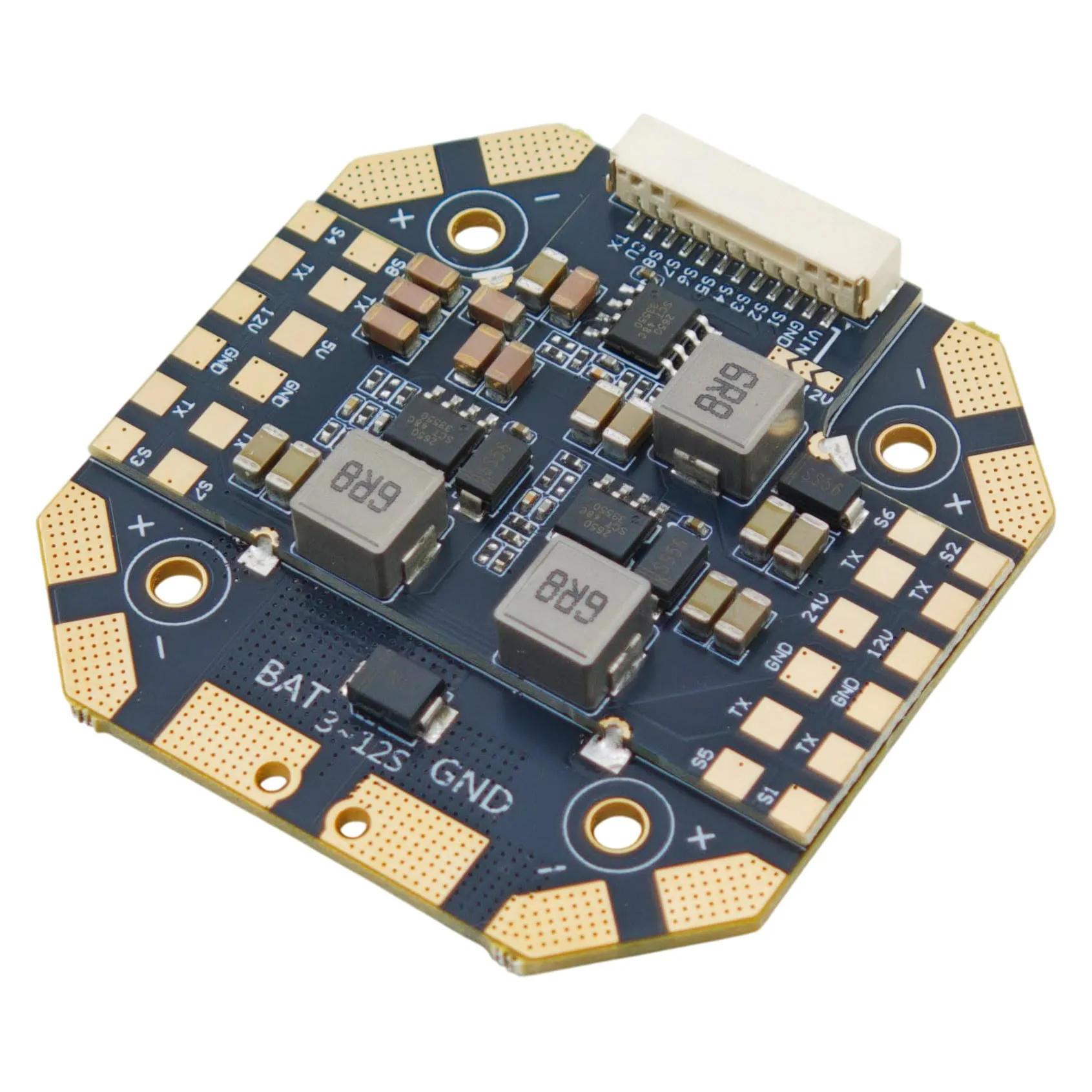

HGLRC PDB V2 4x100A 12S Power Distribution Board

The HGLRC PDB V2 is a high-current power distribution board for heavy-lift and cinelifter drones running up to 12S LiPo power.

Key features

• Four power paths rated at 100A continuous each, with a 120A peak per path.

• Accepts LiPo input from 3S up to 12S for high-voltage propulsion systems.

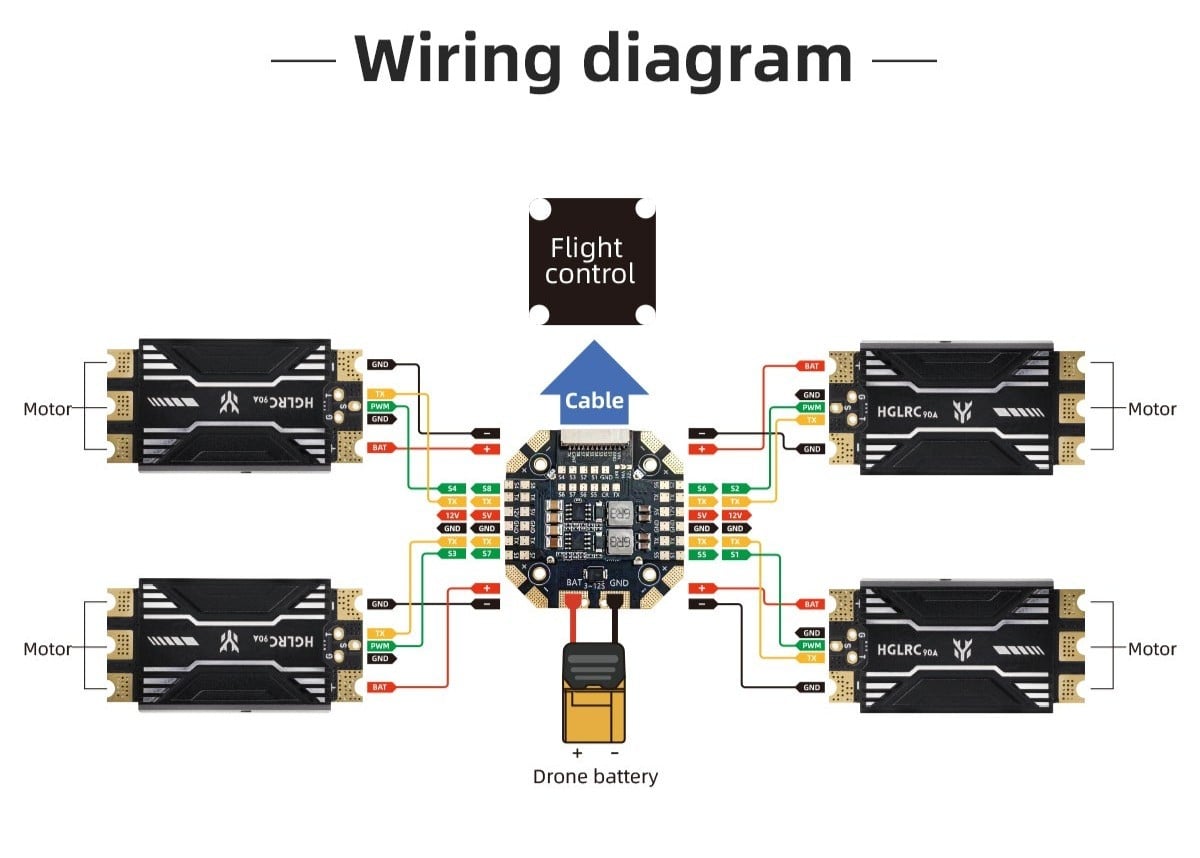

• Supports up to 8 ESC connections with ESC telemetry pass-through.

• Integrated current sensor for onboard power monitoring.

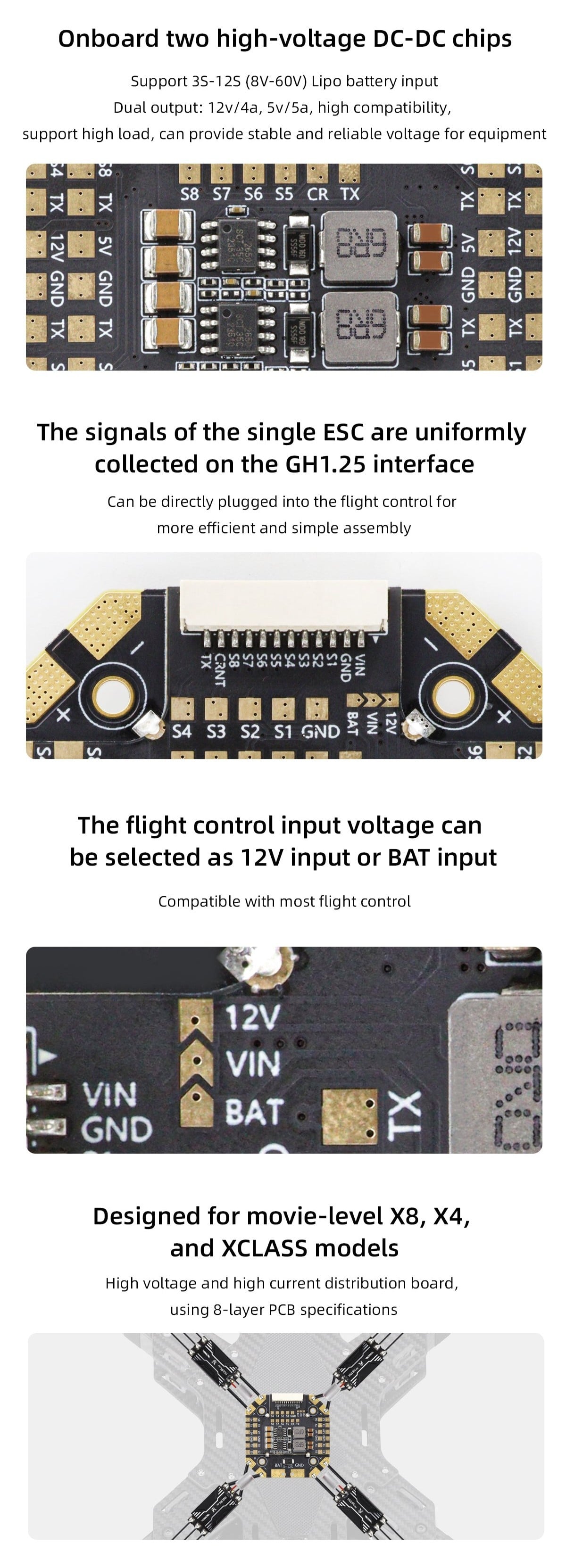

• Multiple onboard BECs supply regulated voltage to the flight stack and accessories.

• Compact 50x50mm footprint matches a 30.5x30.5mm stack mounting pattern.

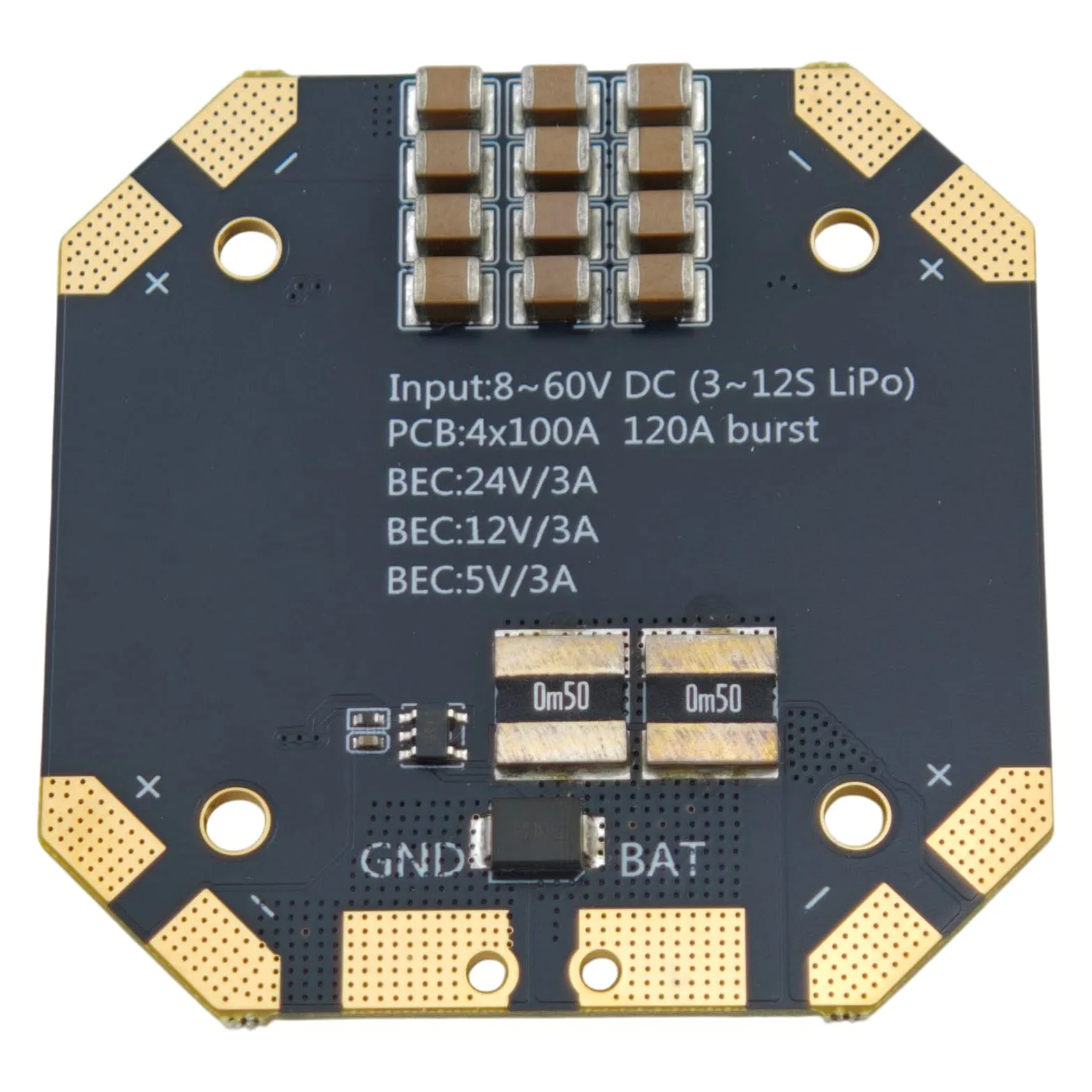

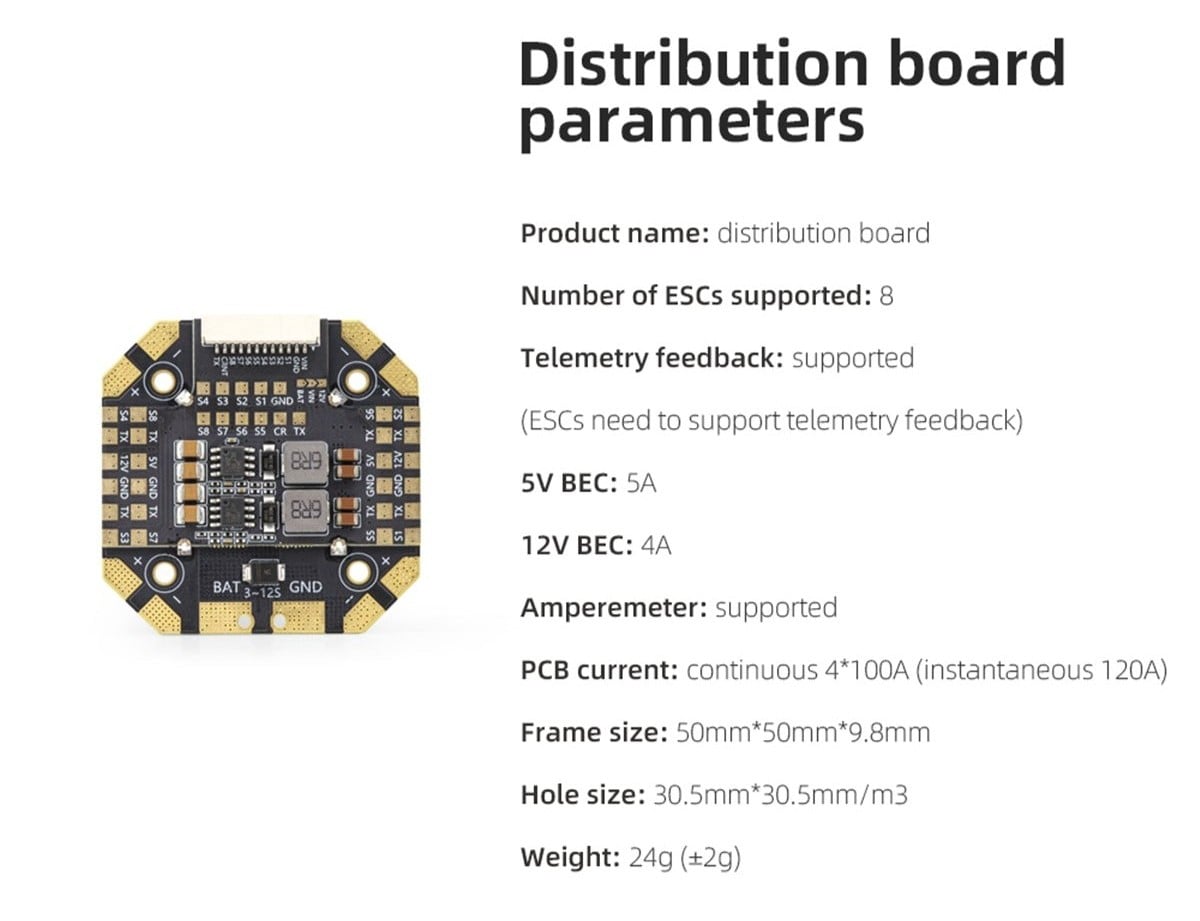

Specifications

• Continuous current: 4 x 100 A (8 x 50 A)

• Peak current: 120 A

• Input voltage: 3S-12S LiPo

• BEC outputs: 5 V, 12 V and 24 V

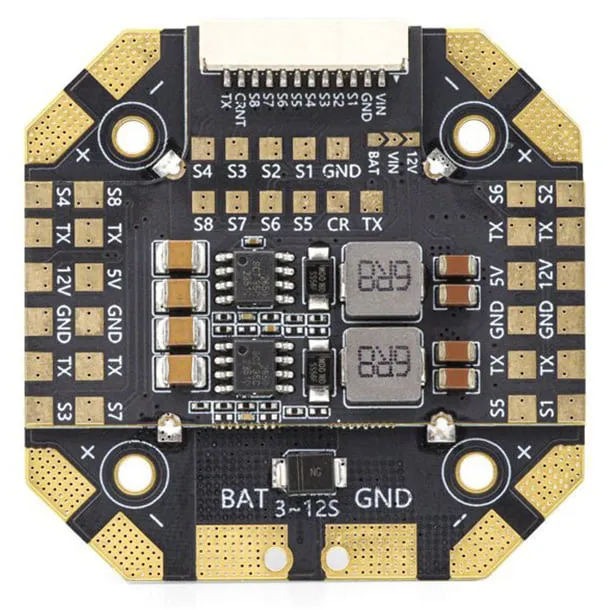

• ESC connections: 8, with telemetry

• Mounting: 30.5x30.5 mm (M3)

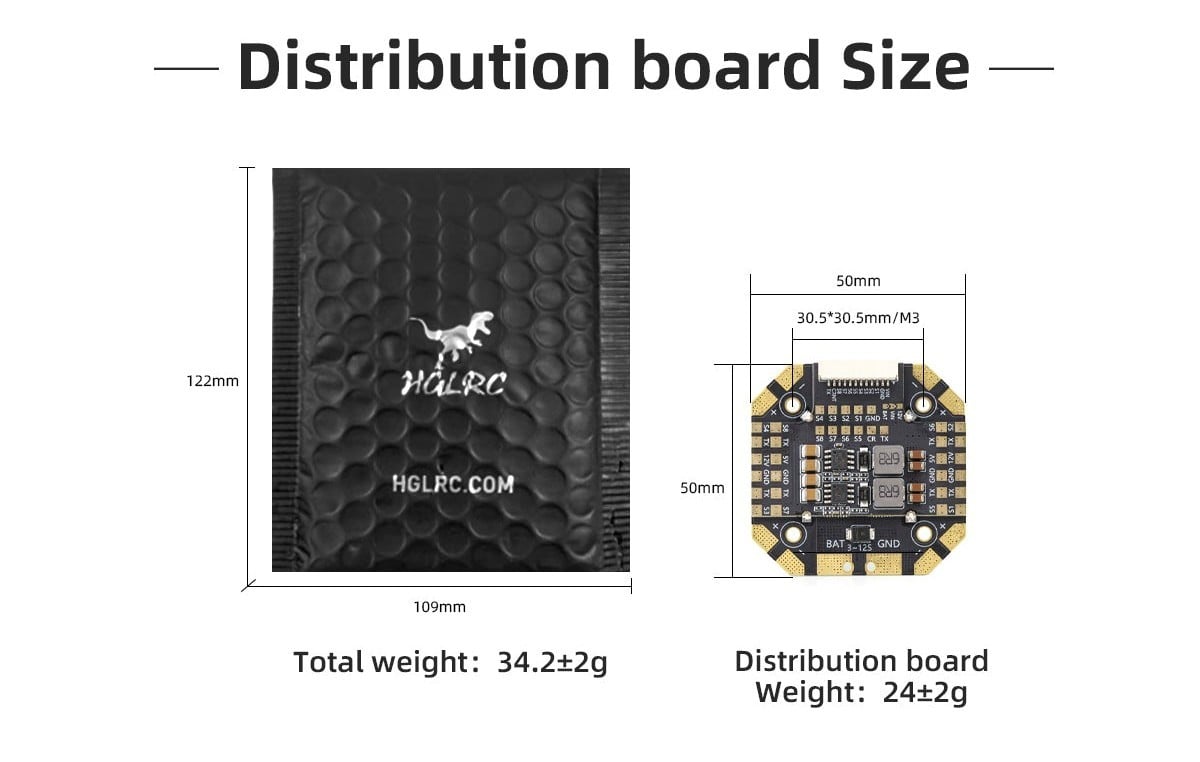

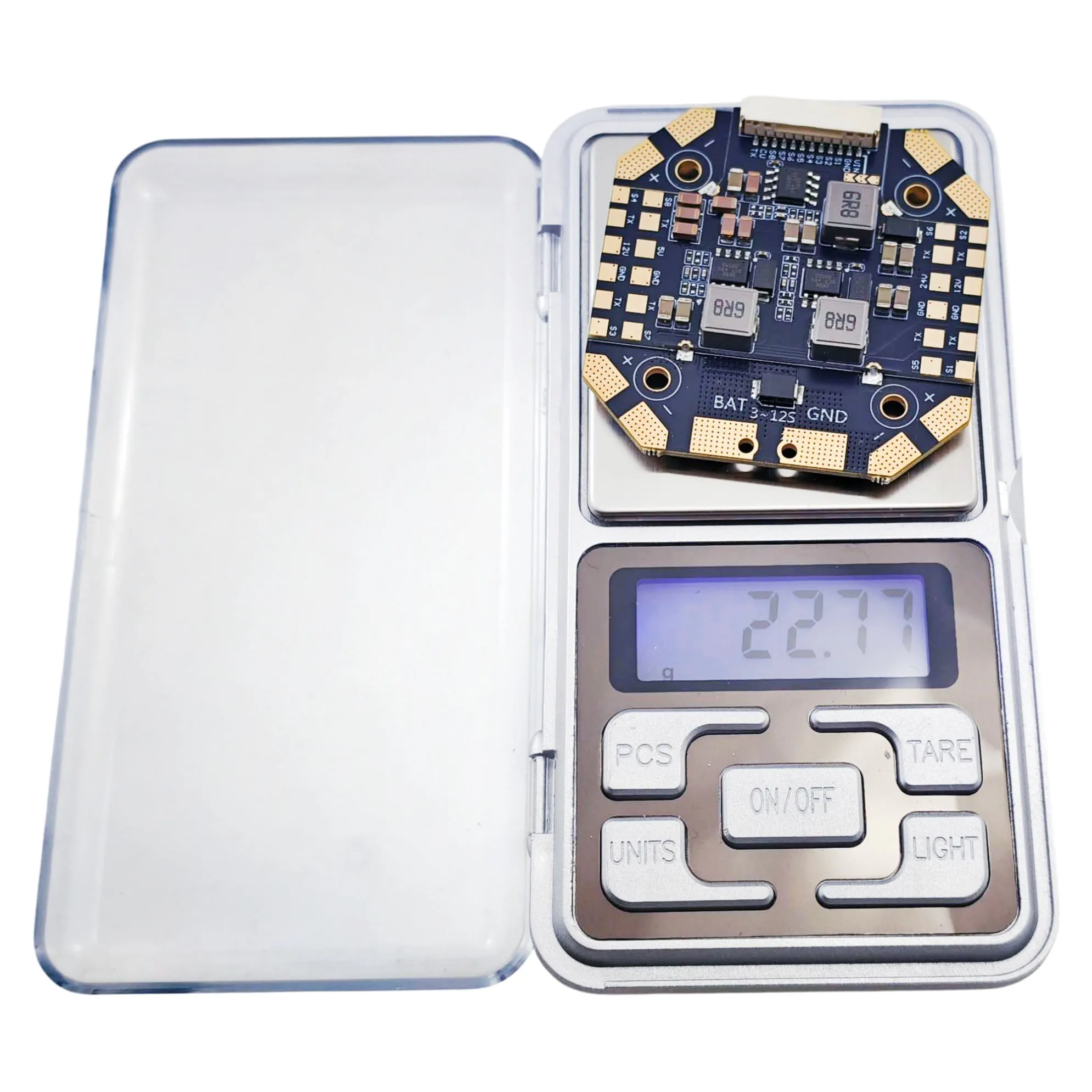

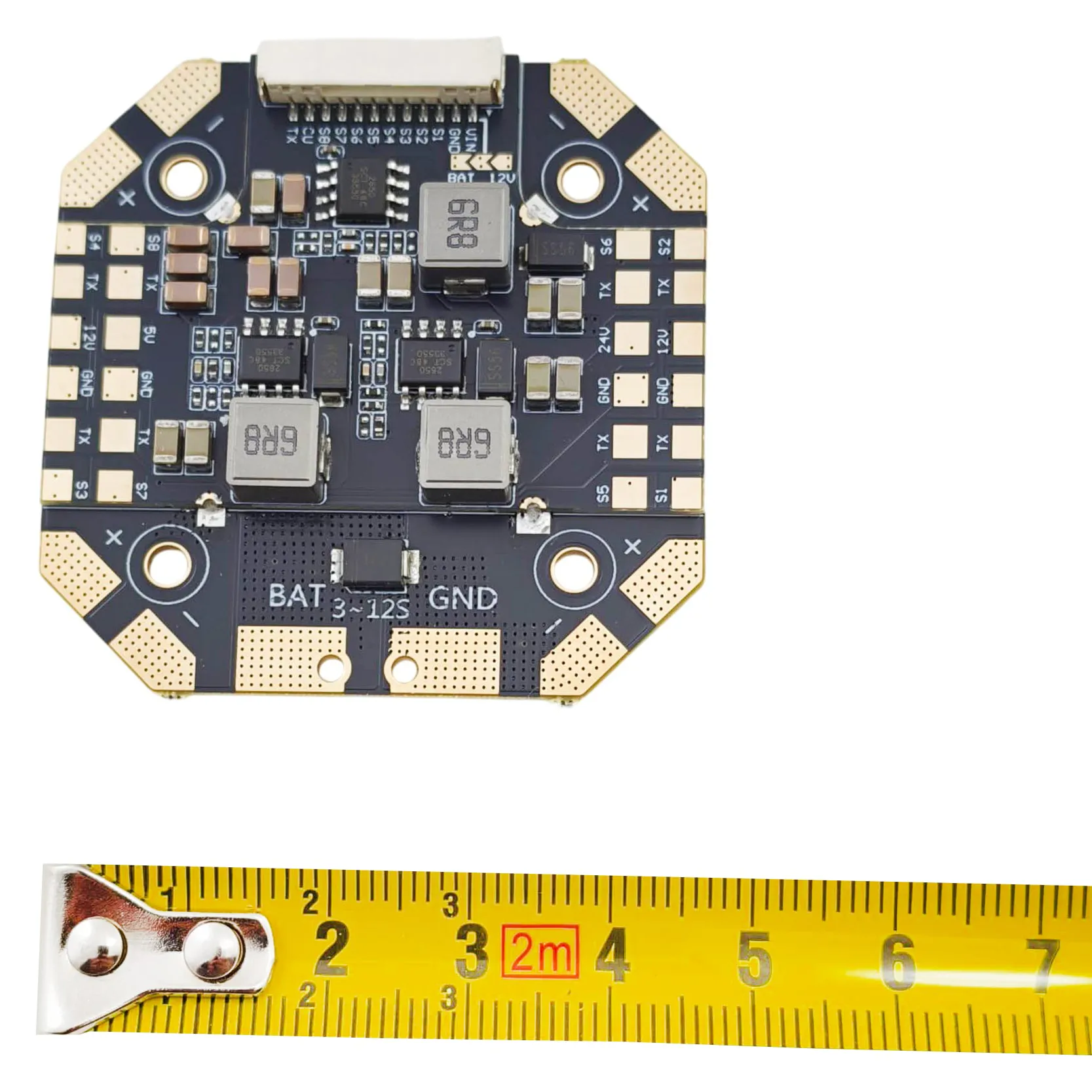

• Dimensions: 50 x 50 x 9.8 mm

Plan wiring gauge and connectors for the full 100A per path, and verify polarity and BEC voltage settings before powering the completed build.
