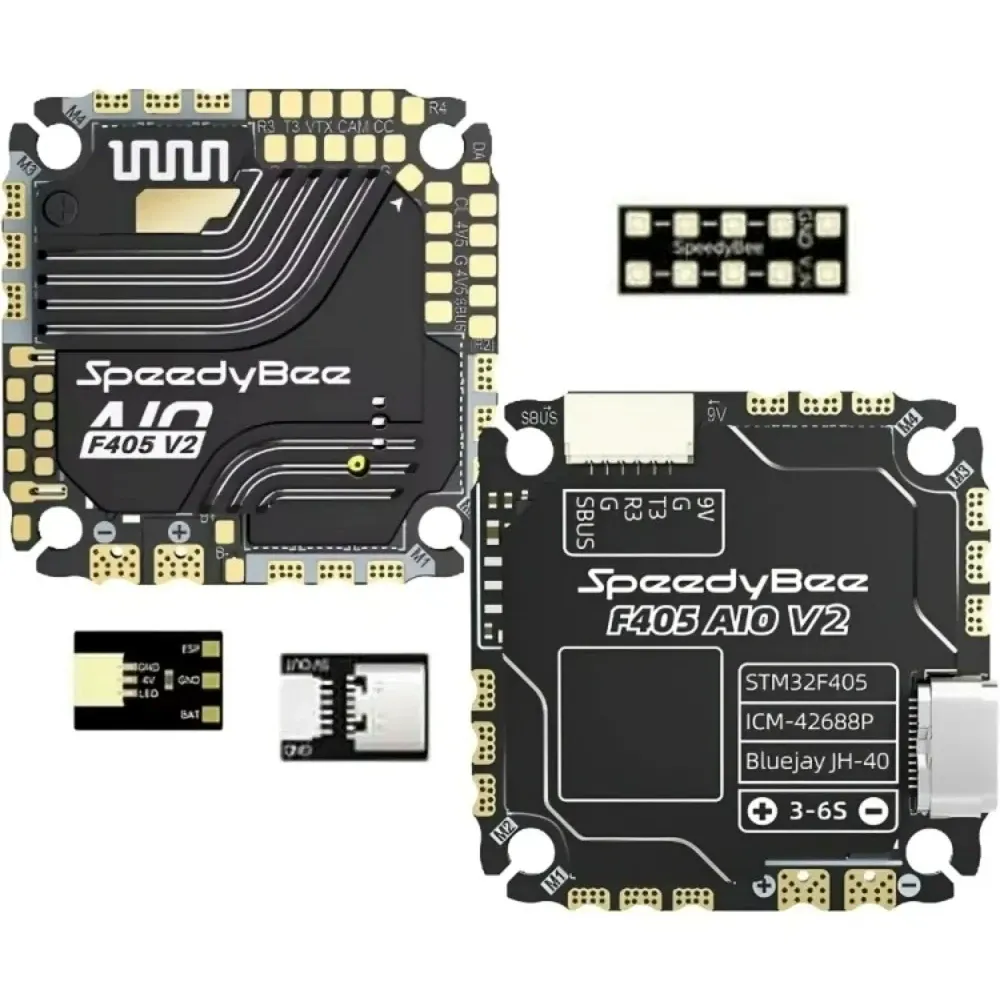

SpeedyBee F405 AIO V2 40A 8Bit 3-6S Flight Controller with CNC Heatsink

The SpeedyBee F405 AIO V2 puts an F405 flight controller and a 40A 8-bit 4-in-1 ESC on a single 25.5 x 25.5mm board, and this version adds a CNC-machined aluminium heat-dissipation structure over the ESC. It suits compact freestyle, racing and cinewhoop builds on 3–6S where one board saves weight and wiring.

Key features

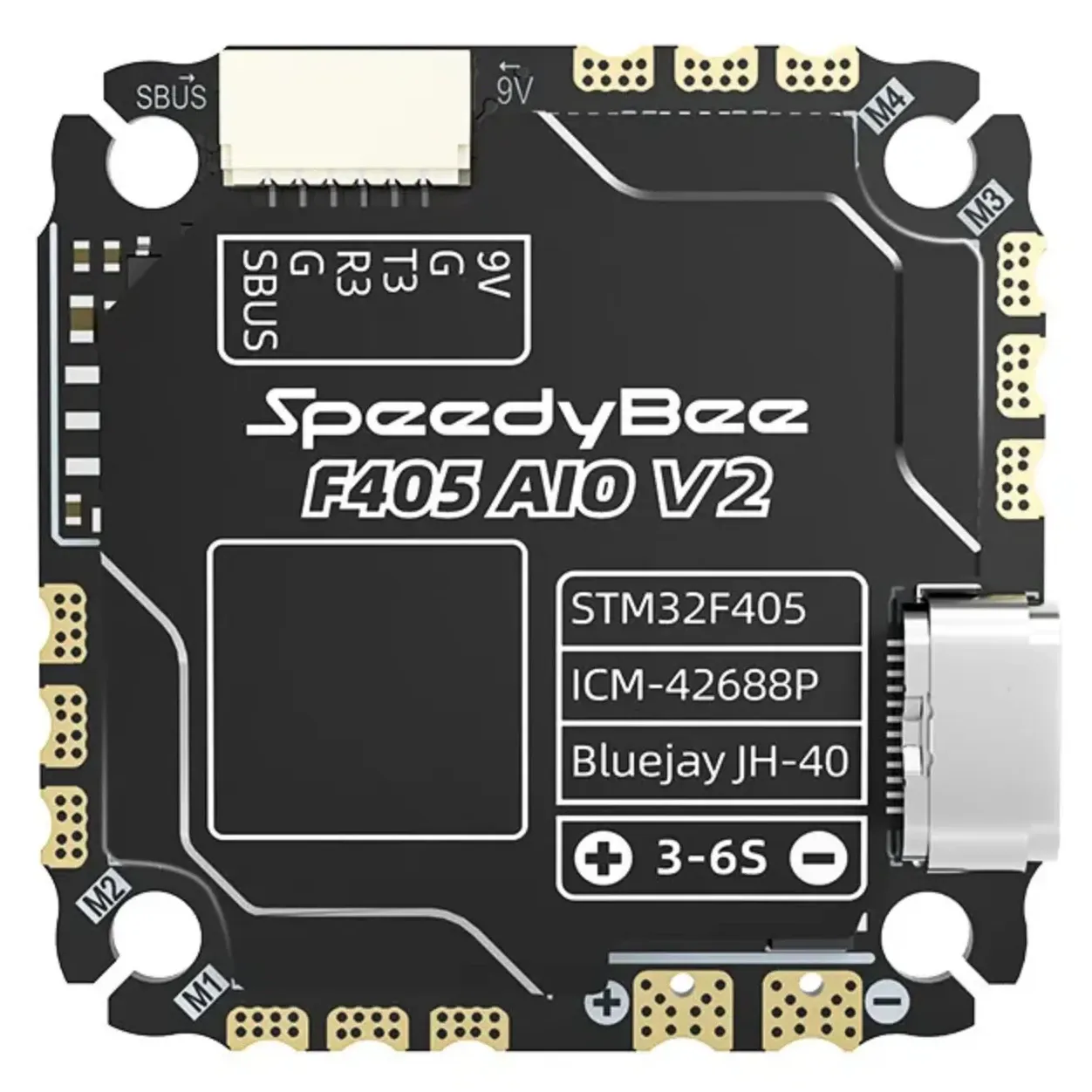

• STM32F405 with ICM-42688P gyro and 8MB blackbox flash
• Integrated 40A 8-bit ESC running Bluejay (JH-40, 48kHz) with bidirectional DShot for RPM filtering
• CNC aluminium heatsink helps keep ESC temperatures down on long, high-throttle flights
• Built-in Bluetooth for wireless configuration and firmware updates from the SpeedyBee app
• 9V BEC with a programmable VTX power switch, plus DJI Air Unit OSD support
• WS2812 LED control and multiple UARTs for receiver and GPS

Specifications

• MCU: STM32F405
• Gyro: ICM-42688P
• ESC: 4-in-1, 40A, 8-bit, Bluejay firmware
• Input voltage: 3–6S LiPo
• BEC: 9V with programmable VTX power switch
• Blackbox: 8MB flash
• Mounting: 25.5 x 25.5mm

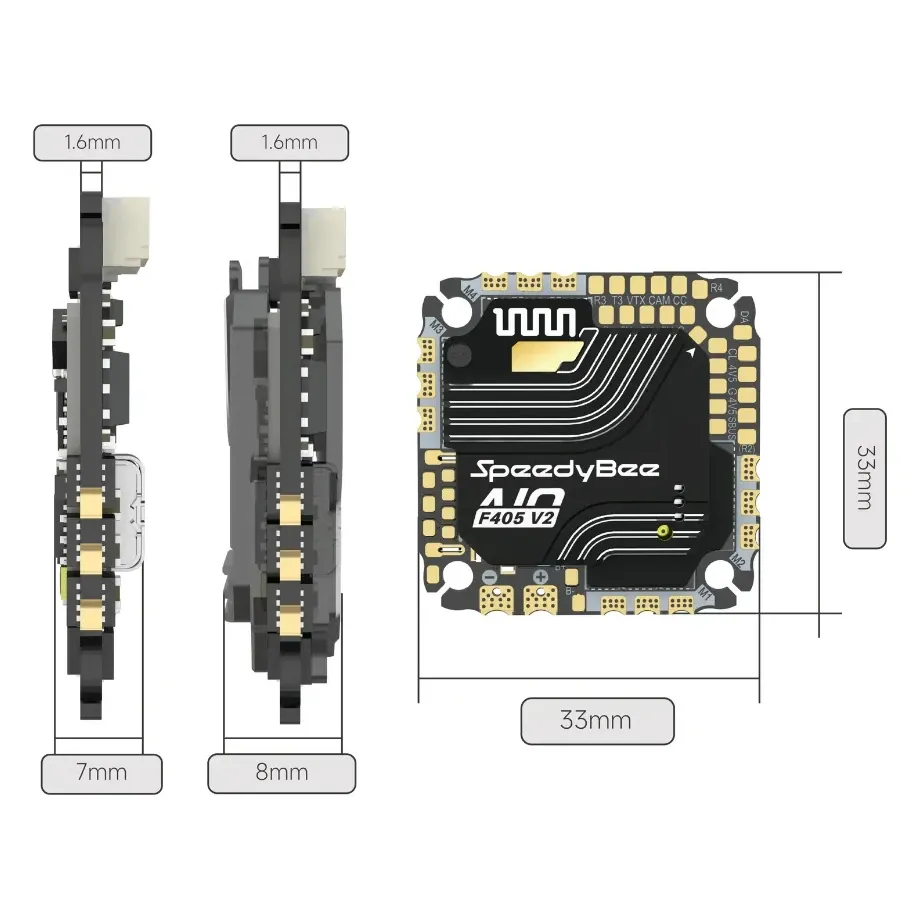

• Board size: 33 x 33mm

There is no onboard receiver or video transmitter: add a UART receiver such as an ELRS unit and a separate analog VTX or digital air unit. The 25.5 x 25.5mm pattern matches 3 to 3.6-inch frames such as the SpeedyBee Master3X.
