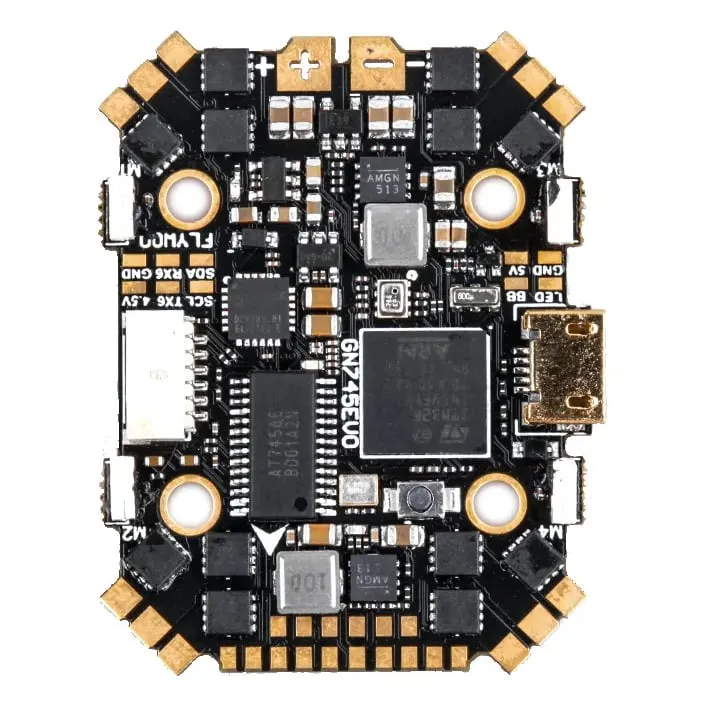

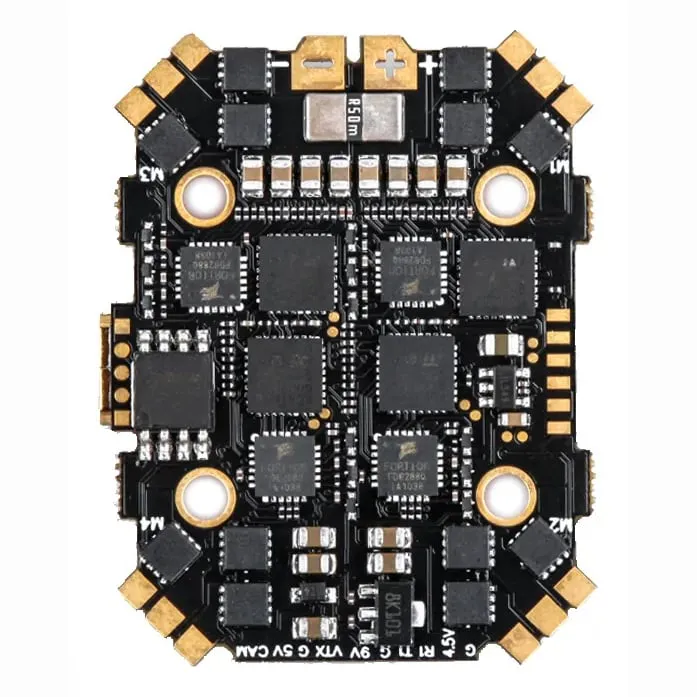

Flywoo GOKU HD 745 EVO 40A AIO FC & ESC
₹10,299Incl. GST
SKU FLYWOO-GOKU-HD745-EVO-40A
Integrated VTX: NoMounting Size: 20x20ESC Current: 40 AInput Voltage: 2–6S
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Flywoo GOKU HD 745 EVO combines an F745 flight controller and 40A ESC on one board for compact FPV builds using DJI digital video hardware.
Key features
- MPU6000 gyro provides motion data for flight stabilisation.
- BLHeli_32 ESC firmware supports configurable motor control.
- Includes 1 MB flash memory for onboard flight-data logging.
- DJI plug-and-play connection simplifies wiring to compatible digital video hardware.
- The integrated layout reduces the number of separate electronic boards required in the build.
Specifications
- FC processor: F745
- Gyro: MPU6000
- ESC current: 40 A
- ESC firmware: BLHeli_32
- Flash memory: 1 MB
- Video connection: DJI plug and play
- Input voltage: 2-6S LiPo
- Mounting: 20 x 20 mm
Confirm the board mounting pattern and supported battery voltage against your frame and power system before installation.
| Integrated VTX | No |
|---|---|
| Mounting Size | 20x20 |
| ESC Current | 40 A |
| Input Voltage | 2–6S |
| Made in India | No |
| Brand | Flywoo |
| FC Processor | F745 |
| Gyro | MPU6000 |
| ESC Firmware | BLHeli_32 |
| Barometer | Yes |
| UARTs | 7 |
| Supported Firmware | Betaflight |
