NewBeeDrone FETTec InfinityAIO G4 MPU6000 45A 3-6S

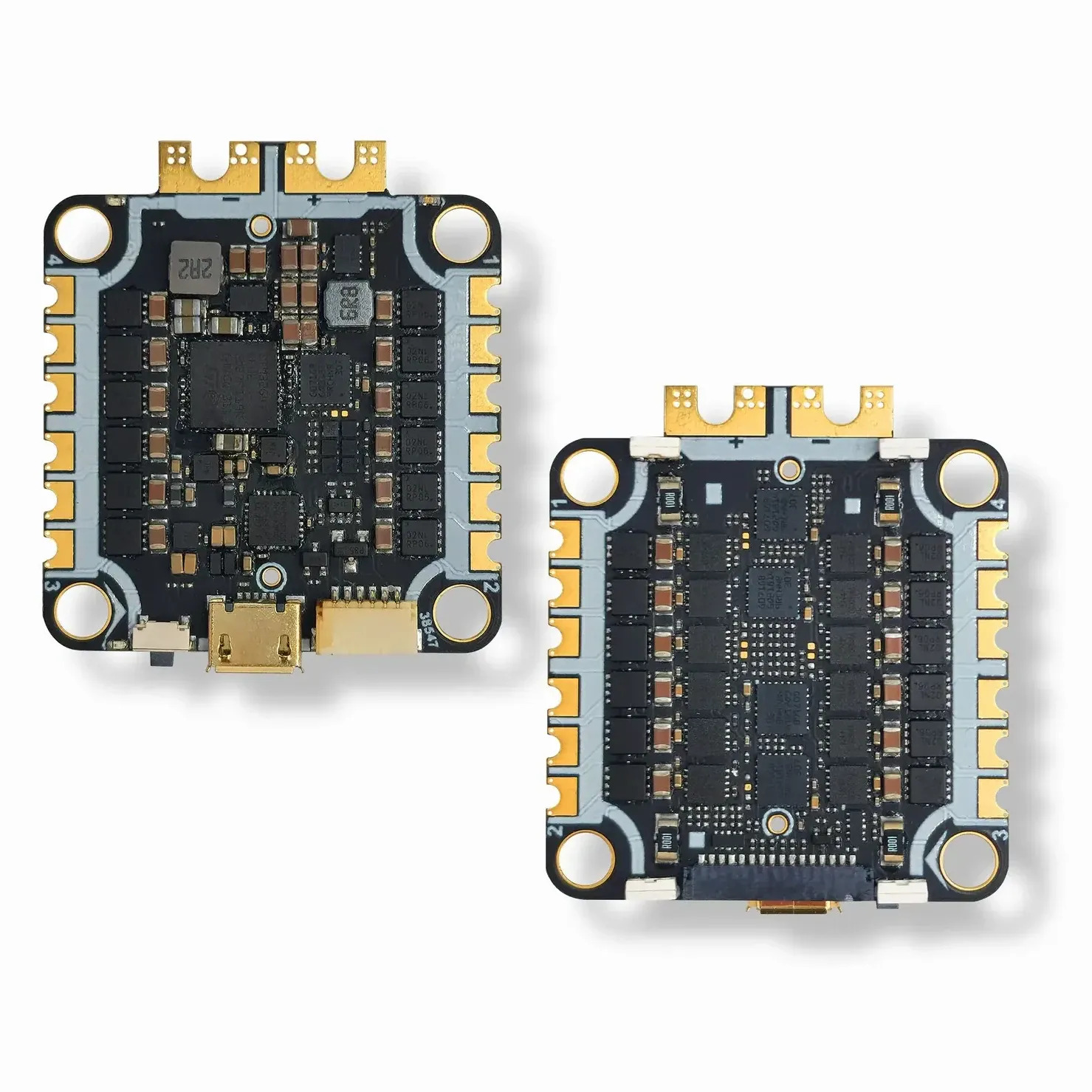

The NewBeeDrone FETTec InfinityAIO G4 combines a flight controller and 45A 4-in-1 ESC on one board. It suits compact FPV builds using 3S to 6S batteries where fewer boards and interconnects simplify installation.

Key features

• Integrated architecture reduces wiring between the flight controller and ESC.

• MPU6000 gyro provides motion data for flight stabilisation.

• G4 processor handles the board's flight-control functions.

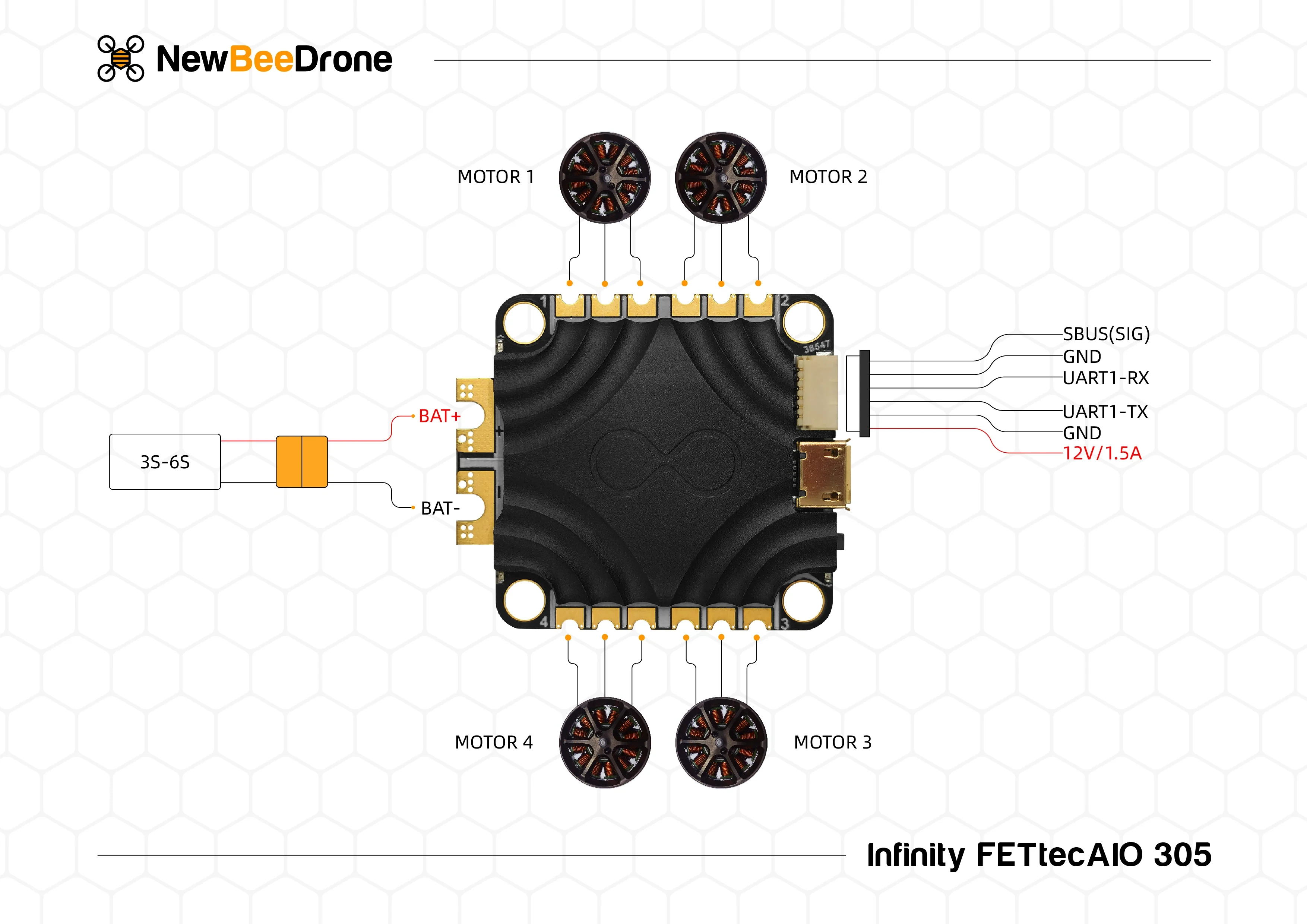

• Built-in 4-in-1 ESC controls all four motors from one board.

• Wide battery support allows use across 3S, 4S, 5S and 6S builds.

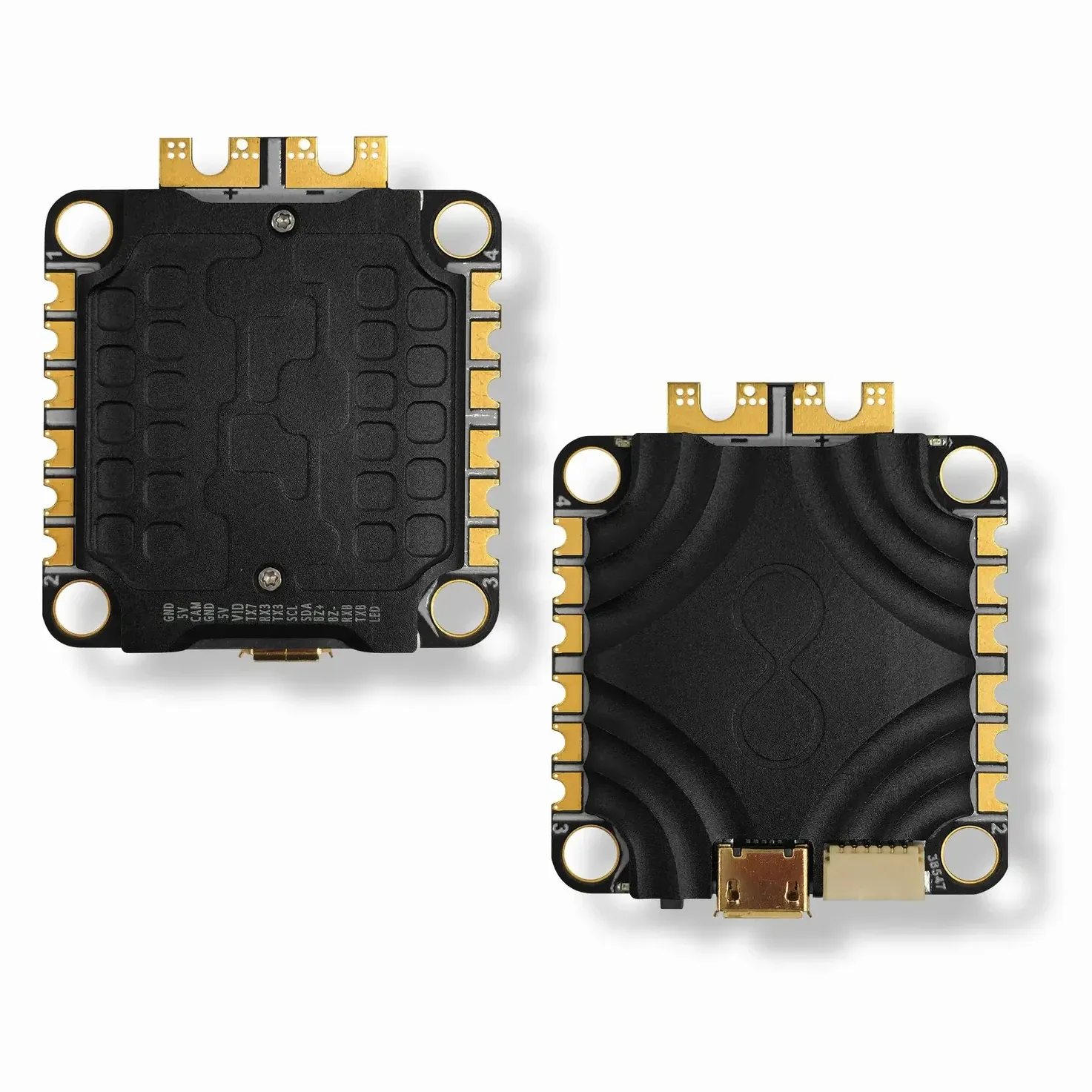

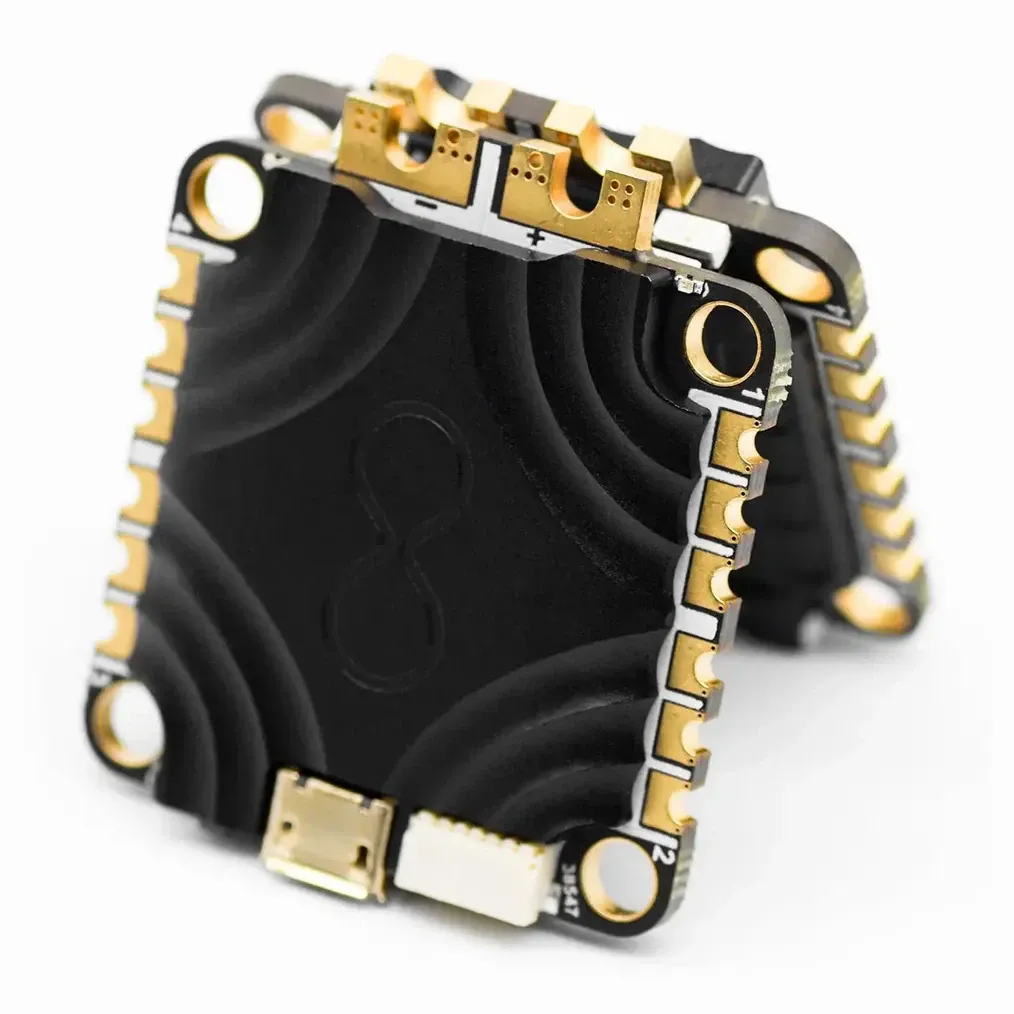

• Two CNC aluminium heatsinks enclose the electronics, shedding heat and sealing the board against dust and moisture.

Specifications

• Processor: G4

• Gyro: MPU6000

• ESC rating: 45 A

• Input voltage: 3-6S

• MCU: STM32G474, FETTec flight firmware

• Burst current: 55 A

• ESC firmware: FETTec (STM32G071 ESC MCUs)

• ESC protocols: DShot300-2400, FETTec OneWire

• BEC: 12V 2A (for a DJI air unit), 5V 3A

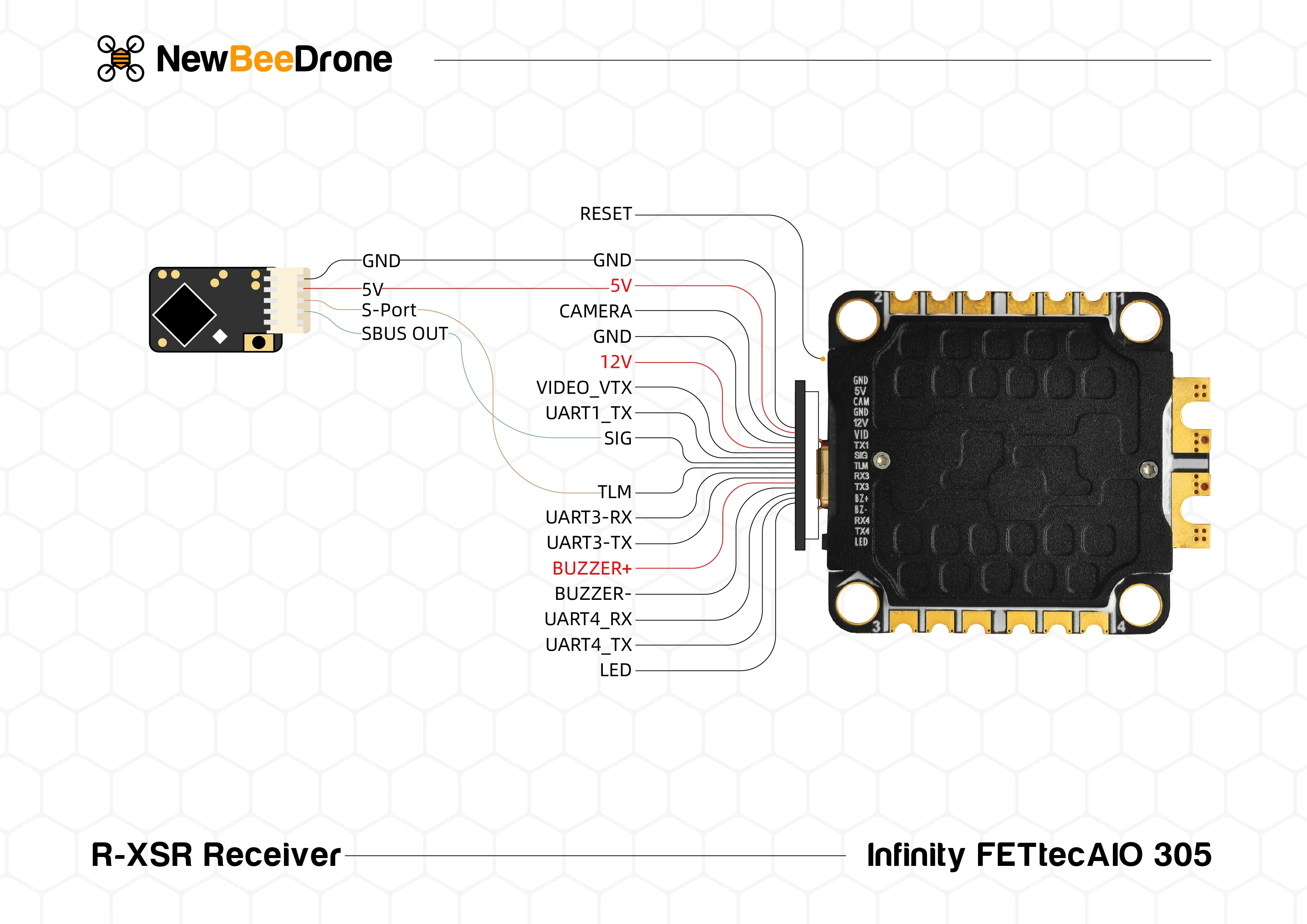

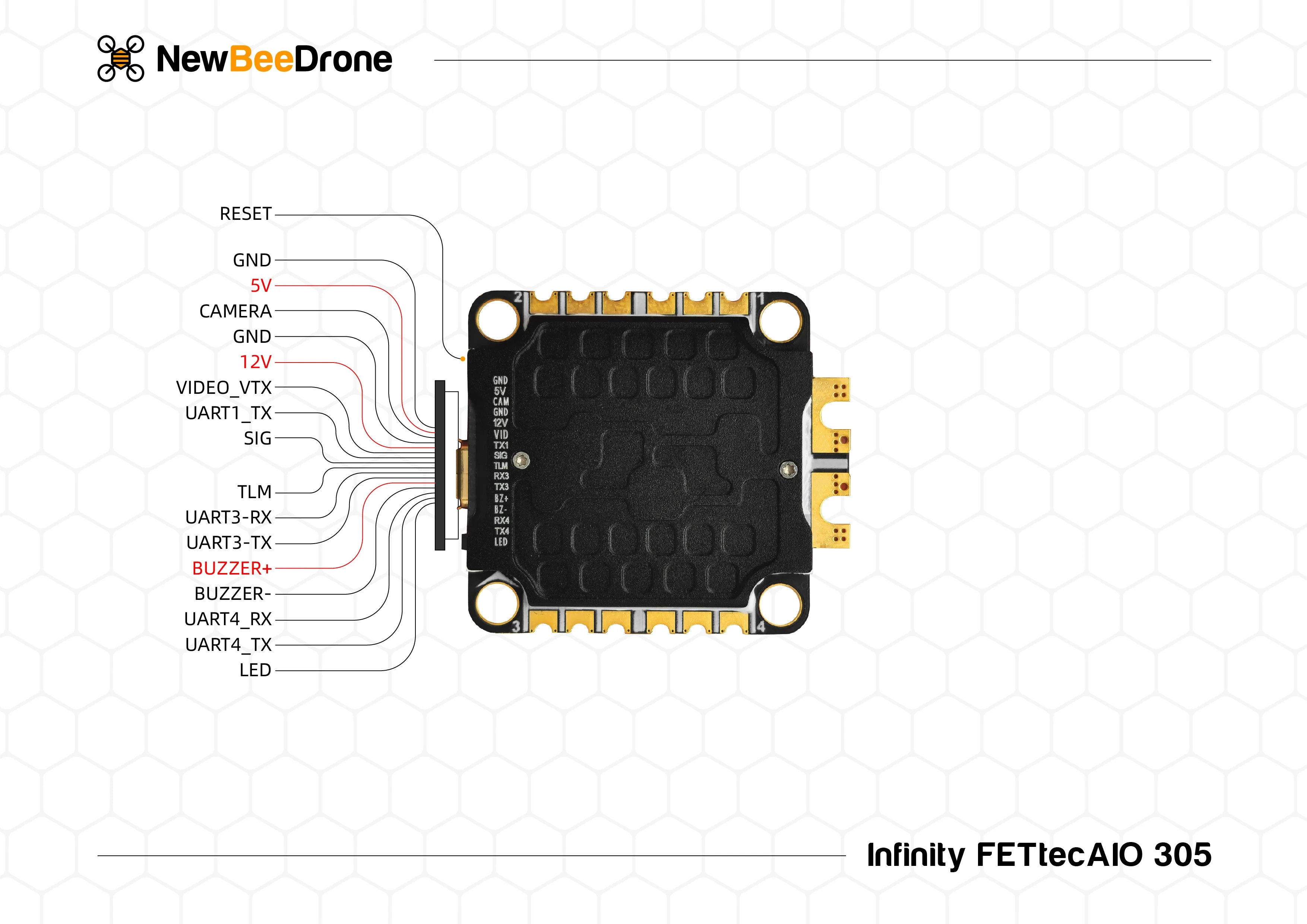

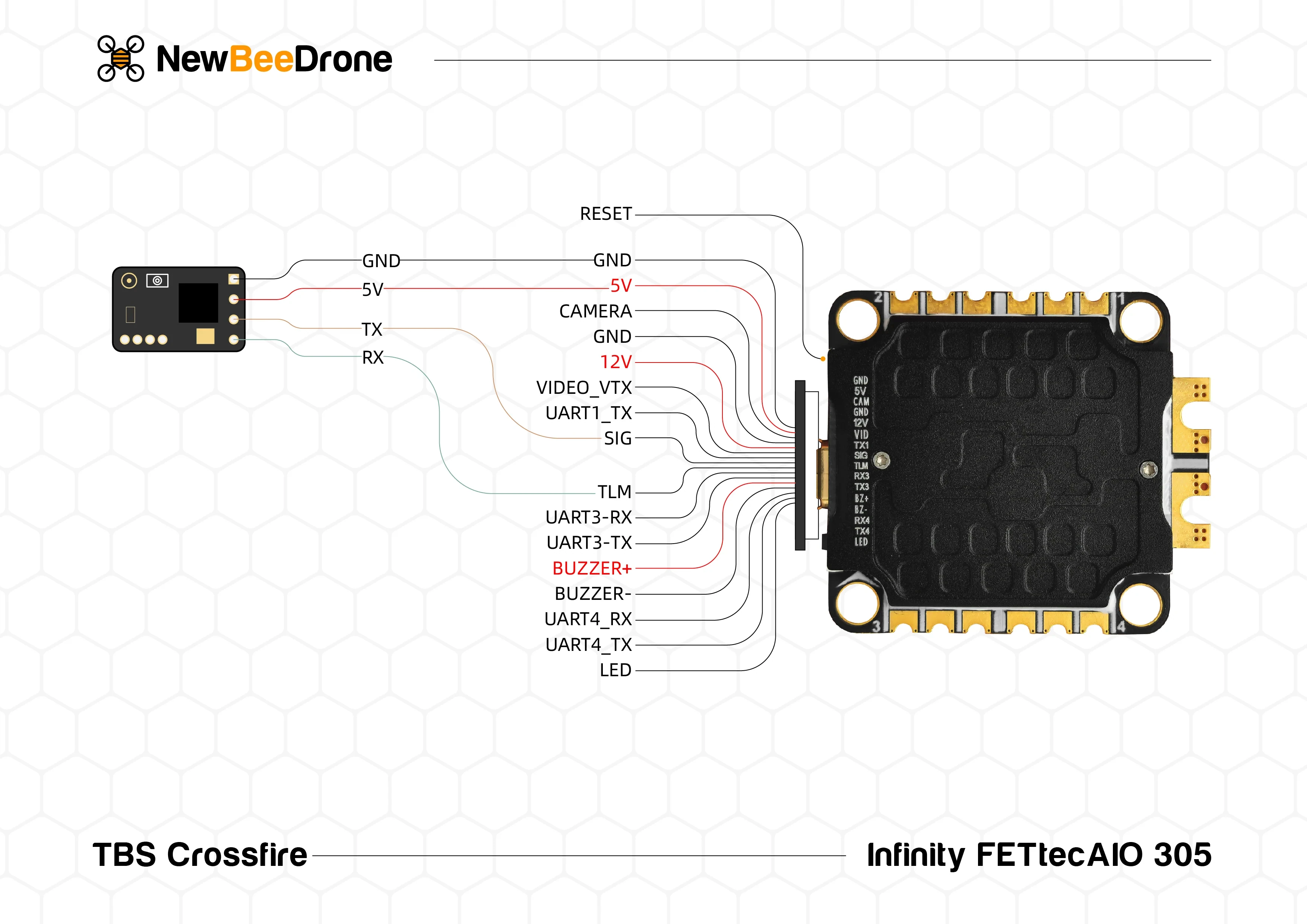

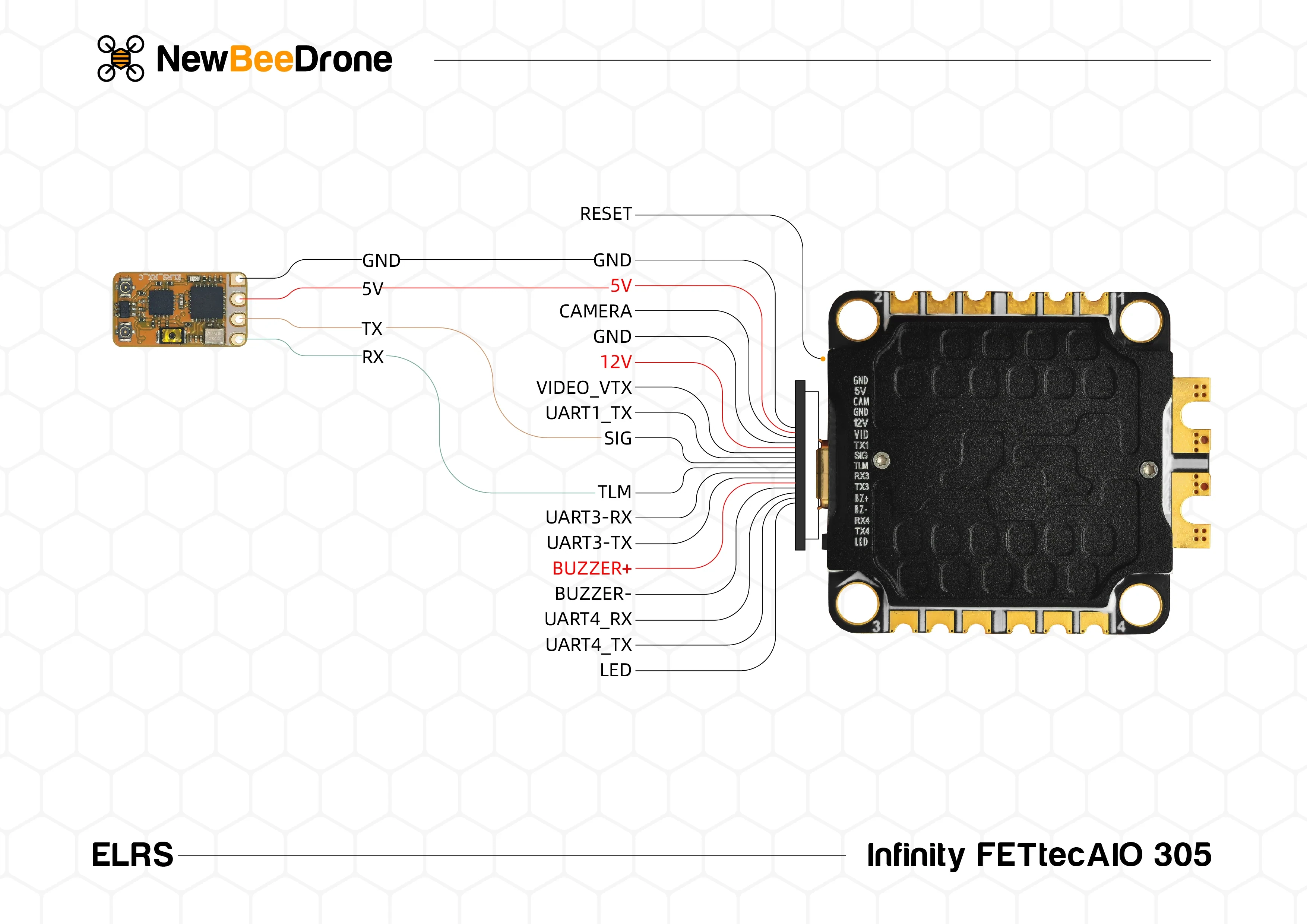

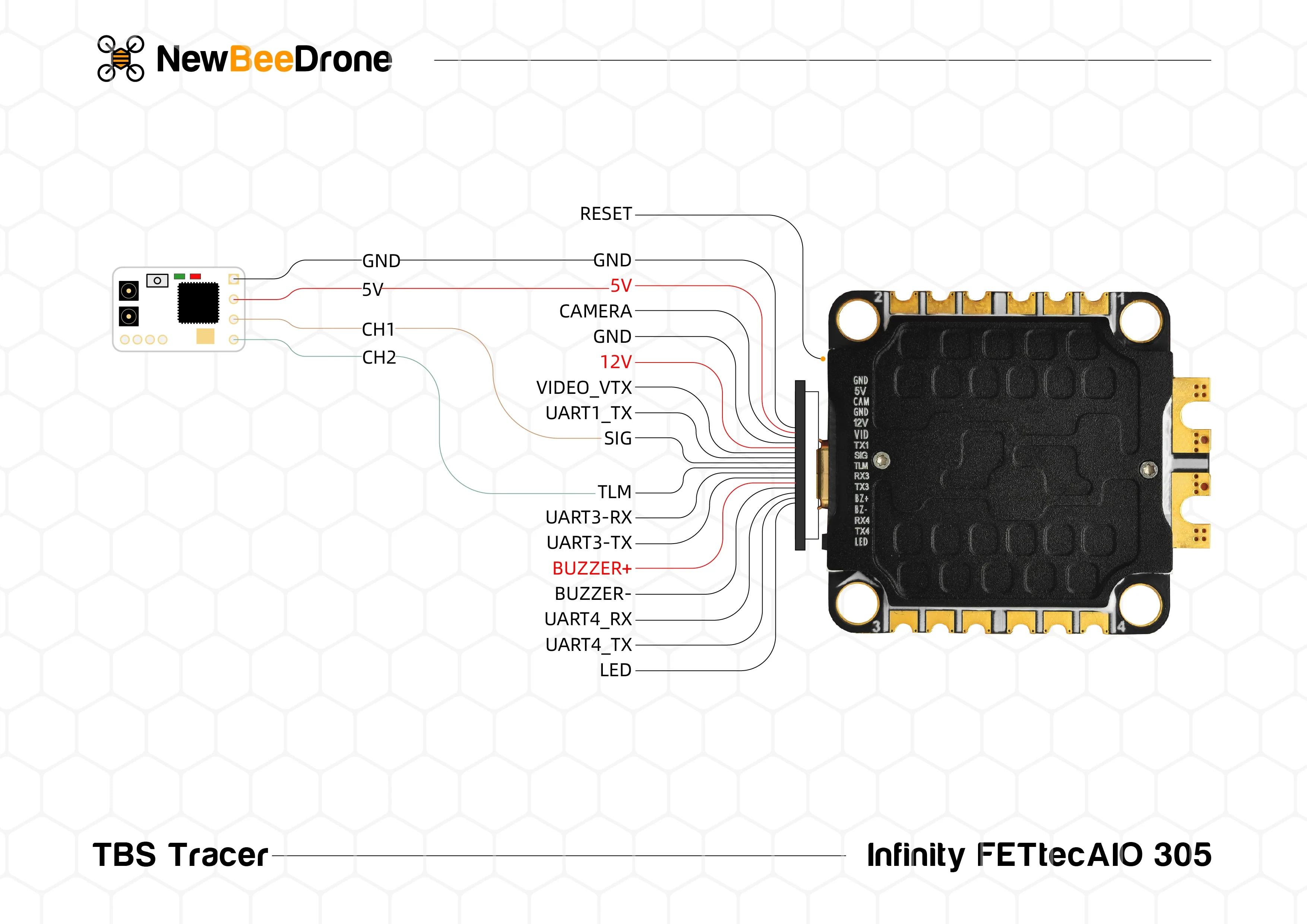

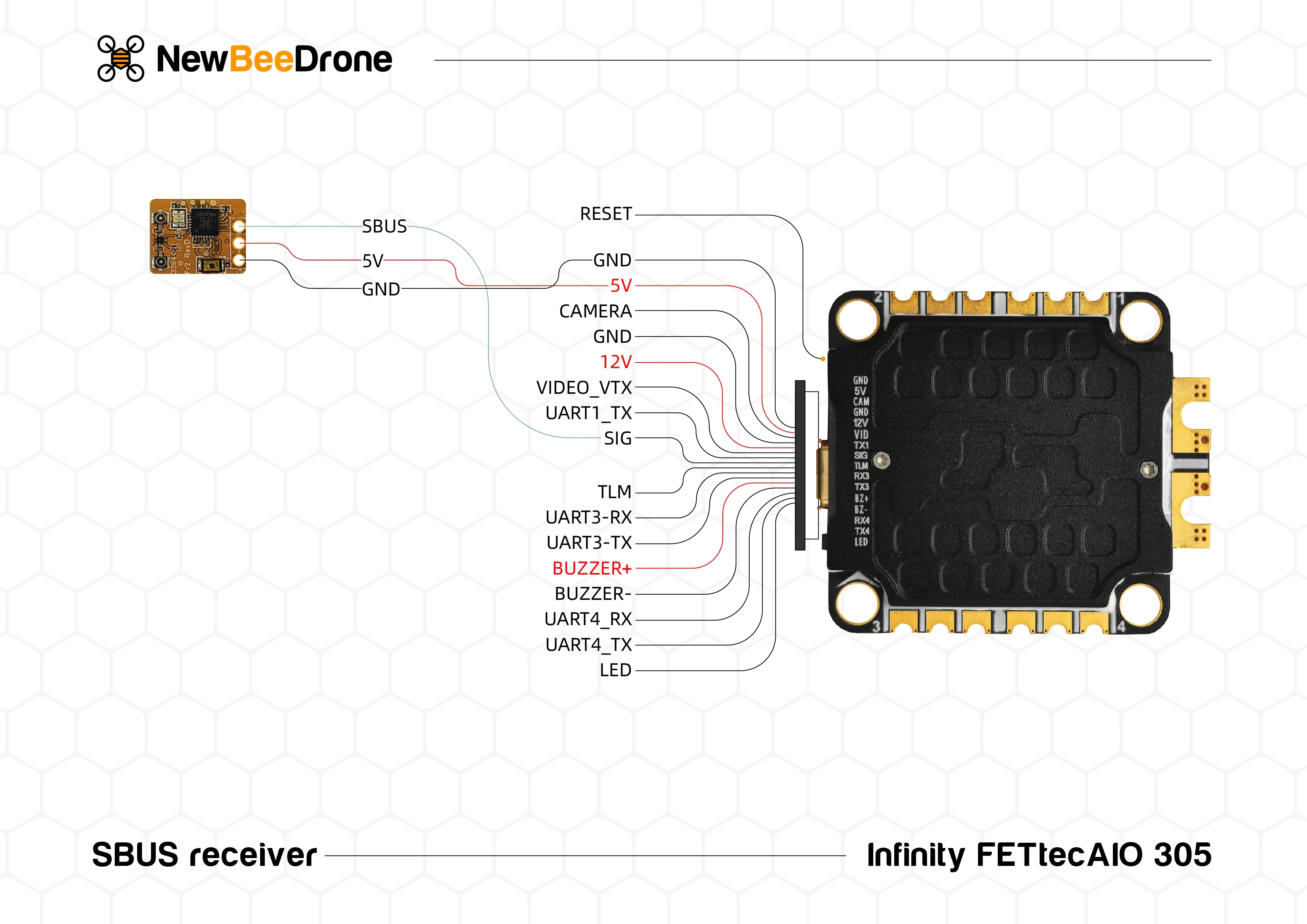

• UARTs: 5 (DJI, receiver, two free, ESC telemetry)

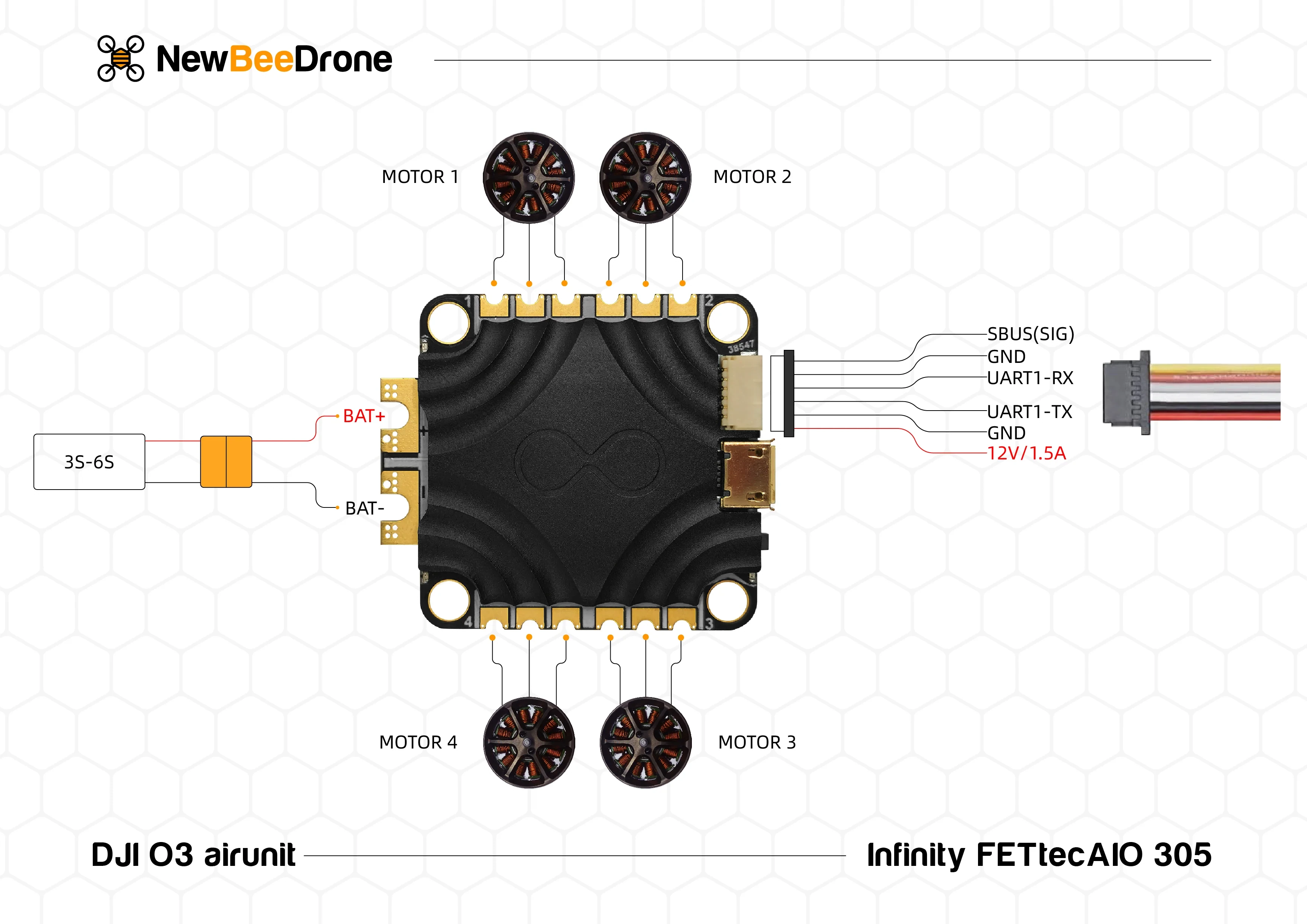

• Connectors: 6-pin DJI air unit plug, Micro USB

• OSD: FETTec analogue OSD

• Mounting: 30.5 x 30.5 mm

• Dimensions: 41 x 37 x 7.6 mm

• Weight: 19.4 g with grommets, 18.8 g without

• Motor limit: up to 2306.5 size or 2150KV on 6S

• In the box: AIO board, DJI O3 cable, 2 x 16-pin cables, XT60 lead, 470uF 35V capacitor, M3 x 14 mm screws, lock nuts, short and long grommets

Confirm the board mounting pattern, motor requirements and connector layout against your frame before installation.
