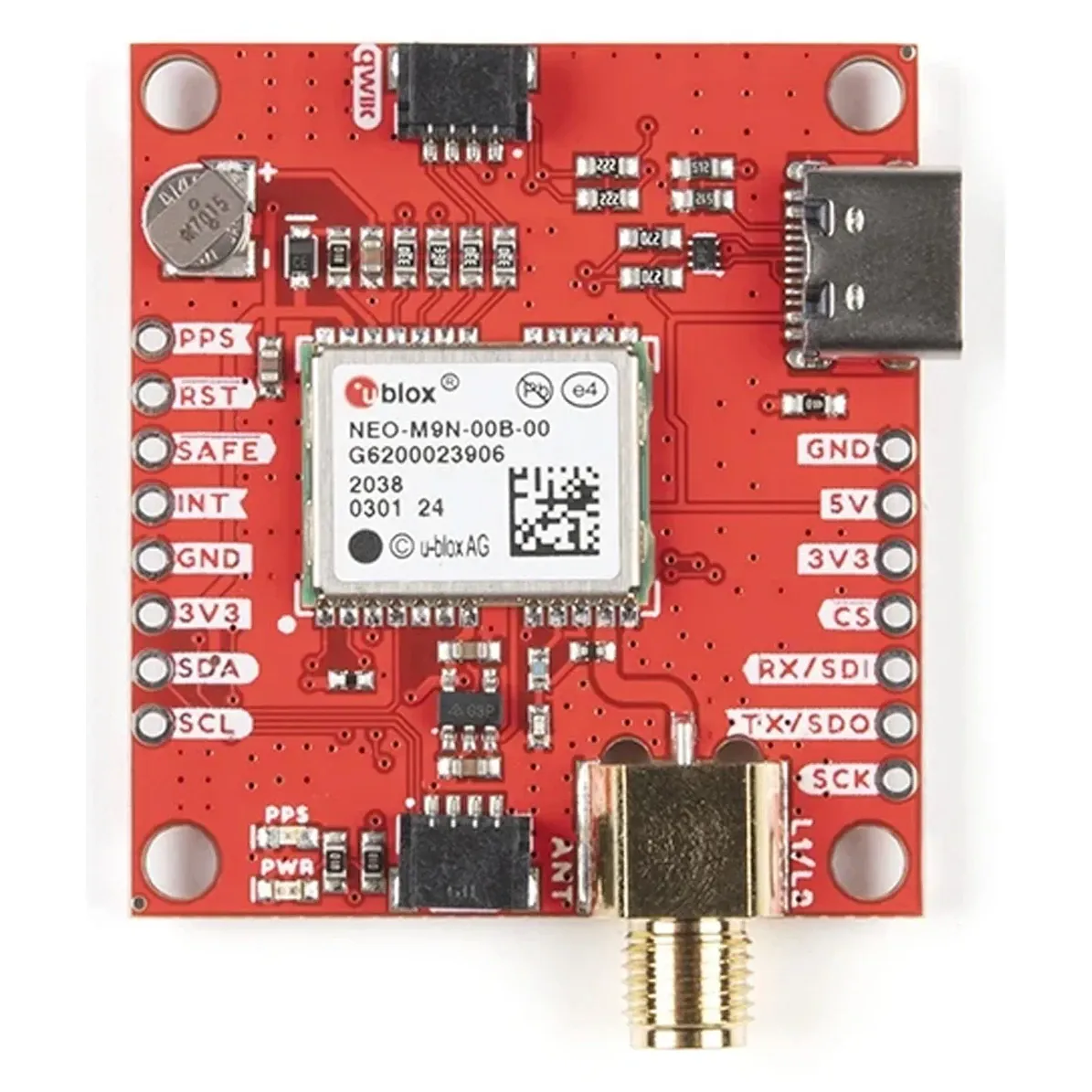

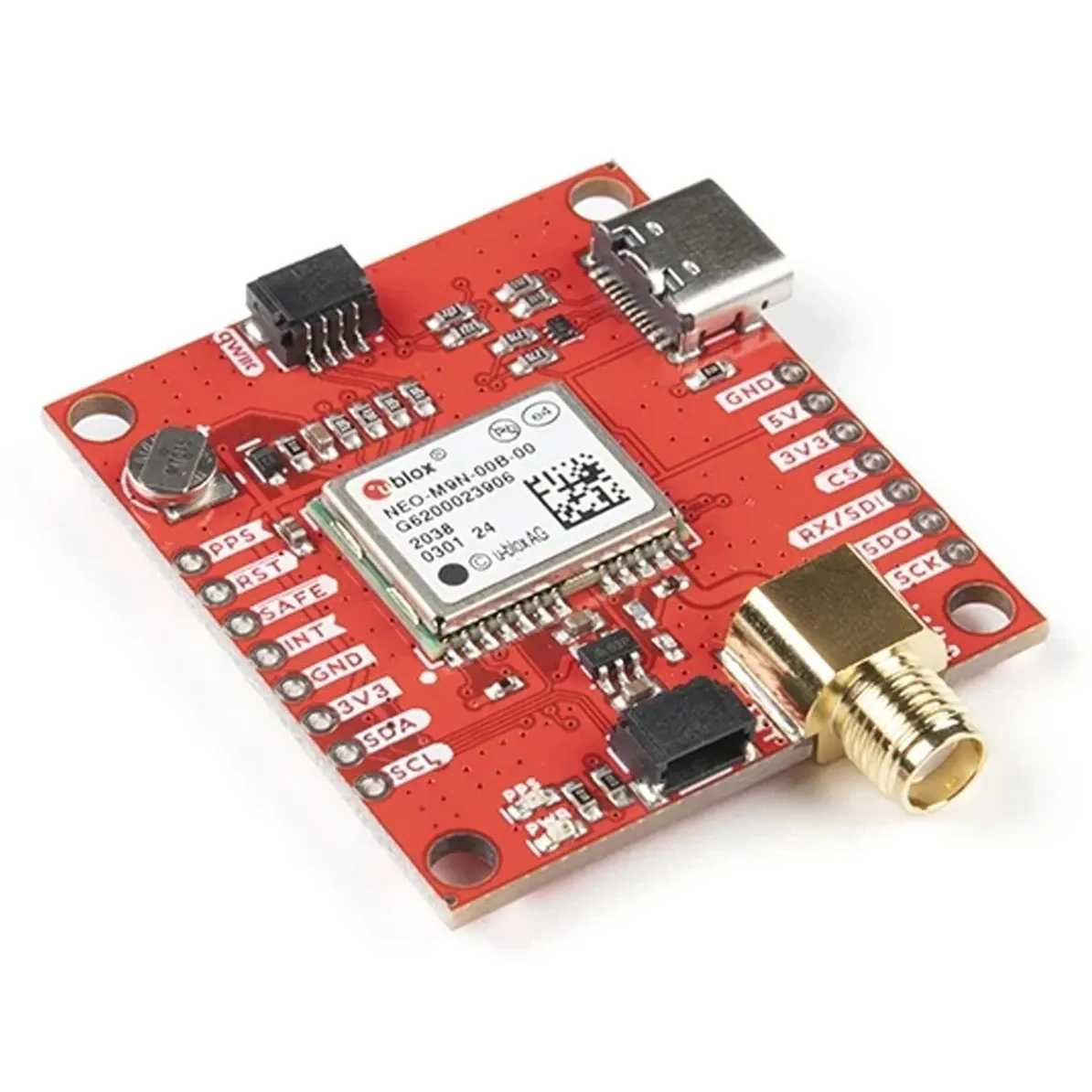

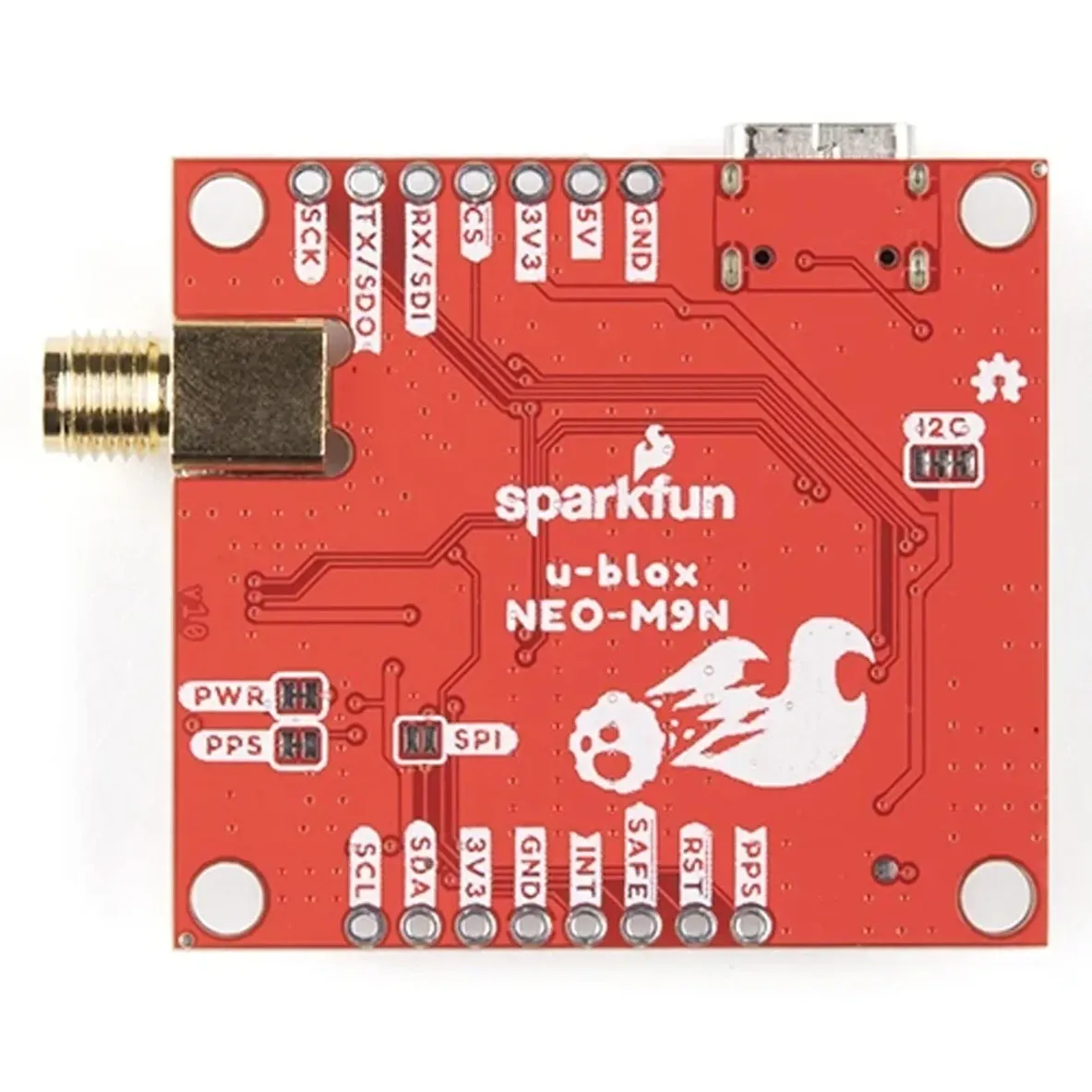

SparkFun NEO-M9N GPS Breakout with SMA and Qwiic

The SparkFun NEO-M9N GPS Breakout is a high-accuracy GNSS receiver board with an SMA antenna connector and Qwiic I2C interface, built around the u-blox NEO-M9N module.

Key features

• Tracks GPS, GLONASS, Galileo and BeiDou constellations concurrently across a 92-channel receiver for around 1.5m horizontal accuracy.
• Qwiic connector allows a solder-free I2C link to a host board, while breadboard-friendly 0.1in pins remain broken out.
• An onboard rechargeable battery backs up the module's clock, giving hot starts in about 2 seconds versus a 24-second cold start.
• Built-in SAW filter and LNA reject RF interference, and the module can report jamming or spoofing events to the host.
• Supports NMEA, UBX and RTCM protocols over UART or I2C, covering most flight-controller and telemetry integrations.

Specifications

• GNSS chipset: u-blox NEO-M9N
• Channels: 92
• Horizontal accuracy: approx. 1.5m
• Max update rate: 25 Hz
• Cold start: approx. 24s
• Hot start: approx. 2s
• Supply: 3.3V
• Current draw: approx. 31 mA (GPS + GLONASS tracking)
• Interfaces: UART, I2C (Qwiic)
• Antenna connector: SMA

A GNSS antenna with an SMA connector is required but not included.
