ADH-Tech GP1818MK 56-Channel GPS Module
₹4,599Incl. GST
SKU ADH-GP1818MK
Made in India: NoBrand: ADH-TechGNSS Chipset: MediaTek MT3337
Dispatched within 2–3 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

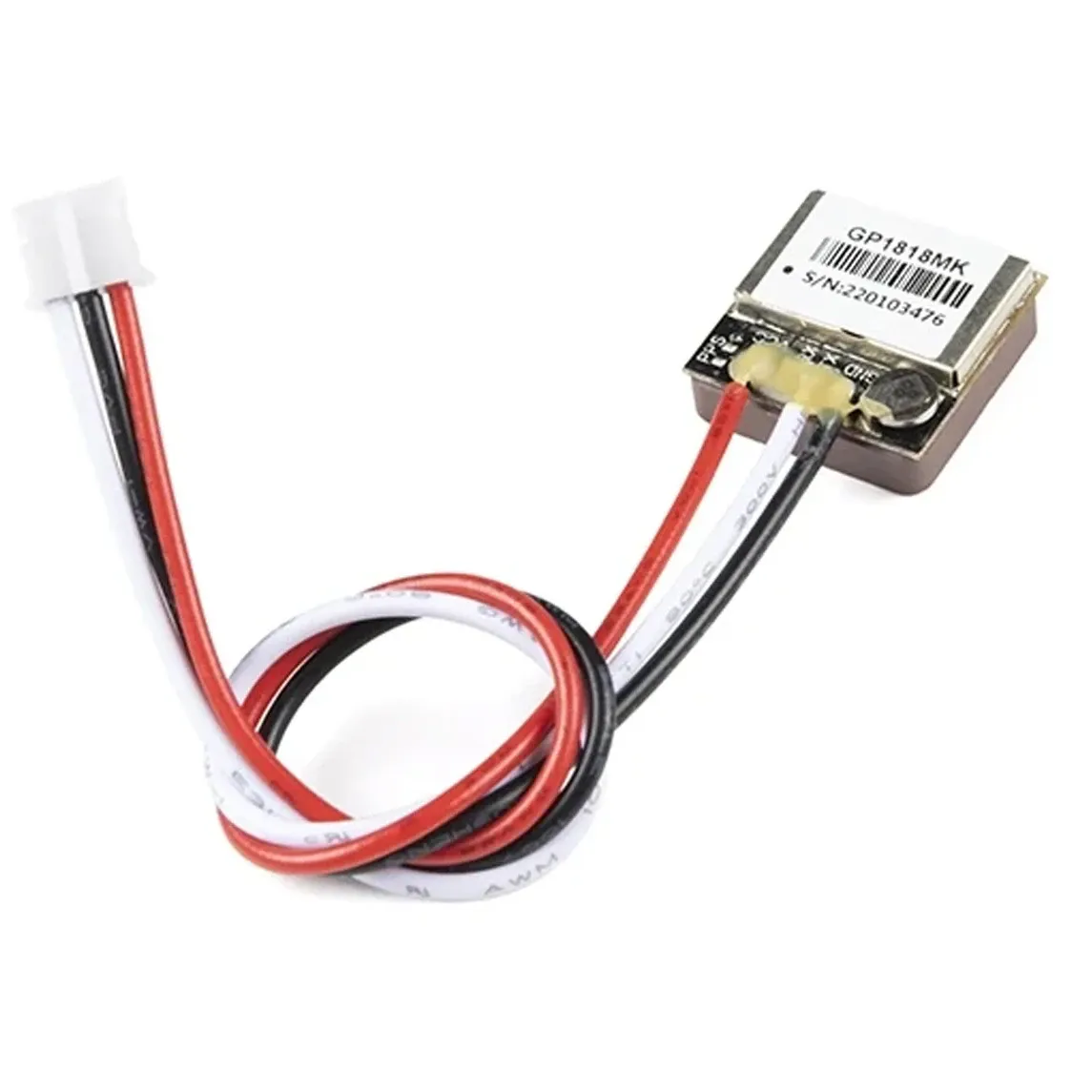

The ADH-Tech GP1818MK is a compact 18 x 18 mm GPS receiver with its own active patch antenna. It outputs standard NMEA sentences over UART for microcontroller projects, trackers, data loggers and simple navigation builds.
Key features
- MediaTek MT3337 chipset with -165 dBm tracking sensitivity

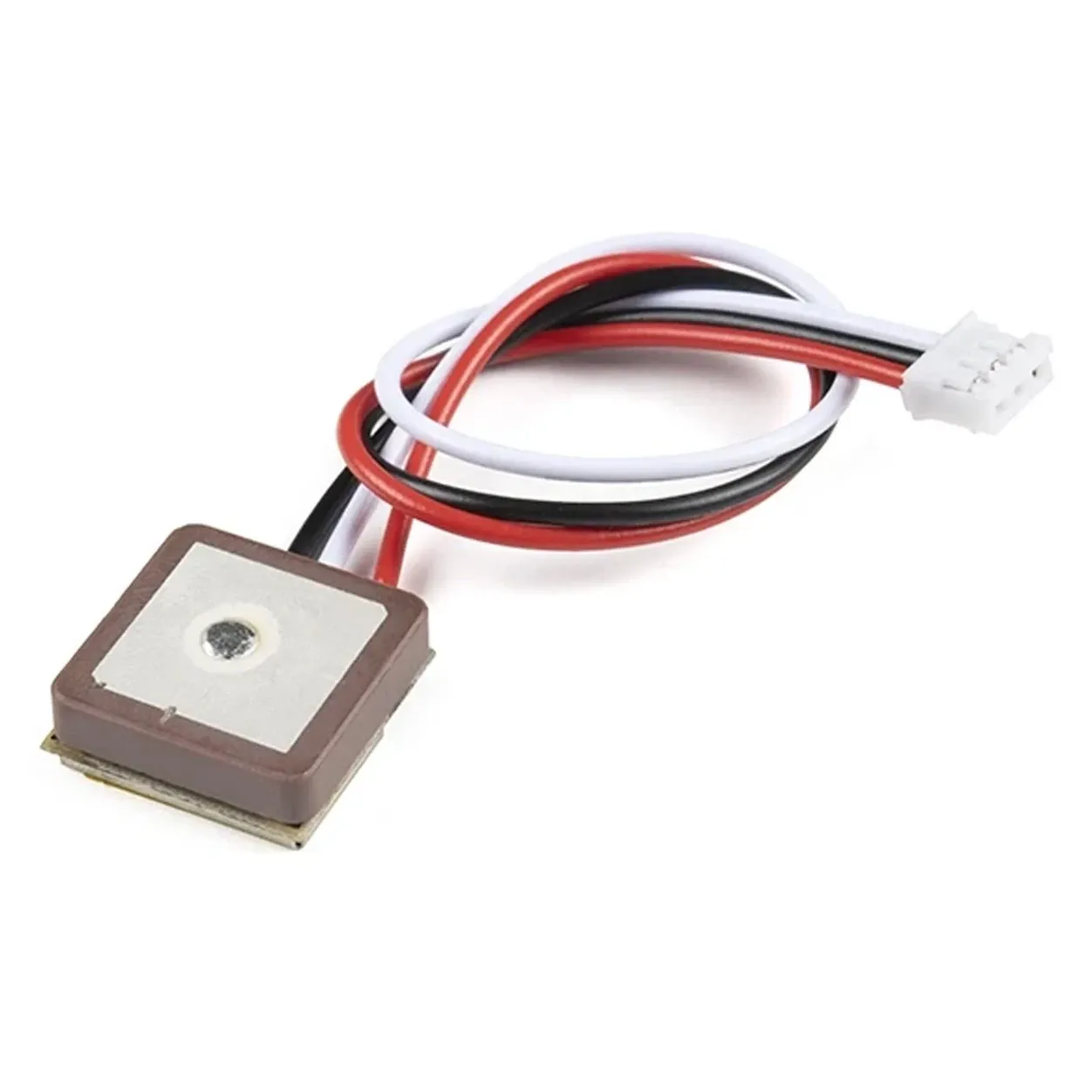

- Integrated active patch antenna, so no external antenna or coax is needed
- NMEA-0183 over UART at 9600 baud by default, easy to parse on Arduino, ESP32 or Raspberry Pi
- Runs on 3.3-5 V and draws under 55 mA at 3.3 V
- Hot start in under 1 second
Specifications
- Chipset: MT3337
- Channels: 56 (66 acquisition / 33 tracking)
- Frequency: GPS L1, 1575.42 MHz
- Position accuracy: 2.5 m CEP
- Start time: under 1 s hot, under 29 s cold
- Sensitivity: -165 dBm tracking, -148 dBm acquisition
- Update rate: 1 Hz
- Protocol: NMEA-0183 v3.01
- Supply: 3.3-5 V DC
- Dimensions: 18 x 18 x 7 mm
It receives GPS only, has no compass and updates at 1 Hz, so it suits tracking and logging rather than autopilot navigation. For an autopilot, choose an M8, M10 or F9P module with a compass.
| Made in India | No |
|---|---|
| Brand | ADH-Tech |
| GNSS Chipset | MediaTek MT3337 |
