GPS Modules
GNSS Receiver Breakout Board with IRNSS
₹2,899Incl. GST
SKU GNSS-BOB-IRNSS
Brand: GenericGNSS Chipset: SkyTraQ
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

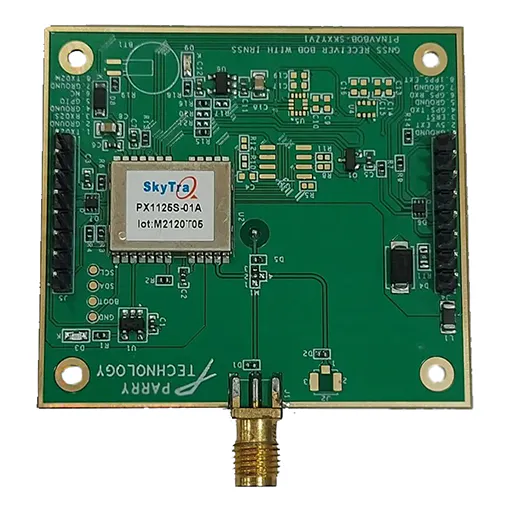

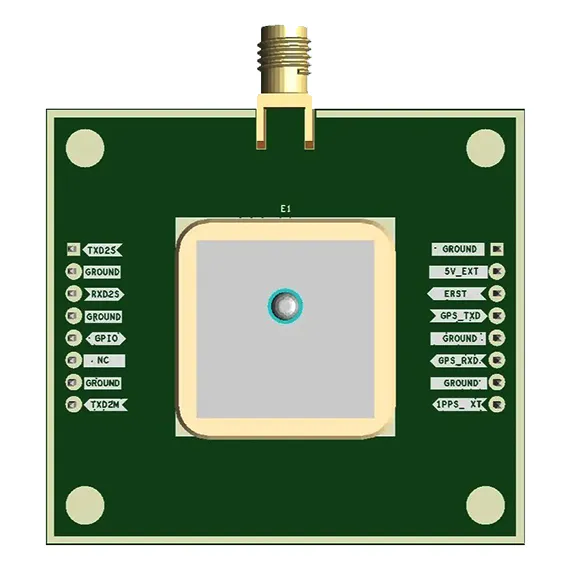

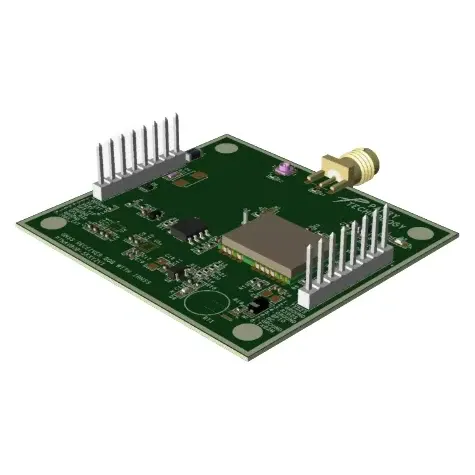

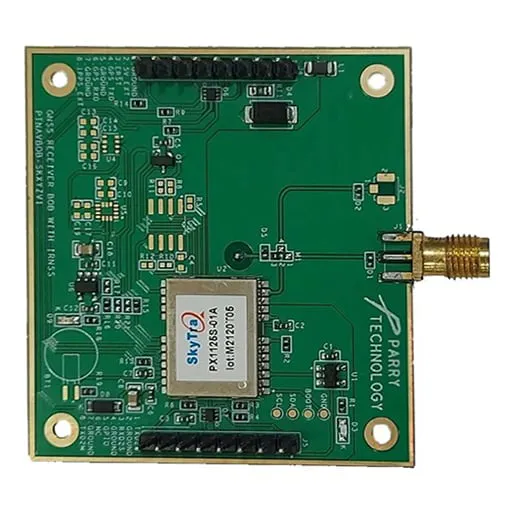

This GNSS receiver breakout board adds dual-constellation satellite positioning to a drone, robotics or embedded navigation project, combining GPS with India's regional NavIC system on one compact board.
Key features
- SkyTraQ chipset receives L1 GPS/GAGAN/GLONASS and L5 NavIC signals for a combined position fix.
- Cold start under 33 seconds and roughly 1 second hot start, with about 2.5m CEP accuracy.
- Optional RTK module support for centimetre-level positioning when fitted.
- Optional IMU mounting supports dead-reckoning navigation when the GNSS signal is briefly lost.
- Runs from an external 5V ±5% supply drawing up to 120mA.
- Unpopulated footprint for an RTC backup battery (MS621FE-FL11E), if you choose to fit one.
The breakout-board format suits builders integrating satellite positioning into a custom flight controller, ground-station or other embedded enclosure. Pair the board with a matched external antenna for the best cold-start sensitivity in weak-signal environments.
| Brand | Generic |
|---|---|
| GNSS Chipset | SkyTraQ |
