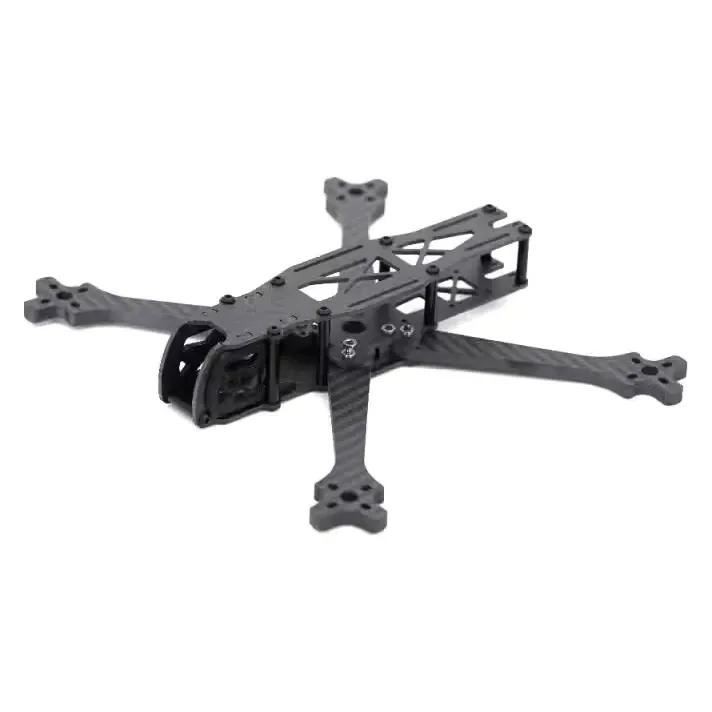

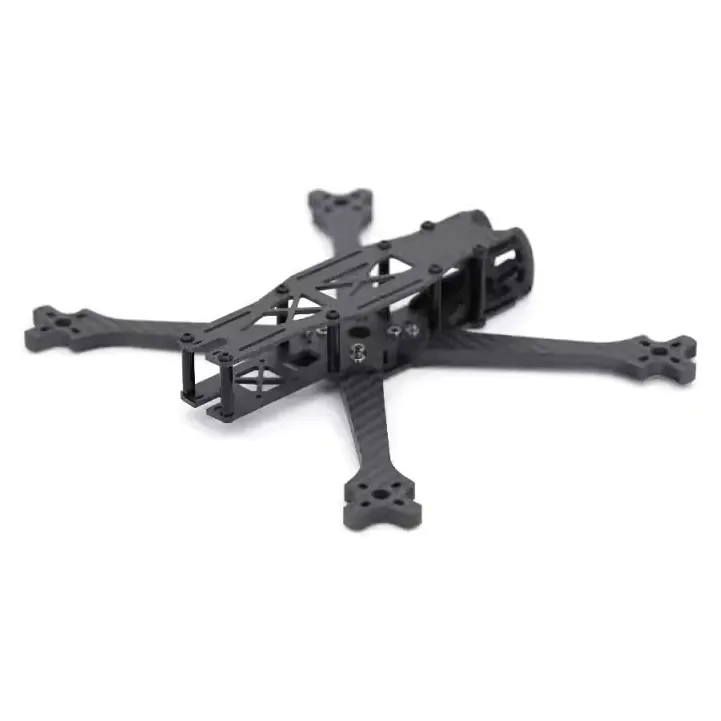

Source One V6 5″ Carbon Fiber Frame Kit

A 5" carbon fibre freestyle and racing frame built to the Source One V6 X layout. It takes mainstream analog or digital FPV electronics, full-size or mini flight stacks and a micro camera, and its separate arms keep crash repairs cheap.

Key features

• Modular arms: four independent arms, so a broken one is swapped on its own instead of replacing the frame.

• Two stack patterns: 30.5 × 30.5 mm (M3) and 20 × 20 mm, for full-size or mini FC/ESC stacks.

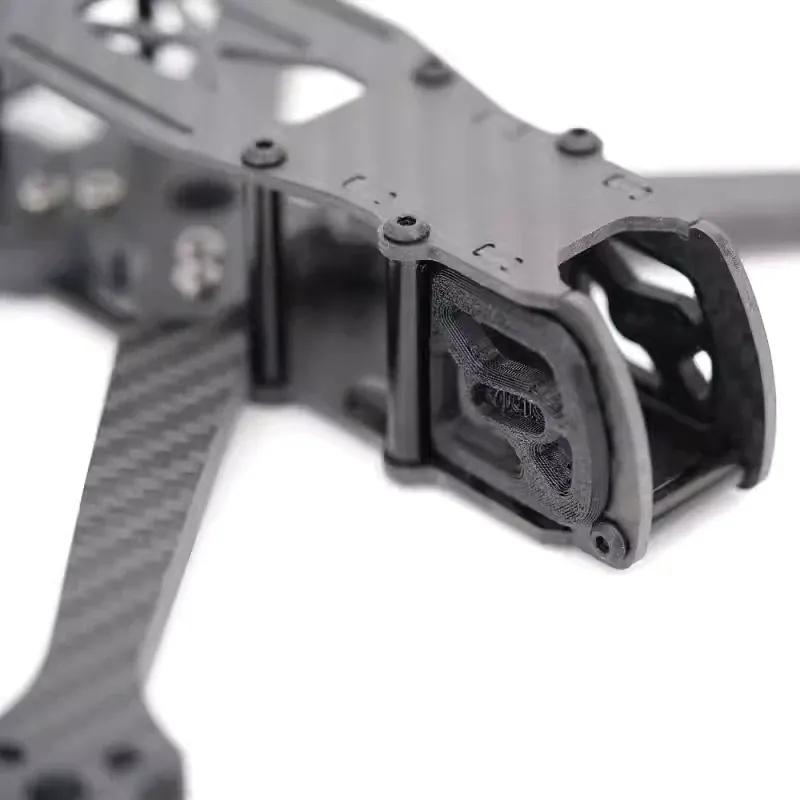

• Micro camera mount: takes 19 mm micro FPV cameras, with two camera plates in the kit.

• 16 × 16 mm motor mounts (M3) for the usual 5" motor sizes.

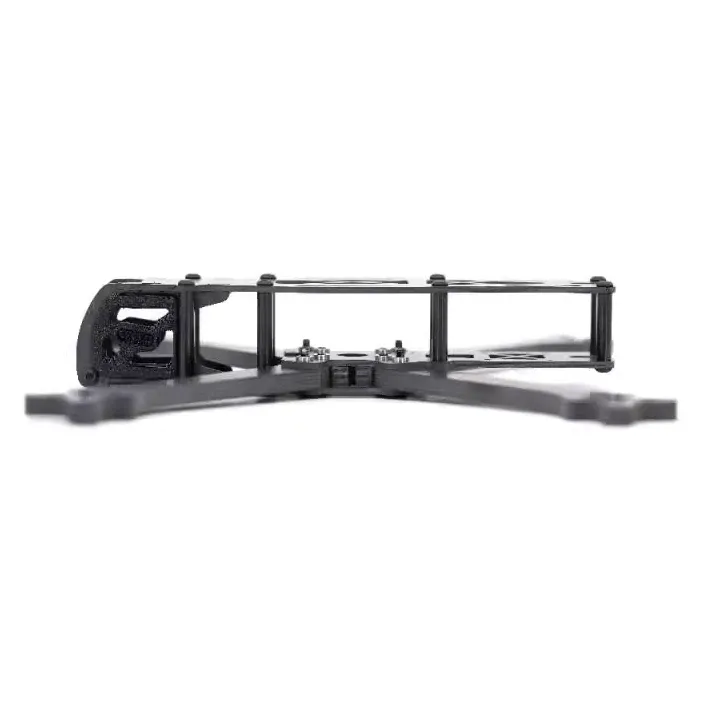

• Plate stack-up: 2 mm top and middle plates, 2.5 mm bottom plate and a 6 mm arm spacer.

Specifications

• Material: carbon fibre

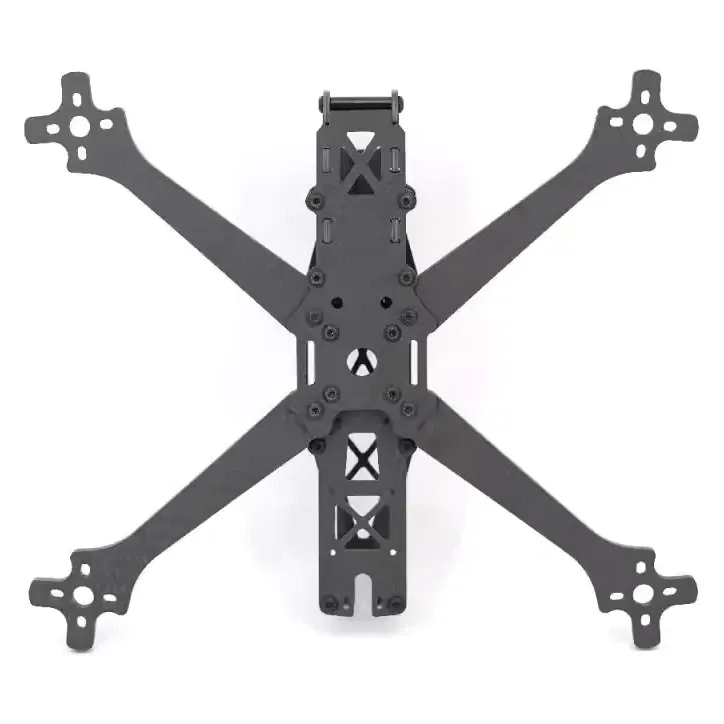

• Layout: X

• Prop size: 5"

• Motor mount: 16 × 16 mm, M3

• Stack mount: 30.5 × 30.5 mm (M3) and 20 × 20 mm

• Top / middle / bottom plate: 2 / 2 / 2.5 mm

• Camera plates: 2 mm

• Arm spacer: 6 mm

• Standoffs: 30 mm and 22 mm

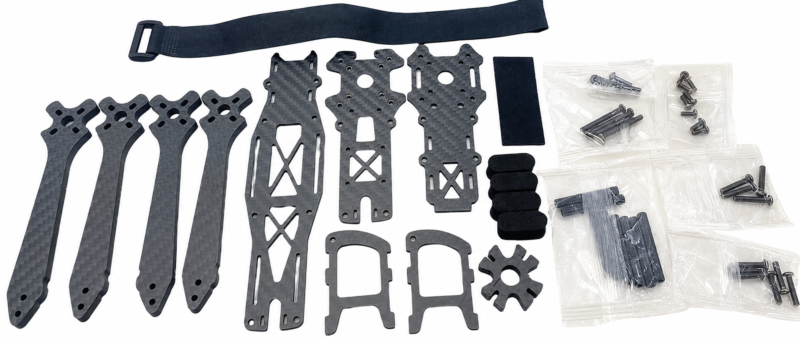

• In the box: top, middle and bottom plates, braces, 2 camera plates, 4 arms, arm spacer, screw set, standoff set

A standard build pairs it with 2207 or 2306 motors, 5–5.1" props and a 6S pack. Weight and wheelbase are not published, so weigh the kit before planning all-up weight for a racing build.
