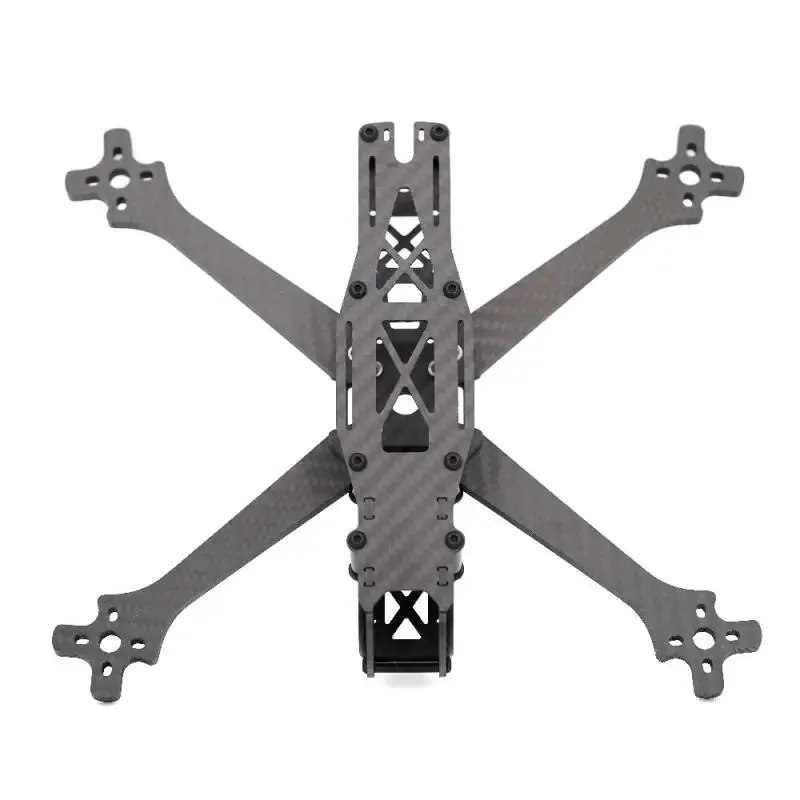

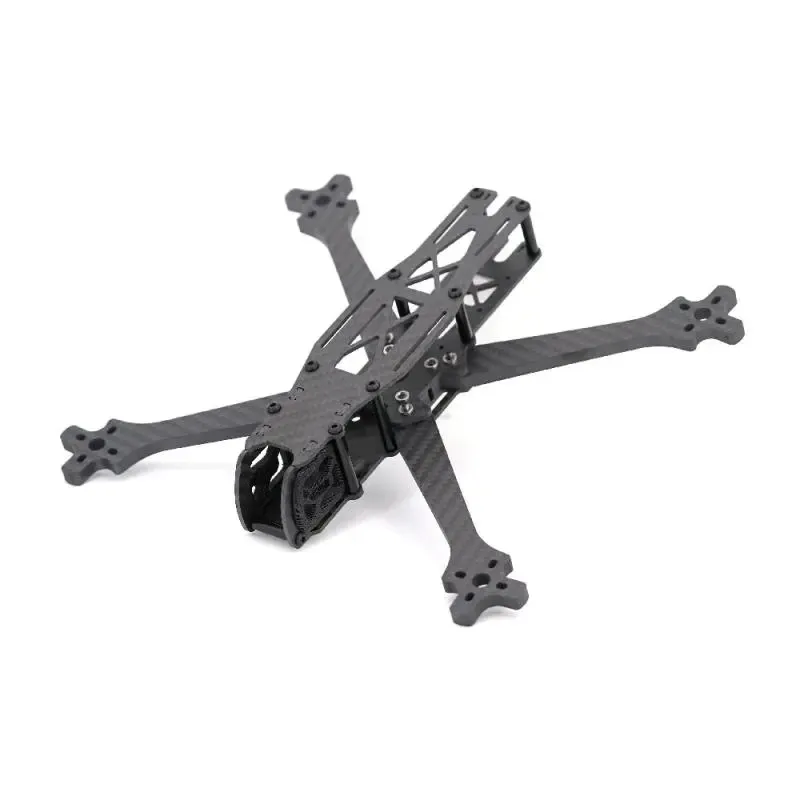

TBS Source One V6 5″ Frame Kit

The TBS Source One V6 is a widely adopted, open-source 5-inch freestyle frame built to withstand heavy impacts and frequent crashes. Initiated by Team BlackSheep and continually refined by the FPV community, the V6 iteration updates the classic geometry to better accommodate modern digital FPV video transmitters while retaining a straightforward, easy-to-repair layout. Its thick carbon fibre components and accessible replacement parts make it a reliable daily flyer for both new builders and experienced freestyle pilots.

Key features

• Community-driven, open-source design with 3D-printable TPU accessory files readily available on GitHub.

• Spacious central deck to comfortably house analog boards and bulky digital HD video transmitters.

• Dual stack mounting options to fit standard 30.5x30.5mm and 20x20mm flight controllers and ESCs.

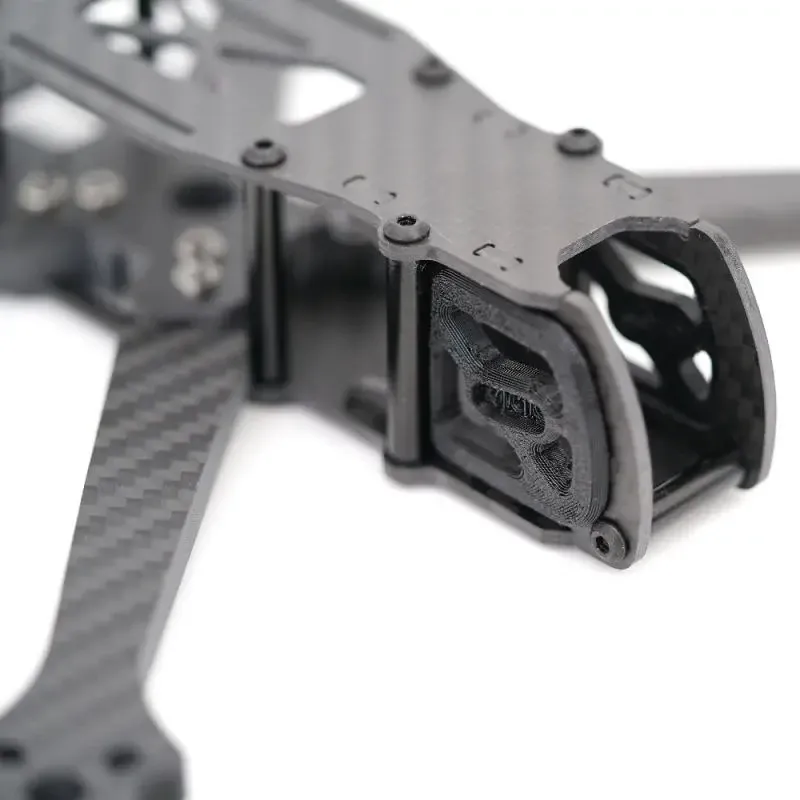

• Upgraded front-end geometry to support standard 19mm micro FPV cameras and 20mm digital systems like the DJI O3.

• Independent arm design allows for quick, single-arm replacements in the field without dismantling the central stack.

Specifications

• Propeller support: 5 inches

• Frame style: Freestyle

• Geometry: Wide-X

• Wheelbase: 240mm

• Arm thickness: 6mm

• Plate thickness: 2mm top, 2mm middle, 2.5mm bottom, 2mm camera plates

• Standoff height: 30mm and 22mm

• Stack mounting patterns: 30.5x30.5, 20x20

• Camera spacing: 19mm, 20mm

• Weight: 136.5g

• Project type: Open-source (Creative Commons)

This bare frame kit pairs perfectly with standard 2207 or 2306 freestyle motors. The kit includes the plates, arms, standoffs, screws, press-in nuts and a TPU camera mount; other 3D-printed accessories and all electronics are bought separately.
