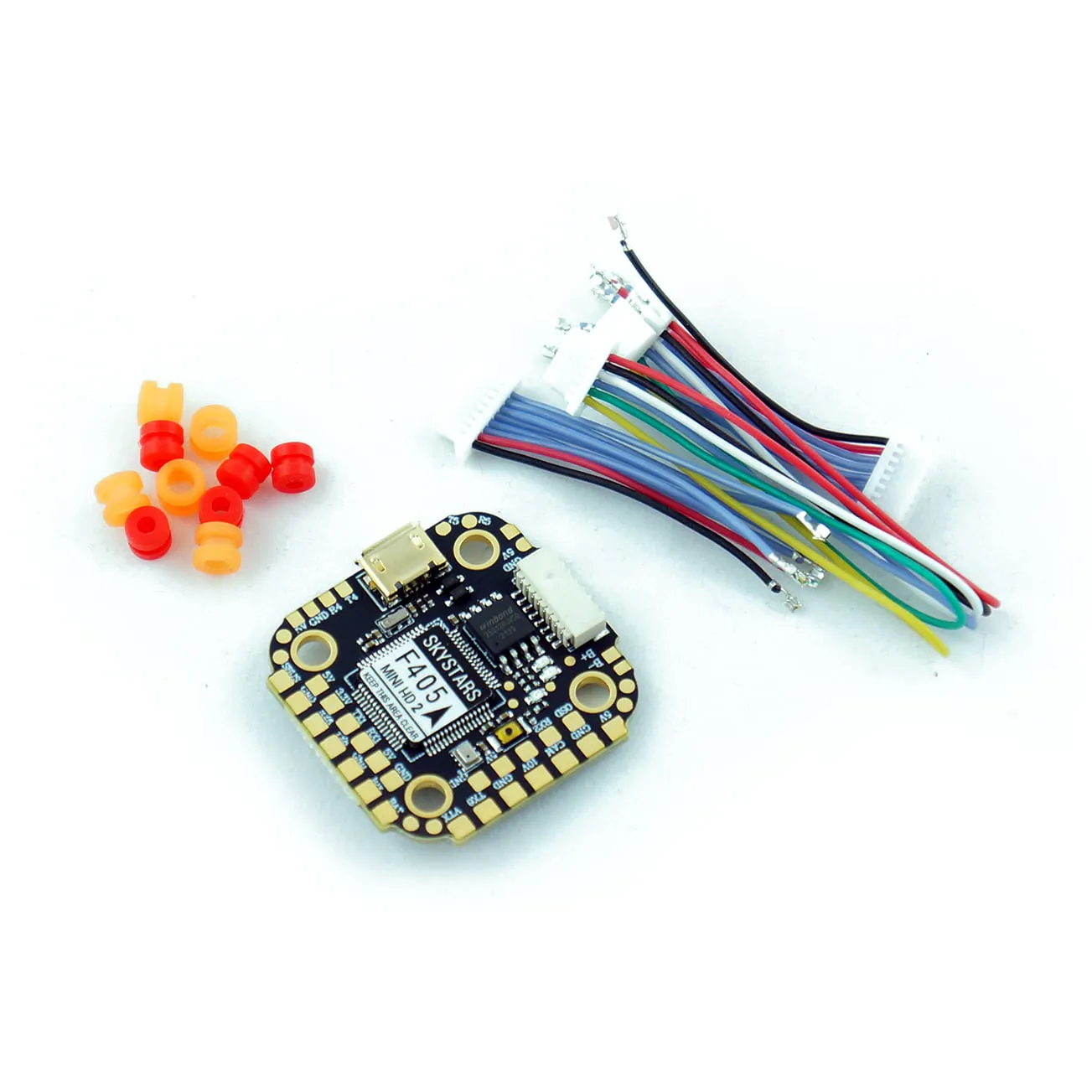

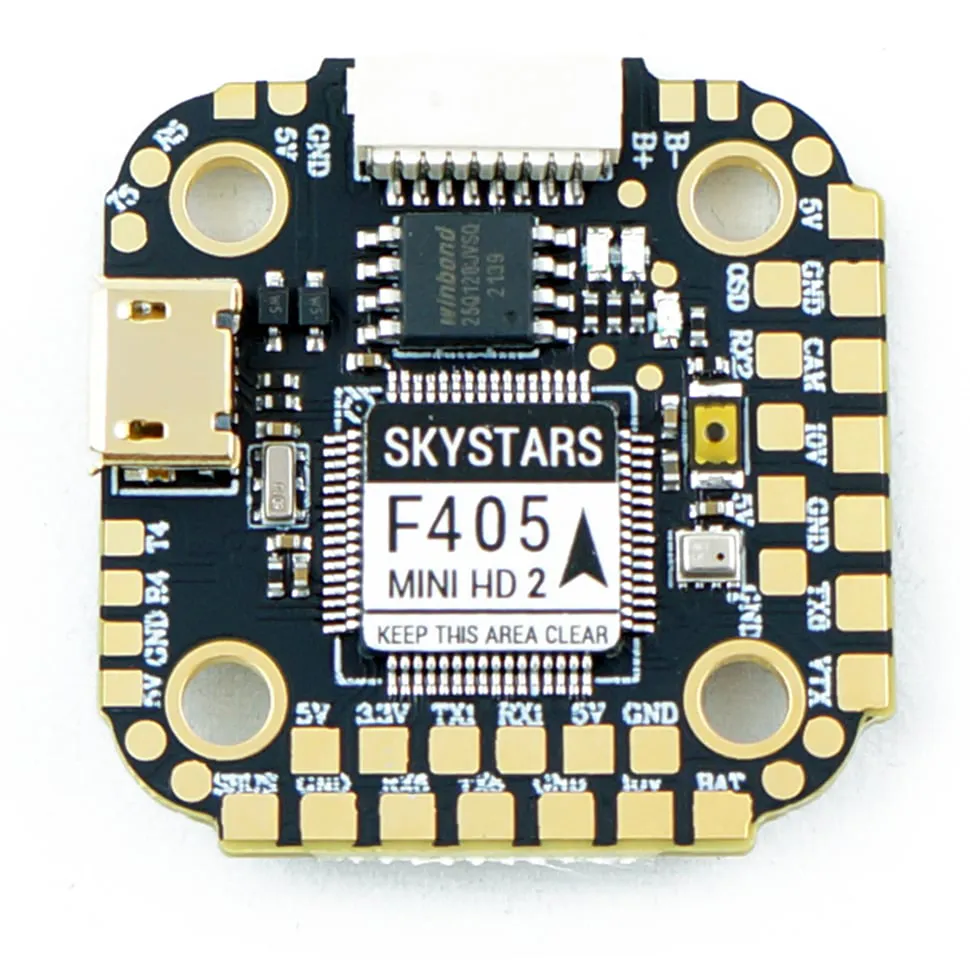

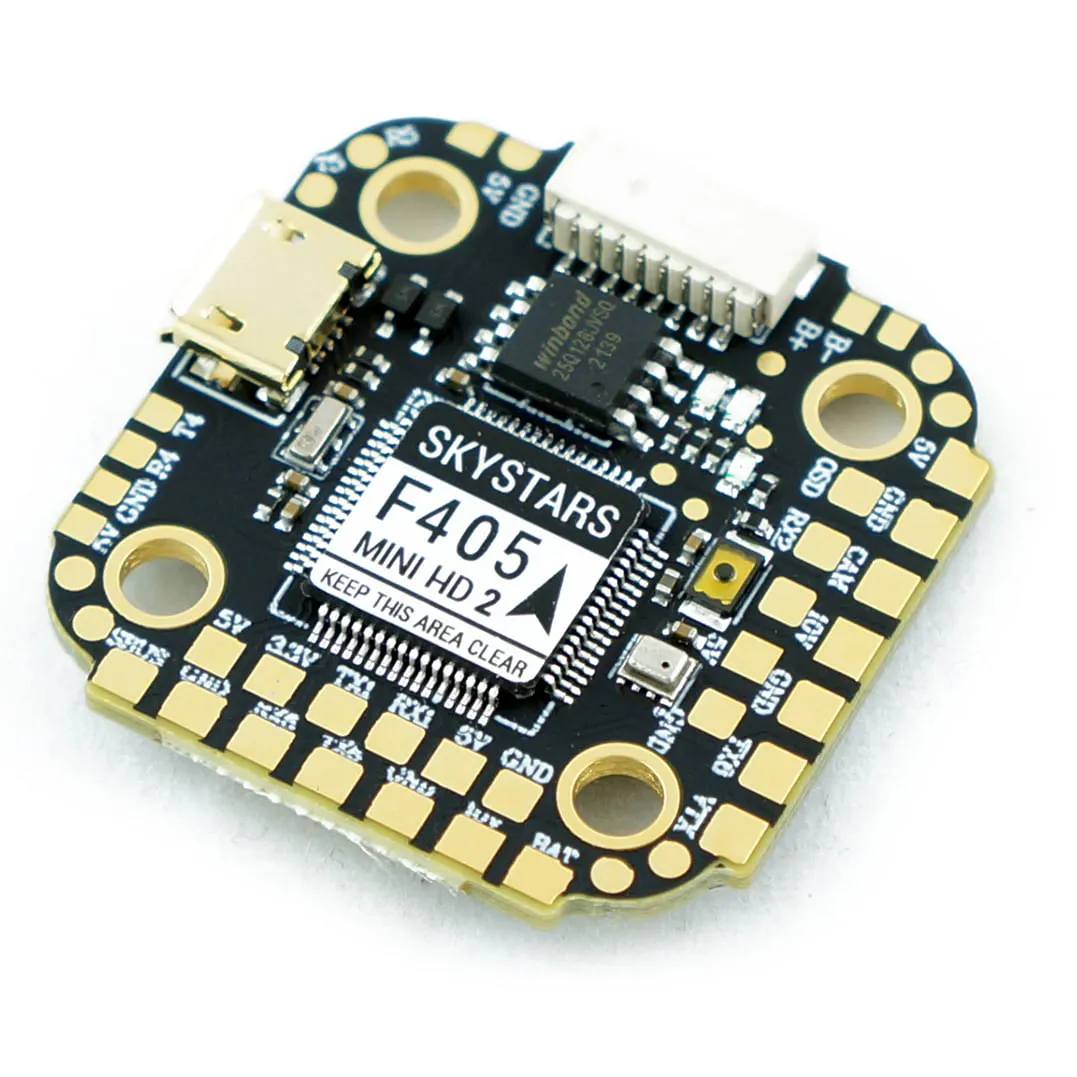

Skystars F405HD Mini V2 Flight Controller

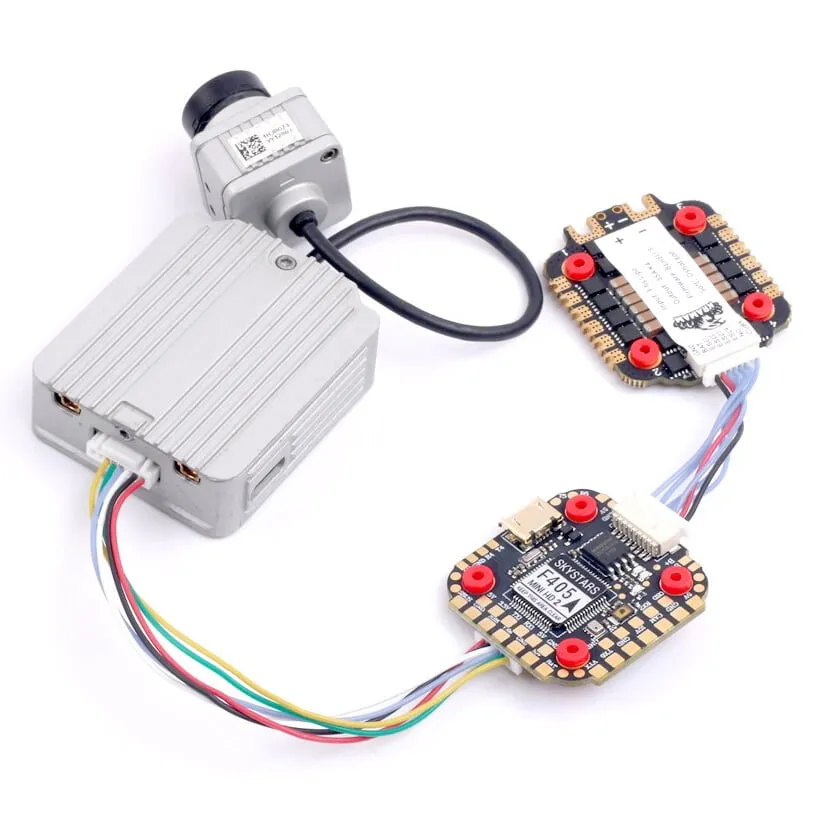

The Skystars F405HD Mini V2 is a compact 20x20mm flight controller designed for sub-250g freestyle, cinewhoop, and lightweight 3-inch to 4-inch FPV drone builds. Built around a 168MHz STM32F405 processor, it features a direct plug-and-play connector for digital video systems like the DJI O3 Air Unit, Walksnail Avatar, or Caddx Vista, streamlining your wiring layout and reducing bench time.

Key features

• Plug-and-play digital VTX connector eliminates the need to solder your HD video transmitter.
• Six hardware UARTs provide ample routing for GPS modules, serial receivers, and telemetry.
• Integrated 16MB Blackbox flash memory ensures you capture complete flight logs for PID tuning.
• Dual high-output BECs deliver clean power to both standard 5V peripherals and 10V digital video units.

Specifications

• MCU: STM32F405RGT6 (168MHz)
• Gyro: ICM42688P or BMI270 (varies by batch)
• Barometer: Yes
• Input Voltage: 3-6S LiPo
• BEC: 5V/2A, 10V/2A (3A peak)
• UARTs: 6
• Blackbox: 16MB Flash

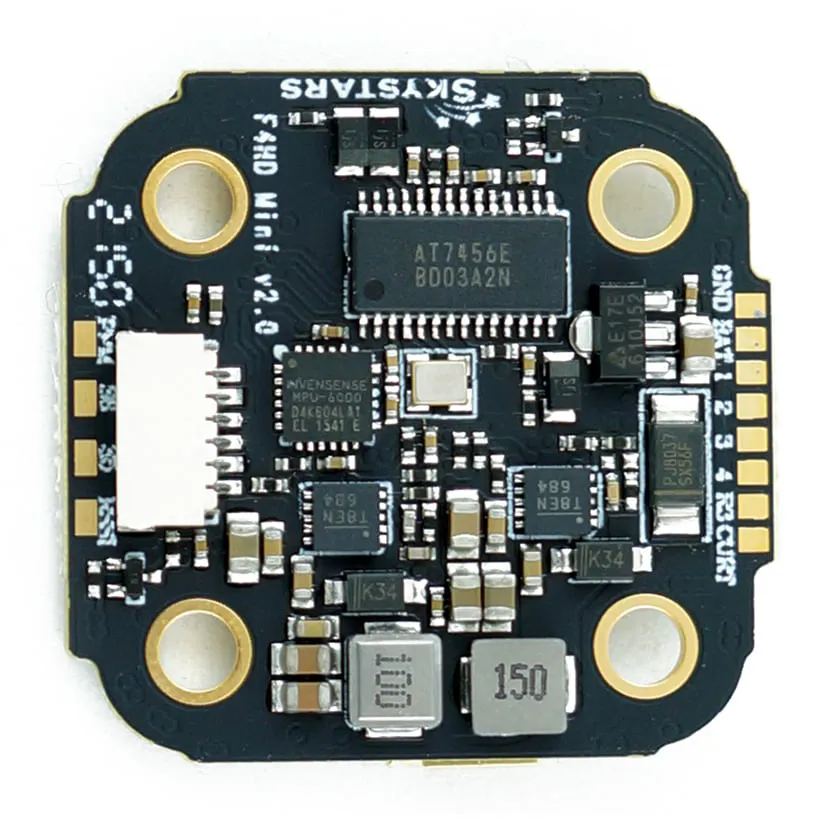

• OSD: AT7456E (Analogue) + HD VTX support
• Mounting Pattern: 20x20mm (M2 or M3)
• Weight: 4.8g
• Supported Firmware: Betaflight, INAV

With its robust 10V BEC and generous UART allocation, this flight controller simplifies digital builds without compromising on the connectivity required for advanced GPS and telemetry setups.
