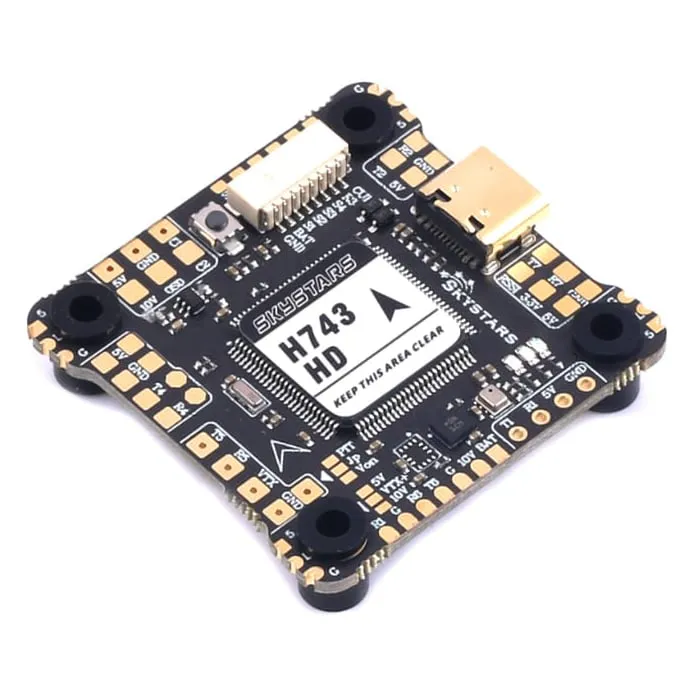

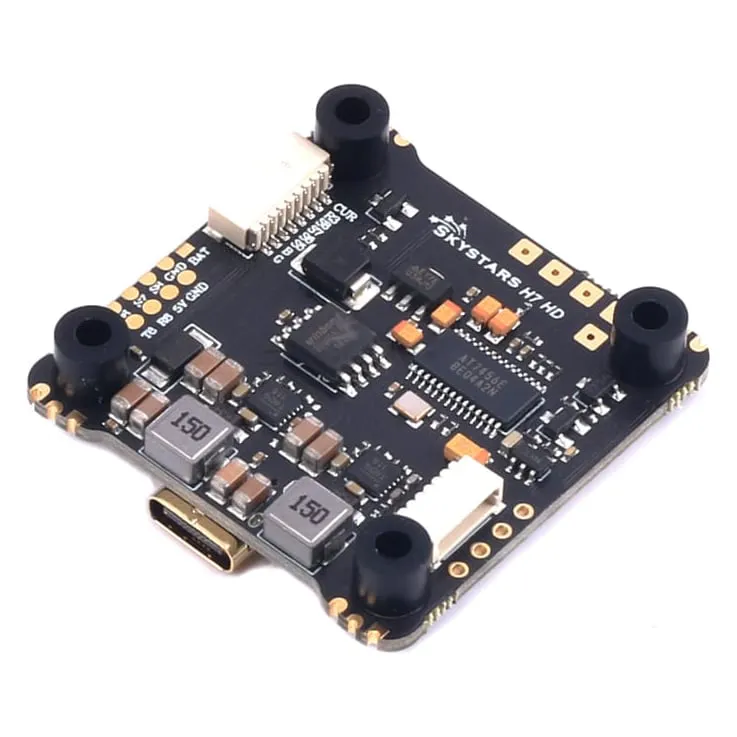

Skystars H7 Single Gyro HD Flight Controller

The Skystars H7 Single Gyro HD is a flight controller for FPV builds on DJI HD or analogue video, built around an STM32H743 processor with a single BMI270 gyro on a 30.5x30.5mm mounting pattern.

Key features

• STM32H743 processor at 480 MHz with 1 MB RAM and 2 MB flash.
• Single BMI270 gyro, BMP280 barometer and a 16 MB blackbox for flight logging.
• Dedicated switchable 10 V filtered VTX output for a DJI HD air unit, with DJI OSD available on any spare UART.
• AT7456E analogue OSD plus a dual camera input switch for two-camera builds.
• 8 PWM outputs, I2C and a USB Type-C port.

Specifications

• Processor: STM32H743VIT6, 480 MHz
• Gyro: BMI270 (single)
• Barometer: BMP280
• OSD: AT7456E
• Blackbox: 16 MB
• PWM outputs: 8
• Connectors: 2 x JST-SH 8-pin (ESC), 1 x JST-SH 6-pin (HD video, 10 V)
• USB: Type-C
• Mounting: 30.5 x 30.5 mm
• Dimensions: 39.5 x 39.5 x 7.8 mm
• Weight: 10.1 g
