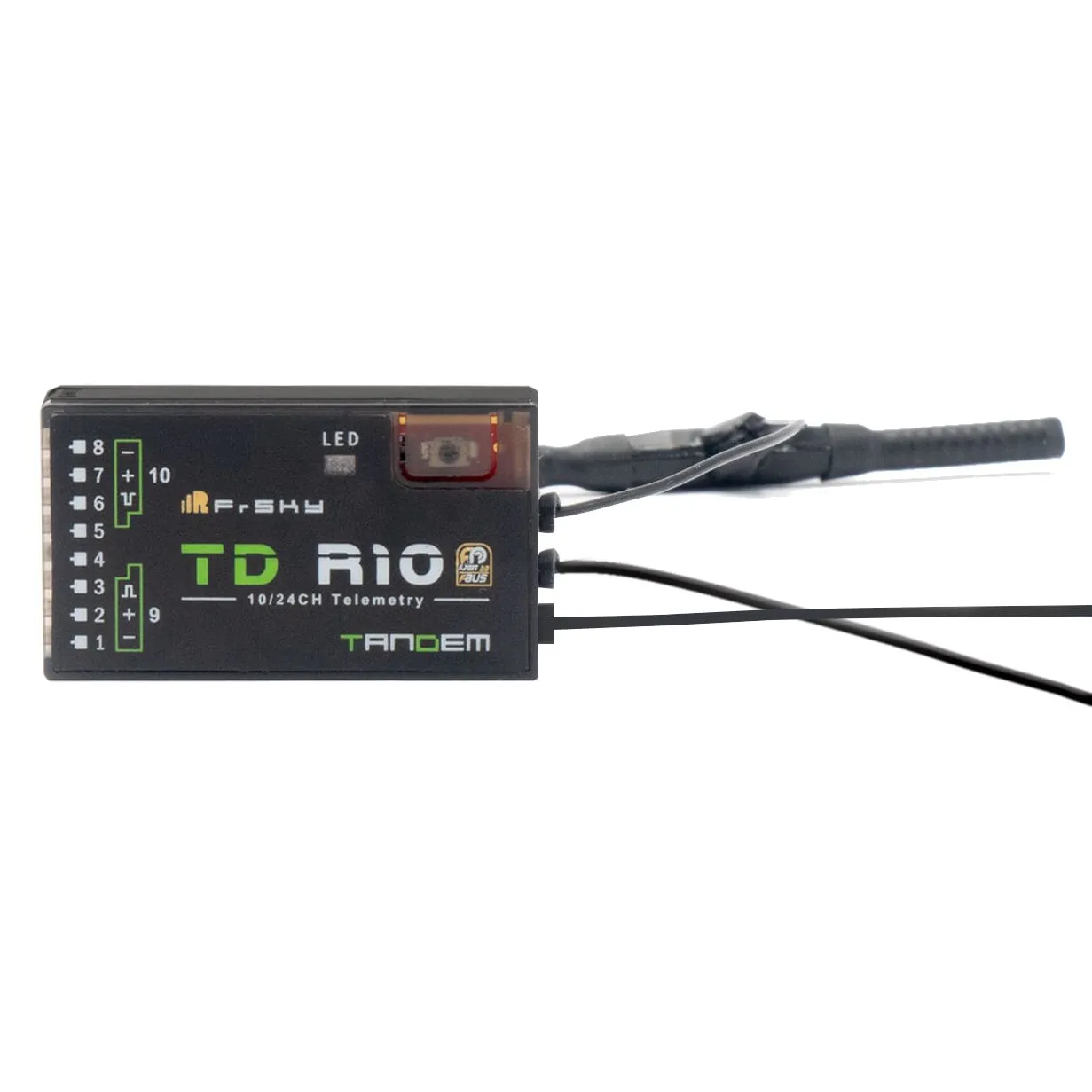

FrSky TD R10 2.4GHz 900M Receiver

FrSky TD R10 is a dual-band receiver for FPV, long-range and general drone builds using compatible FrSky Tandem equipment. It operates on 2.4GHz and 900MHz and includes the antennas required for installation.

Key features

• Dual-band operation provides two supported frequency ranges in one receiver.
• Diversity antennas are included for the 2.4GHz and 900MHz setup.
• Designed for FrSky Tandem radio systems.
• Suitable for pilots building FPV or long-range drones around a compatible FrSky transmitter.
• Check transmitter support and firmware before fitting the receiver to a new build.

Specifications

• Frequency: 2.4GHz
• Frequency: 900MHz
• RC Protocol: Tandem (TD)
• Brand: FrSky
• Made in India: false
• Channels: 10 configurable ports, each PWM, SBUS out, FBUS or S.Port (port 1 also SBUS in)
• Antennas: 2 x external 2.4GHz + 1 x external 900MHz, IPEX1
• Operating voltage: 3.5-10 V DC
• Operating current: up to 180 mA at 5 V
• Dimensions: 46.5 x 26.3 x 14.7 mm
• Weight: 16.6 g
• Extras: built-in black box, built-in voltage sensor, OTA firmware updates

Route both antennas clear of carbon plates and high-current wiring during installation, and confirm the radio system is configured for the TD R10 before flight.
