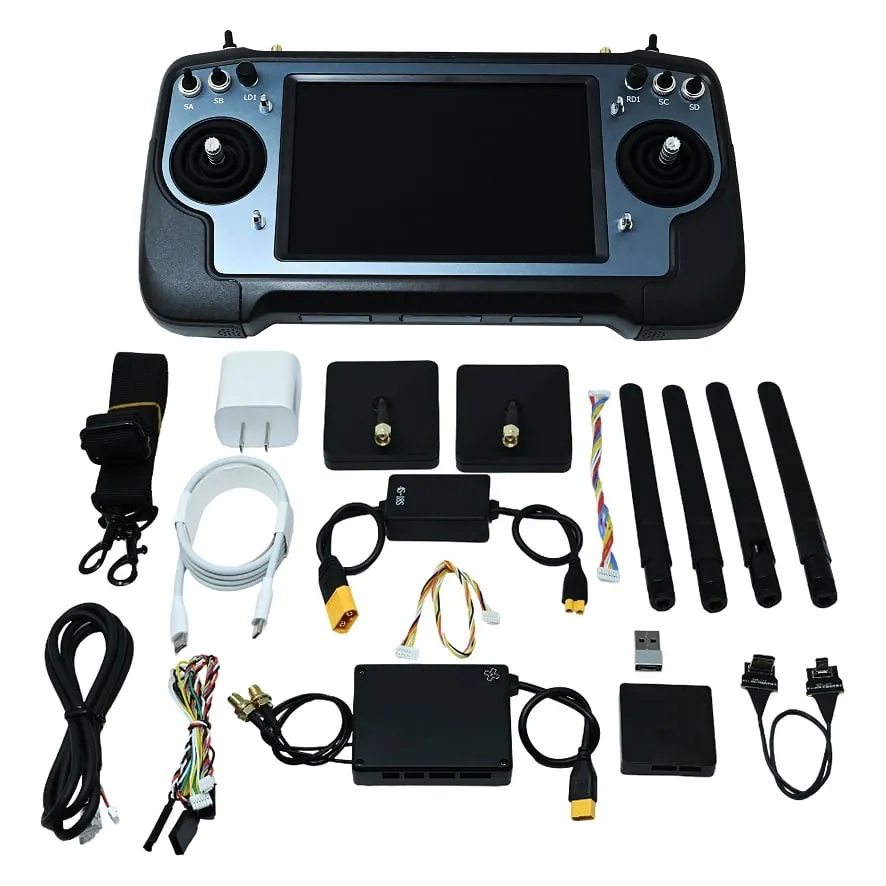

SIYI MK32 HDMI Enterprise Ground Station Combo w/ Air Unit

The SIYI MK32 HDMI Enterprise Combo is a handheld ground station designed for commercial UAVs, agricultural drones, and long-range inspection platforms. Combining an RC transmitter, telemetry datalink, and a 7-inch FHD touchscreen, it gives pilots a complete control interface in a single device. The included HDMI Air Unit integrates directly with camera payloads, transmitting 1080p video and flight data up to 15 kilometres.

Key features

• 7-Inch FHD Touchscreen: 1000-nit peak brightness for direct sunlight visibility, running a custom Android OS (4GB RAM, 64GB ROM) to natively host QGroundControl or Mission Planner.

• 15 km Video & Data Link: Handles 2.4GHz RC control, bi-directional telemetry, and low-latency HD video transmission over a single consolidated RF link.

• HDMI Air Unit: The airborne receiver provides direct HDMI, Ethernet, and serial inputs to interface with surveying gimbals, IP cameras, and flight controllers.

• Controller I/O: Features an HDMI output for external director monitors, an RJ45 Ethernet port, USB-A, and USB-C connectivity.

• High-Capacity Power: An internal 10200mAh 2S battery provides up to 10 hours of runtime and supports 30W PD fast charging via USB-C.

• Precision Control: Built with heavy-duty Hall-effect gimbals for smooth, wear-resistant stick inputs across extended flight sessions.

Specifications

• Operating frequency: 2.400–2.483 GHz

• Max transmission range: 15 km (unobstructed)

• Screen: 7-inch LCD (1920x1200), 1000 cd/m²

• Battery: 10200 mAh 7.4V (2S)

• Battery life: Up to 10 hours

• Fast charging: 30W PD (USB-C)

• Supported firmware: ArduPilot, PX4, INAV

• Air Unit inputs: HDMI, Ethernet, UART, S.Bus

• Ground station outputs: HDMI, RJ45, USB-A, USB-C

• Gimbal type: Hall effect

Perfect for ArduPilot and PX4 builds where precise situational awareness and advanced payload control are critical. The included HDMI Air Unit simplifies deployment on custom multirotors, VTOLs, or fixed-wing mappers carrying professional surveying or cinelifter cameras.
