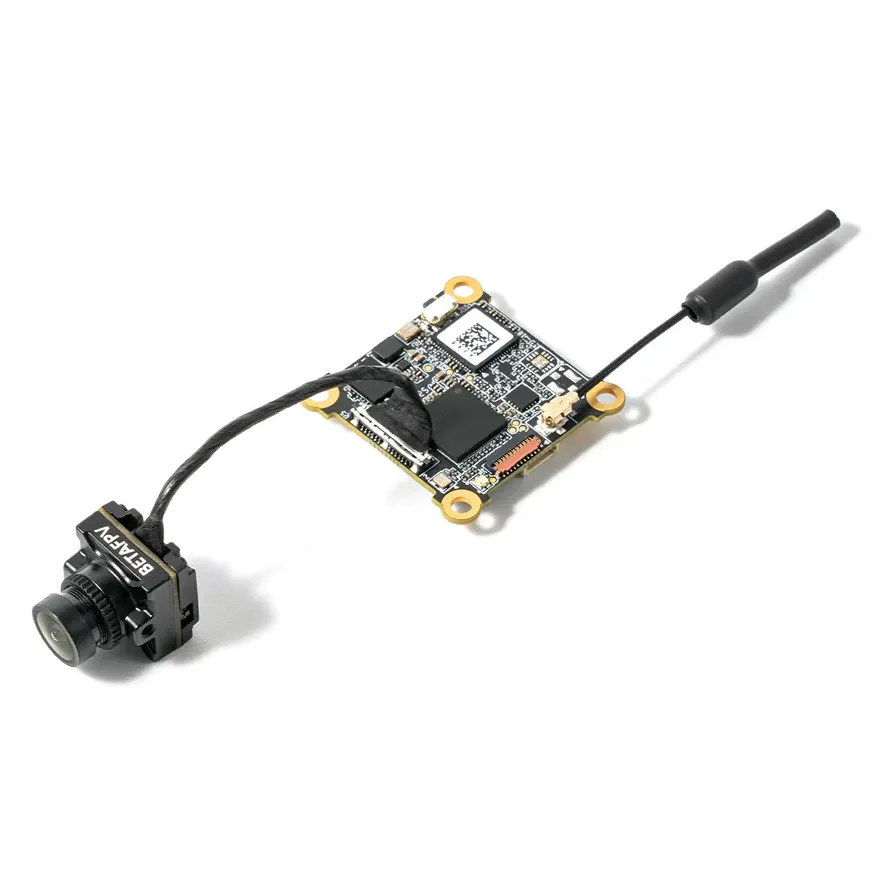

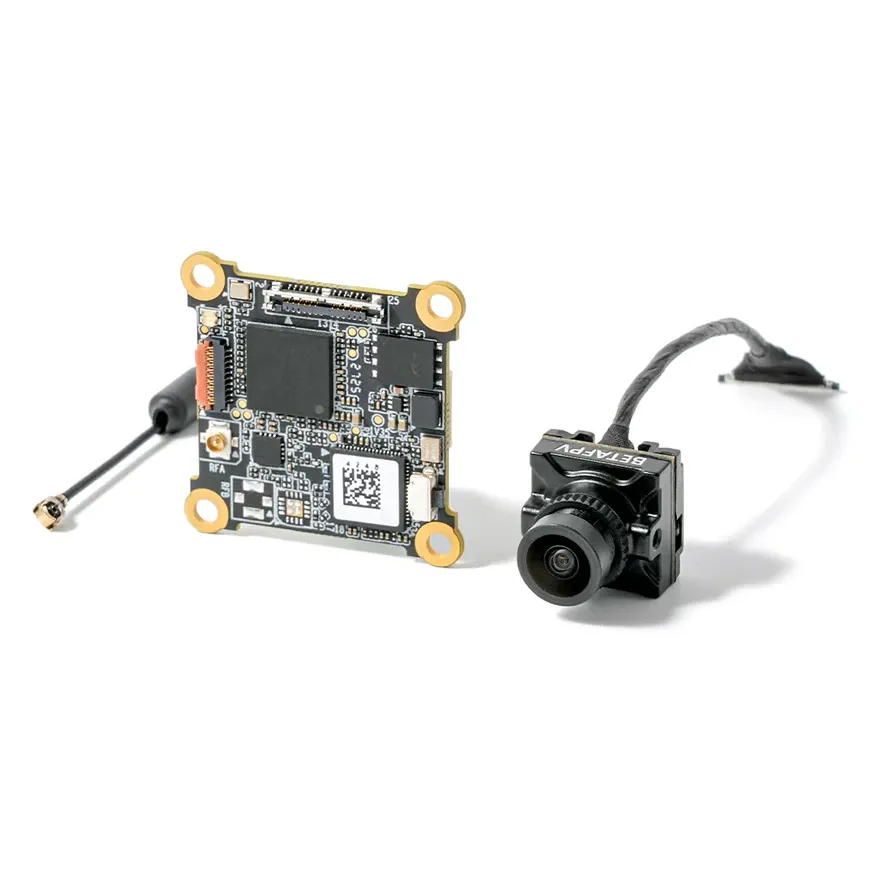

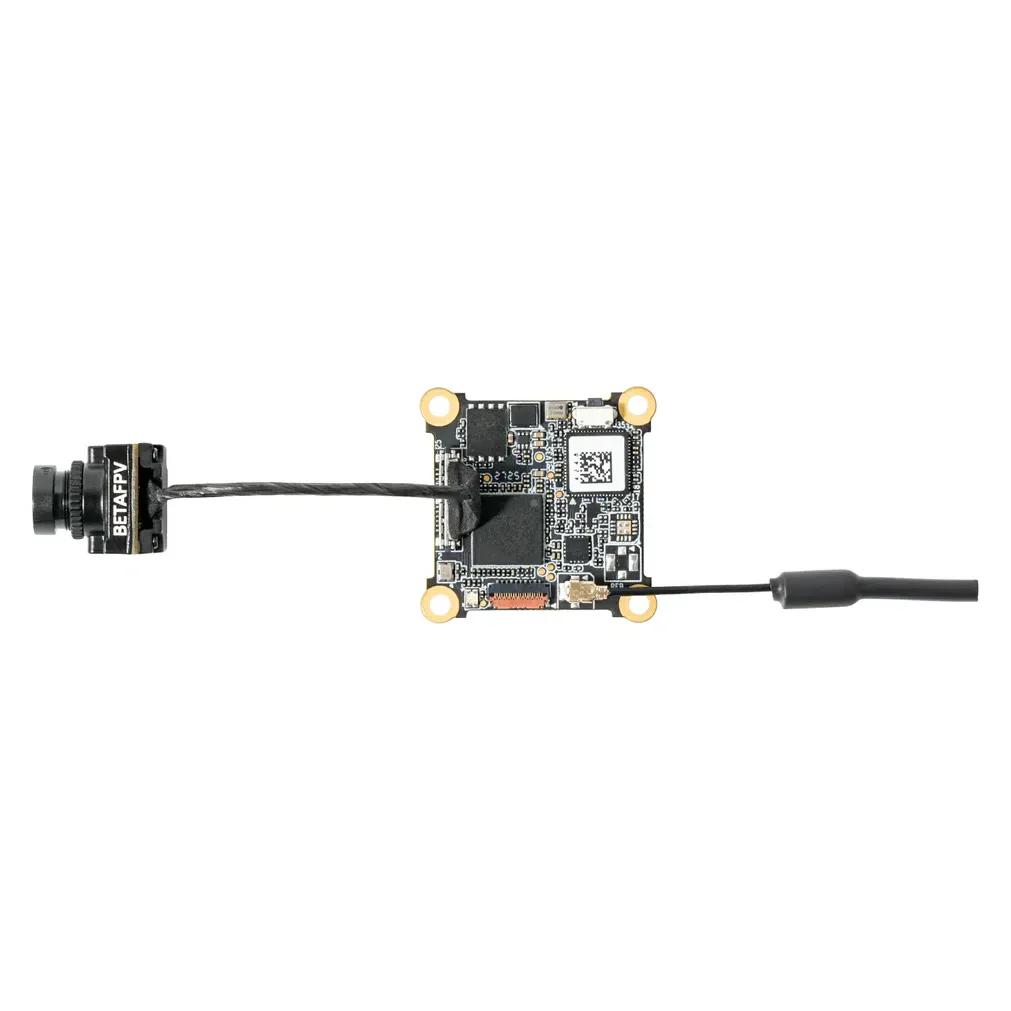

BetaFPV P1 Air Unit HD VTX

The BetaFPV P1 Air Unit HD VTX is a digital video transmitter built on the ArtLynk protocol, giving micro drones, whoops and toothpicks a lightweight HD video link in place of an analogue VTX.

Key features

• 1080p@60fps live feed with roughly 60ms latency and over 5km of tested range at 200mW output.
• 1/2.9-inch CMOS sensor with a wide 170-degree field of view for an immersive, detailed picture.

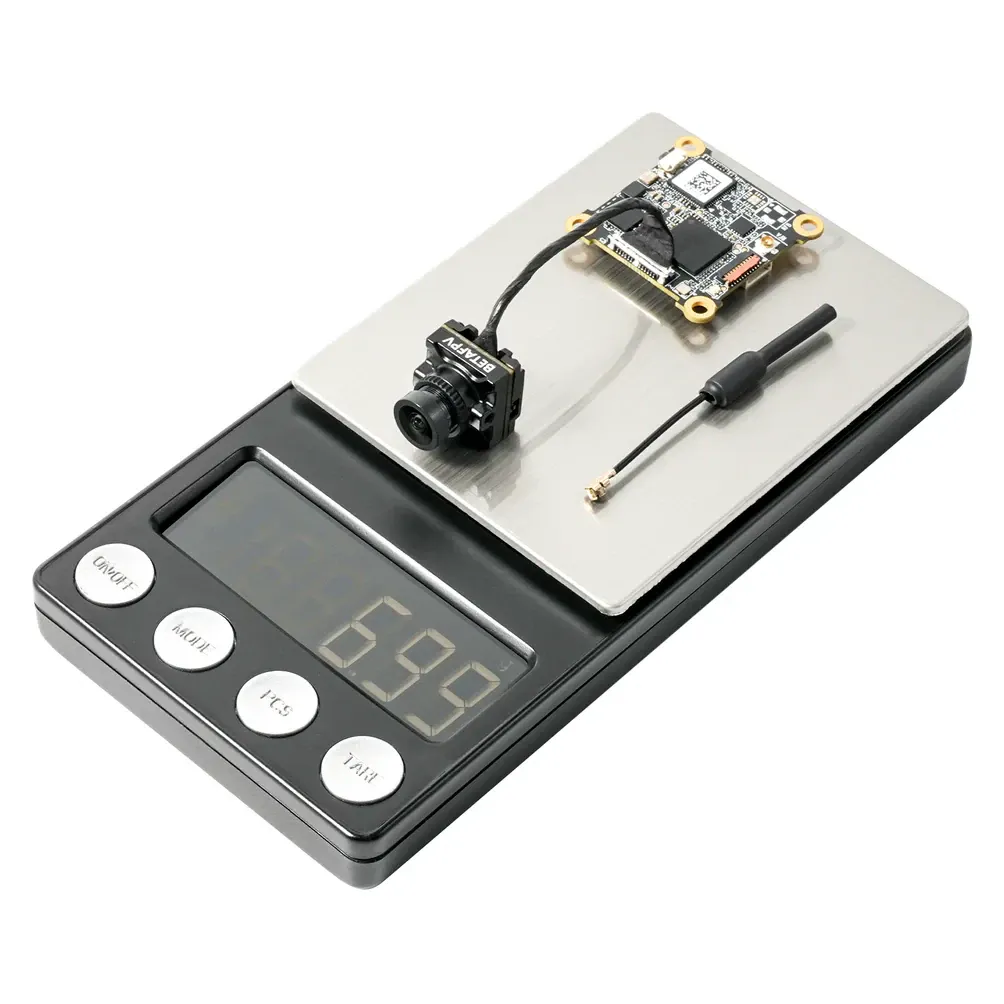

• Air unit weighs approximately 6.5g with camera fitted (antenna about 0.44g extra), so it keeps sub-250g builds light.
• Standard SH1.0 6-pin FC port and MSP OSD communication for plug-and-play use with Betaflight and BetaFPV flight controllers.

Specifications

• Frequency: 5.1-5.9 GHz
• EIRP: <200mW (FCC/SRRC), <25mW (CE)
• Bandwidth: 10 MHz, 3 channels, single antenna
• Mounting hole size: 25.5 x 25.5 mm (2.5mm holes)
• Dimensions: air unit 30 x 30 x 5.5 mm; camera 14 x 14 x 17 mm
• Weight: approx. 3.61 g without camera, 6.5 g with camera
• Camera mount: 14mm, M2 holes
• Ports: SH1.0 6-pin (FC), SH1.0 4-pin (USB)
• Input voltage: 5V

Fits standard micro canopies and lightweight frame designs where a compact digital HD link matters more than the extra range of a full-size air unit.
