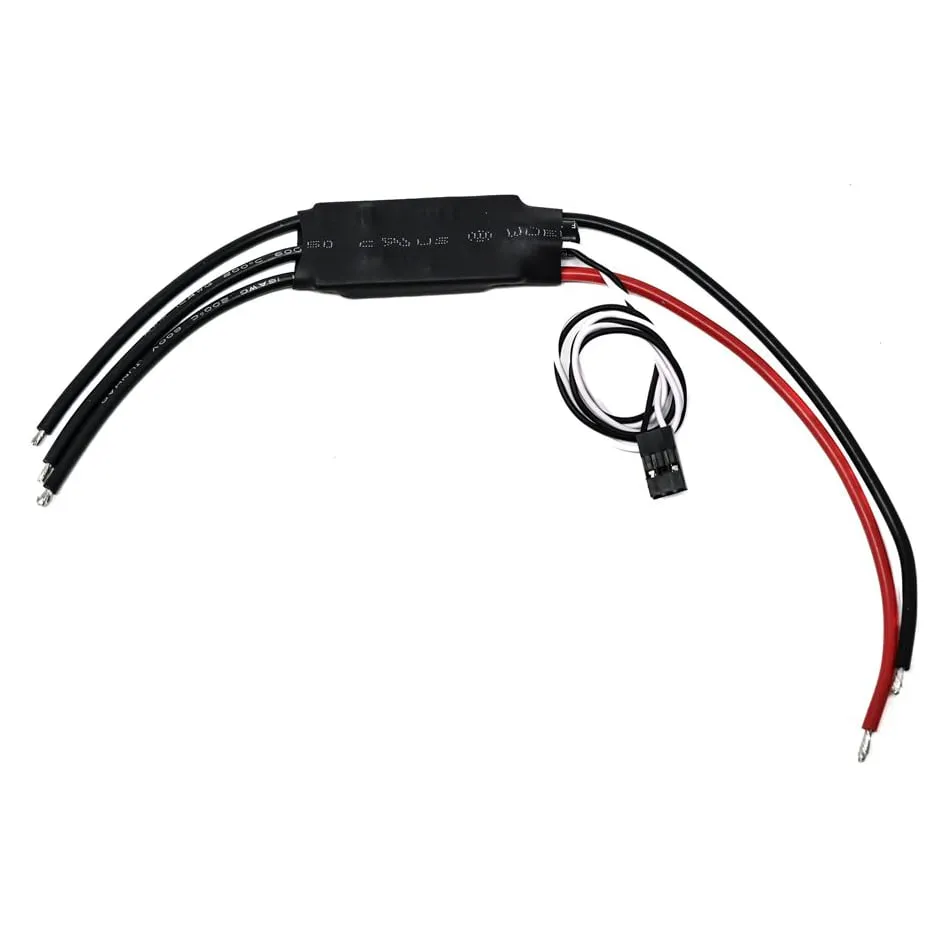

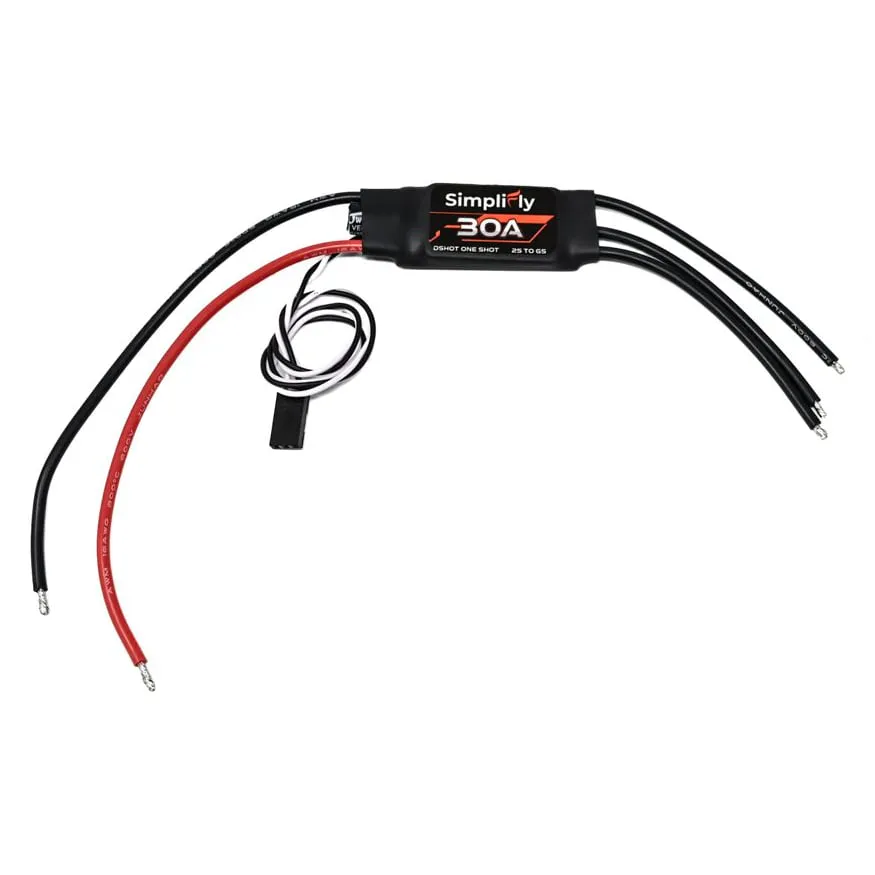

Simplifly 30A 2S-6S Brushless ESC (OneShot125, DShot)
SKU SIMPLIFLY-30A-ESC
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The Simplifly 30A is a single brushless ESC for 2S–6S LiPo setups: one per motor on quadcopters, hexacopters and other multirotors, and equally suited to RC planes and helicopters. It is rated for 30 A continuous with a 40 A burst, a common pairing for 2212–2216-class motors on F450/S500-style frames. Check your motor's maximum current on your chosen prop against the 30 A figure.
Key features
- 30 A continuous, 40 A burst, giving headroom for short full-throttle punches
- Fast protocols: OneShot125 and DShot up to DShot1200
- BLHeli_32-based firmware with programmable motor direction and a configurable throttle range
- Protection: low-voltage cut-off and over-heat protection
- Suits multirotors, fixed-wing aircraft and helicopters
Specifications
- Continuous current: 30 A
- Burst current: 40 A
- Input: 2S–6S LiPo (7.4–22.2 V nominal)
- Protocols: OneShot125, DShot up to 1200
- Firmware: BLHeli_32-based
- Type: single brushless ESC
- In the box: 1 × ESC, 1 × user manual
Buy one ESC per motor. Before you fly, set the flight controller's motor output protocol to OneShot125 or DShot, then set motor direction in the ESC configuration rather than by swapping motor wires.
| ESC Current | 30 A |
|---|---|
| Input Voltage | 2–6S |
| ESC Firmware | BLHeli_32 |
| Made in India | No |
| Brand | Simplifly |
