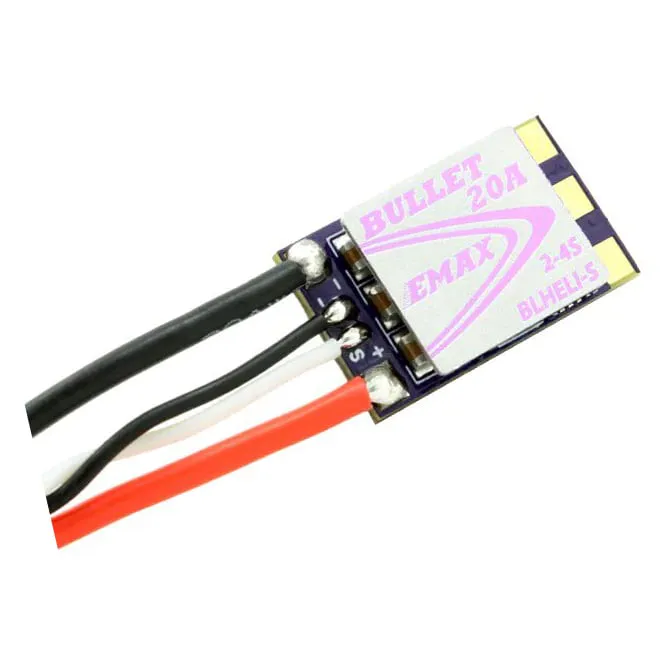

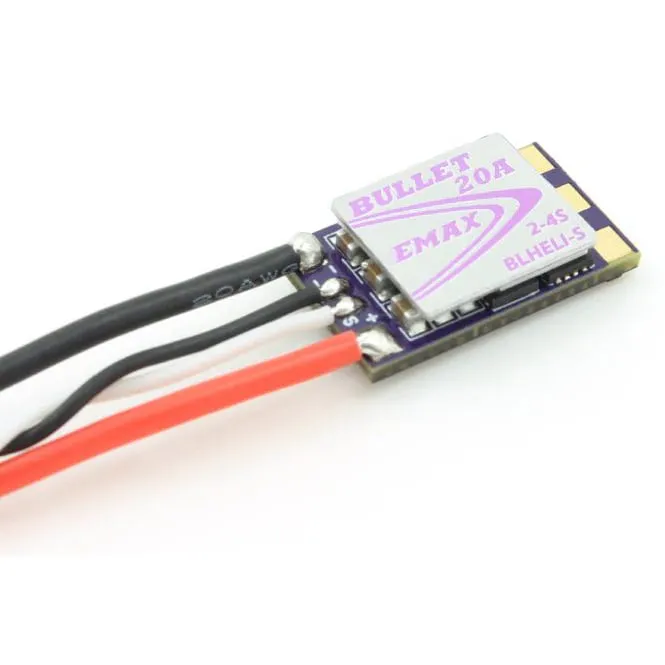

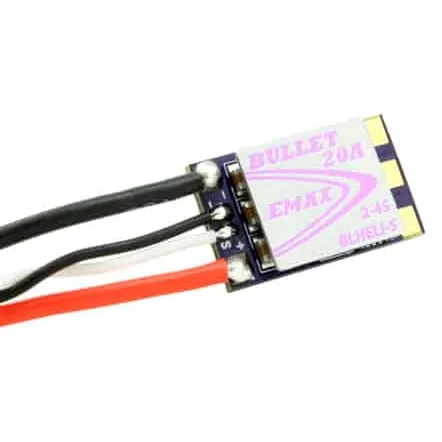

EMAX D-Shot Bullet 20A 2–4S BLHeli_S ESC
₹1,249Incl. GST
SKU EMAX-DSHOT-BULLET-20A
ESC Current: 20 AInput Voltage: 2–4SESC Firmware: BLHeli_SMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The EMAX D-Shot Bullet 20A is an ultra-compact single ESC tailored for lightweight 2–4S FPV builds and micro multirotors. Measuring under 20mm in length and featuring a factory-installed aluminium heatsink, it delivers dependable thermal management while mounting cleanly on narrow quadcopter arms.
Key features
- Ultra-small footprint (11.9 x 19.6 mm) designed for space-constrained 130–180mm class frames.
- Built-in anodised aluminium heatsink protects the MOSFETs and improves heat dissipation during high throttle punches.
- Equipped with the EFM8BB2 MCU for smooth throttle response and reliable high-KV motor handling.
- Native support for digital DShot600 protocols alongside legacy Multishot and Oneshot.
Specifications
- Continuous Current: 20 A
- Burst Current: 25 A (10 seconds)
- Input Voltage: 2-4S LiPo
- Firmware: BLHeli_S
- MCU: EFM8BB2
- Supported Protocols: DShot150/300/600, Multishot, Oneshot125, Oneshot42
- Dimensions: 11.9 x 19.6 mm
- Weight: 3.5 g (including wires)
This ESC is ideal for micro racing drones and lightweight freestyle rigs requiring a low-profile, standalone power delivery system on each arm.
| ESC Current | 20 A |
|---|---|
| Input Voltage | 2–4S |
| ESC Firmware | BLHeli_S |
| Made in India | No |
| Brand | EMAX |
