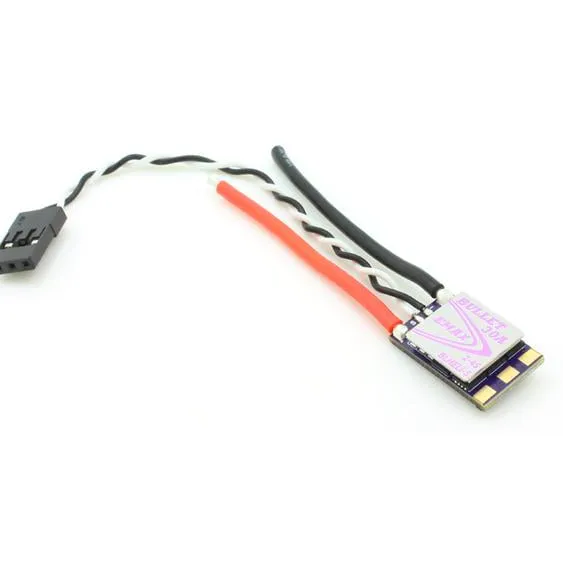

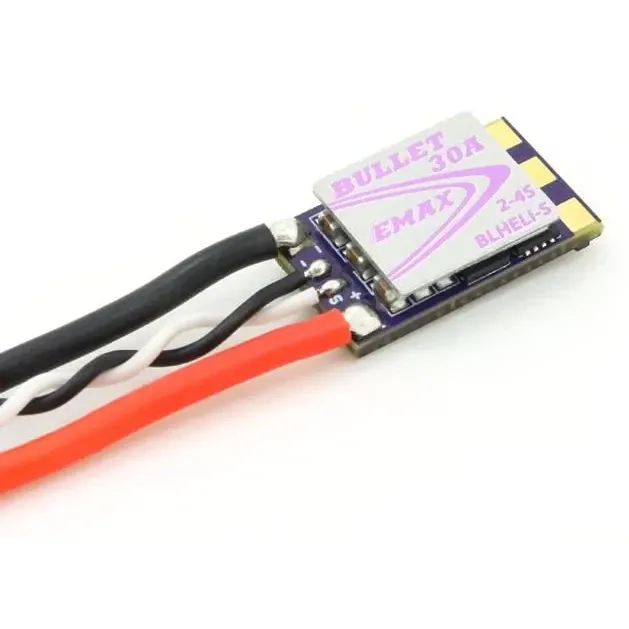

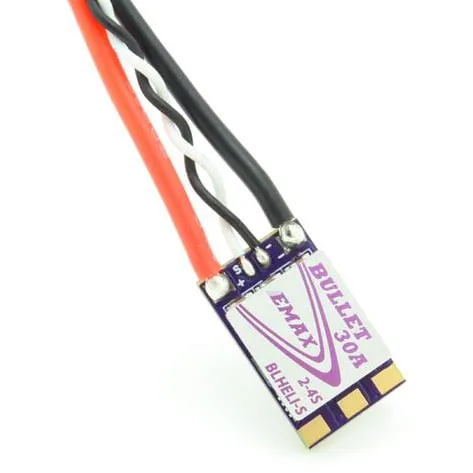

EMAX D-Shot Bullet 30A 2-4S BLHeli_S ESC

The EMAX Bullet 30A is a single brushless ESC from EMAX's Bullet series, built small and light for FPV racing quads on 2–4S LiPo. Mount one per arm on builds that use individual ESCs, or keep one as a spare to replace a single failed ESC without changing the whole set.

Key features

• 30 A continuous, 35 A burst current
• BLHeli_S firmware (16.5) with hardware PWM for smoother throttle response and lower motor noise
• Digital DShot plus Multishot and Oneshot42 signal support
• 3.9 g without wires, keeping weight off the arms
• Heatsink lowers core temperature and shields the board from prop strikes

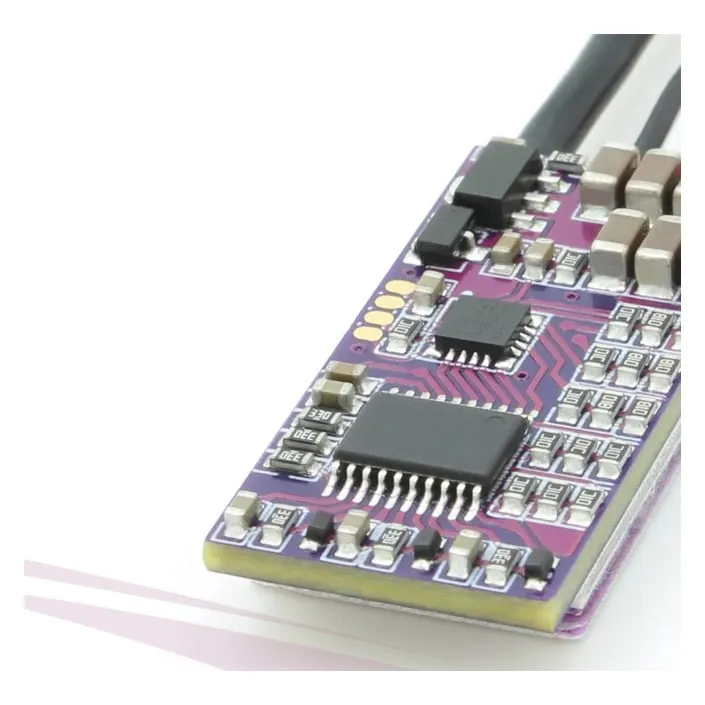

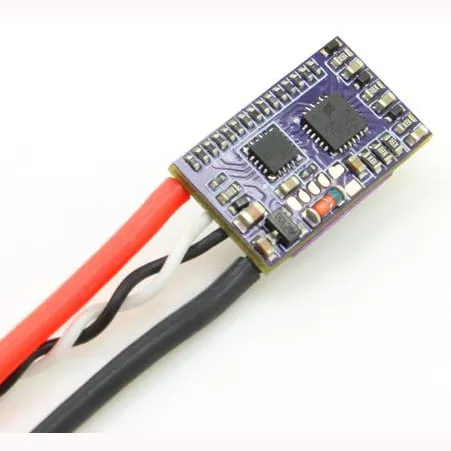

• 3 oz high-Tg PCB with quality MOSFETs and ceramic capacitors; high-temperature silicone signal lead

Specifications

• Continuous current: 30 A
• Burst current: 35 A
• Input: 2–4S LiPo (7.4–14.8 V nominal)
• Firmware: BLHeli_S 16.5
• Protocols: DShot, Multishot, Oneshot42
• Weight: 3.9 g (without wires)

Order four for a quad and set motor direction and other options through BLHeli_S Configurator or Betaflight passthrough once the ESCs are wired to the flight controller.
