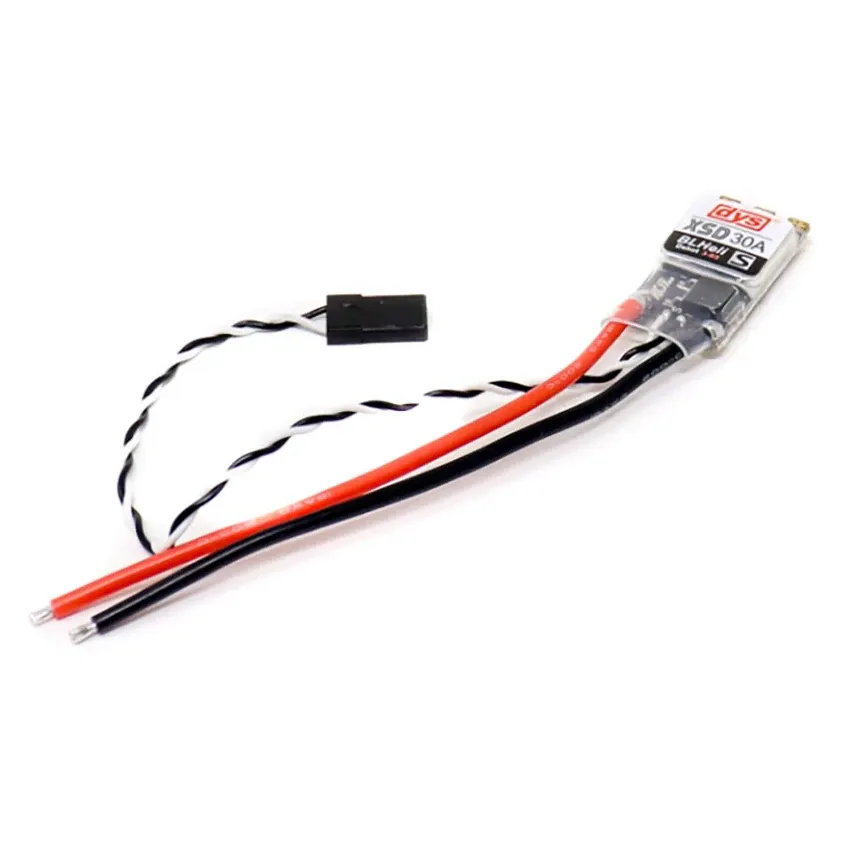

DYS 30A BLHeli_S DShot ESC for FPV Drones (Solder Version)
₹1,599Incl. GST
SKU GEN-ESC-30A-BLHELIS-SOLDER
ESC Current: 30 AInput Voltage: 2–5SESC Firmware: BLHeli_SMade in India: No
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
A compact 30A single ESC for FPV racing and freestyle quads, pre-flashed with BLHeli_S and ready for DShot300 or DShot600 straight from the flight controller. The solder version has bare pads for direct motor, power and signal wiring with no connectors to add weight.
Key features
- 30A continuous, 40A peak.
- 2-5S LiPo input.
- Silabs EFM8BB21 MCU for fine throttle resolution at high RPM.
- DShot300/DShot600 digital protocol, so no throttle calibration is needed.
- Opto design with no BEC: power the flight controller from a separate regulator or PDB.
- Only 6 g, small enough to mount on an arm.
Specifications
- Continuous / peak current: 30A / 40A
- Input: 2-5S LiPo
- MCU: Silabs EFM8BB21
- Firmware: BLHeli_S (bootloader and firmware)
- Protocols: DShot600, DShot300
- Signal frequency: 20 to 500 Hz
- BEC: none (opto)
- Size: 23.5 x 13.8 x 5.6 mm
- Weight: 6 g
A quadcopter needs four, one per arm; order them together so firmware versions and settings match across all motors.
| ESC Current | 30 A |
|---|---|
| Input Voltage | 2–5S |
| ESC Firmware | BLHeli_S |
| Made in India | No |
| Brand | DYS |
| Weight | 6 g |
| BEC | No |
| Motor Type | Brushless |
