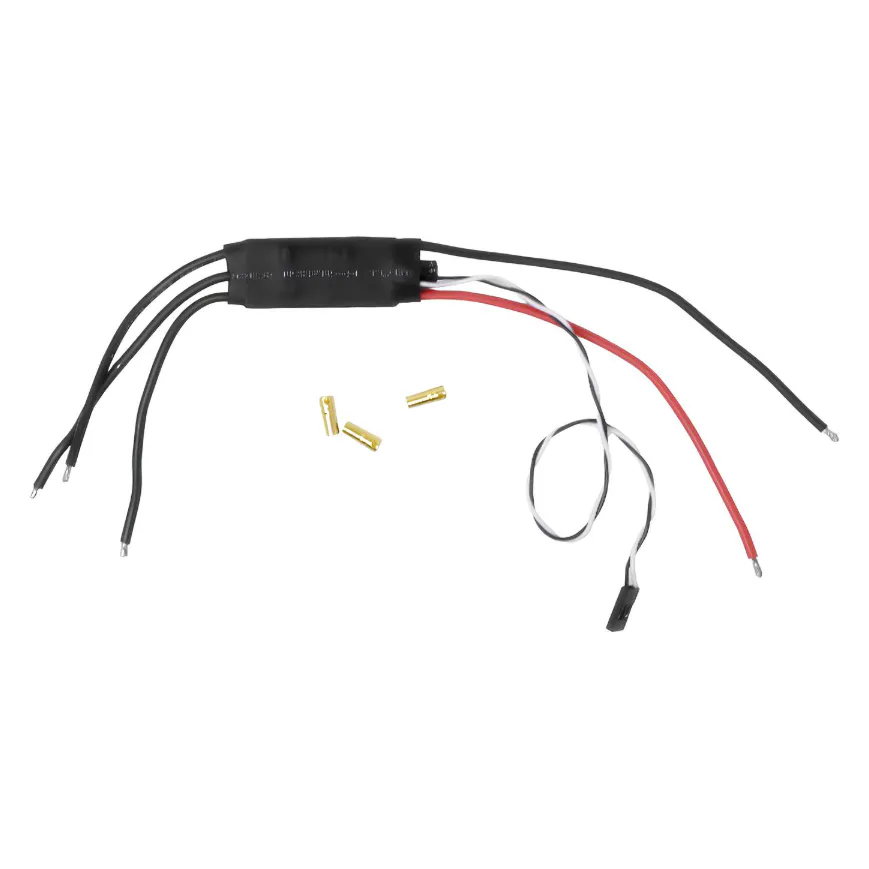

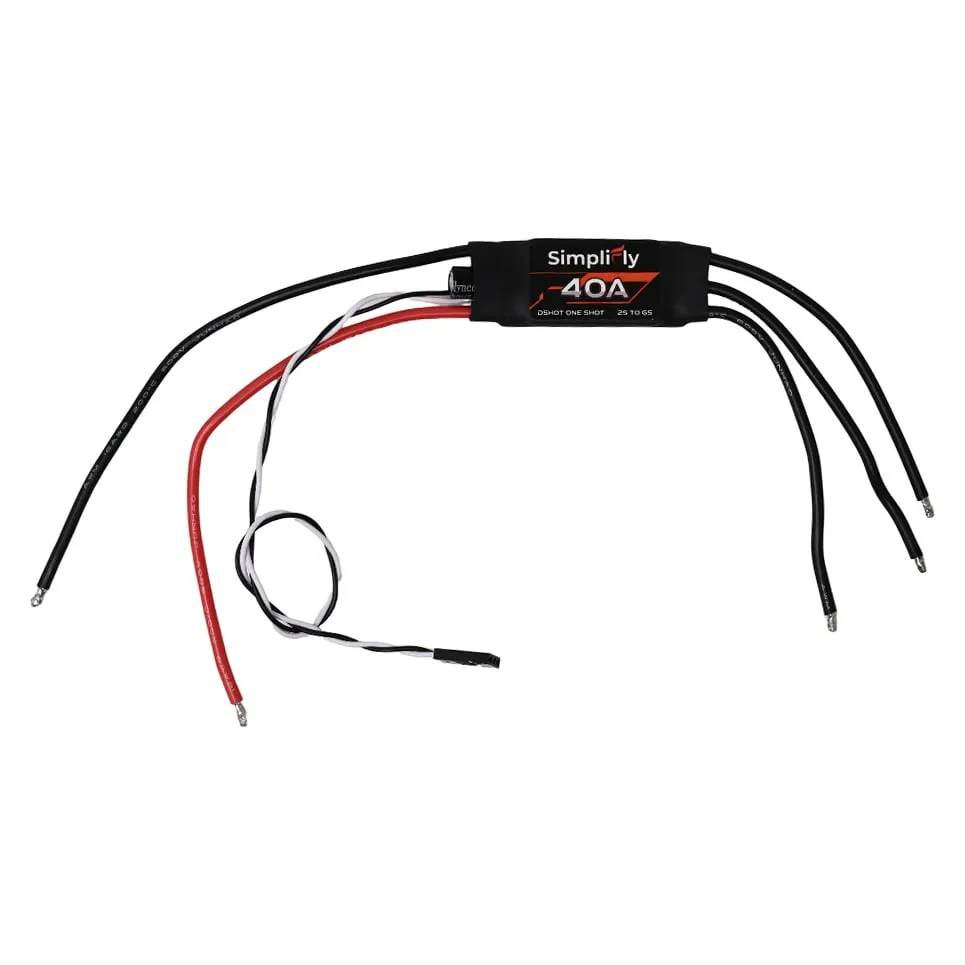

Simplifly 40A Single ESC 2-6S OneShot125 D-Shot

This 40A single ESC controls one motor in a 2-6S FPV, multirotor or UAV power system, for replacing an individual motor controller or building a distributed ESC setup.

Key features

• 40A continuous current rating with 50A burst handling for hard throttle punches.
• Accepts 2S to 6S LiPo input.
• Supports OneShot125 and D-Shot control signals at frequencies up to 12kHz.
• Twisted-pair throttle signal wiring reduces crosstalk in the signal cable for more stable control.
• Motor direction is programmable through a programming card or the transmitter, with multiple built-in safety protections.

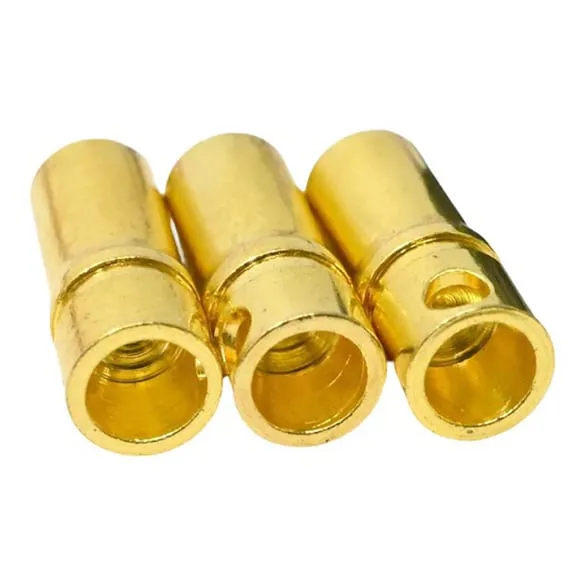

• Supplied with three bullet connectors and a printed user manual.

This is a standalone ESC, so fit the flight controller and motor separately, and confirm the motor's current draw and wiring against the ESC's rating before installation.
