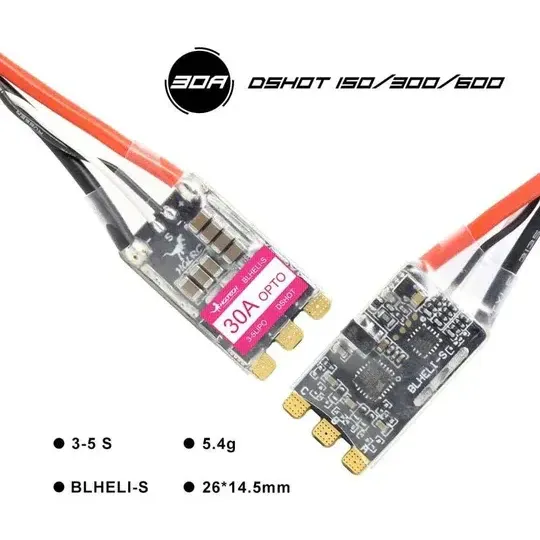

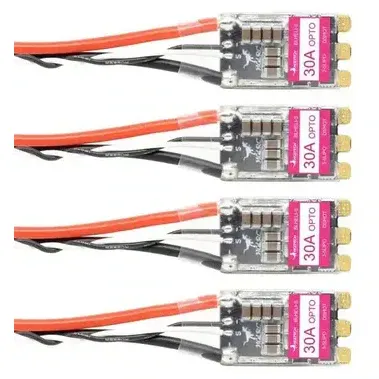

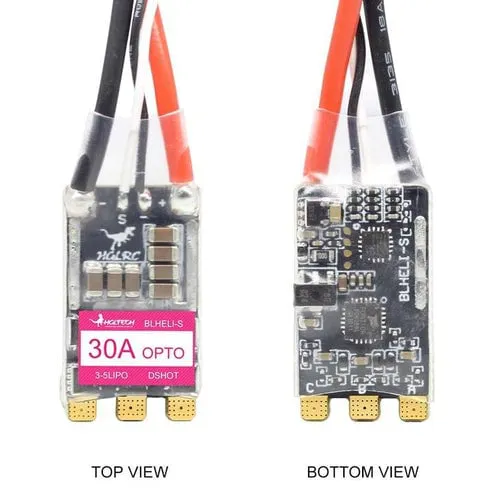

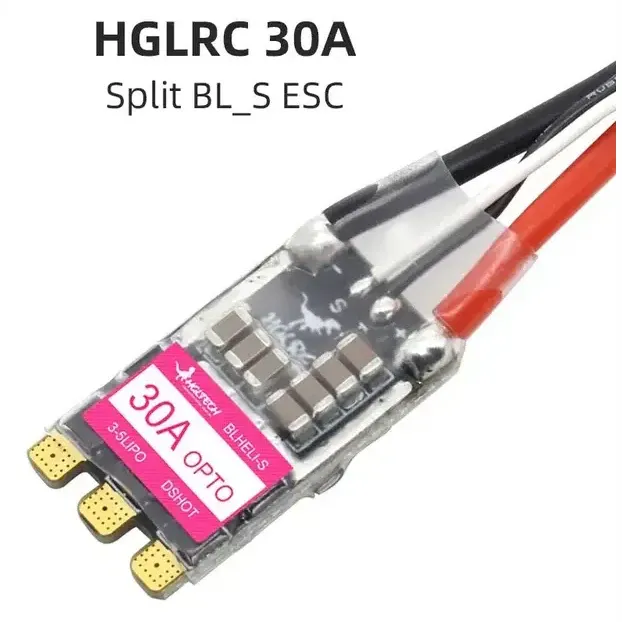

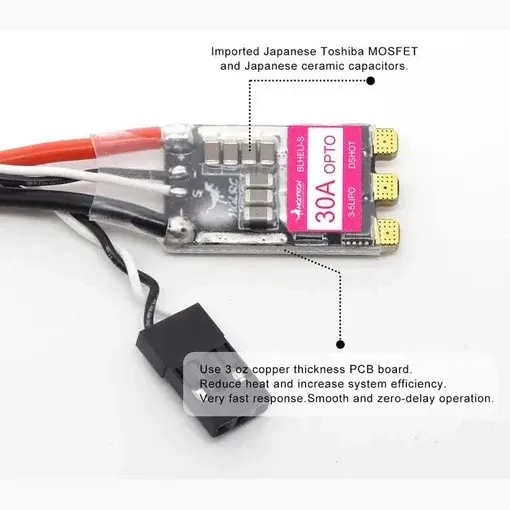

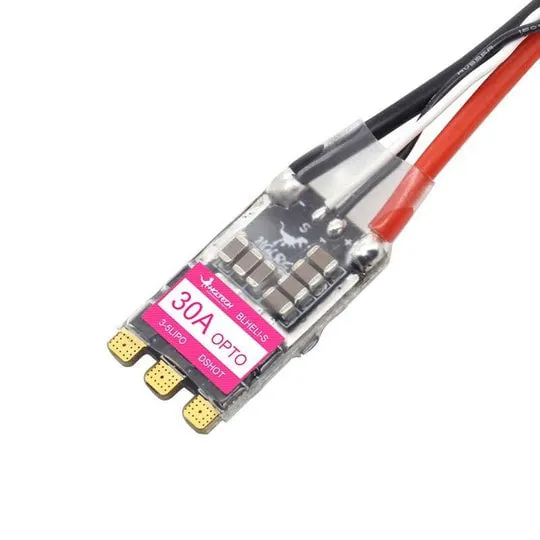

HGLRC 30A 3-5S DShot600 BLHeli_S ESC

₹1,599Incl. GST

SKU HGLRC-30A-3-5S-BLHELIS

ESC Current: 30 AInput Voltage: 3–5SESC Firmware: BLHeli_SMade in India: No
Dispatched within 2–3 business days — quality-checked in Gurugram

Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.

Questions about this part? Ask us on WhatsApp

Buying in bulk? Ask for a better price on WhatsApp or by email.

Product details

The HGLRC 30A single ESC runs 3-5S FPV power systems with BLHeli_S firmware and DShot600 digital control, suiting builds that use one ESC per motor rather than a shared 4-in-1 board, making per-motor swaps easier.

Key features

  • 30A continuous rating with a burst rating of up to 35A.
  • Built around a BB2 MCU running BLHeli_S firmware version 16.5, which can be reconfigured with compatible ESC tools.
  • Accepts 3-5S LiPo input.
  • Supports the DShot600 digital protocol for fast, clean throttle signalling to the flight controller.
  • Compact single-ESC form factor suits builds where a 4-in-1 board will not fit.
  • Single-ESC format allows individual motor channels to be installed, tuned or replaced separately.

Specifications

  • ESC current: 30A continuous, 35A burst
  • Input voltage: 3-5S
  • Firmware: BLHeli_S 16.5 (BB2 MCU)
  • Supported protocols: DShot600/300/150, Oneshot125, Oneshot42, Multishot, PWM
  • BEC: None

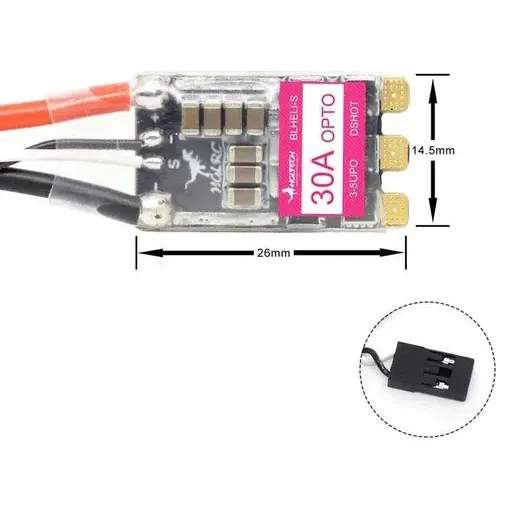

  • Dimensions: 26 x 14.5 mm
  • Weight: 5.4 g

Match the ESC's current rating, battery range and motor demand to the rest of the power system before installation, and confirm your flight controller's signal support.
