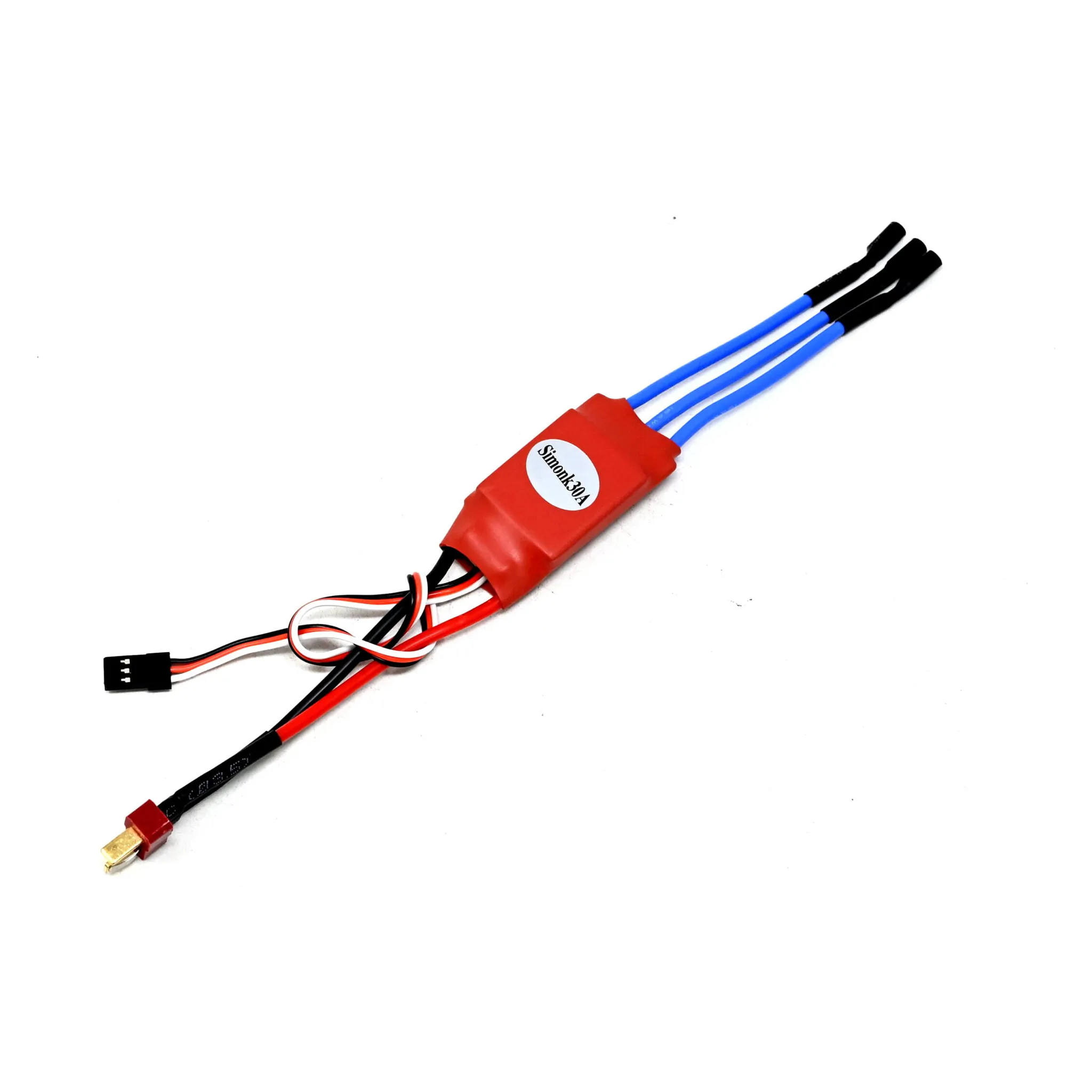

SimonK 30A BLDC ESC with BEC

A straightforward 30A electronic speed controller flashed with SimonK firmware, widely used in classic 450-size quadcopters, fixed-wing aircraft, and basic DIY robotics. This ESC offers reliable multirotor throttle response and comes pre-fitted with wiring hardware to cut down on soldering time.

Key features

• Pre-flashed with legacy SimonK firmware for improved throttle linearity over standard helicopter ESCs.

• Integrated 5V linear BEC to supply power directly to flight controllers and RC receivers.

• Factory-soldered 3.5mm bullet connectors for quick BLDC motor installation.

• Wide compatibility with standard PWM radio receivers.

Specifications

• Firmware: SimonK

• Continuous Current: 30A

• Burst Current: 40A (for 10 seconds)

• Input Voltage: 2-3S LiPo

• BEC Output: 5V / 2A (Linear)

• Motor Connectors: 3.5mm Bullets

Because this ESC relies on legacy firmware and standard PWM signals, it does not support modern digital protocols like DShot. It is best suited for direct-to-receiver fixed-wing setups or older flight controllers such as APM, Pixhawk, or KK2 boards rather than modern Betaflight racing builds.
