ReadyToSky MT2204 2300KV Brushless Motor 2-3S

The ReadyToSky MT2204 2300KV brushless motor suits 5-inch mini-quad builds running 2–3S LiPo power. It comes as a CCW unit with a silver cap or a CW unit with a black cap, so motor positions are easy to tell apart during a build.

Key features

• 2204 stator sized for compact 5-inch propulsion setups
• CCW (silver cap) and CW (black cap) versions for consistent motor-position identification across a quad
• M5-threaded 5mm shaft for standard nut-on propellers
• 16×19mm mounting-hole pattern, a common bolt spacing on mini-quad frame arms

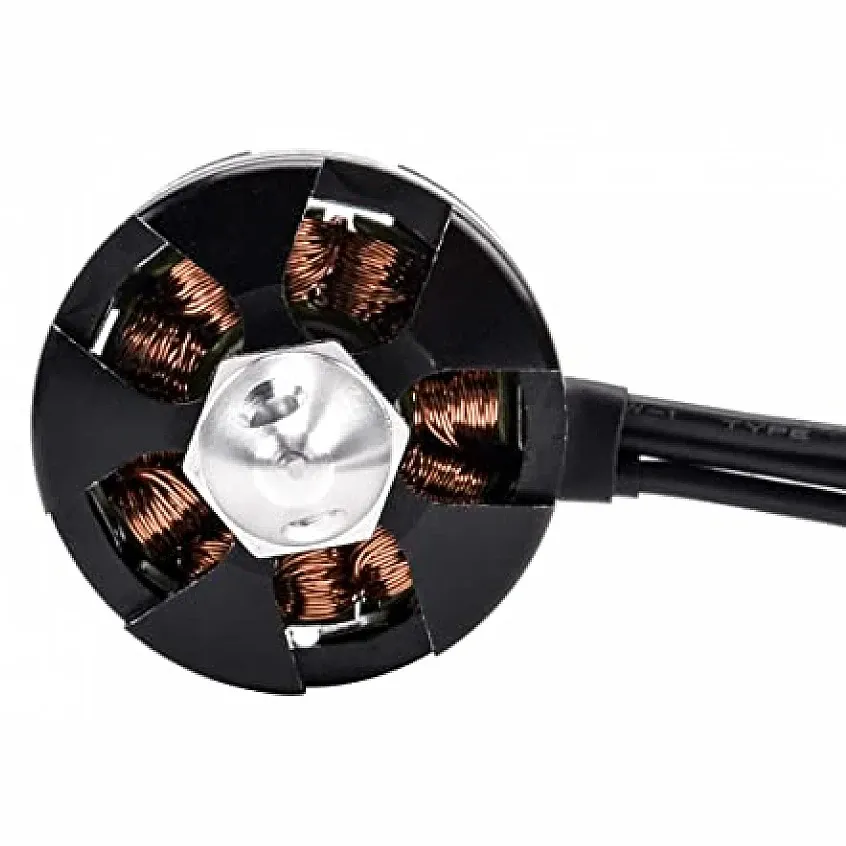

• Flat motor base and a chamfered lower frame for easier fitment on tighter frames

Specifications

• Stator size: 2204
• KV: 2300KV

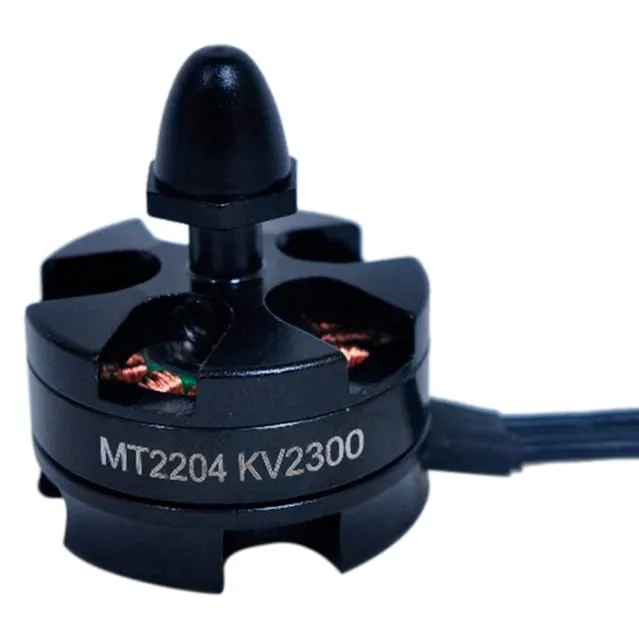

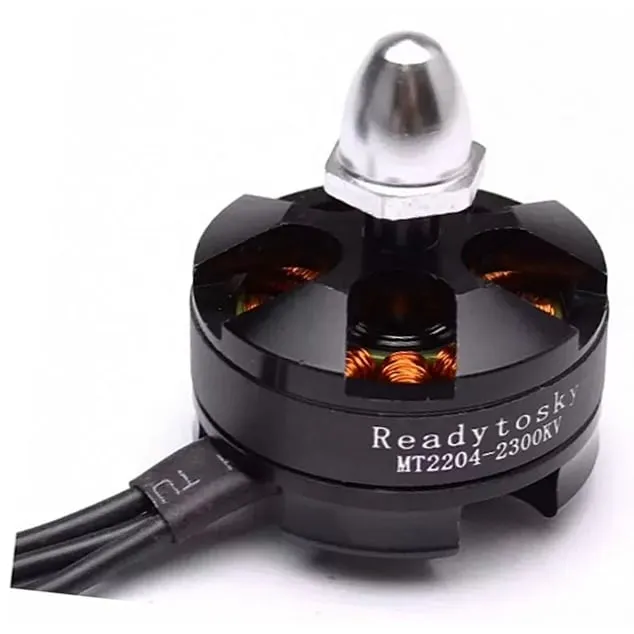

• Rotation: CCW (silver cap) or CW (black cap)
• Shaft: 5mm, M5 thread
• Mounting holes: 16 × 19mm
• Input voltage: 2-3S LiPo (15 V max)
• Max current: 25 A
• Max power: 350 W
• No-load current: 0.6 A at 10 V
• Magnets: N45SH
• Weight: 32 g

Match the motor mounting pattern, shaft and propeller mount to your frame before fitting, confirm motor order and rotation in the flight-controller software, then bench-test without propellers before the first flight.
