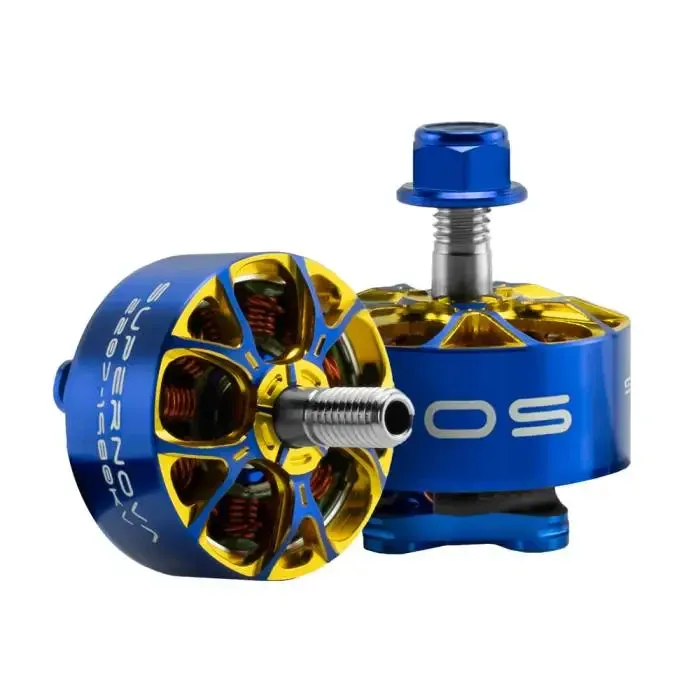

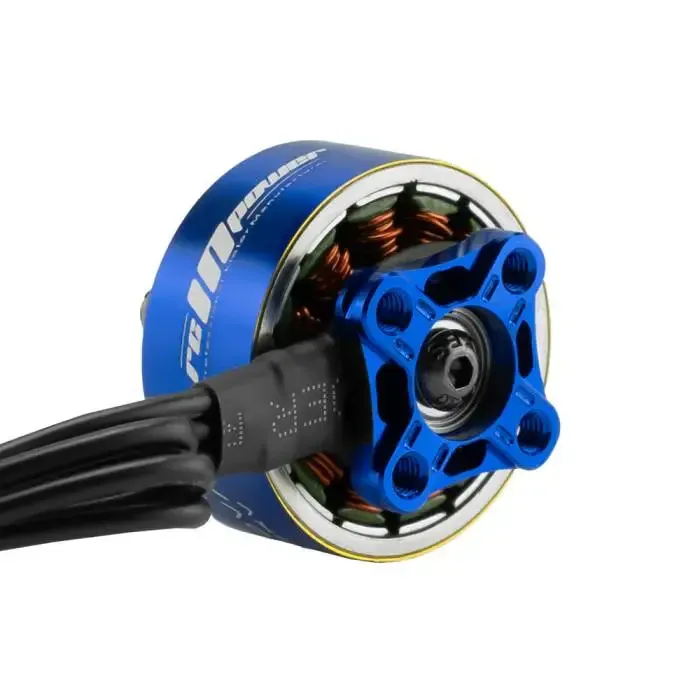

AOS RC Supernova 2207 Motor

Designed by Chris Rosser and manufactured by RCINPOWER, the AOS RC Supernova 2207 1980KV motor is engineered for high-performance 5-inch freestyle and racing quads. Tuned specifically for 6S power systems, this motor balances raw torque with stator efficiency to deliver smooth, linear throttle response and rapid transient control during aggressive flight manoeuvres.

Key features

• Manufactured by RCINPOWER to Chris Rosser's exact efficiency and thermal tolerances.

• Optimised 1980KV rating for demanding 5-inch 6S freestyle and cinematic setups.

• Fitted with high-temperature N52H arc magnets for consistent torque under heavy loads.

• Built with a durable internal shaft and a standard 5mm external prop shaft.

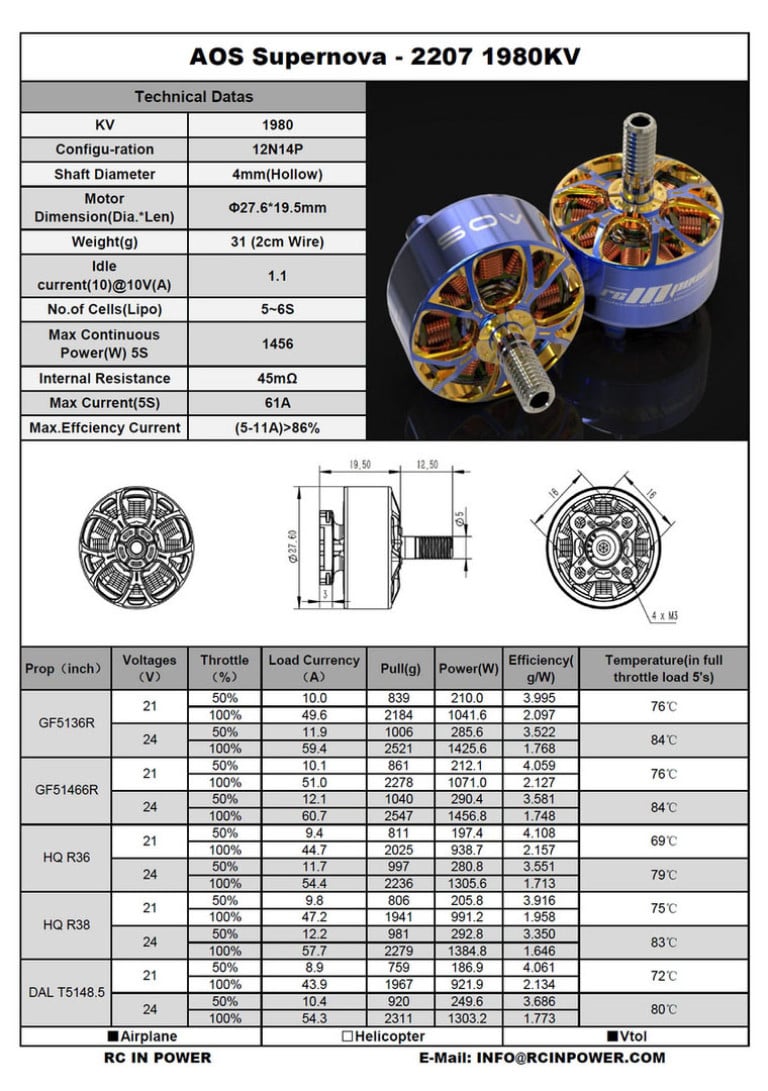

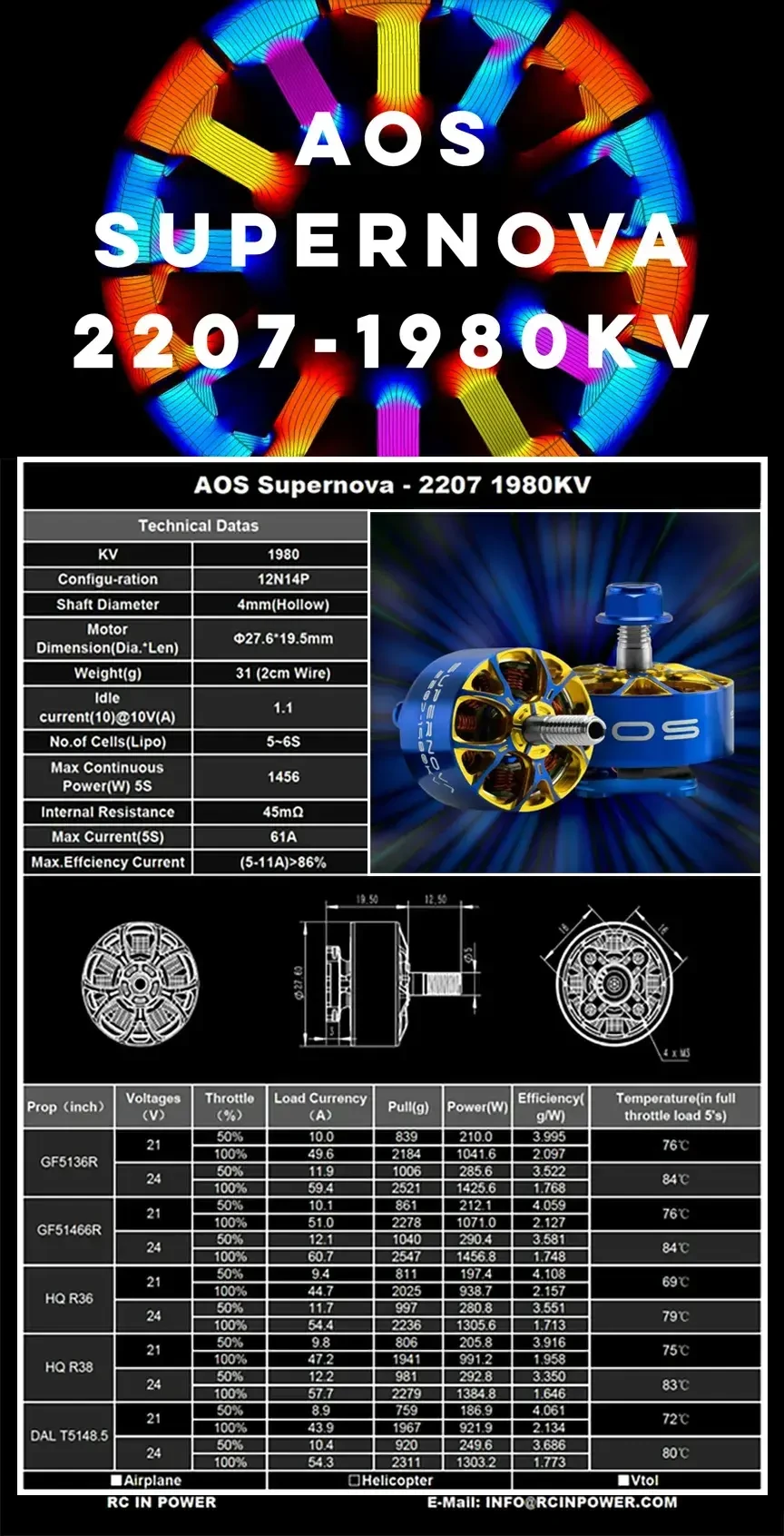

Specifications

• KV: 1980

• Stator size: 2207

• Configuration: 12N14P

• Supported voltage: 5-6S LiPo

• Propeller shaft: 5mm

• Shaft diameter: 4 mm (hollow)

• Mounting pattern: 16x16mm (M3)

• Motor dimensions: 27.6 x 19.5 mm

• Weight: 31 g (with 2 cm wires)

• Internal resistance: 45 mOhm

• In the box: 1 x motor, 1 x hardware set

Pair the Supernova 2207 with a 50A or higher ESC and aggressive 5-inch to 5.1-inch propellers to fully extract its performance potential on a 6S build.
