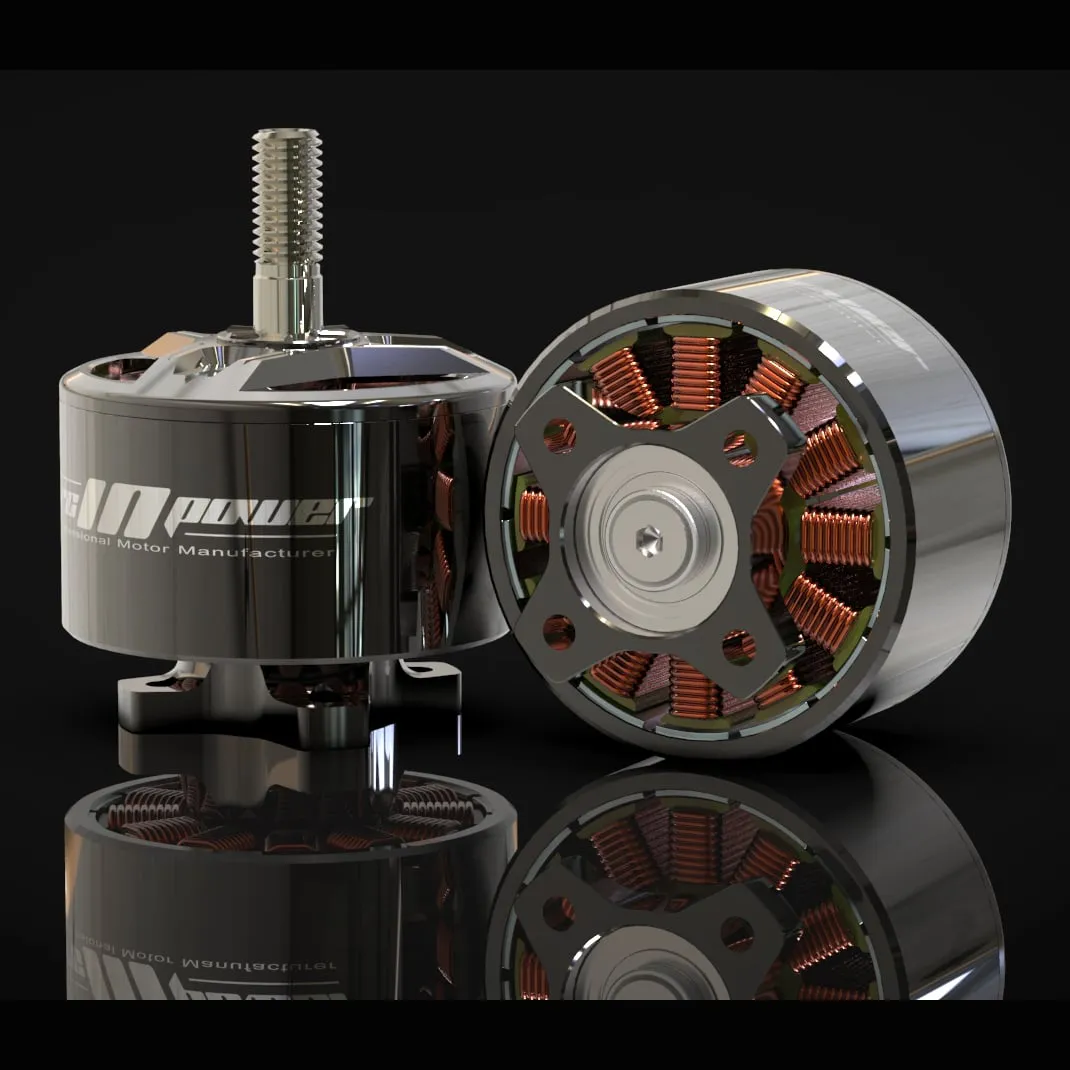

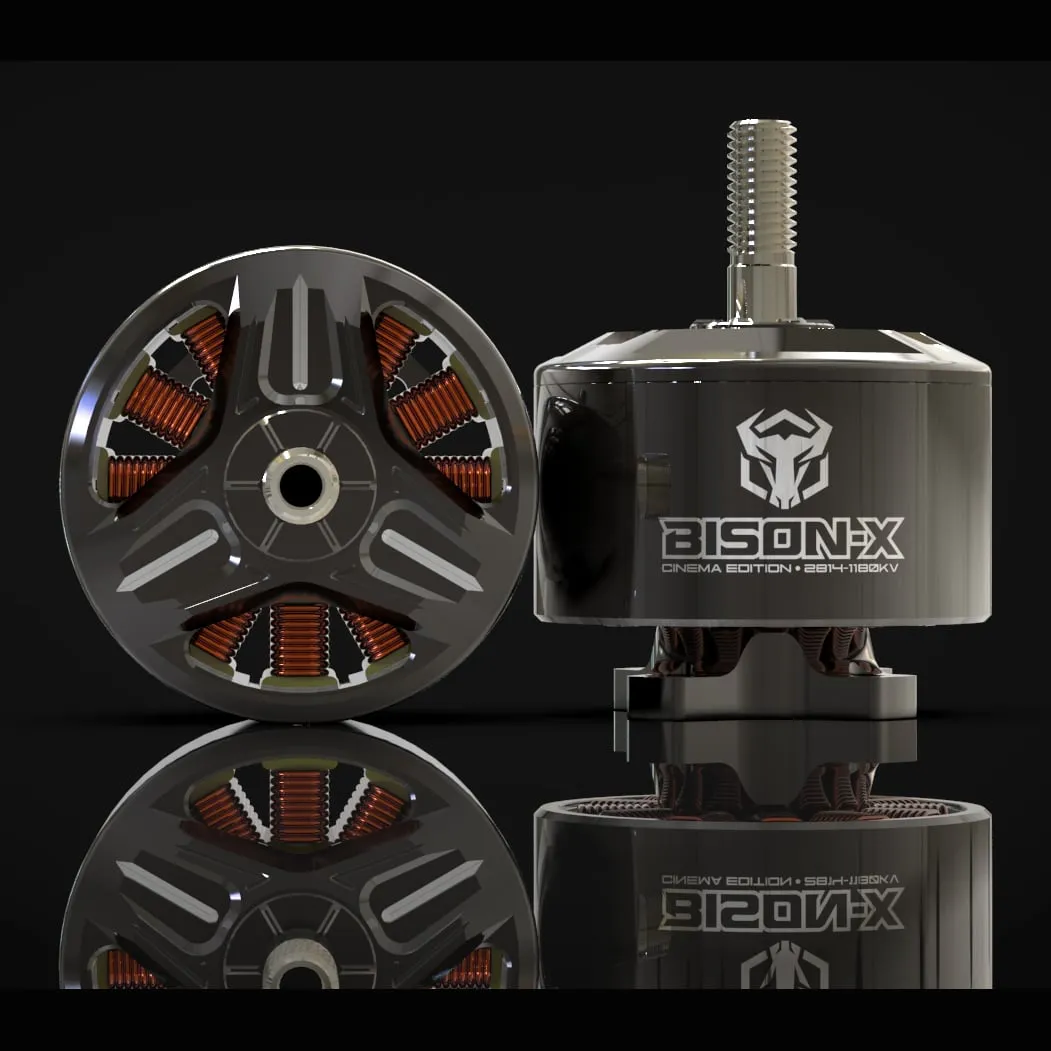

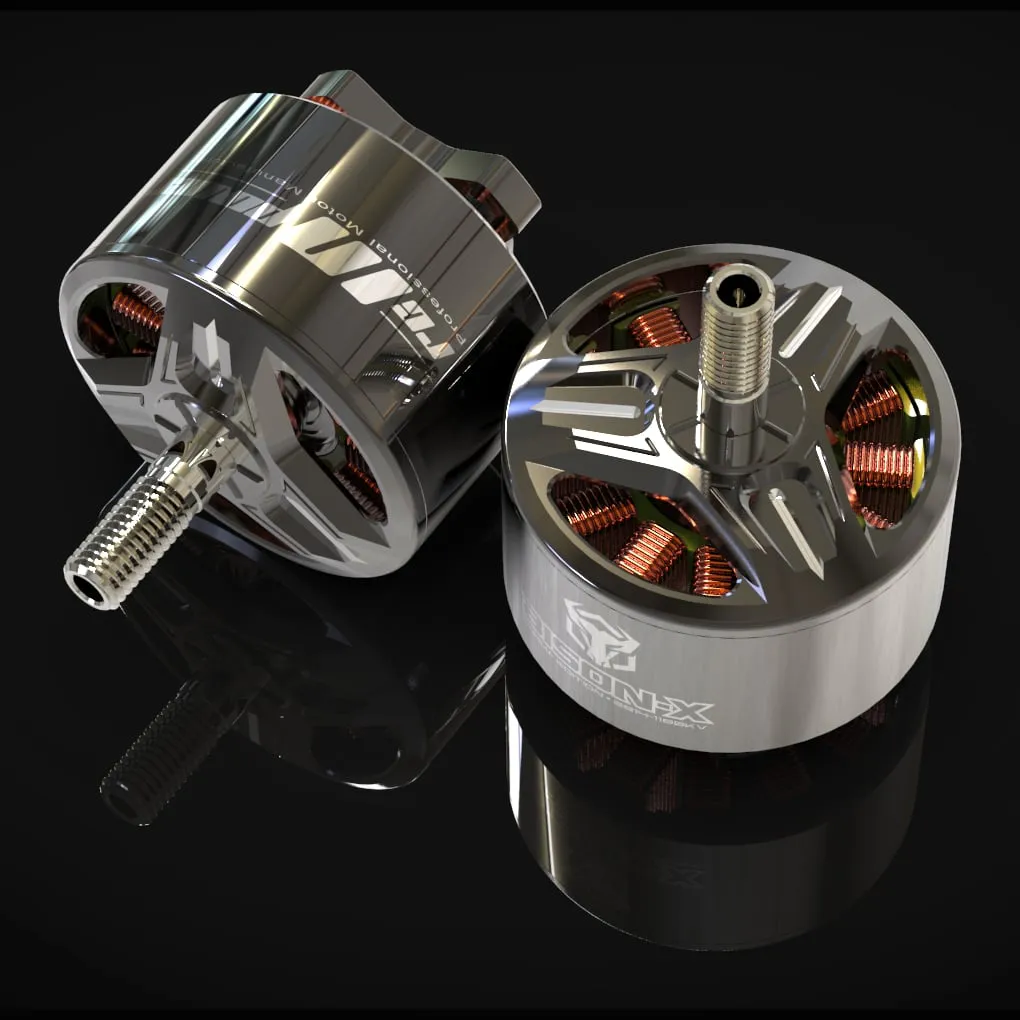

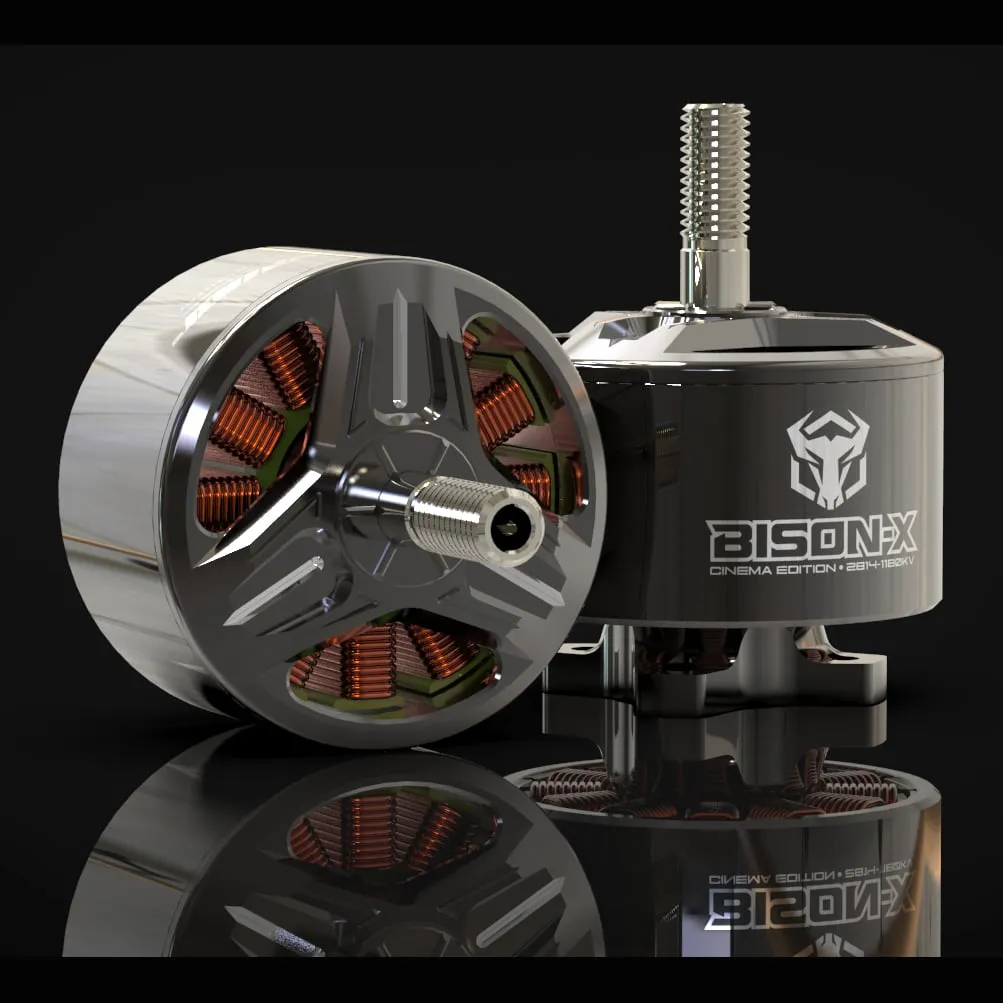

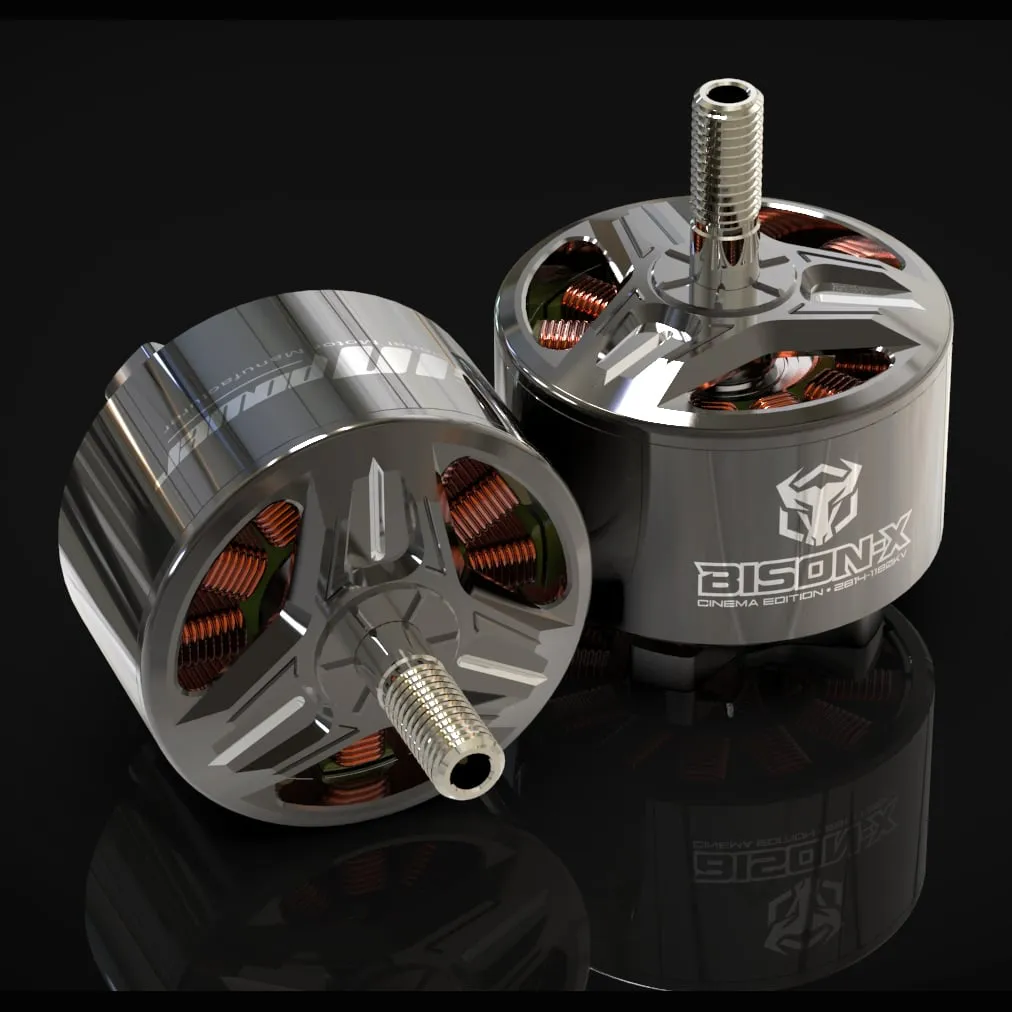

RCINPower BisonX 2814 1180KV Brushless Motor
₹14,999Incl. GST
SKU RCINPWR-BISONX-2814-1180KV-4PC
Pack Size: 4
Stator Size: 2814KV: 1180 KVPack Size: 4, 1Shaft: 4mm
Dispatched within 5–7 business days — quality-checked in Gurugram
Free standard shipping on orders of ₹999 and above. Pan India delivery from Gurugram, Haryana.
Questions about this part? Ask us on WhatsApp
Buying in bulk? Ask for a better price on WhatsApp or by email.
- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details
The RCINPower BisonX 2814 is a 1180KV brushless motor with a 28 x 14 mm stator for long-range and heavier FPV builds on 4-6S LiPo. Buy a single motor as a spare or a set of four for a complete quad.
Key features
- 28 x 14 mm stator in a 12N14P layout for driving large props
- Up to 1524 W continuous power and 63.5 A max current on 5S
- Above 85% efficiency between 4 and 9 A, useful for long cruising flights
- 4 mm semi-hollow shaft and 42 mOhm internal resistance
- 90 g with 3 cm leads
Specifications
- KV: 1180KV
- Stator: 28 x 14 mm (2814)
- Configuration: 12N14P
- Shaft: 4 mm, semi-hollow
- Dimensions: 32.86 x 28 mm (diameter x length)
- Weight: 90 g (with 3 cm leads)
- Battery: 4-6S LiPo
- Idle current: 1.4 A at 10 V
- Internal resistance: 42 mOhm
- Max current (5S): 63.5 A
- Max continuous power (5S): 1524 W
- Pack options: single motor or set of 4
With a 63.5 A peak on 5S, pair these motors with an ESC rated for that draw and size the battery to match four motors at full throttle.
| Stator Size | 2814 |
|---|---|
| Stator Diameter | 28mm |
| Stator Height | 14mm |
| KV | 1180 KV |
| Pack Size | 4, 1 |
| Shaft | 4mm |
| Input Voltage | 4–6S |
| Weight | 90 g |
| Brand | RCINPower |
| Made in India | No |
