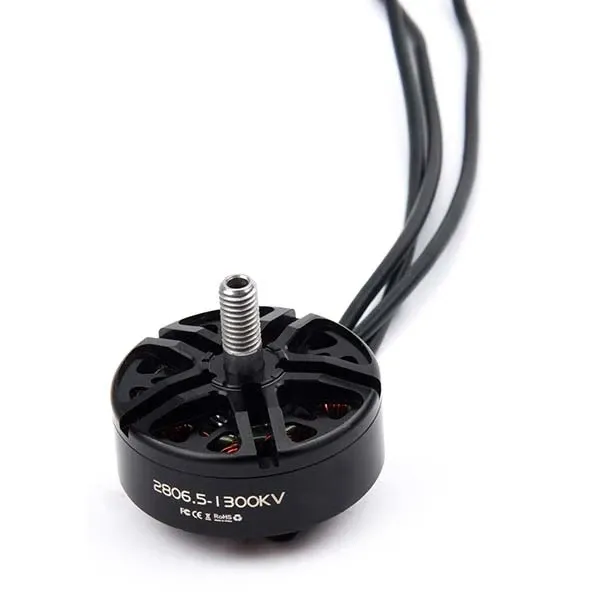

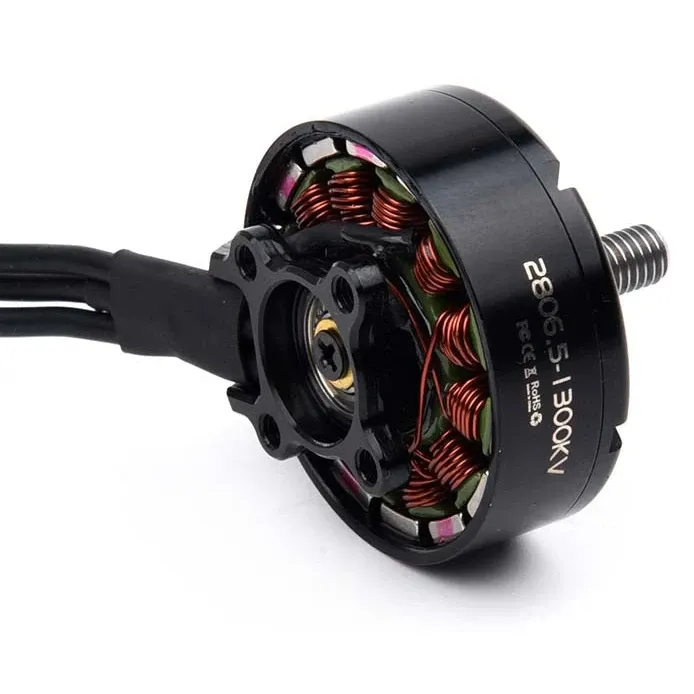

ReadyToSky 2806.5 1300KV Brushless Motor 3-6S

The ReadyToSky 2806.5 1300KV is a long-range motor for 7-inch quads that can also swing props up to 10 inches. Rated for 3-6S and built around a 12N14P stator, it suits Mark4, Mark5 and XL5-style 7-inch frames and makes a sensible budget choice for long-range cruisers and 7-inch freestyle builds.

Key features

• Up to 1950 g thrust and 1150 W continuous power over 180 s
• 5 mm shaft with small raised ridges on the bell that stop props slipping
• Long 200 mm 18AWG leads for flexible ESC placement
• 57 g including leads
• 19 x 19 mm M3 mounting pattern

Specifications

• Stator: 28 x 6.5 mm (2806.5)
• KV: 1300KV
• Configuration: 12N14P
• Input: 3-6S LiPo
• Max thrust: 1950 g
• Max continuous power: 1150 W (180 s)
• Motor diameter: 34.5 mm
• Shaft: 5 mm
• Mounting: 19 x 19 mm, M3
• Leads: 200 mm, 18AWG
• Weight: 57 g with leads
• Props: 7-10 inch

1300KV is a common winding for 4S 7-inch long range; on 6S, choose lighter props and an ESC sized for the higher current draw.
