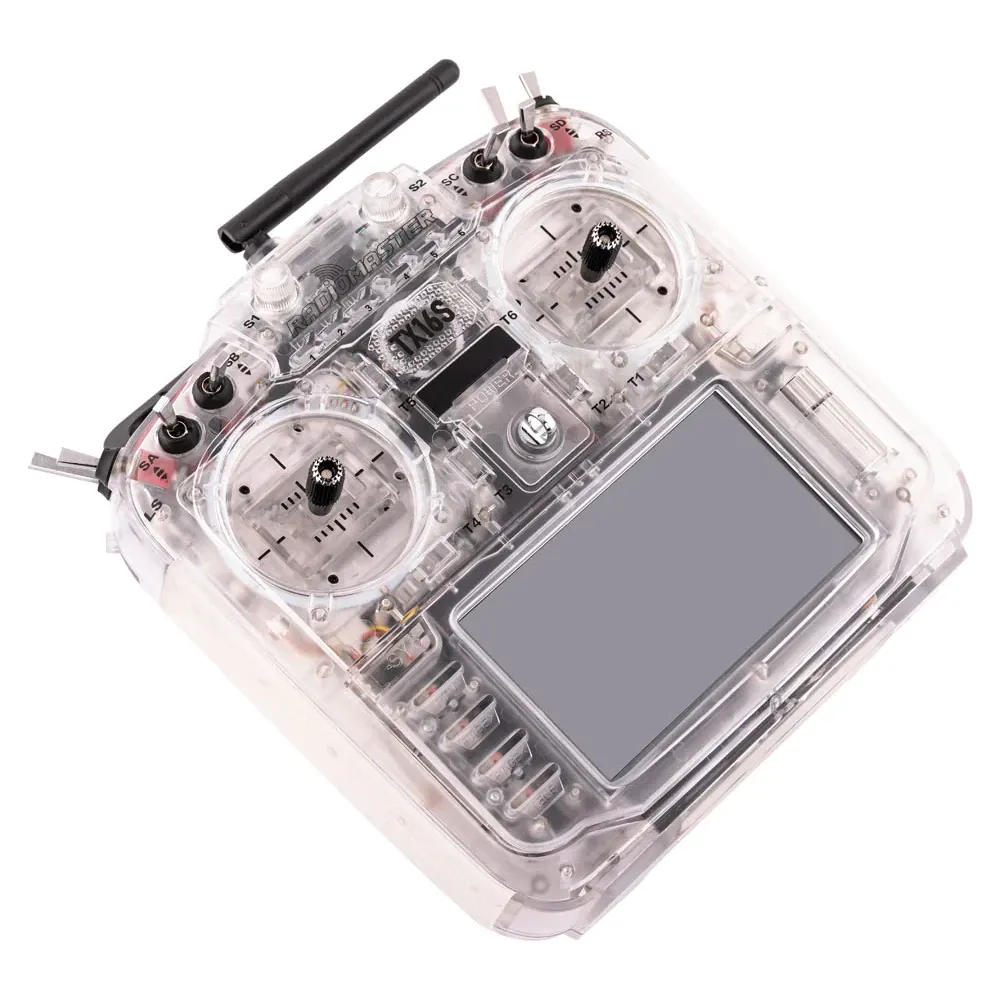

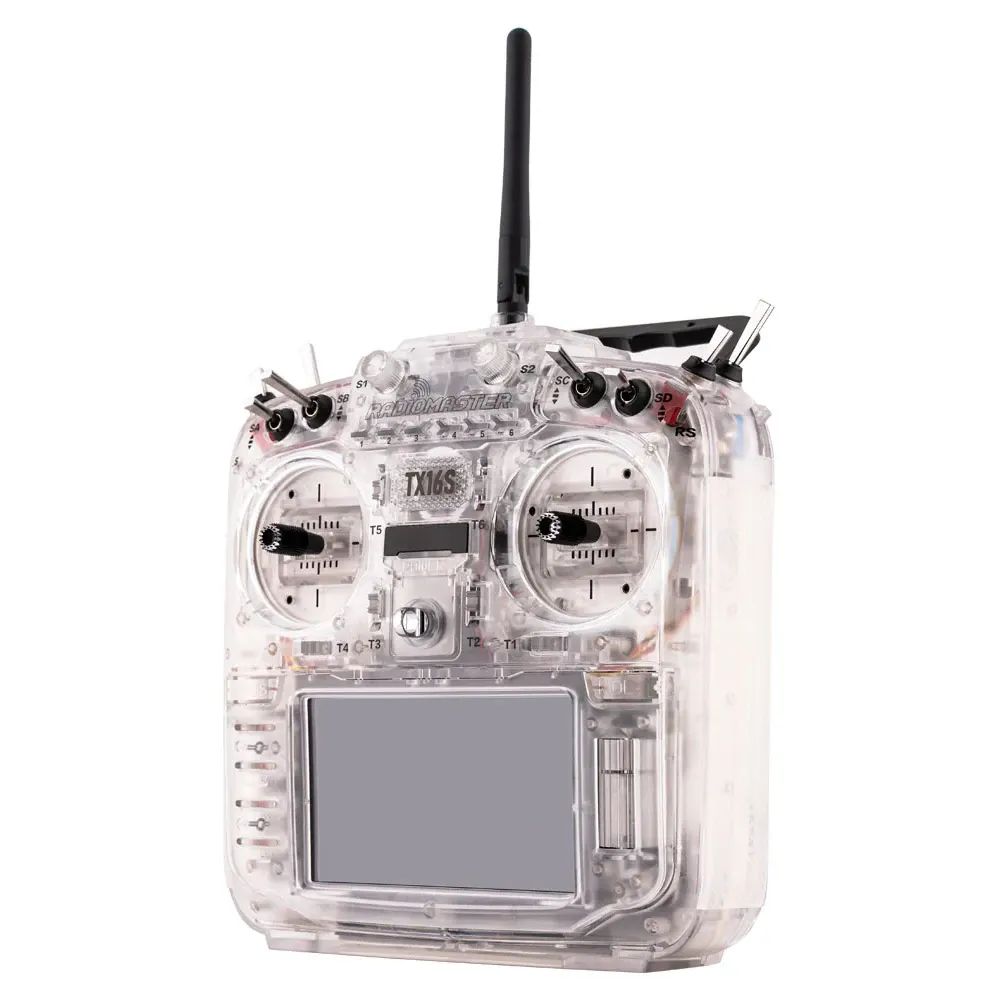

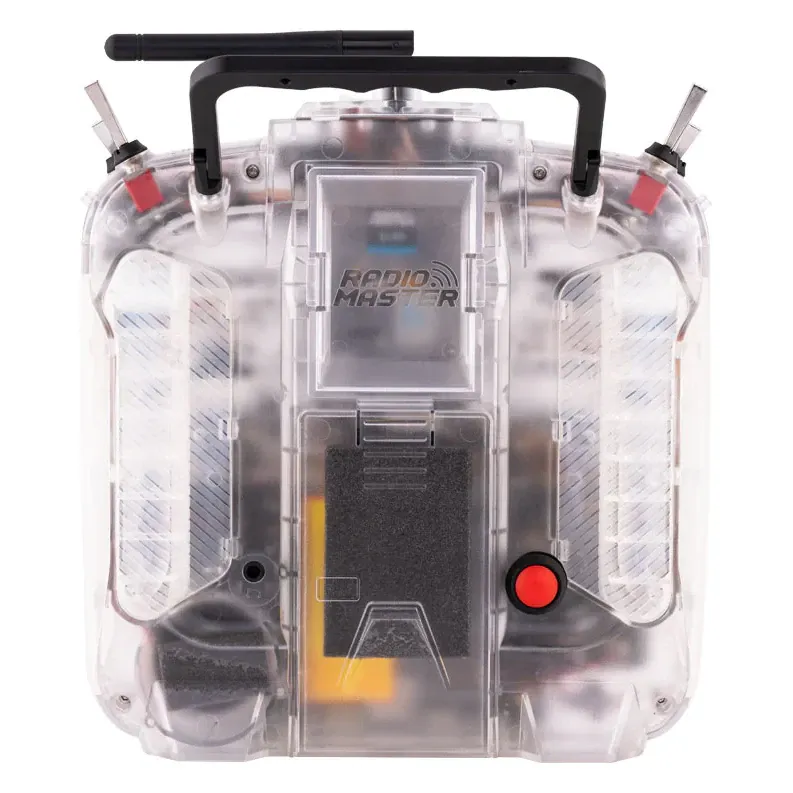

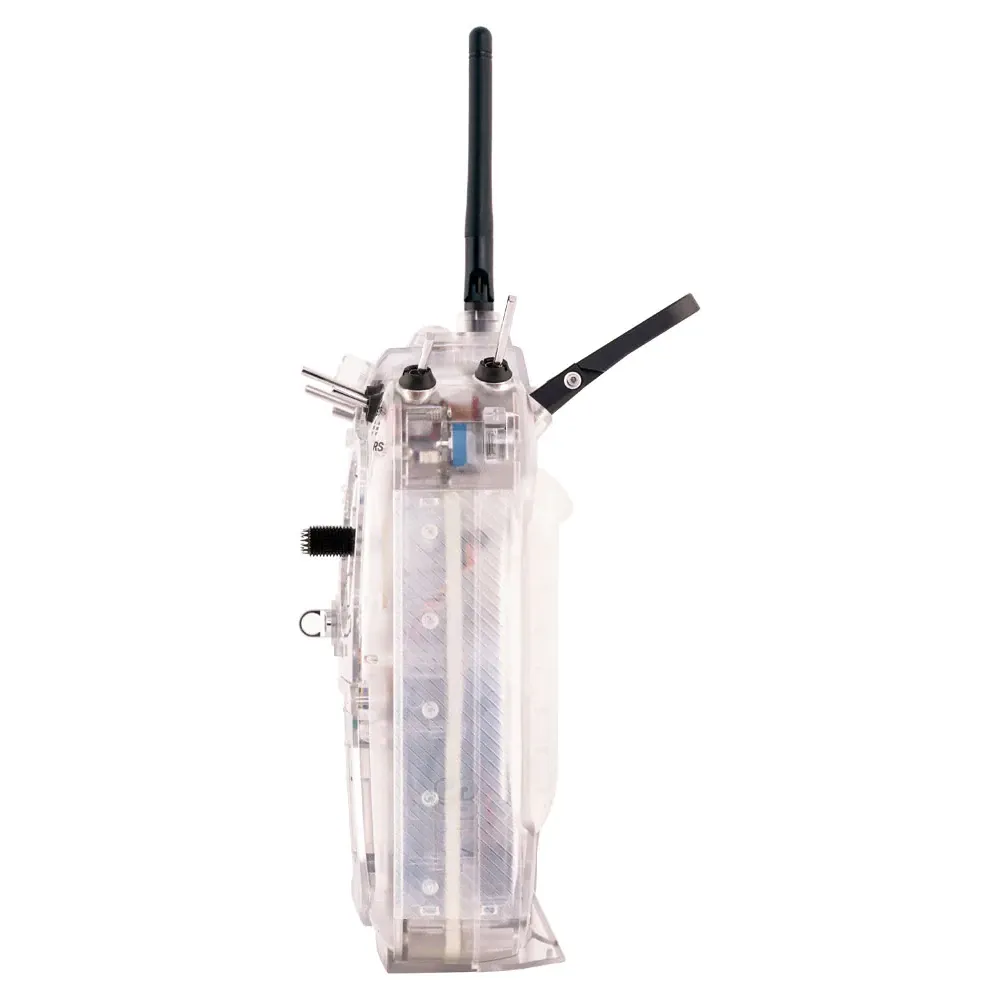

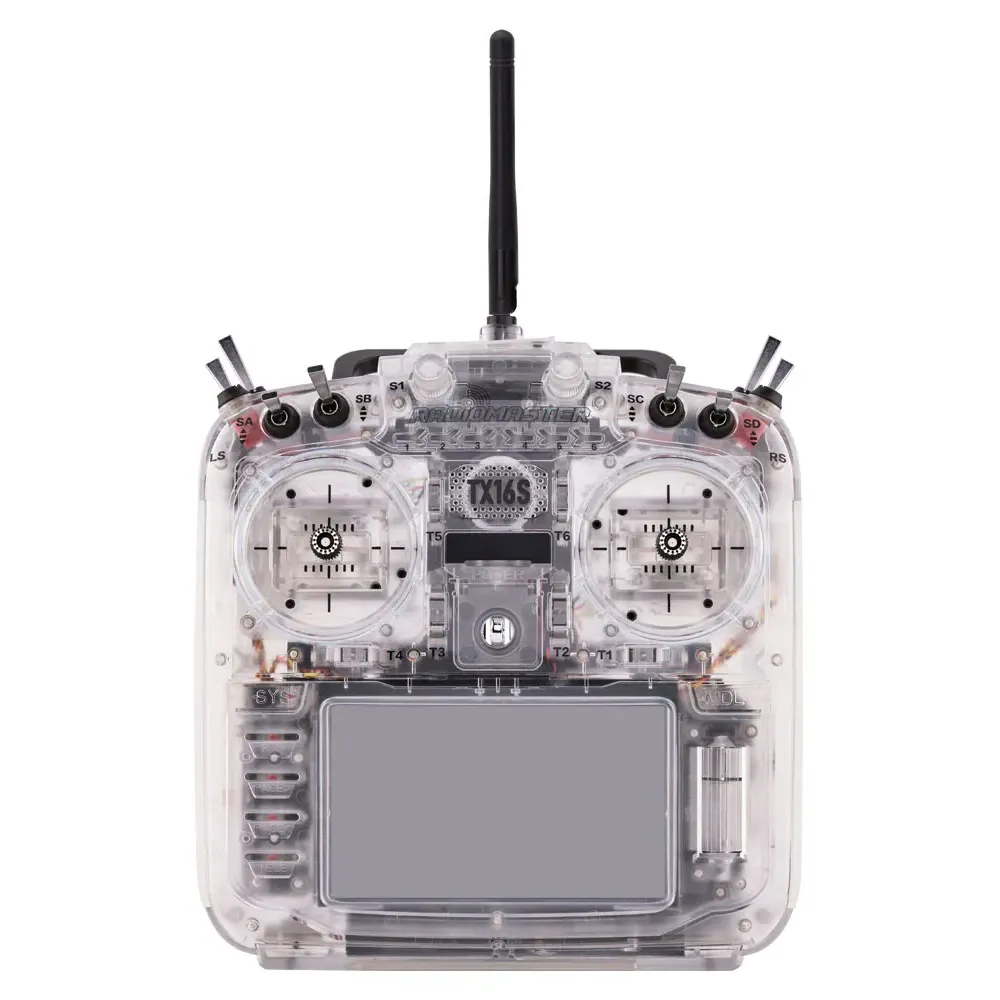

RadioMaster TX16S MKII Transparent MCK Edition (ELRS, M2)

The RadioMaster TX16S MKII Transparent MCK Edition is a full-size EdgeTX transmitter with a built-in 2.4GHz ExpressLRS module, aimed at FPV pilots who want long-range control without an external RF module.

Key features

• Built-in 2.4GHz ExpressLRS module needs no external RF module for most builds.
• V4.0 Hall sensor gimbals give smooth, drift-free stick input without the wear of potentiometer gimbals.
• 4.3-inch colour touchscreen runs EdgeTX for model setup, mixing and telemetry screens.
• Transparent MCK shell shows the internal electronics through a clear housing.
• RGB lighting around the clear case offers four modes and five colours, and a CNC metal folding handle makes it easy to carry.
• A JR-compatible external module bay accepts a second RF module for other protocols.

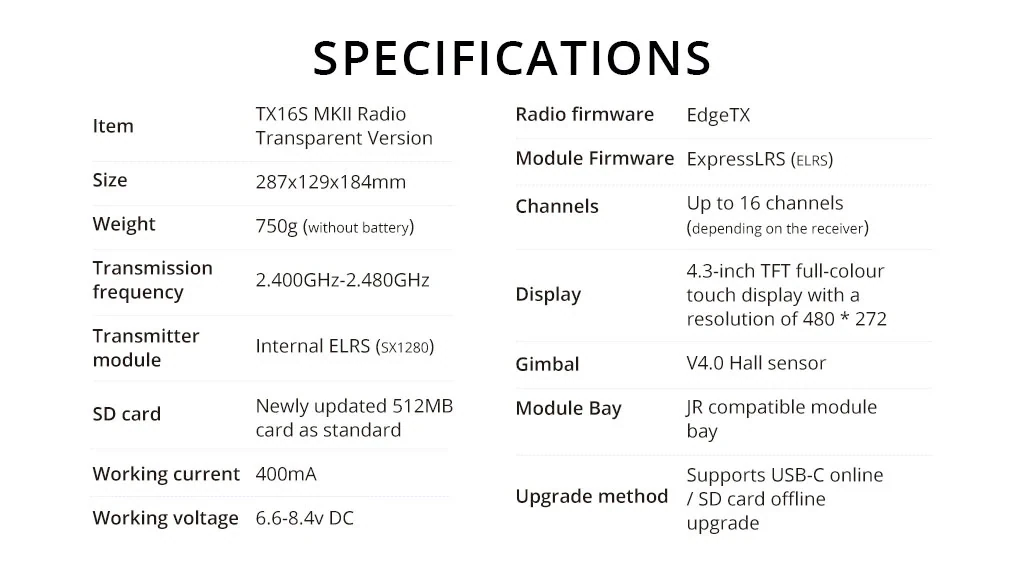

Specifications

• RC protocol: ELRS
• Internal RF: ELRS (SX1280)
• Frequency: 2.4GHz
• Gimbals: V4.0 Hall sensor
• Screen: 4.3-inch touchscreen
• Screen resolution: 480 x 272
• Channels: up to 16 (receiver dependent)
• Working voltage: 6.6-8.4 V DC
• Working current: 400 mA
• SD card: 512 MB included
• Module bay: JR-compatible
• Dimensions: 287 x 129 x 184 mm
• Weight: 750 g (without battery)

Runs EdgeTX out of the box and binds directly to ExpressLRS receivers on 2.4GHz.
