RadioMaster TX16S MKII 2.4GHz 16CH ELRS Radio Transmitter (AG01 Hall Gimbal)

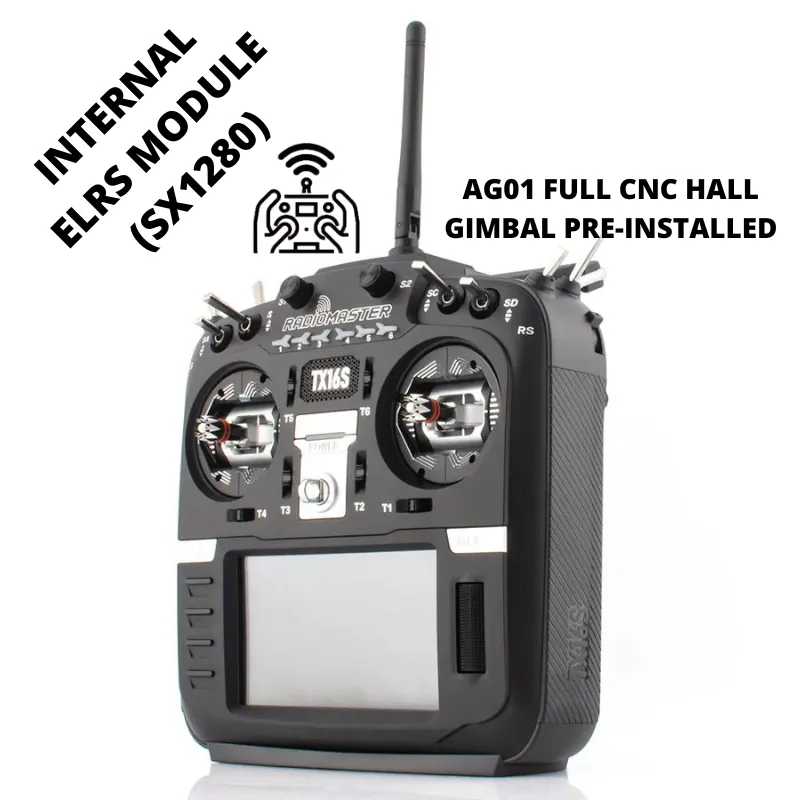

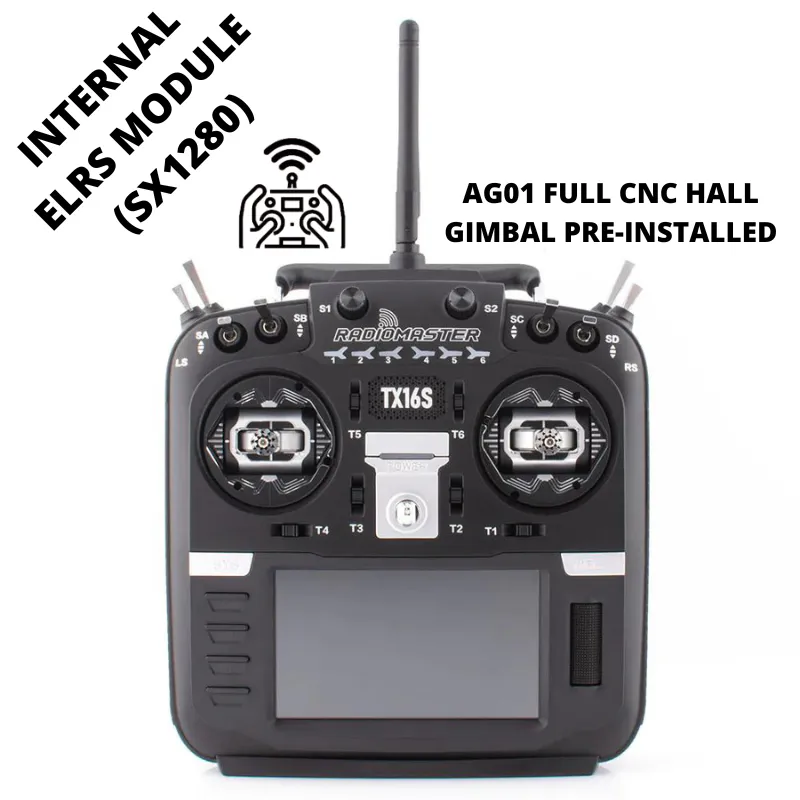

The RadioMaster TX16S MKII is a full-size, 16-channel EdgeTX transmitter for FPV pilots who want a 2.4GHz ExpressLRS radio with premium sticks fitted from the factory. This version ships with the AG01 full-CNC Hall gimbals for contactless, wear-free stick sensing, in the familiar TX16S body and switch layout.

Key features

• Built-in ELRS (SX1280) internal RF module rated up to 250mW, so no external module is needed for 2.4GHz ELRS receivers.

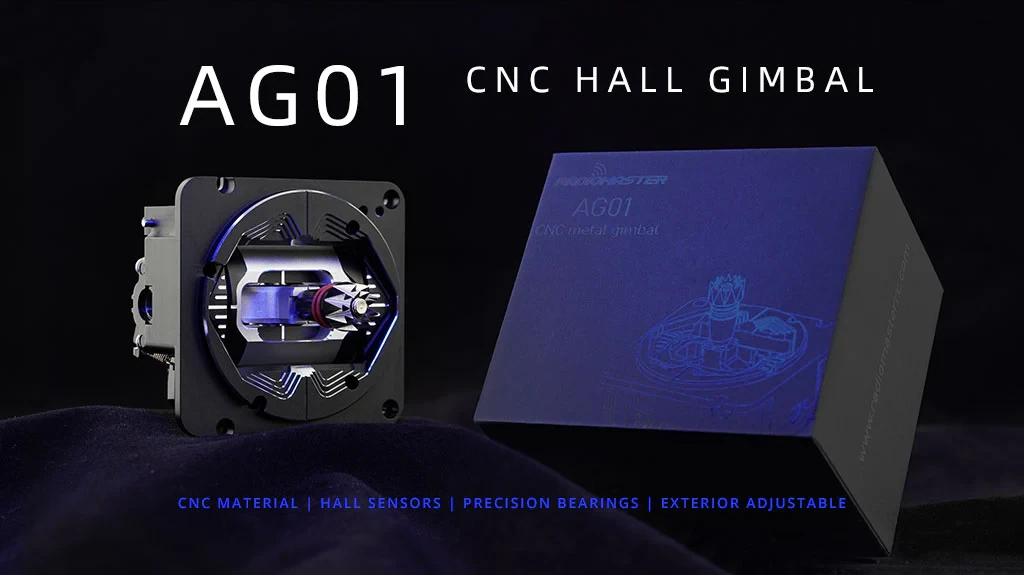

• Factory-fitted AG01 full CNC Hall gimbals for precise, contactless stick sensing.

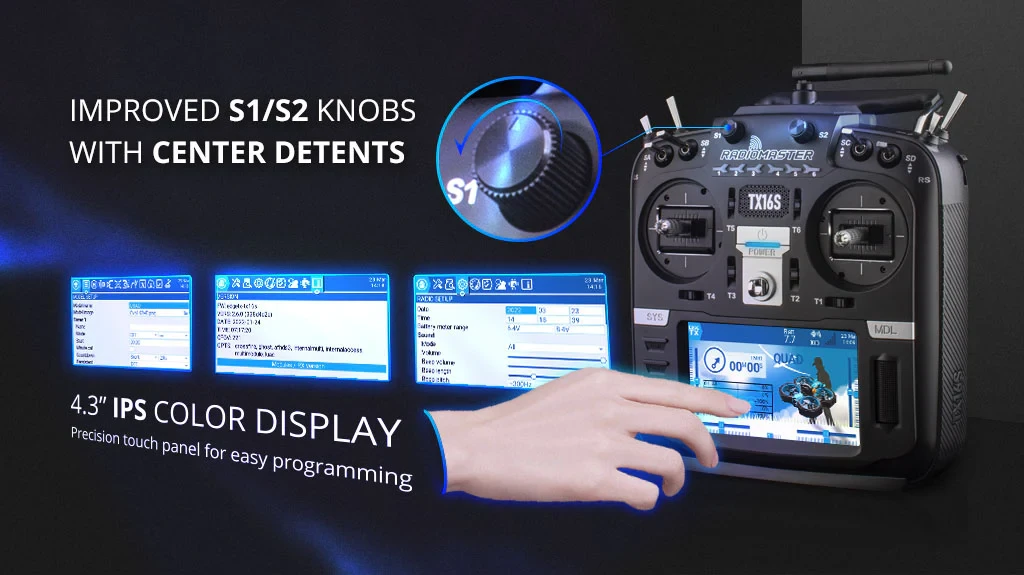

• 4.3-inch IPS colour touchscreen for on-radio programming, plus dual built-in speakers and a 3.5mm headphone jack.
• USB-C charging with reverse-polarity protection, up to 2.2A charge current.
• Standard TX16S switch and slider layout with removable, swappable switch panels for long flying sessions.

Specifications

• Channels: Up to 16
• RF module: Internal ELRS (SX1280), up to 250mW
• Frequency: 2.400–2.480 GHz
• Gimbals: AG01 full CNC Hall Effect
• Display: 4.3" IPS touchscreen
• Screen resolution: 480 x 272
• Working voltage: 6.6–8.4V DC
• Working current: 400 mA
• SD card: 256 MB included, up to 8 GB supported
• Module bay: JR-compatible
• Dimensions: 287 x 129 x 184 mm
• Weight: 750 g (without battery)
• Firmware: EdgeTX

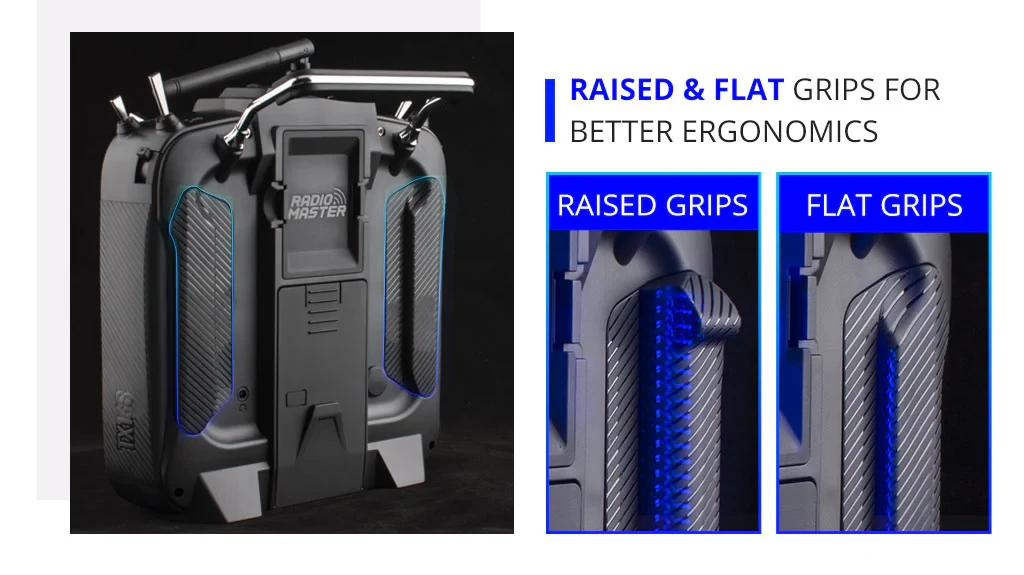

• In the box: radio, 18650 battery tray (cells not included), raised and flat rear grips, screen protector, USB-C cable

If your fleet already runs 2.4GHz ELRS, this radio drops straight in — it suits pilots who want a full-featured, full-size transmitter with AG01 gimbals from day one rather than upgrading sticks later.
