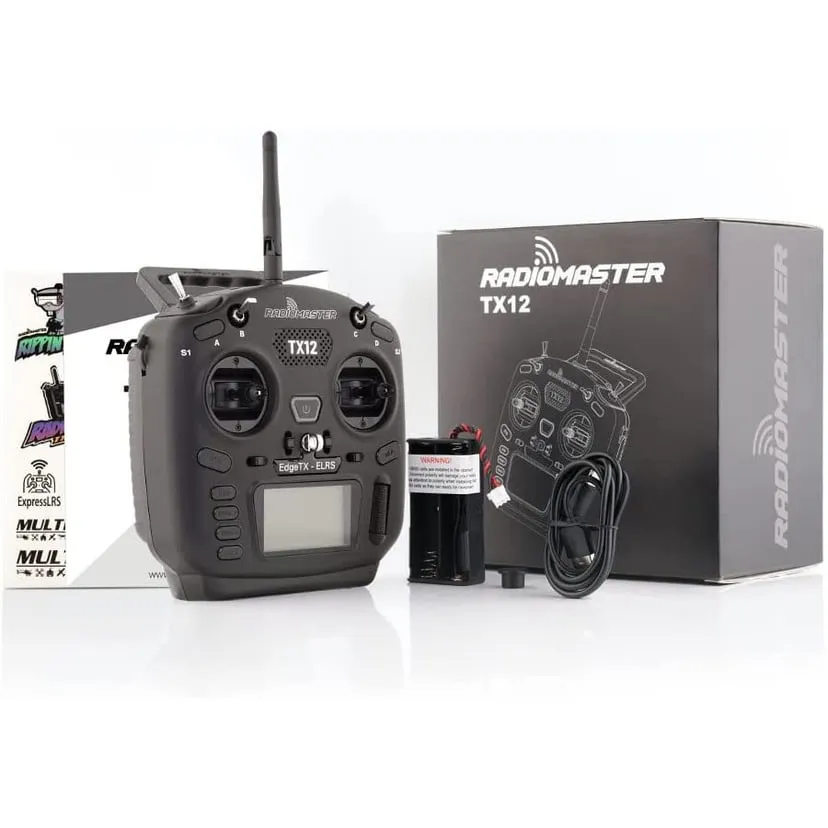

RadioMaster TX12 MKII ELRS/CC2500 Radio Controller

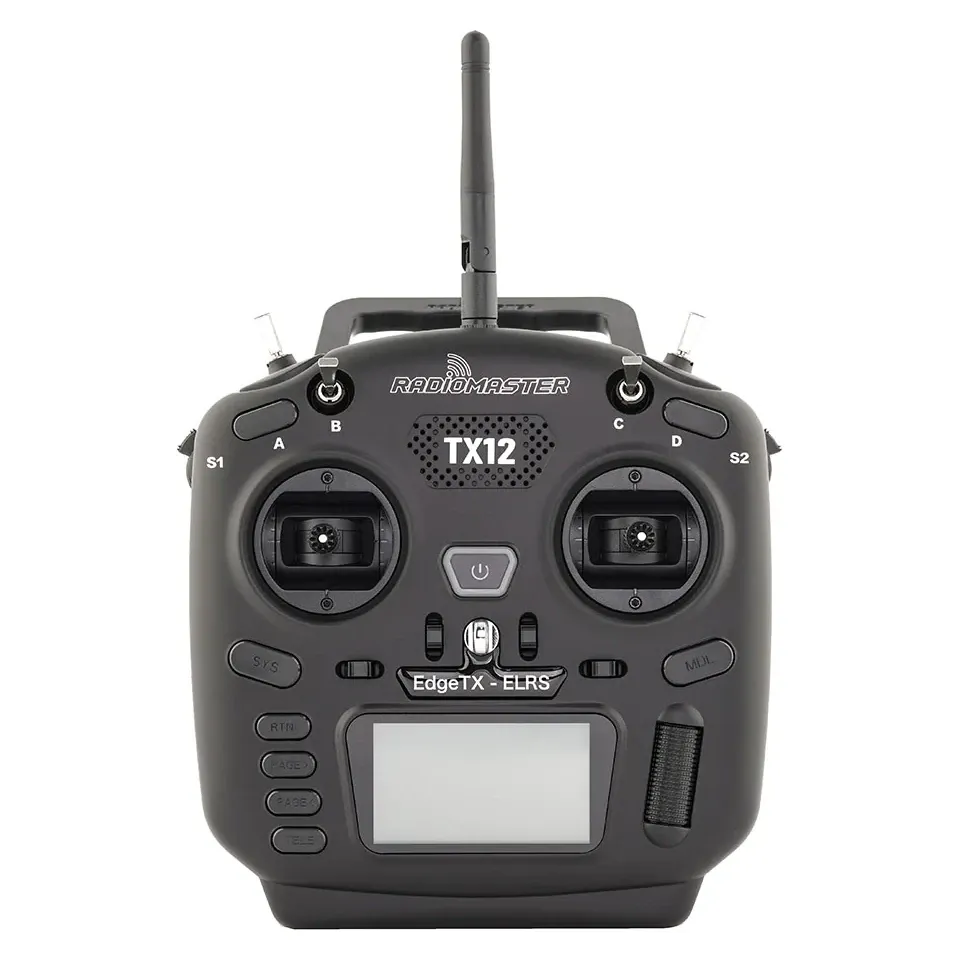

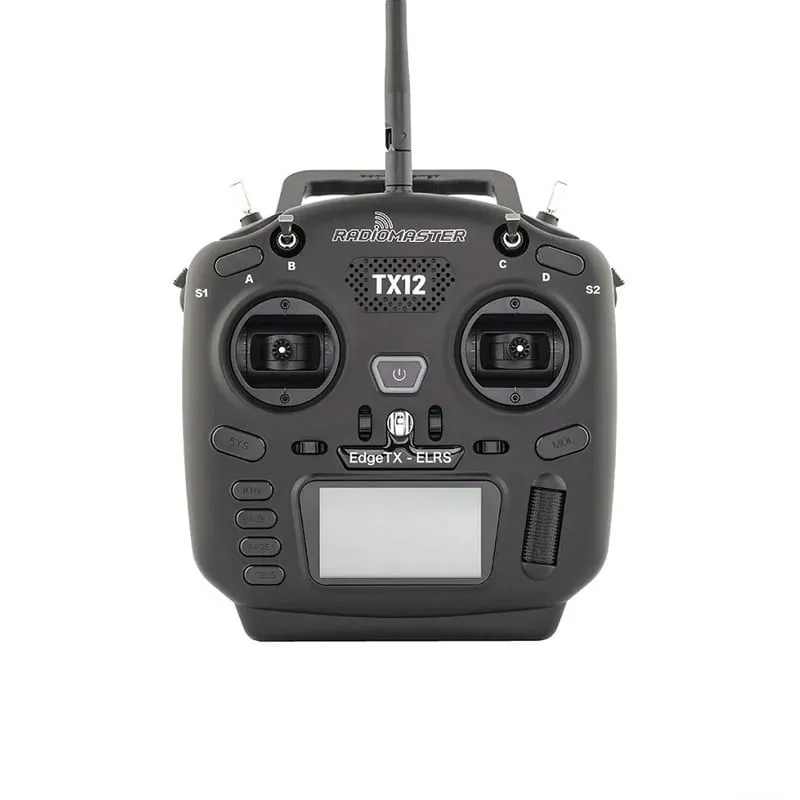

The RadioMaster TX12 MKII is a compact handheld transmitter for FPV pilots who want a smaller radio for everyday flying, offered with either an internal ExpressLRS (ELRS) 2.4 GHz module or a CC2500 multi-protocol module. It pairs dual gimbals, front buttons, top switches and a built-in display, so the layout stays usable without adding unnecessary bulk.

Key features

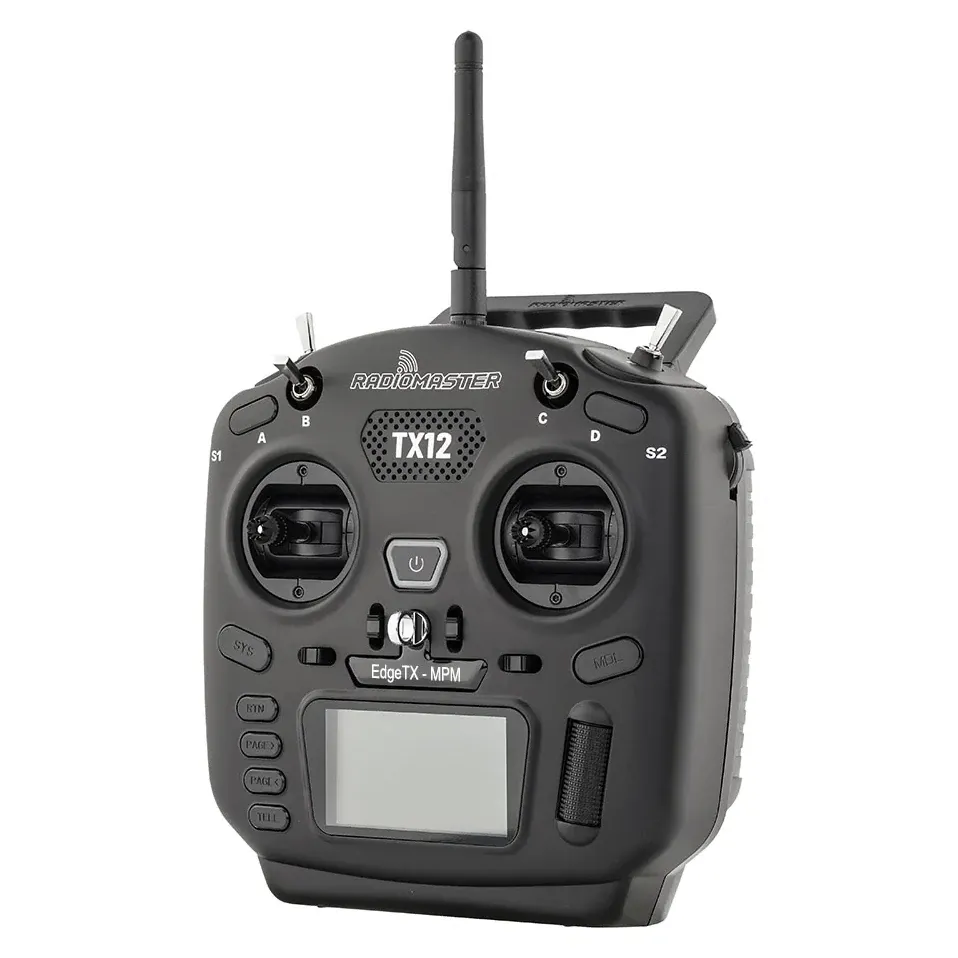

• ELRS version: ExpressLRS control on 2.4 GHz for the common ELRS receiver ecosystem used on modern FPV quads; the CC2500 version covers receivers that use CC2500-based protocols instead.

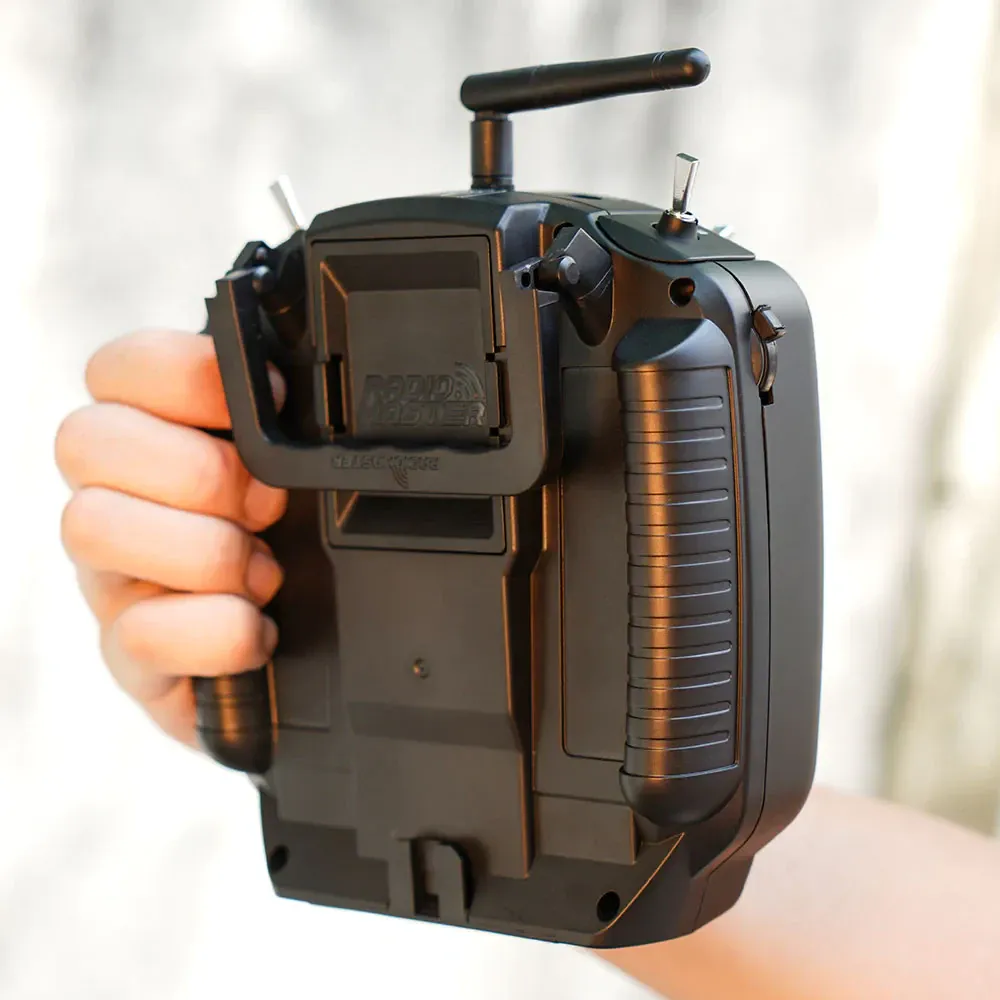

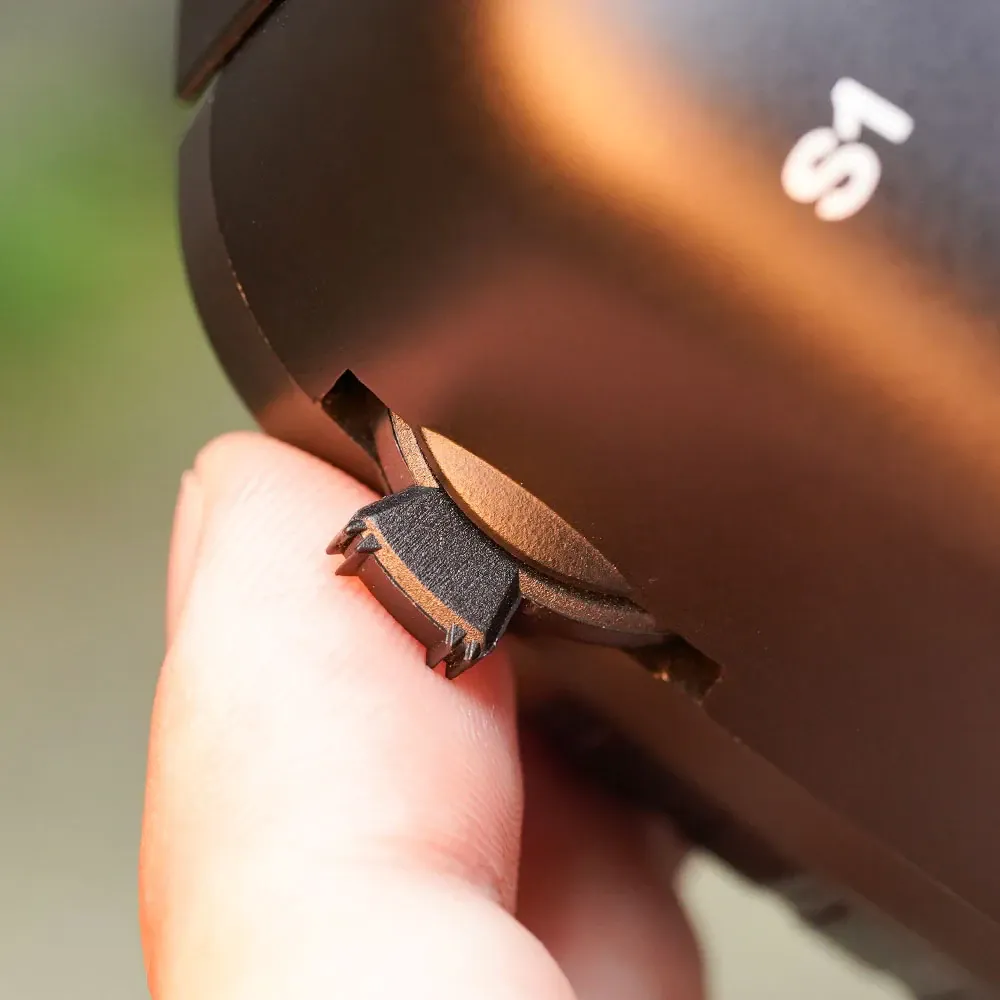

• Compact body with an ergonomic grip and side controls for pilots who prefer a smaller transmitter.

• Dual gimbals provide separate left and right stick control for throttle, yaw, pitch and roll.

• Top switches and front buttons add channels for arm, mode, beeper and other auxiliary functions.

• Built-in display keeps model selection and radio settings visible on the transmitter.

Specifications

• Internal RF: ELRS or CC2500 (select your version)

• Frequency: 2.400-2.480 GHz

• Firmware: EdgeTX

• Channels: up to 16 (receiver dependent)

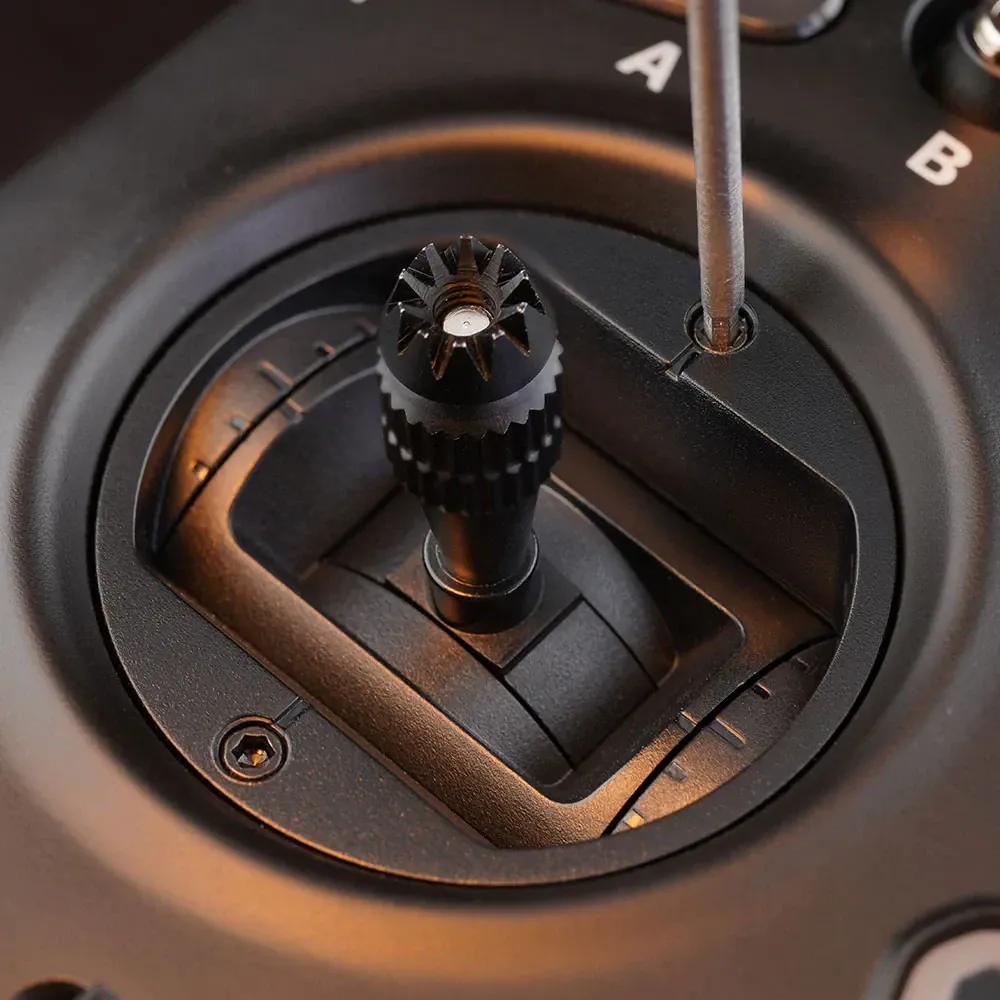

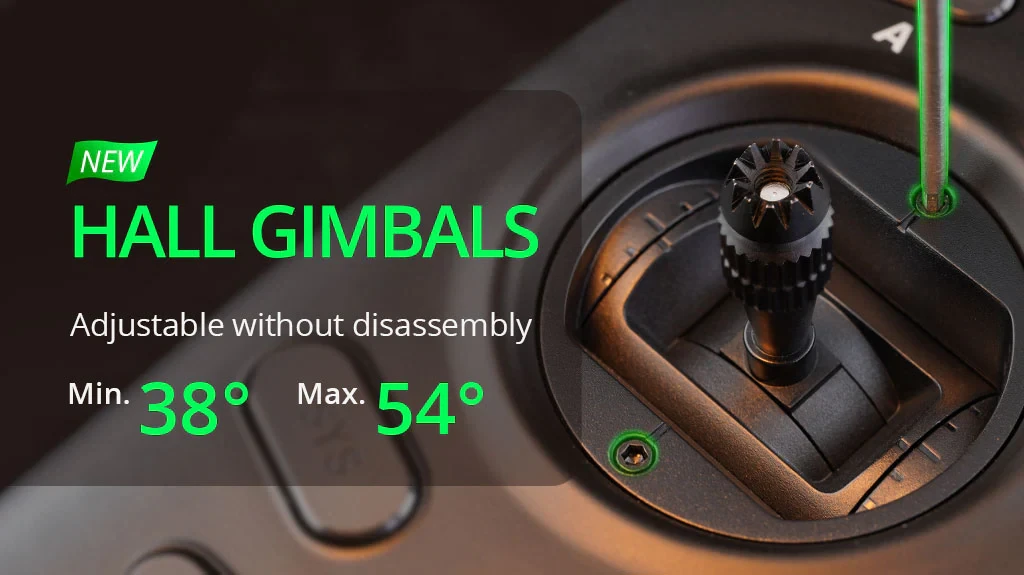

• Gimbals: Hall-effect

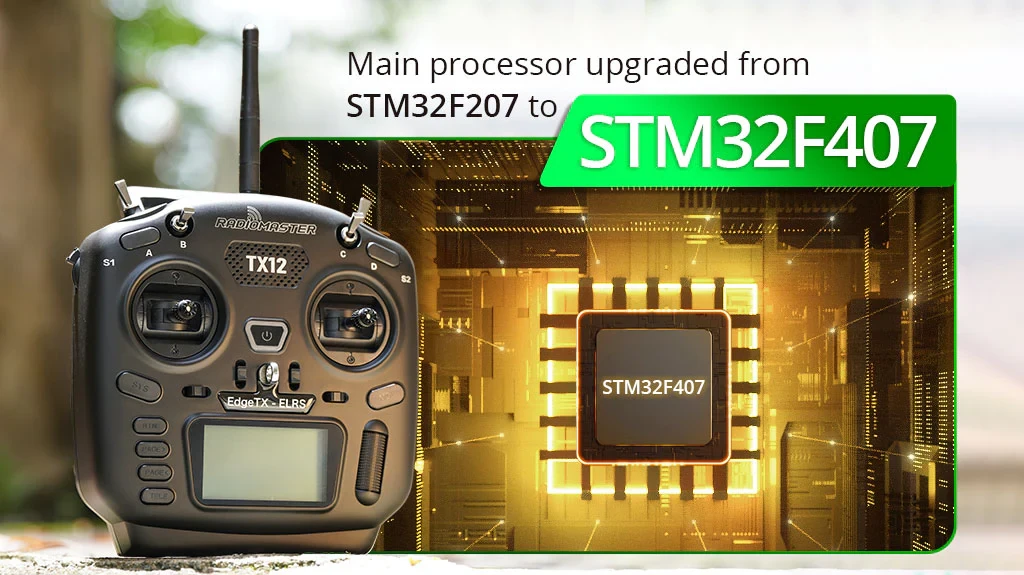

• Processor: STM32F407

• Display: 128 x 64 monochrome LCD

• Operating voltage: 6.6-8.4 V DC

• Working current: 320 mA at 8.4 V (ELRS), 180 mA (CC2500)

• External module: JR bay, compatible with FrSky and Crossfire modules

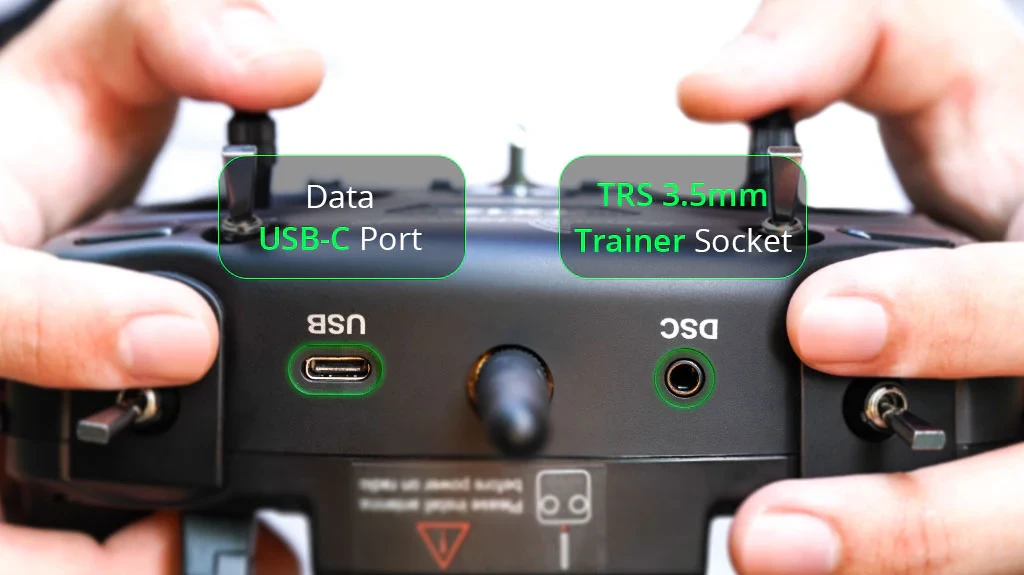

• Charging: USB-C, QC3

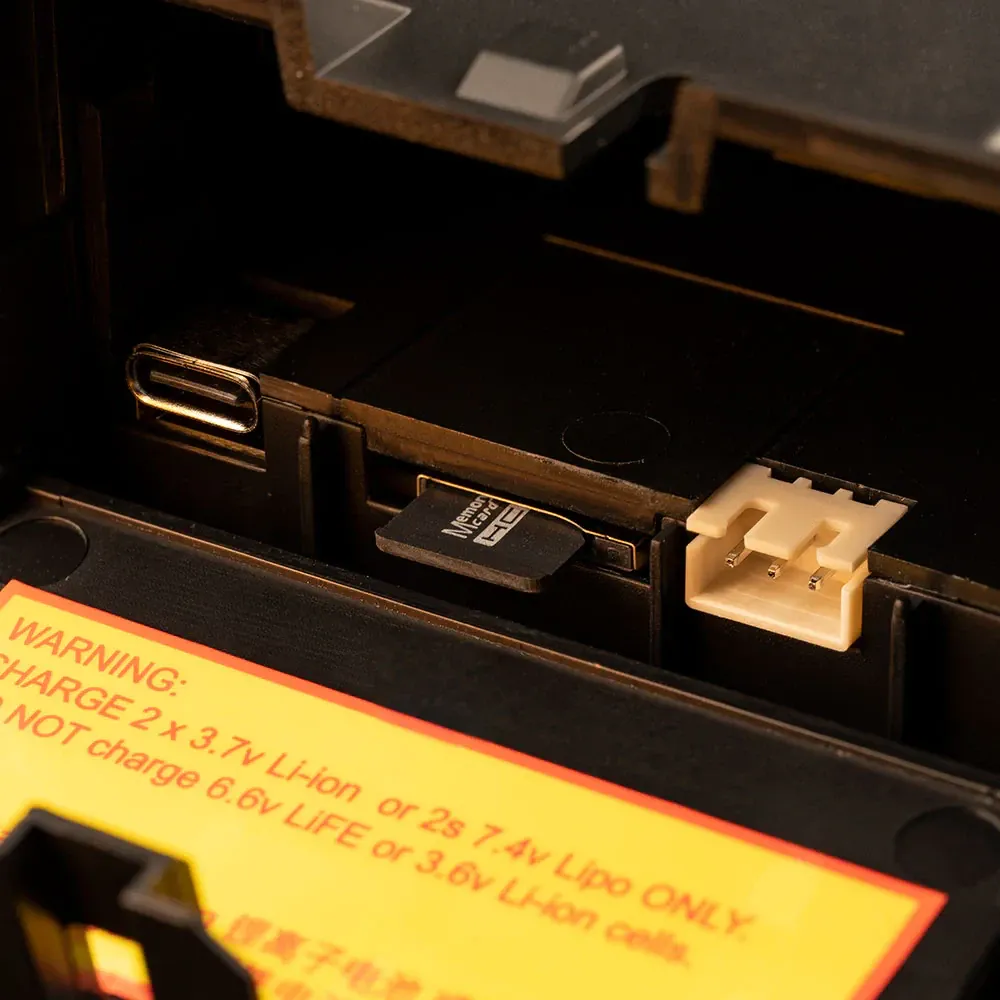

• Battery bay: two 18650 cells, two 21700 cells or a 2S LiPo up to 74 x 60 x 22 mm (not included)

• SD card: included

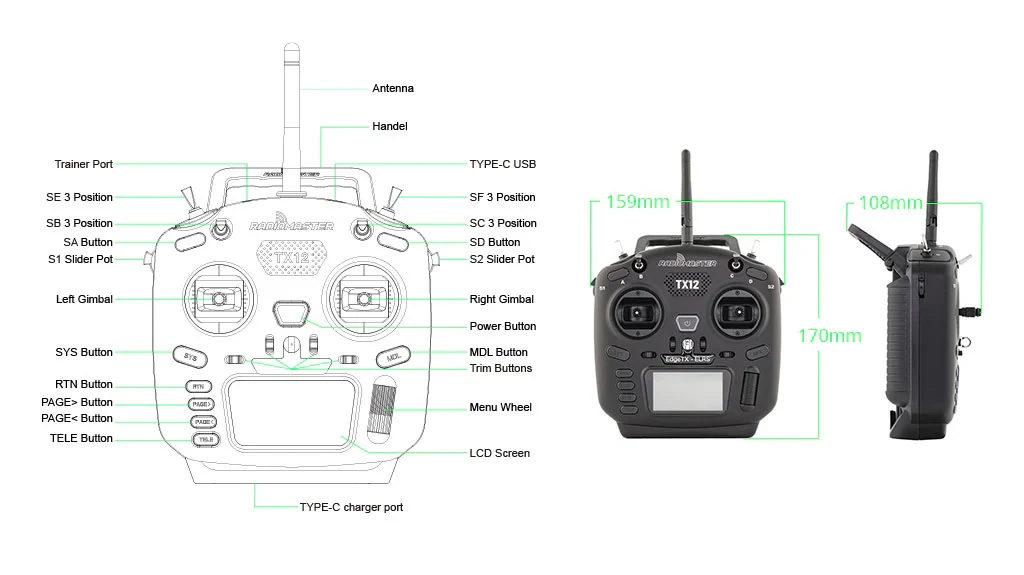

• Dimensions: 170 x 159 x 108 mm

• Weight: 363 g

Choose the ELRS version if your quad already runs an ELRS 2.4 GHz receiver, or the CC2500 version for CC2500-based receivers; either way you get a straightforward, portable radio for day-to-day FPV use.
