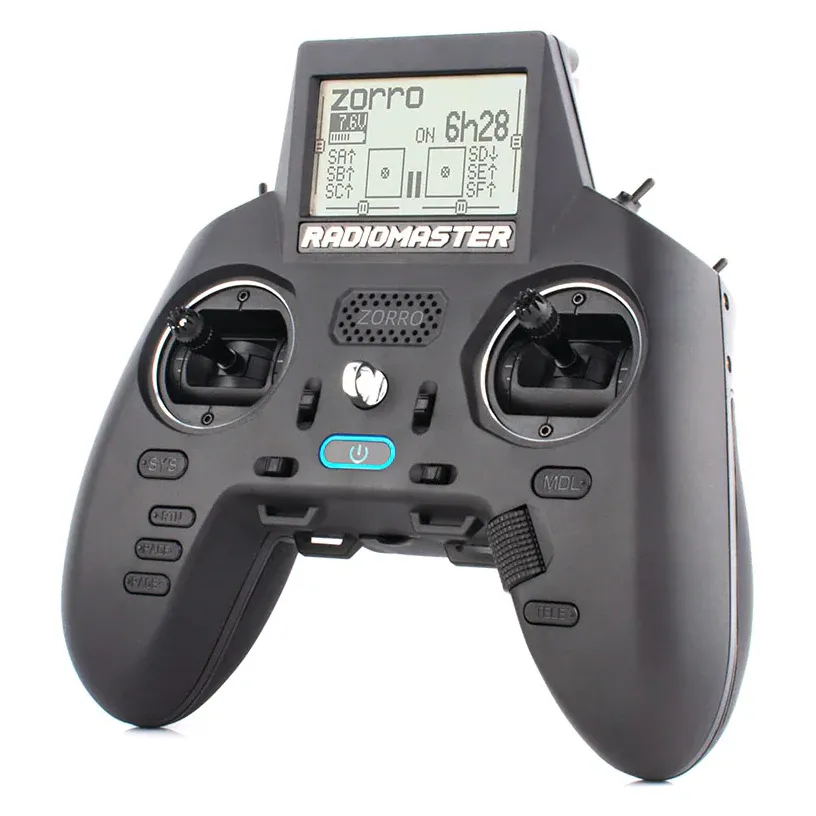

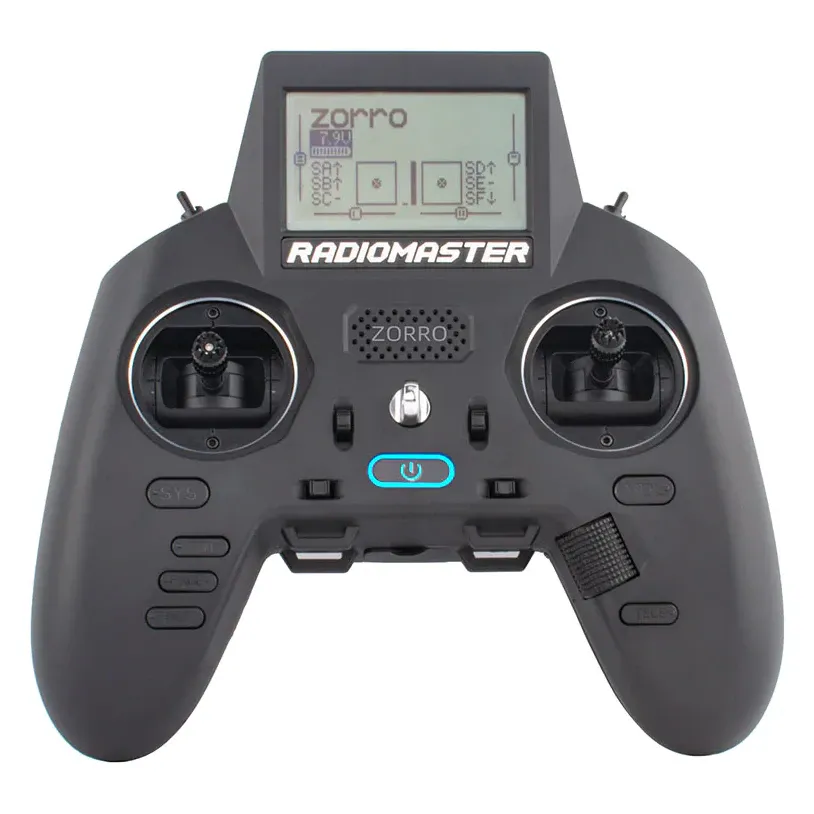

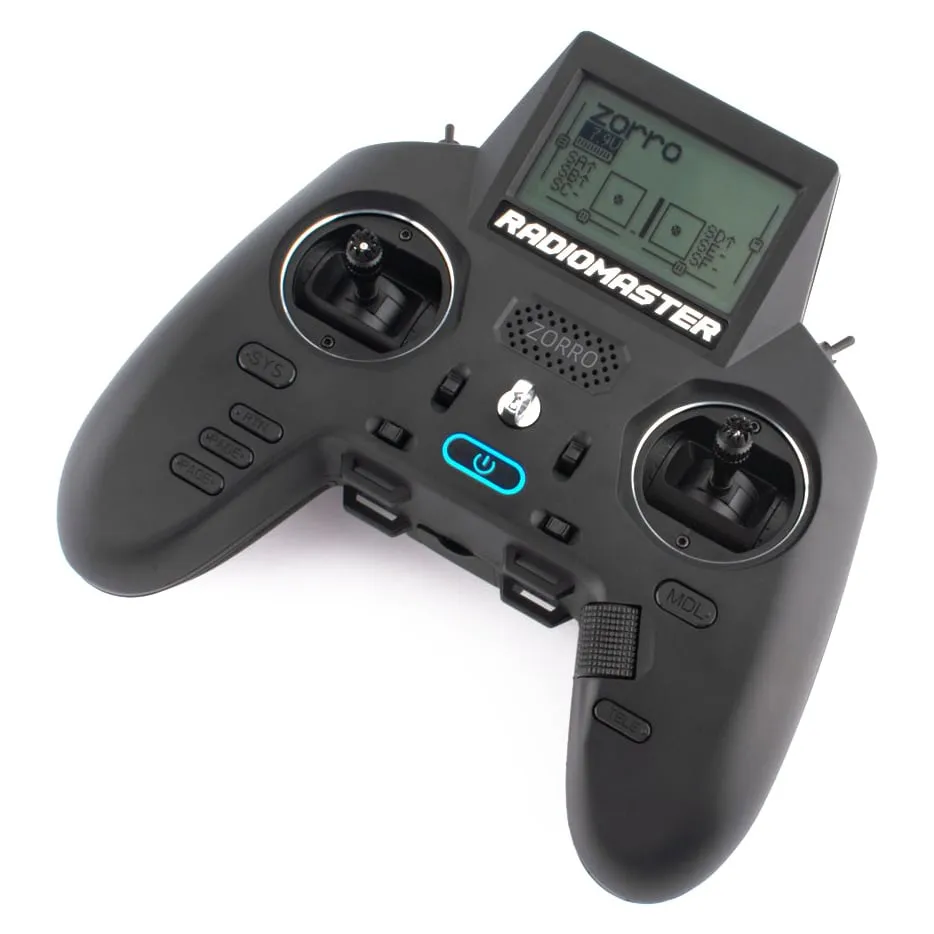

RadioMaster Zorro Radio Controller

The RadioMaster Zorro is an ergonomic, gamepad-style radio controller for FPV pilots who want full-size functionality in a compact form factor. Running EdgeTX firmware out of the box, it uses adjustable Hall-effect gimbals and is offered with a built-in RF module (ELRS or CC2500) or a multi-protocol 4-in-1 module, so you can match it to your existing receiver fleet.

Key features

• Game-controller ergonomics with adjustable Hall-effect gimbals for precise stick control.

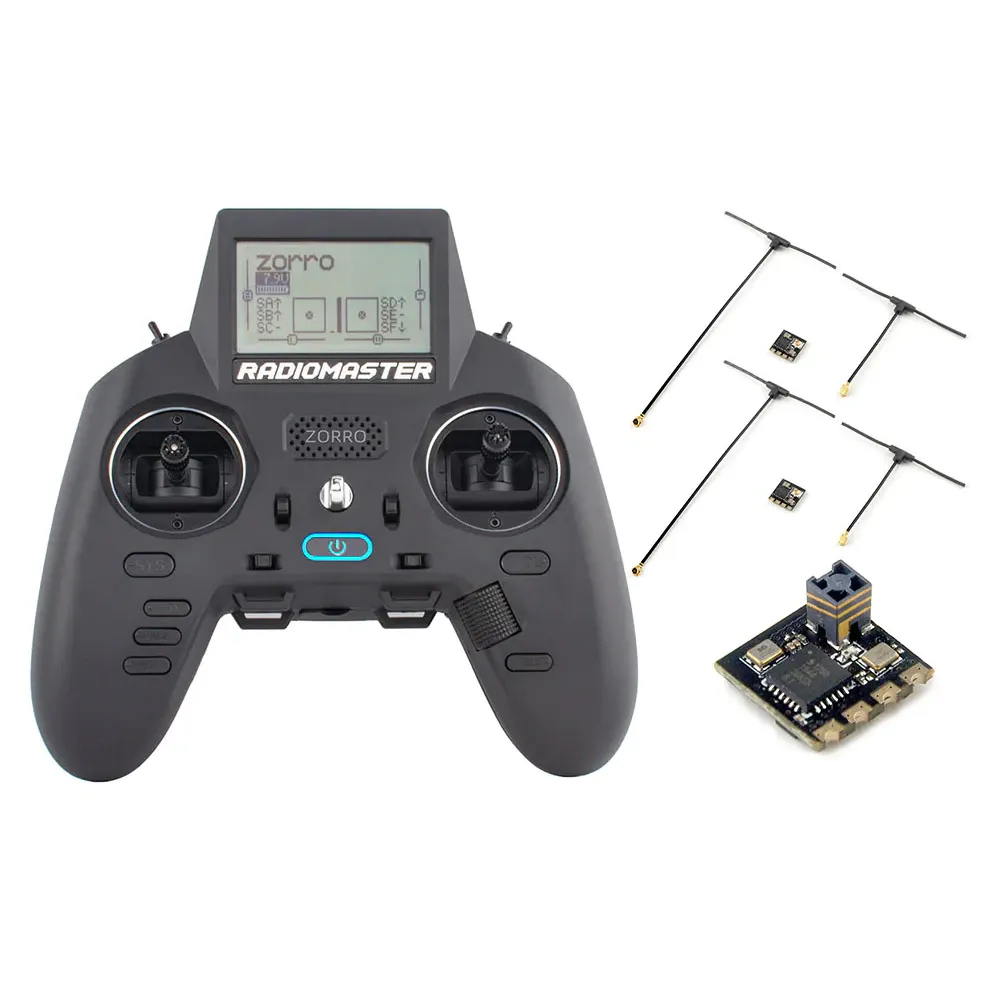

• Available with a built-in ExpressLRS (ELRS) module, an internal CC2500 module, or a 4-in-1 multi-protocol module (with or without a bundled RP1 ELRS receiver).
• Factory-loaded with EdgeTX firmware, configured via a scroll wheel and 128x64 monochrome LCD.

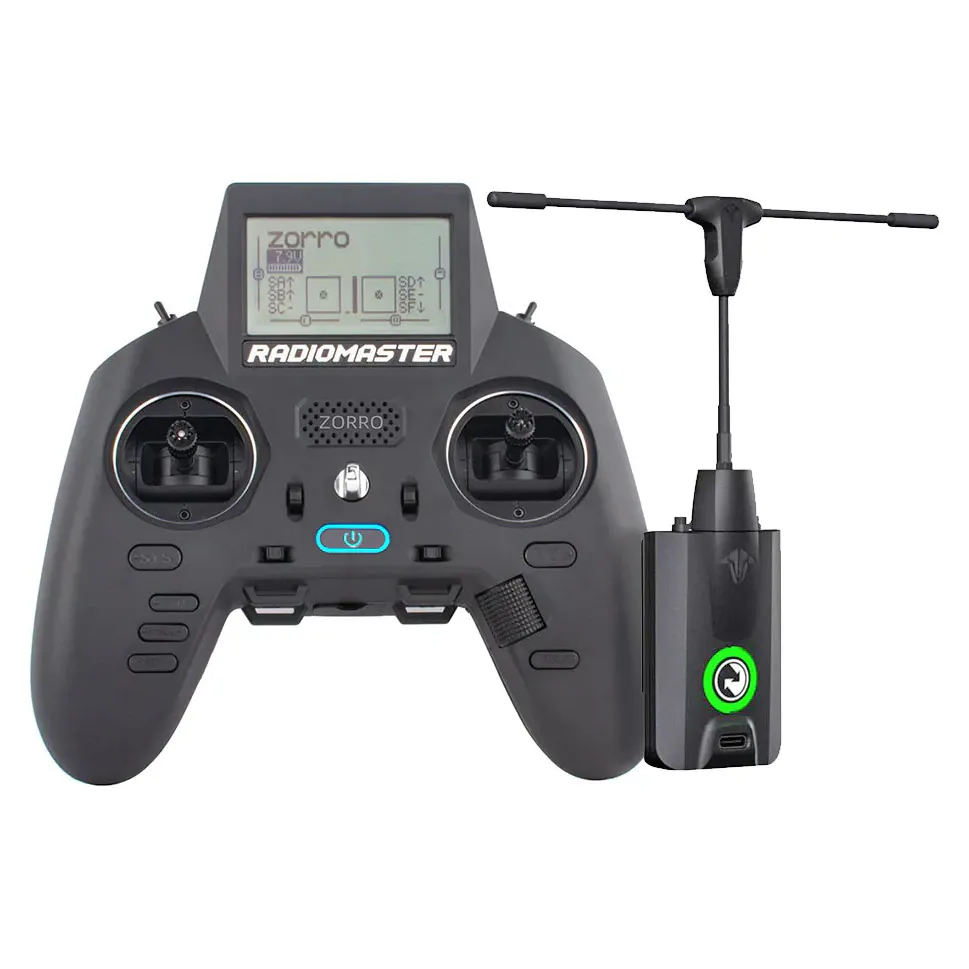

• Rear Nano-size external module bay for fitting a TBS Crossfire, Tracer or ELRS module even on the CC2500/4-in-1 versions.

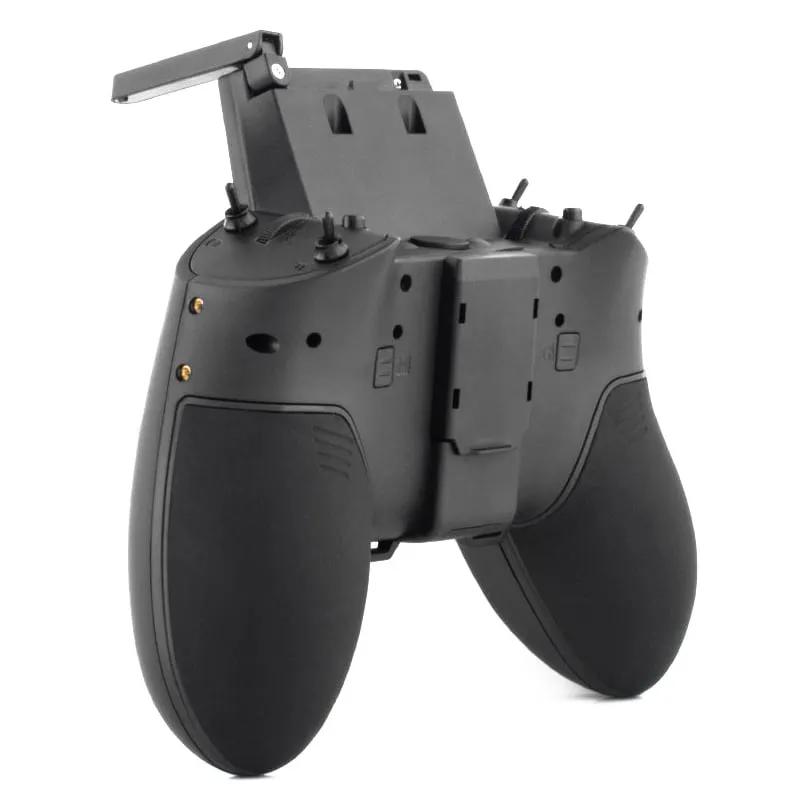

• Powered by two 18350 Li-ion cells housed in the grips (sold separately), with built-in USB-C charging.

Specifications

• Operating system: EdgeTX
• Gimbals: Hall effect
• Display: 128x64 monochrome LCD
• Operating frequency: 2.400-2.480GHz
• Channels: up to 16 (receiver dependent)
• RF power: 20 dBm max (CC2500 and 4-in-1), up to 250 mW (ELRS)
• Control range: over 2 km at 20 dBm (CC2500 and 4-in-1)
• Operating voltage: 6.6-8.4 V DC
• Operating current: 160 mA at 8.4 V
• Stick mode: switchable between Mode 1 and Mode 2 without disassembly (Mode 2 from the factory)
• Module bay: Nano size (Crossfire/Nano ELRS compatible)
• Battery requirement: 2x 18350 Li-ion (not included)
• Dimensions: 170 x 159 x 108mm
• Weight: 350g

Select the RF version that matches your existing receivers: the built-in ELRS model needs no separate receiver module, the CC2500 version covers FrSky/Hitec/Futaba SFHSS-style receivers, and the 4-in-1 version adds DSMX, FlySky AFHDS 2A and dozens of other traditional protocols — with the RP1 bundle throwing in a ready-to-bind ELRS receiver.
