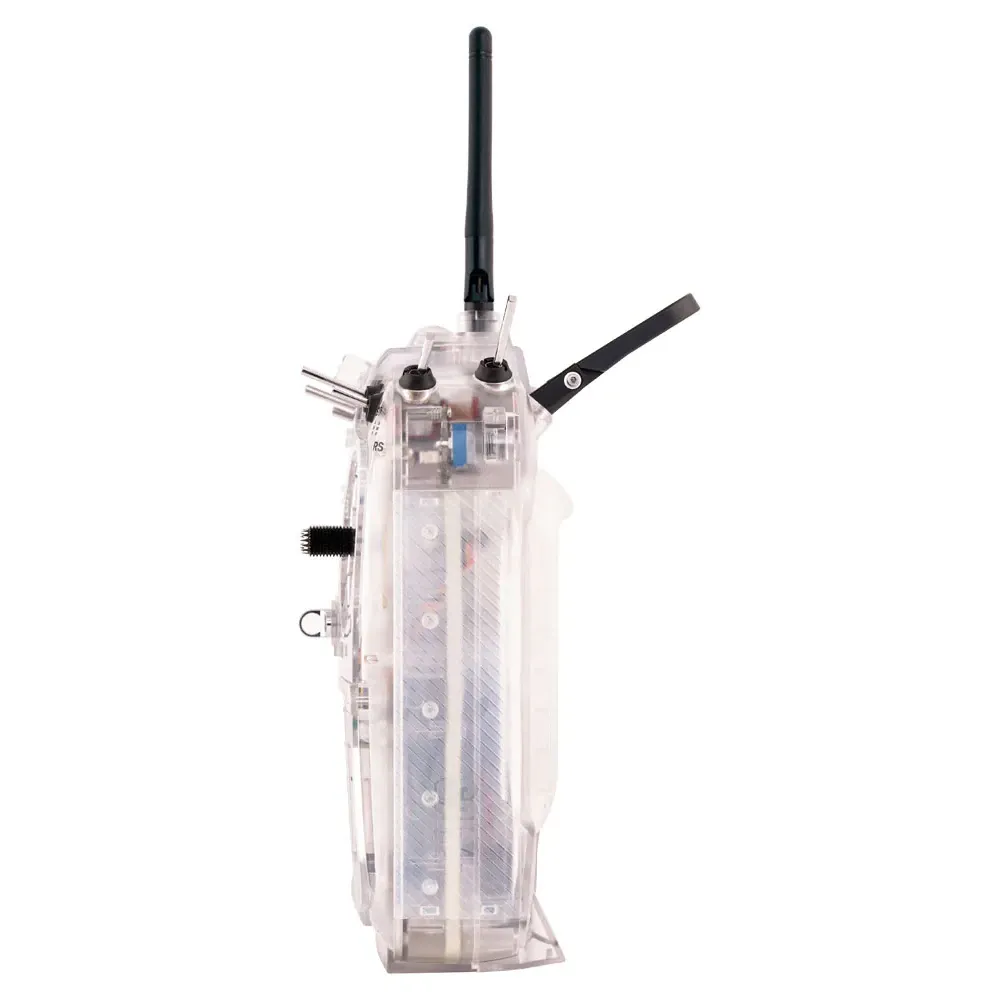

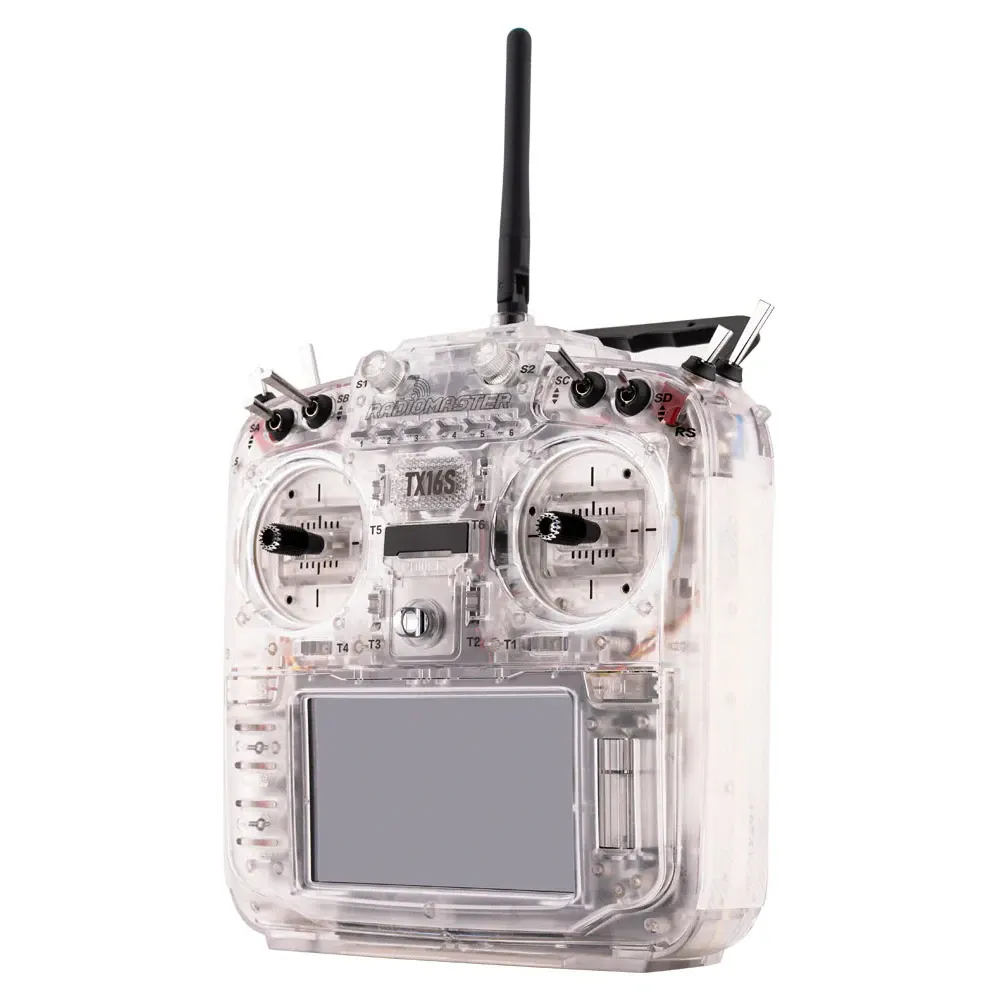

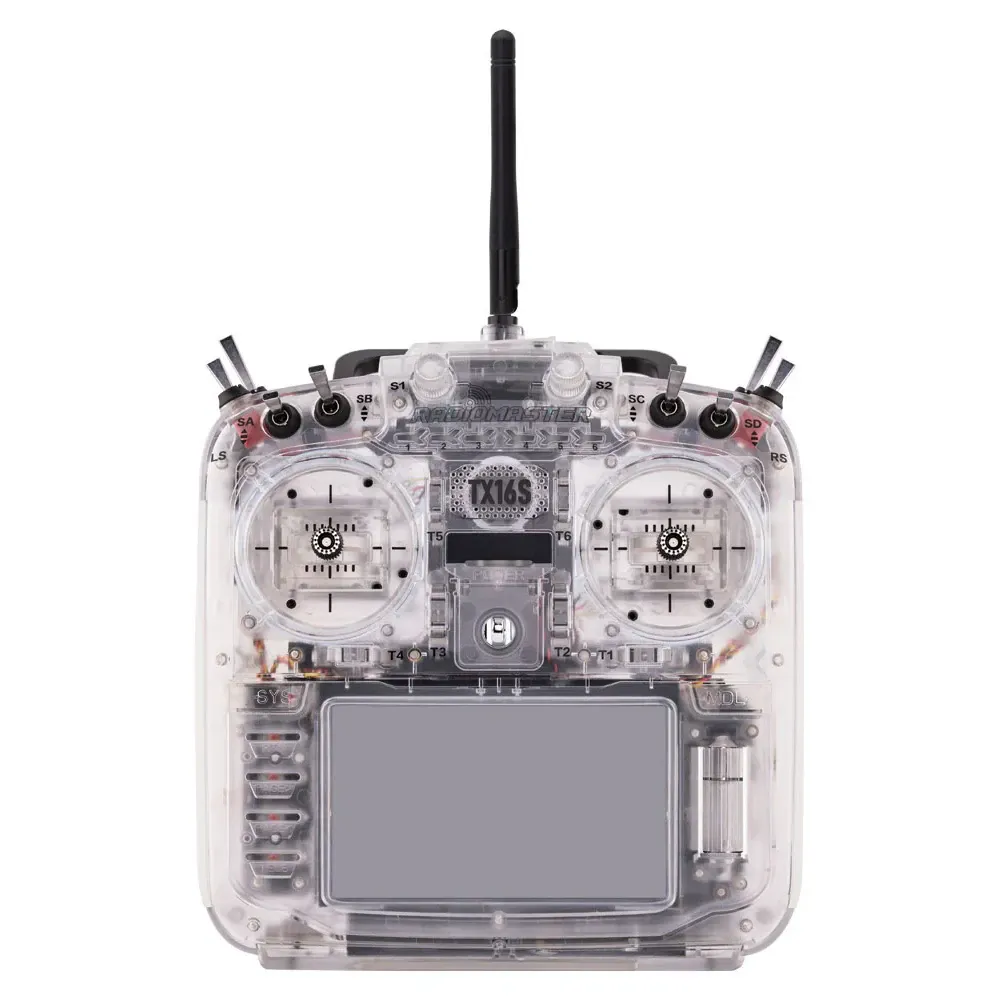

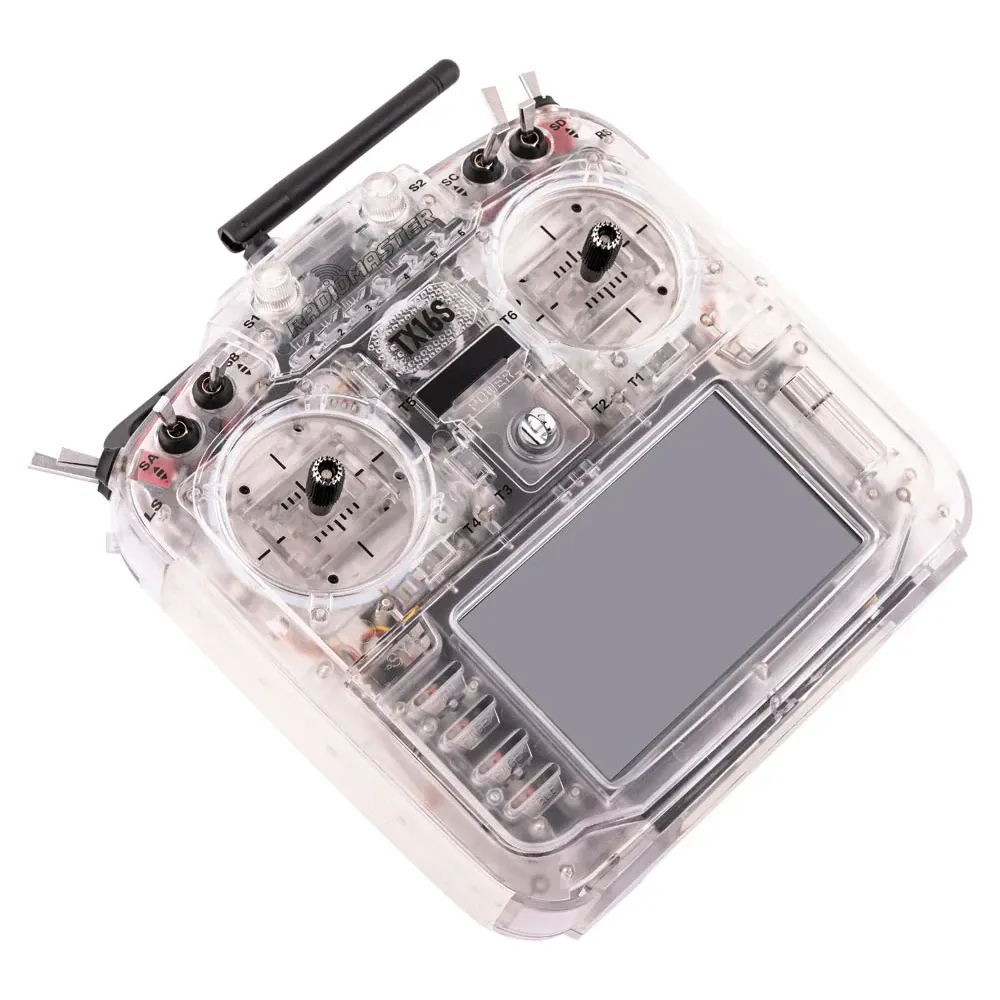

RadioMaster TX16S MKII Transparent RGB ELRS Radio

The RadioMaster TX16S MKII Transparent RGB edition combines the industry-standard EdgeTX 16-channel transmitter with a striking illuminated clear shell. Outfitted with an internal 2.4GHz ELRS module, it is the go-to radio for FPV freestyle pilots, long-range cruisers, and fixed-wing flyers demanding top-tier ergonomics and a highly customisable aesthetic.

Key features

• Internal 2.4GHz ELRS RF module for high-refresh-rate, low-latency control

• Transparent housing backed by customisable RGB LEDs

• V4.0 Hall effect gimbals offering precise stick tracking and adjustable tension

• Large 4.3-inch TFT colour touchscreen for seamless EdgeTX menu navigation

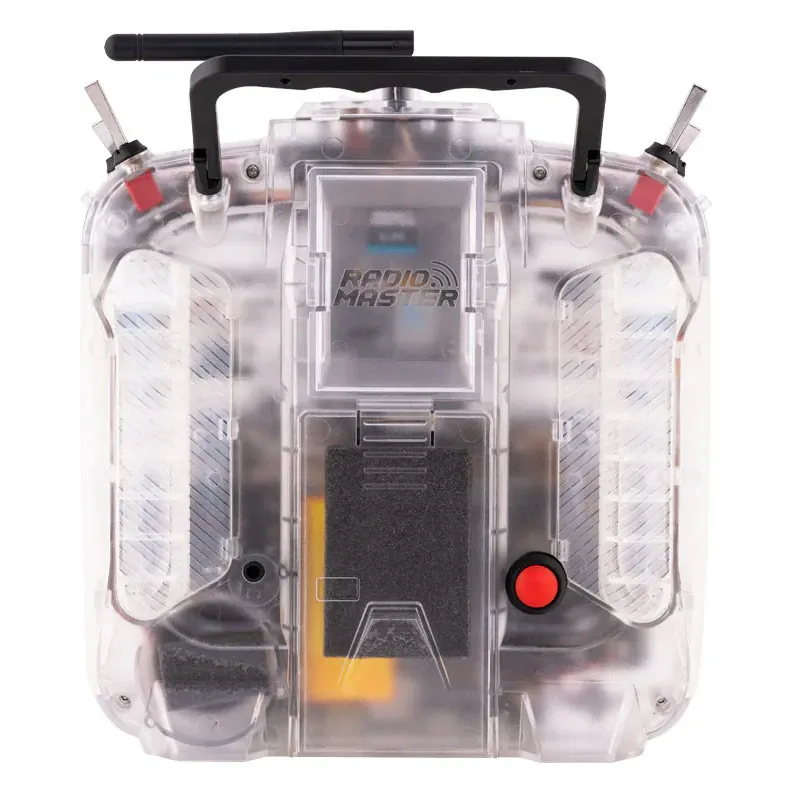

• Standard JR module bay on the rear for external TX modules

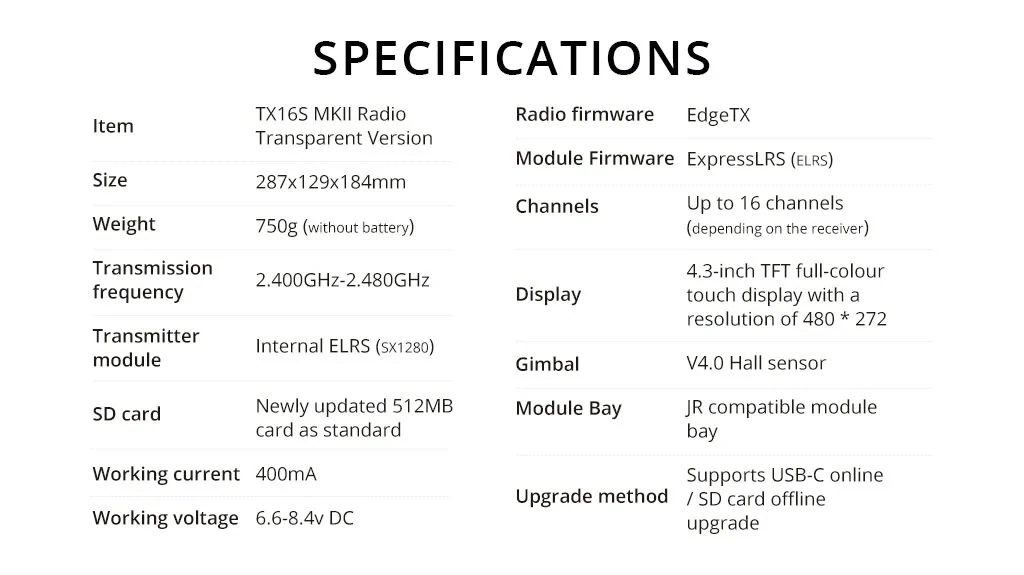

Specifications

• Firmware: EdgeTX

• Internal RF: 2.4GHz ELRS

• Display: 4.3-inch TFT colour touch screen (480x272)

• Gimbals: V4.0 Hall sensor

• Operating Voltage: 6.6V - 8.4V DC (2S LiPo/Li-ion)

• Dimensions: 287x129x184 mm

• Weight: 750g (without battery)

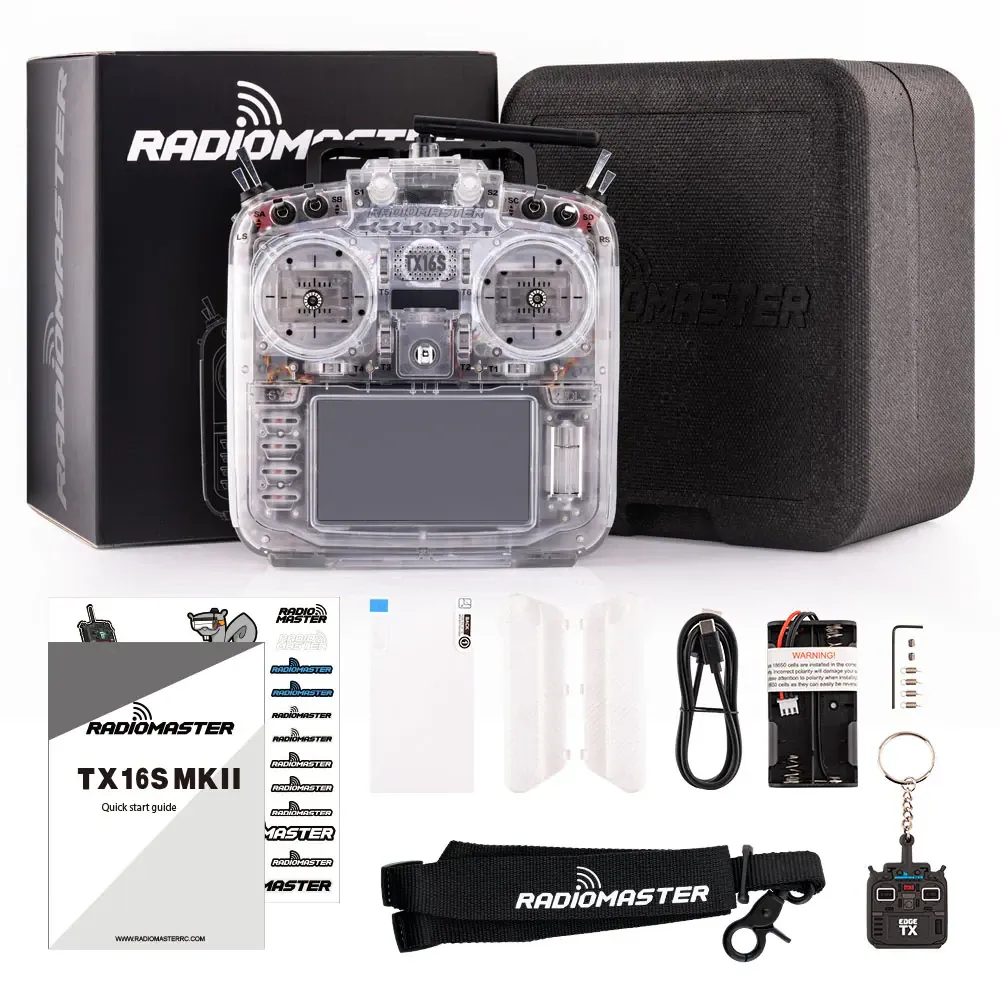

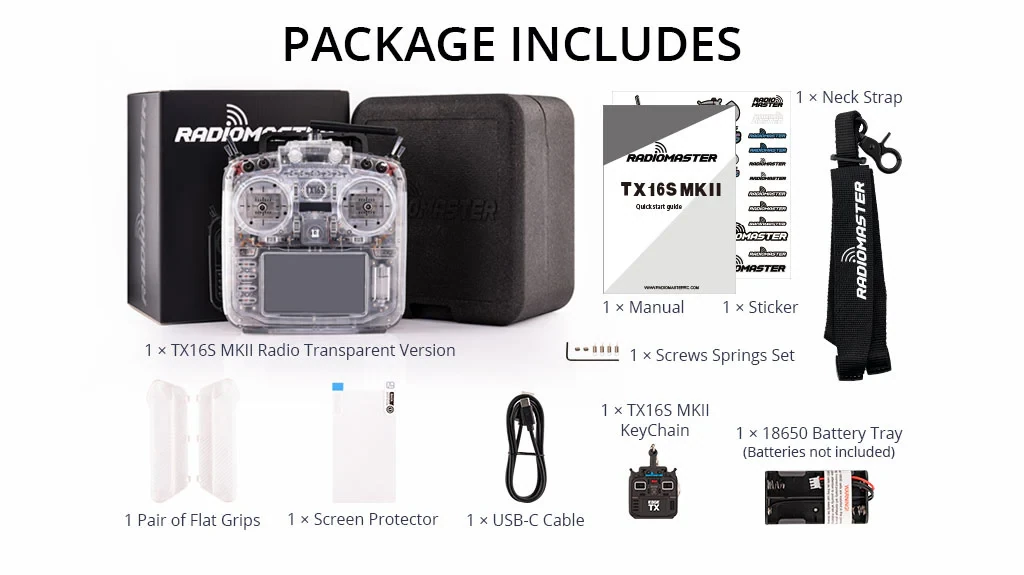

This transmitter is ready to bind with any 2.4GHz ELRS receiver out of the box. Power it using two 18650 cells in the included tray, or drop in a dedicated 2S transmitter pack for extended flight days.
