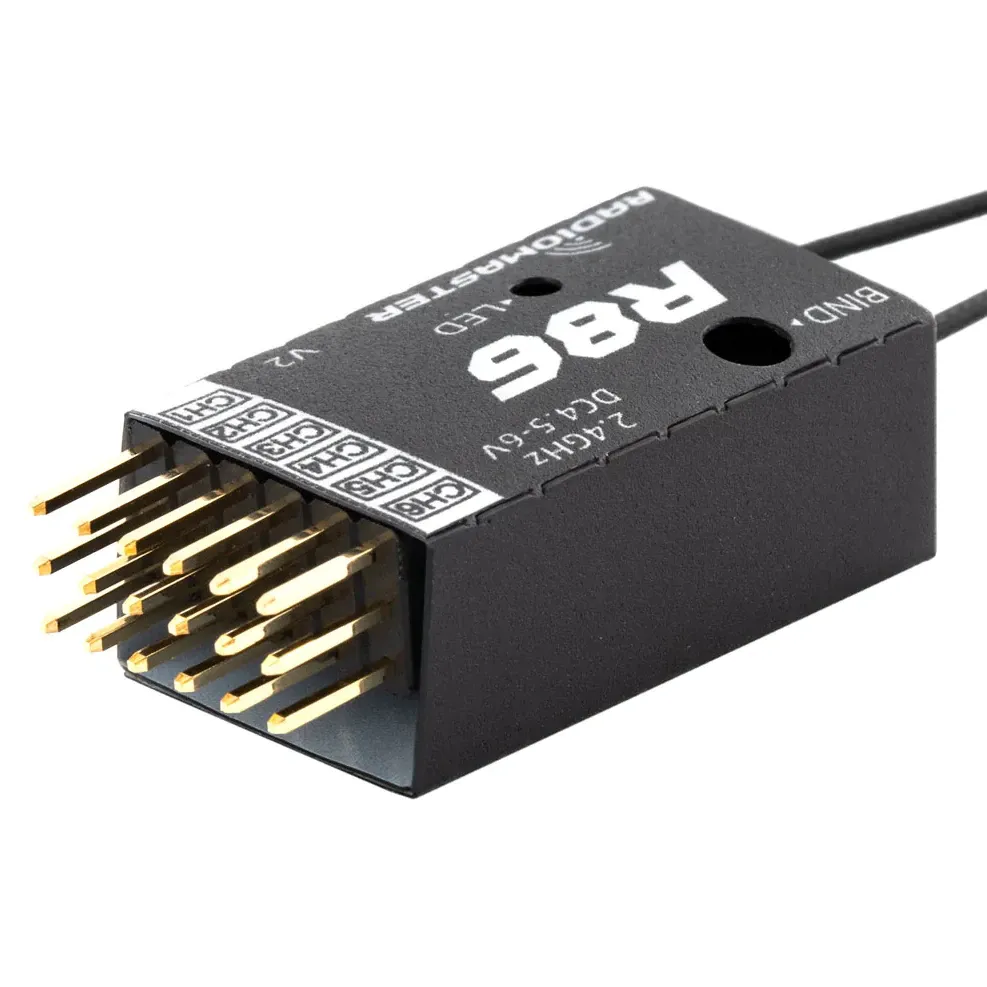

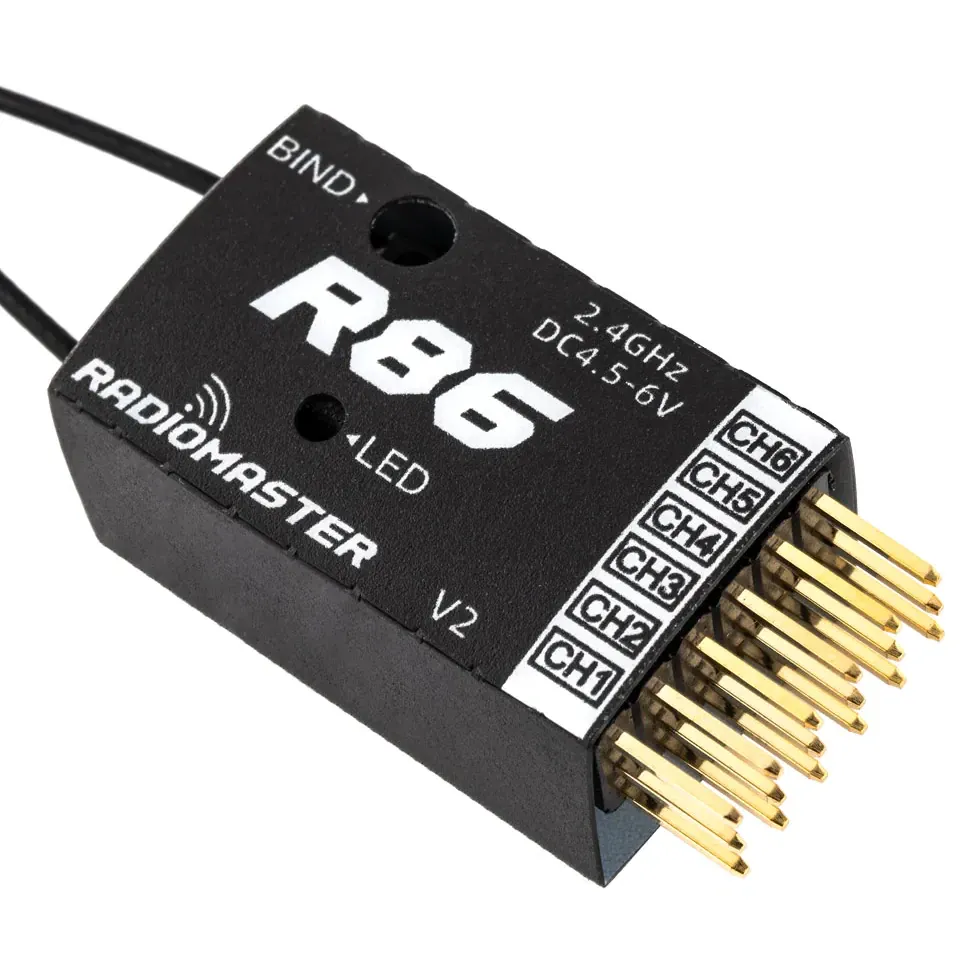

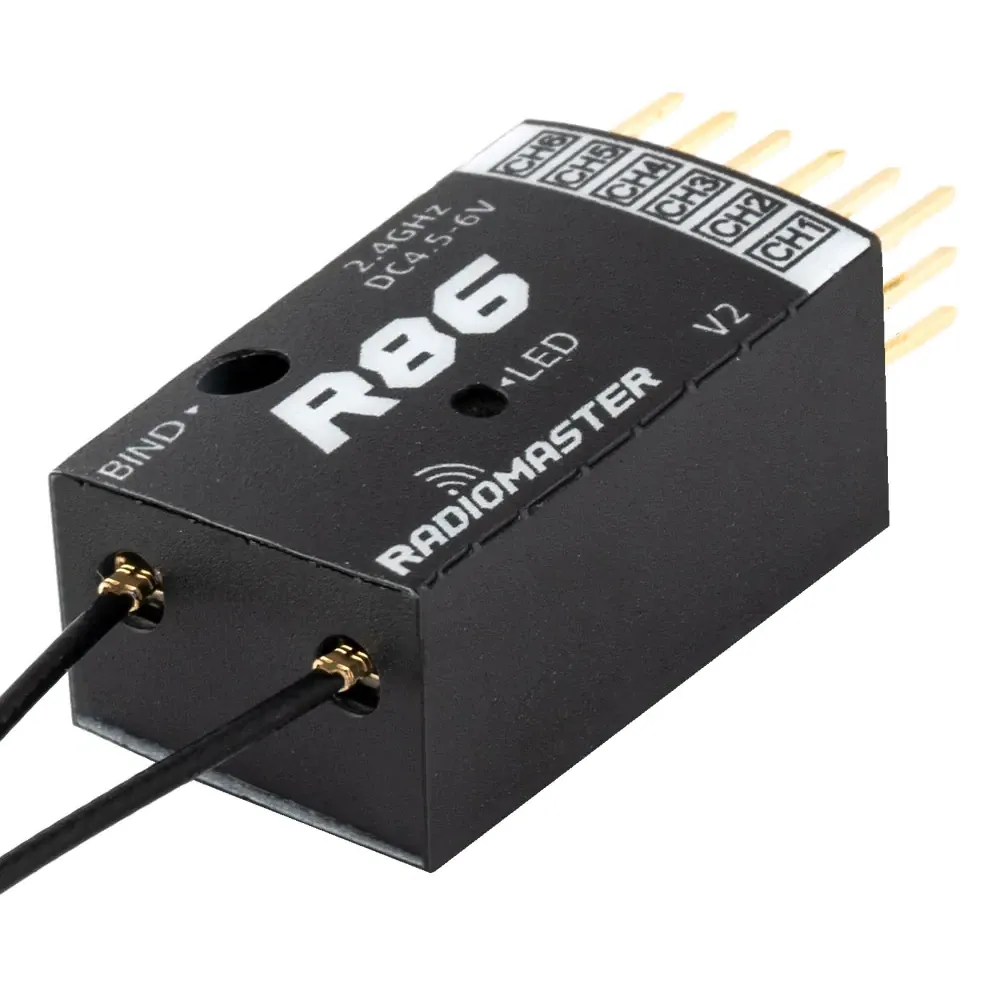

RadioMaster R86 V2 6CH PWM Receiver

The RadioMaster R86 V2 is a compact 6-channel PWM receiver operating on the 2.4GHz band. Designed primarily for fixed-wing aircraft, wings, and custom surface builds requiring direct servo connections, this V2 revision offers improved stability over the original hardware. It provides native compatibility with FrSky D8 and D16 protocols, making it a direct match for radios using CC2500 or 4-in-1 multi-protocol modules.

Key features

• Six dedicated PWM output channels for straightforward servo and ESC wiring without flight controllers.
• Native binding with D8 and D16 protocols, ideal for multi-protocol transmitters.
• Wide 4.5V to 8.4V input voltage range accommodates direct power from 2S LiPo receiver packs or standard 5V BECs.
• Low-profile 4.8g footprint fits comfortably in tight glider fuselages or narrow fixed-wing bays.

Specifications

• Channels: 6 (PWM)
• Frequency: 2.4GHz
• Supported protocols: FrSky D8, FrSky D16
• Input voltage: 4.5V – 8.4V
• Control range: >1km

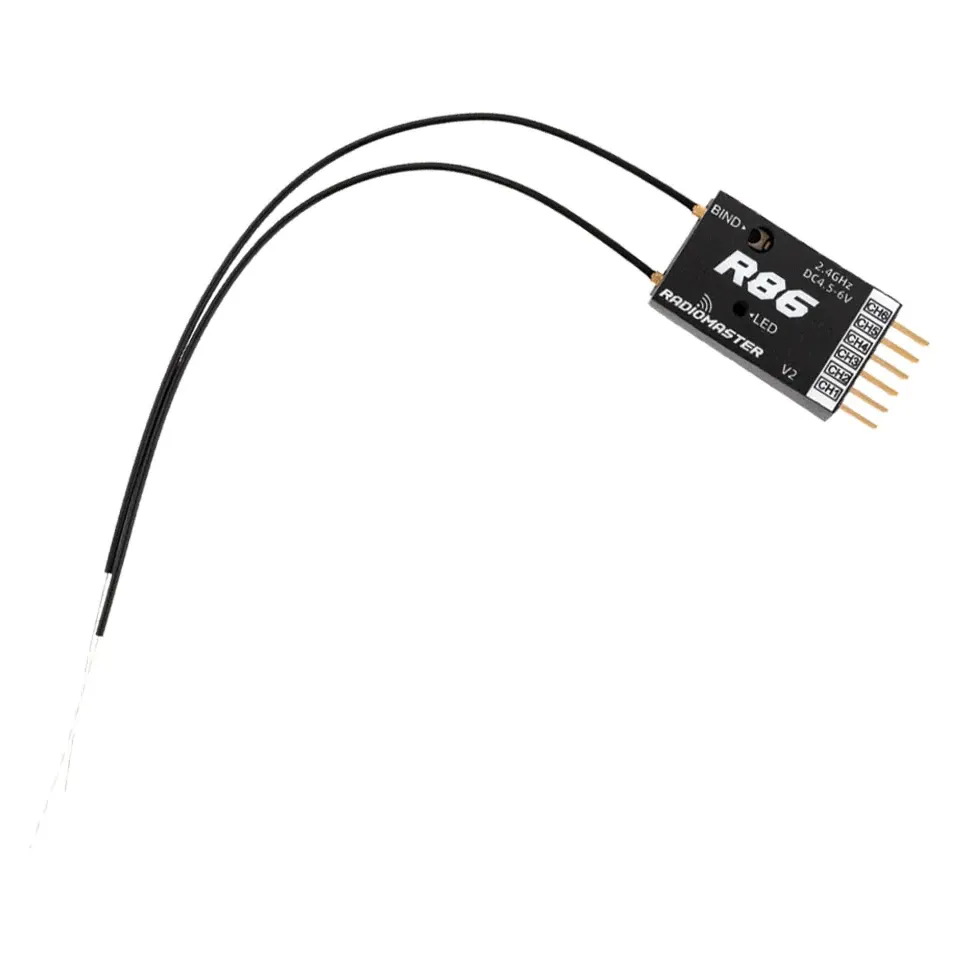

• Antenna length: 150 mm
• Weight: 4.8g
• Dimensions: 28 x 16.5 x 11 mm

This receiver pairs effortlessly with multi-protocol radios such as the RadioMaster TX16S, Boxer, or Zorro equipped with CC2500 or 4-in-1 internal RF modules. Note that it will not bind to ExpressLRS (ELRS) transmitters.
