PDB-XT60 5V/
SKU PDB-XT60-BEC-5V-12V
Free shipping. Pan India delivery from Gurugram, Haryana.
Ships within 3–4 business days — quality-checked in Gurugram before dispatch
Questions about this part? Ask us on WhatsApp- 100% genuine parts
- GST invoice with every order
- Secure payments — cards, UPI & net banking via Razorpay
- 7-day returns on wrong or damaged items
Product details

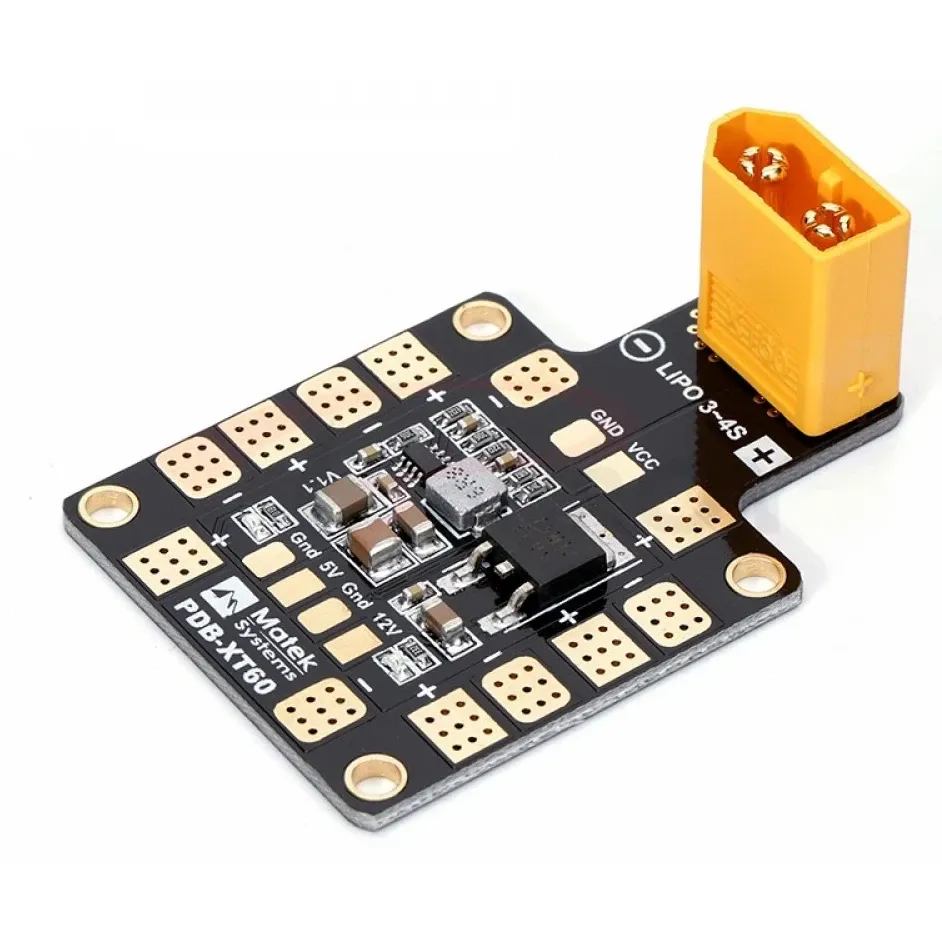

The PDB-XT60 is a power distribution board for drone builds that need separate regulated rails for flight electronics, ESCs and peripherals. It accepts the main battery through an XT60 connection and provides two BEC output voltages.
Key features
XT60 input connects the board to the main battery supply.
Separate 5V and 12V BEC rails serve electronics that require those voltages.
The board provides a central power point for ESC connections and peripheral electronics.
Verify each component's voltage requirement before connecting it to either BEC output.
This board distributes power but does not replace an ESC or flight controller. Confirm the wiring polarity and required rail voltage before powering the build.
Specifications
Input connector: XT60
Input voltage: 3-4S LiPo
ESC pads: 6 pairs, suits H or X frames
ESC current: 4 x 25 A or 6 x 15 A continuous
BEC output: 5V
5V BEC rating: 2 A continuous (2.5 A max, 10 s/minute), synchronous switching
BEC output: 12V
12V BEC rating: 500 mA on 4S (0.8 A max, 5 s/minute), linear; on 3S it outputs about battery voltage minus 1 V

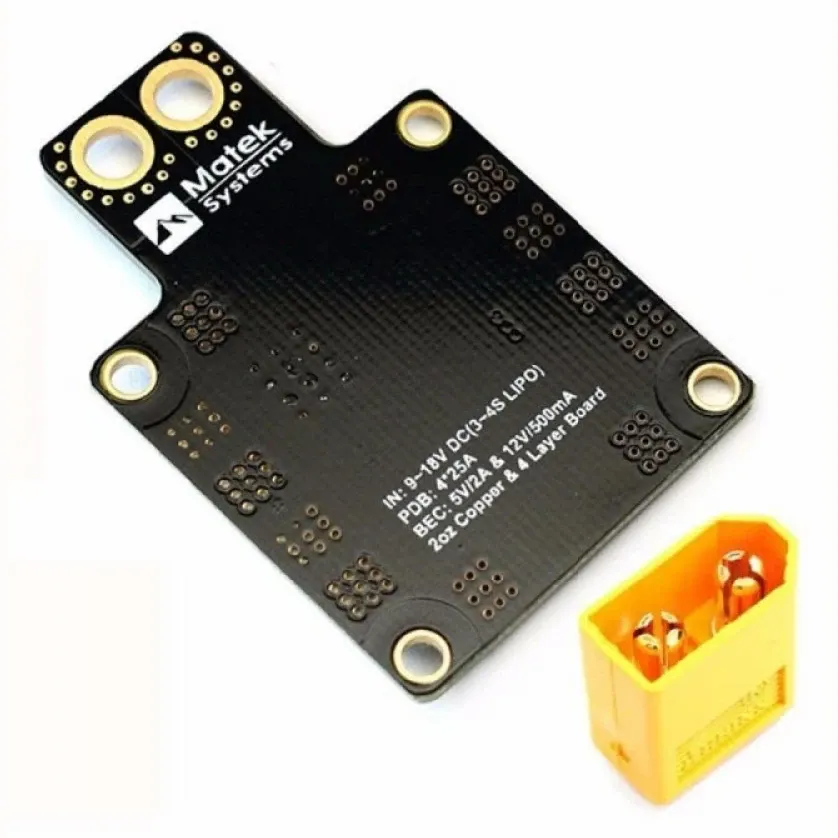

PCB: 4-layer, 2 oz copper, 1.6 mm, with 5V/12V LED indicators
Size: 50 x 36 mm
In the box: PDB, XT60 male connector
