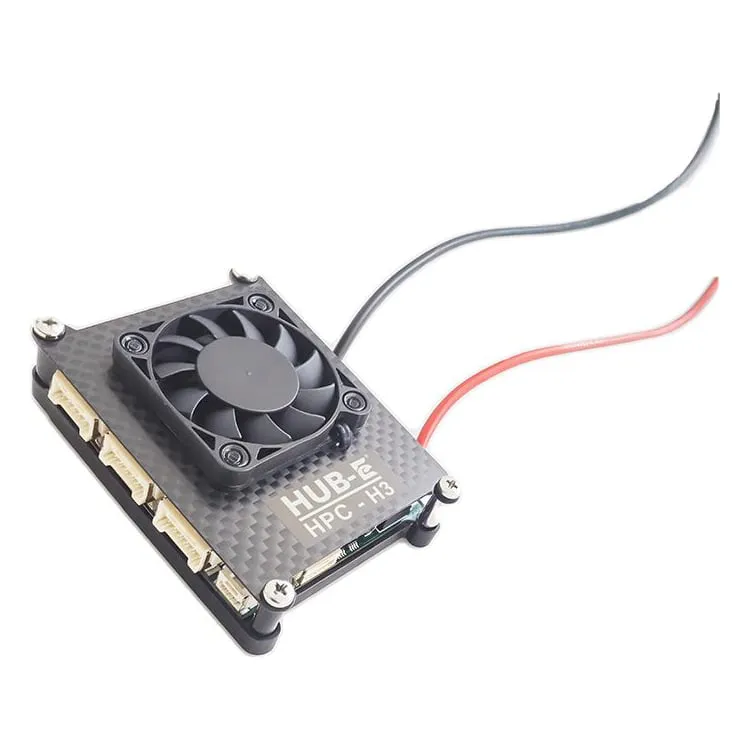

HUB-E HPC-3 Power Cube

The HUB-E HPC-3 Power Cube is a power distribution module for larger UAVs running power-hungry flight controllers and peripherals. It accepts 4S to 14S input and regulates it down to two output rails, so heated IMUs, optical flow sensors, GPS, telemetry radios, gimbals and cameras can all run from one board instead of separate BECs.

Key features

• Wide 4S-14S input range suits large multirotor and industrial UAV battery packs.
• Two regulated outputs, 5.3V at 10A and 12.0V at 10A, cover mixed-voltage peripherals from a single module.
• Separate 5V, 0.5A sensor rail feeds low-current sensors without loading the main outputs.
• Built-in 40 x 40 x 6mm cooling fan keeps the regulators within temperature under sustained load.

Specifications

• Brand: HUB-E
• Input voltage: 4S-14S
• Output 1: 5.3V / 10A
• Output 2: 12.0V / 10A
• Sensor output: 5V / 0.5A
• Cooling: Integrated 40 x 40 x 6mm fan

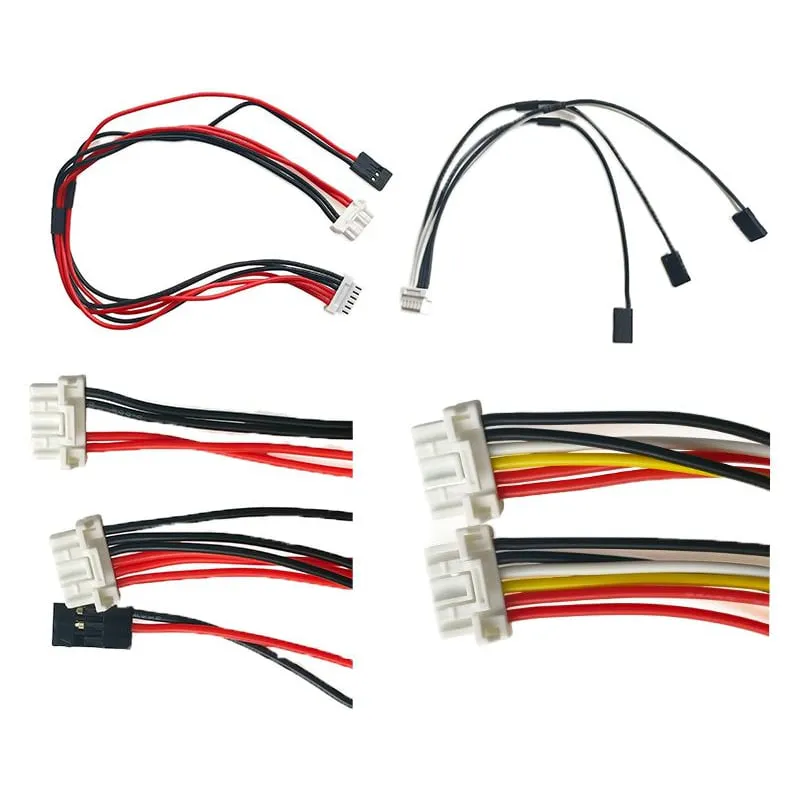

Supplied with a set of power cube cables, this module suits industrial and survey multirotors that need to run several high-power flight-controller peripherals from one well-regulated board.
