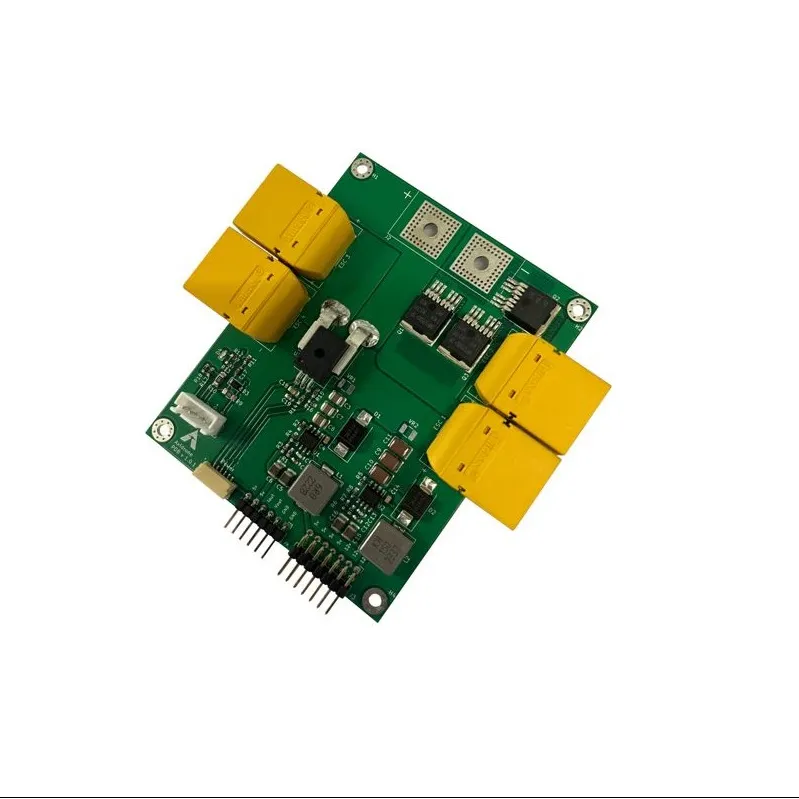

Axldrone Power Distribution Board 200A

The Axldrone 200A Power Distribution Board is engineered for large-scale multirotor and UAV builds that demand sustained, high-amperage power delivery. Designed to support heavy-lift cinelifters, agricultural drones, and custom X-Class rigs, this heavy-duty PDB safely routes power from high-capacity LiPo batteries to oversized motors and standalone ESCs.

Key features

• 200A continuous current rating for industrial and heavy-lift platforms

• Four XT90 outputs, each rated 50A, feed the ESCs and motors

• High-mass copper traces to minimise voltage drop and thermal buildup under heavy electrical loads

• Built-in 5V 5A and 12V 5A DC-DC converters power the flight controller and onboard electronics

• Analogue battery voltage and current sensor outputs for flight controllers such as Pixhawk and Cube Orange

Specifications

• Maximum current: 200 A

• ESC outputs: 4x XT90, 50 A each

• Regulated outputs: 5 V 5 A and 12 V 5 A on 2.54 mm header terminals

• Current sensing: up to 200 A, analogue output

• Switching: anti-spark soft switching for inductive loads

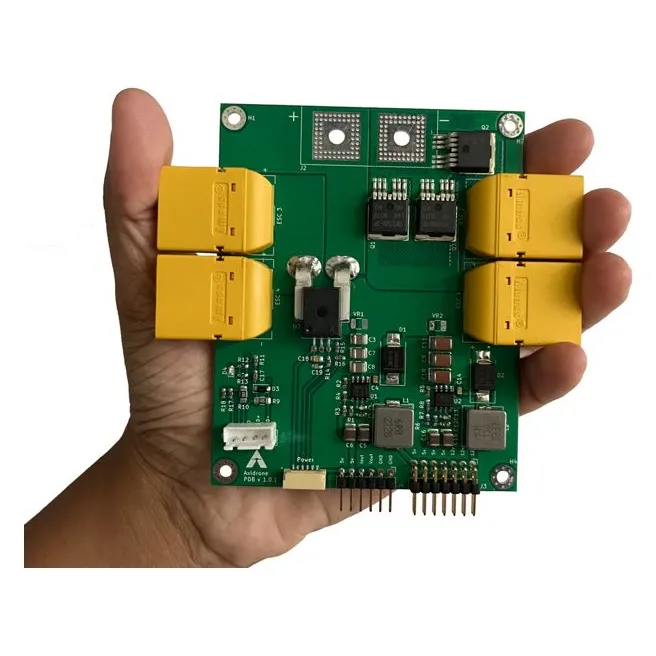

• Dimensions: 105 x 105 x 12 mm

• Weight: approx. 90 g

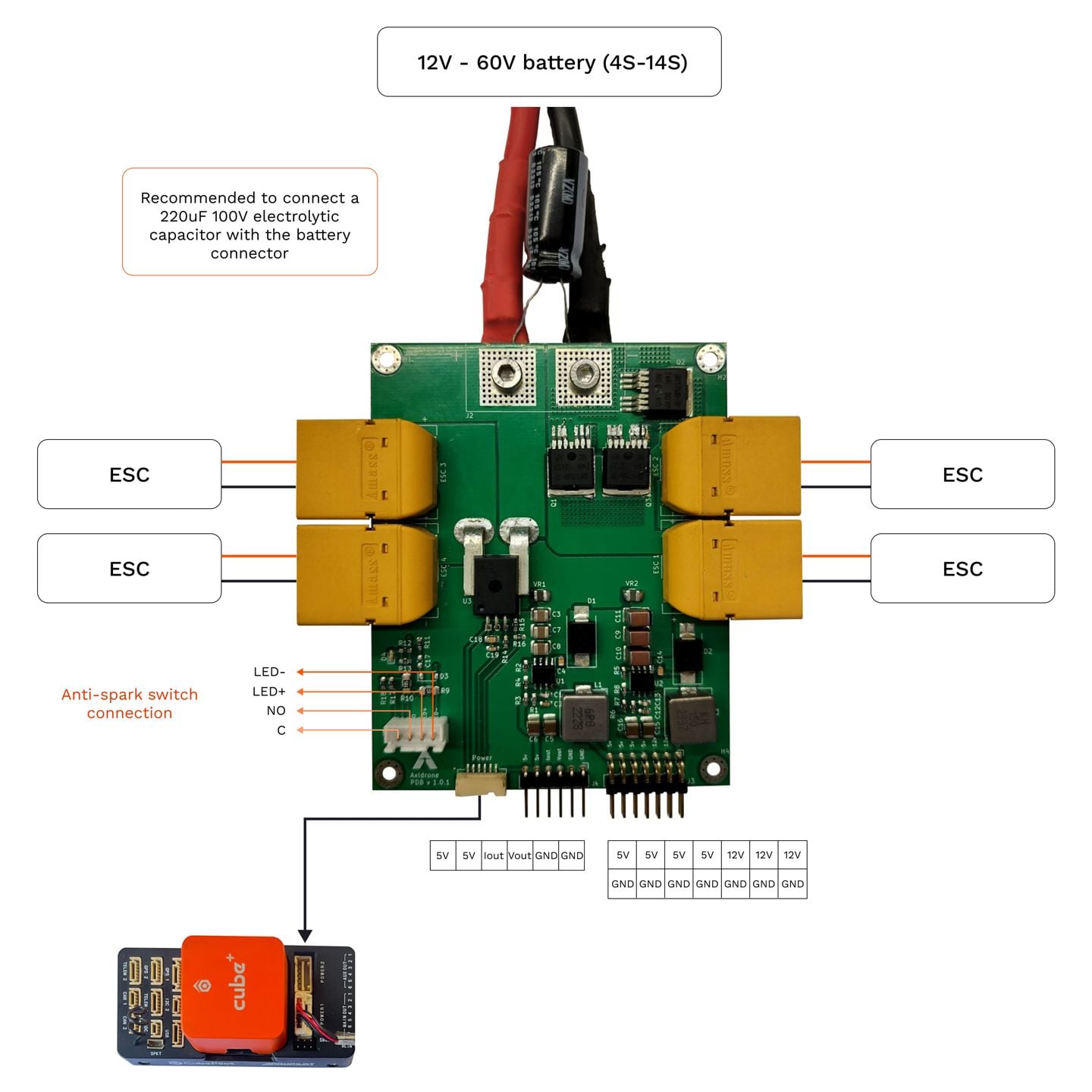

• In the box: PDB, 220 uF 100 V electrolytic capacitor

For optimal performance, pair this board with heavy-gauge silicone wire and ensure all connections are solidly soldered to fully support the 200A continuous rating without bottlenecking your power system.
